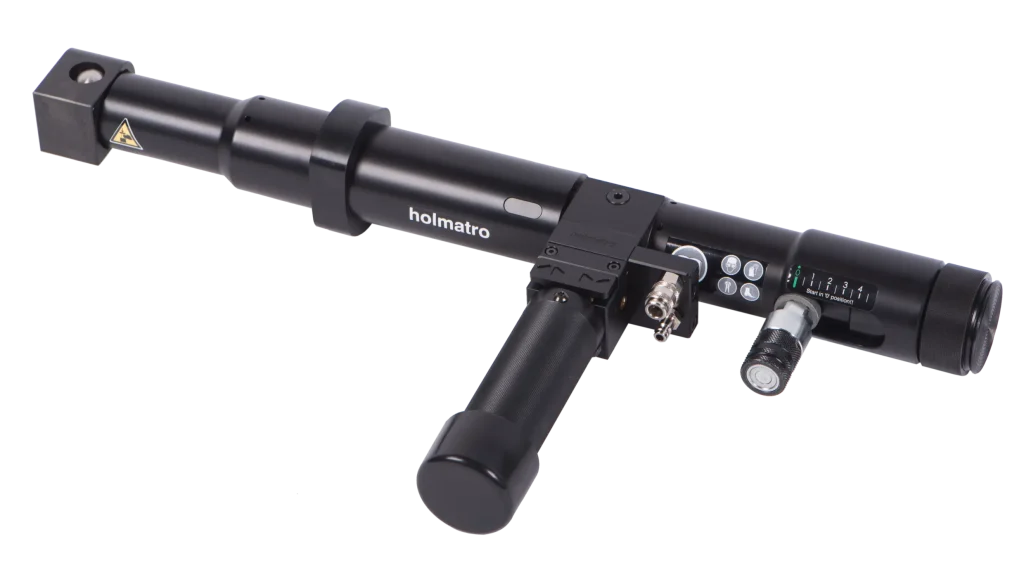

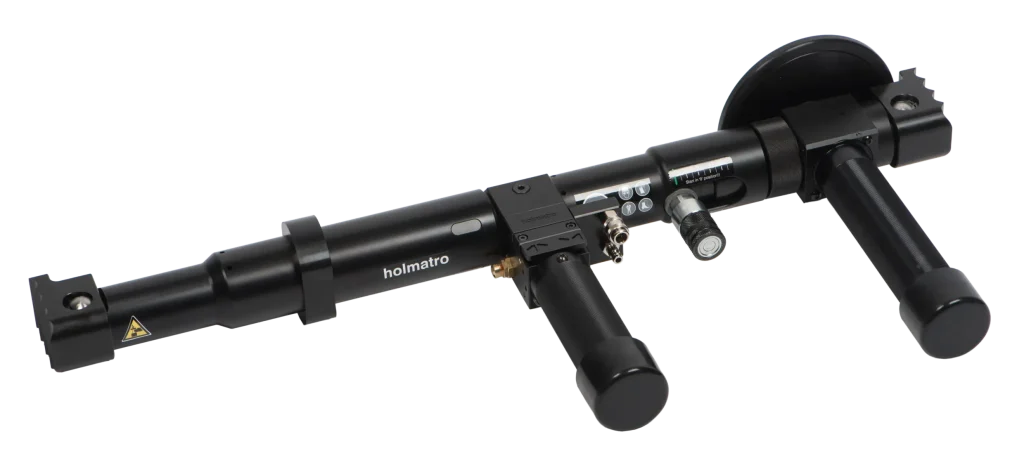

Door Blaster HDB 90 ST
| spreading stroke: | 40 mm |
| spreading stroke: | 1.6 in |
| weight, ready for use: | 10.8 kg |
| weight, ready for use: | 23.8 lb |
Features & benefits

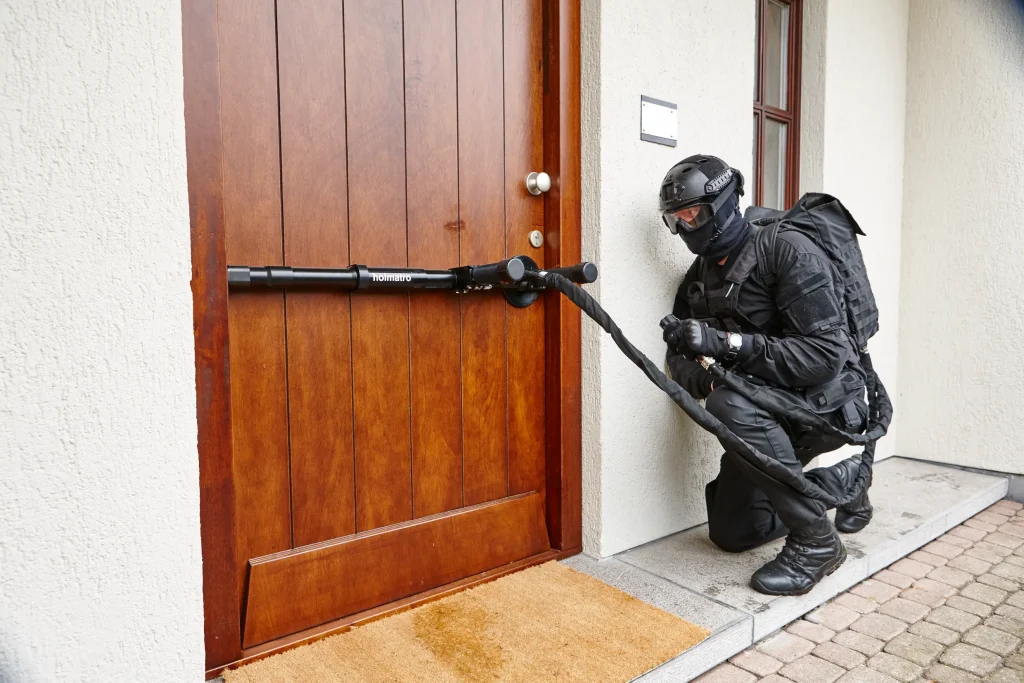

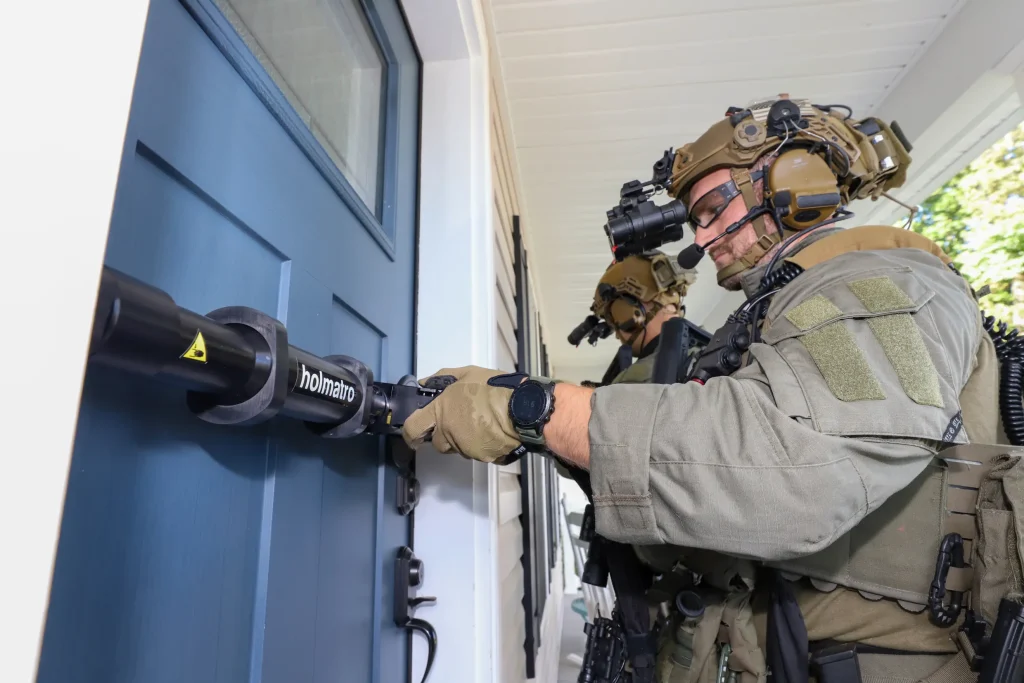

- Suitable for use on high-resistance, multiple lock, inward opening doors
About the Door Blaster HDB 90 ST
Specifications
Details
Article number
150.006.850
Basic specifications
model
HDB 90 ST
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
max. spreading force
11465 lbf
spreading stroke
40 mm
spreading stroke
1.6 in
max. length excl. extension pieces
930 mm
max. length excl. extension pieces
36.6 in
max. length incl. extension pieces
1230 mm
max. length incl. extension pieces
48.4 in
max. spreading force
51 / 5.2 (kN/t)
max. pushing force
8543 lbf
max. pushing force
38 / 3.9 (kN/t)
Dimensions, weight and temperature
weight, ready for use
10.8 kg
weight, ready for use
23.8 lb
dimensions (AxBxC)
760 x 300 x 85 mm
dimensions (AxBxC)
29.9 x 11.8 x 3.3 in
Features
Powerful
- Suitable for use on high-resistance, multiple lock, inward opening doors
Extremely fast and quiet operation
- As fast as explosives, without flying debris
- Opens a door in seconds
- Pneumatic-hydraulic drive: no sound from the pump

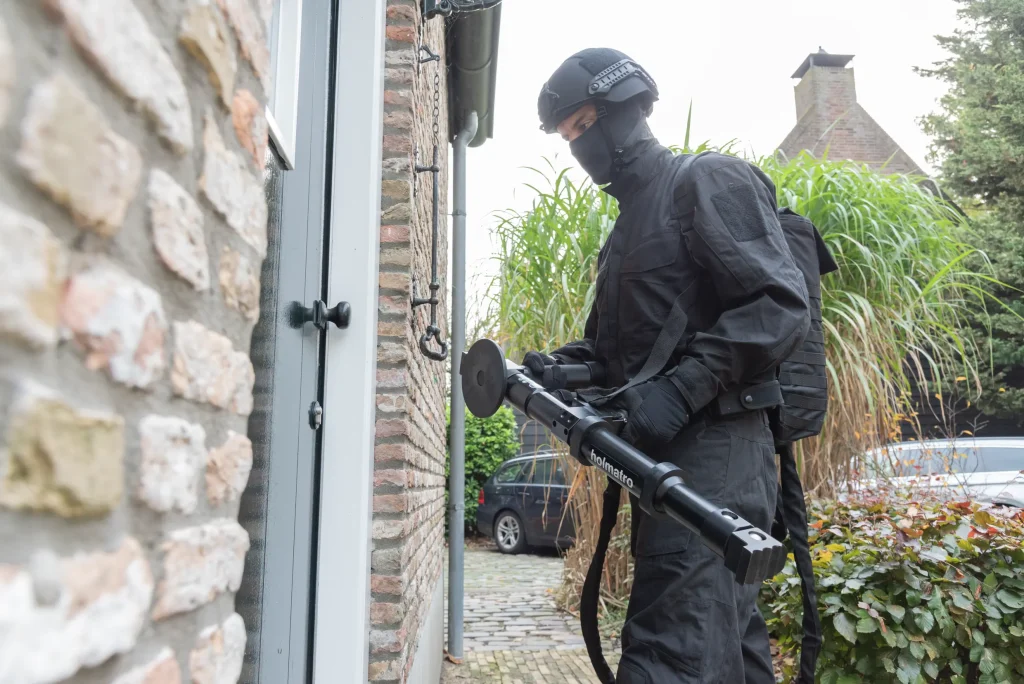

Lightweight with compact dimensions
- Carrying, installation and operation by one person; saves manpower
- Limits risk of making noise by knocking into things

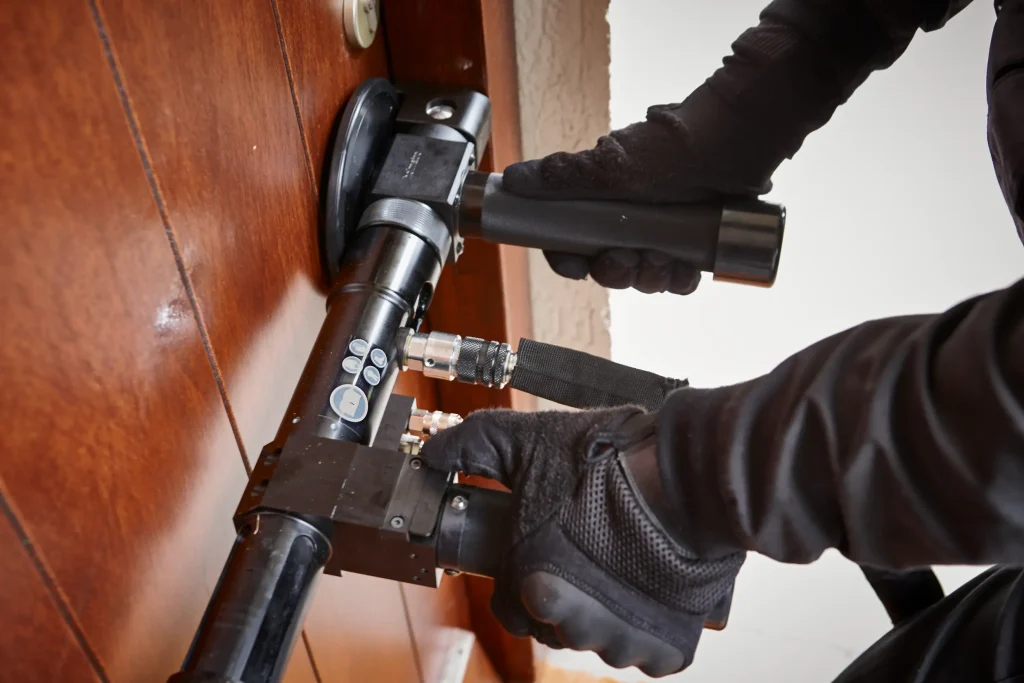

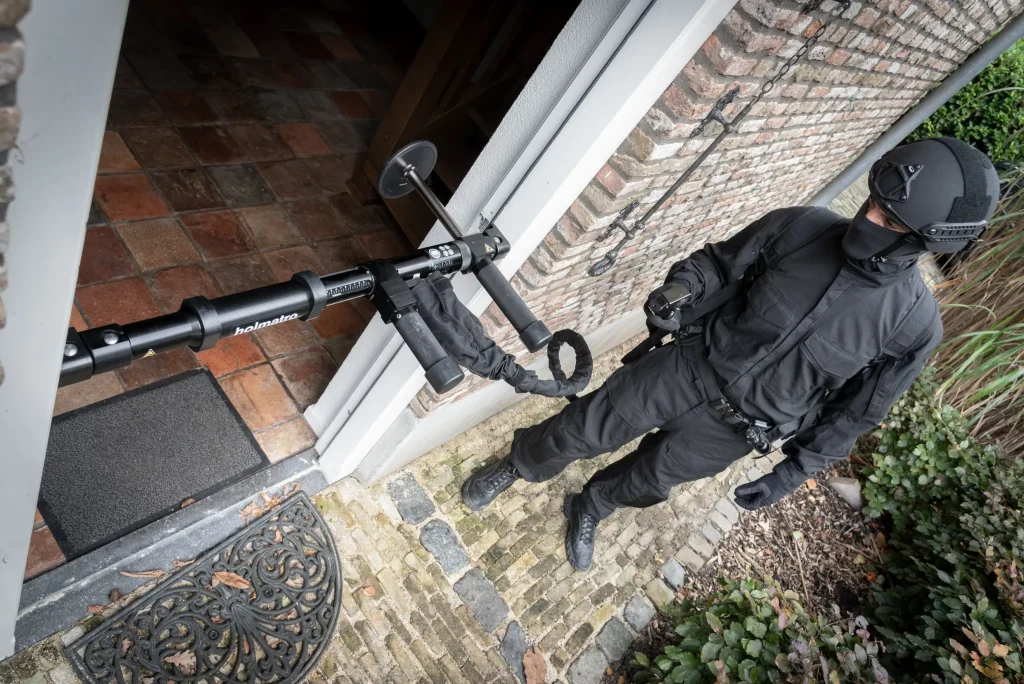

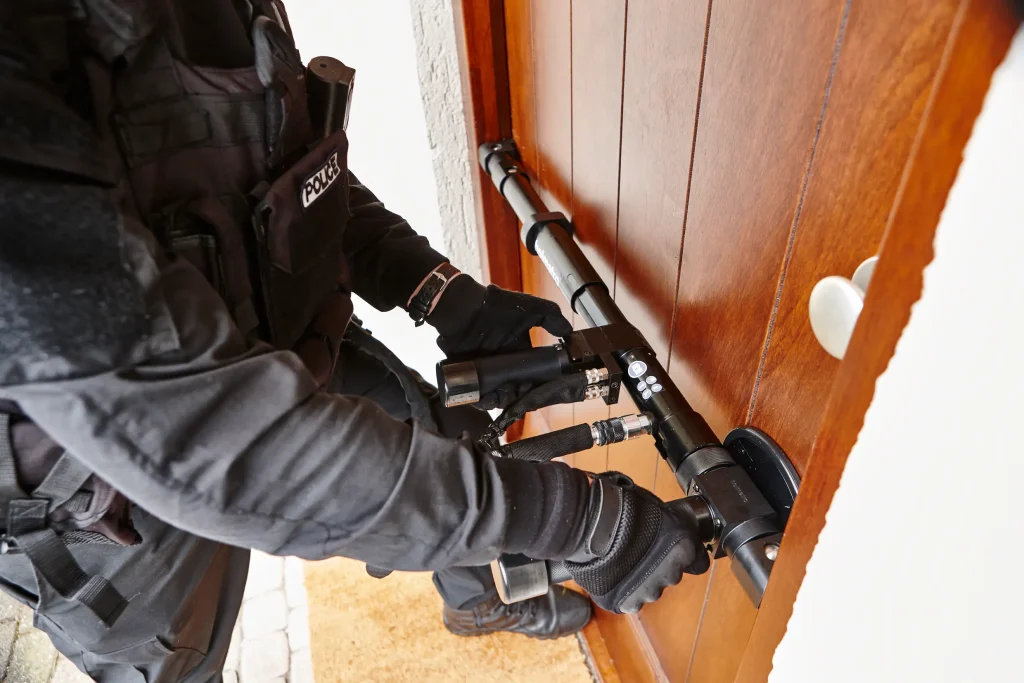

Push button on door opener for clamping it into door frame
- Quick, quiet and easy installation

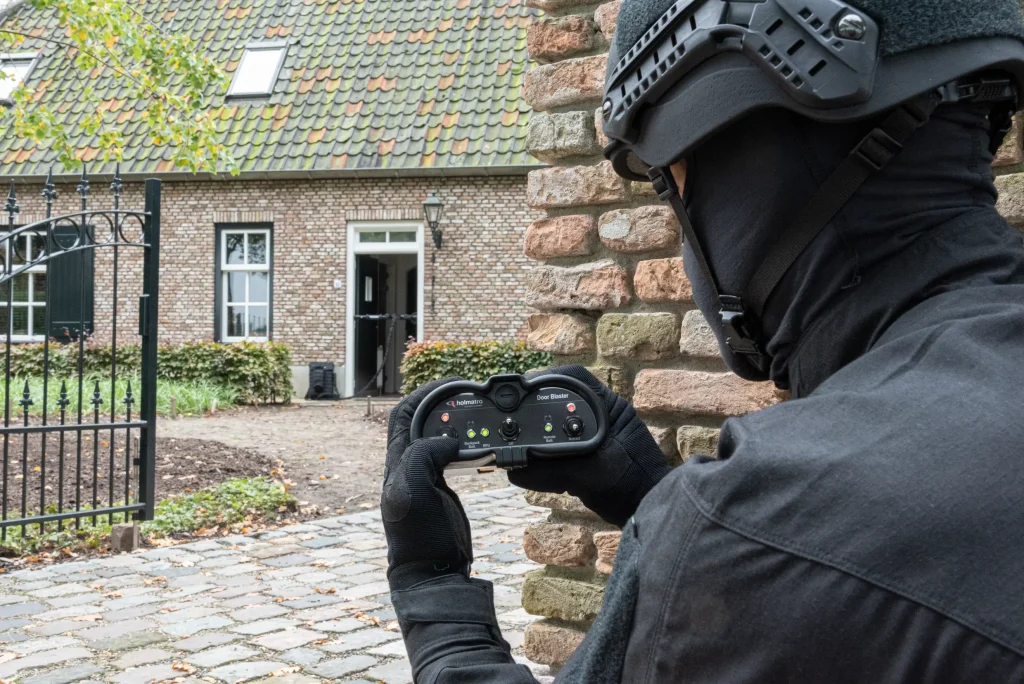

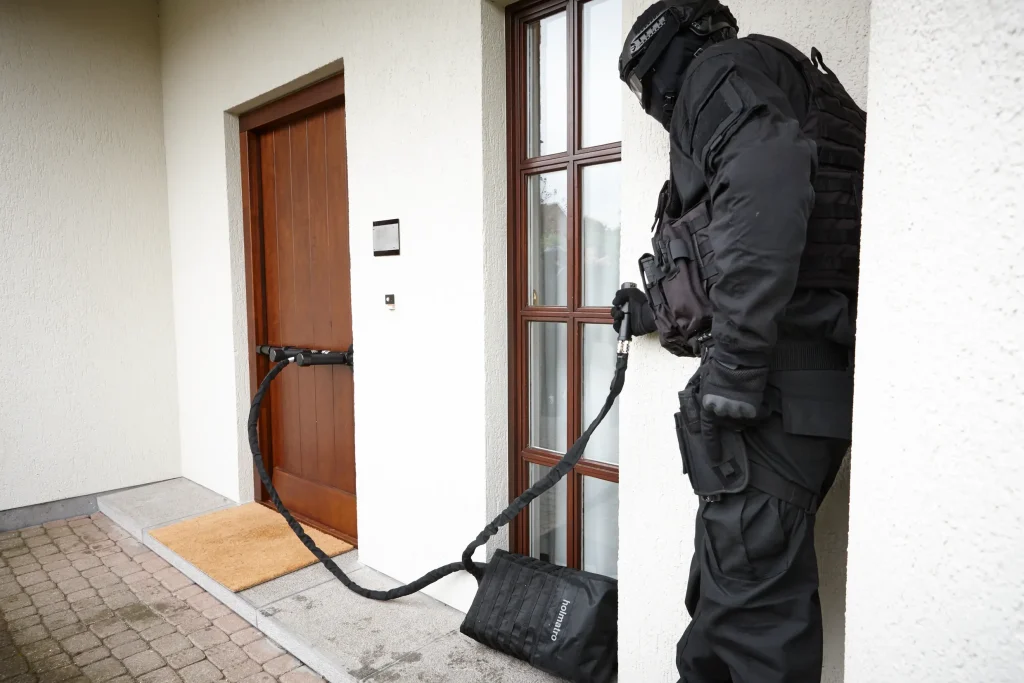

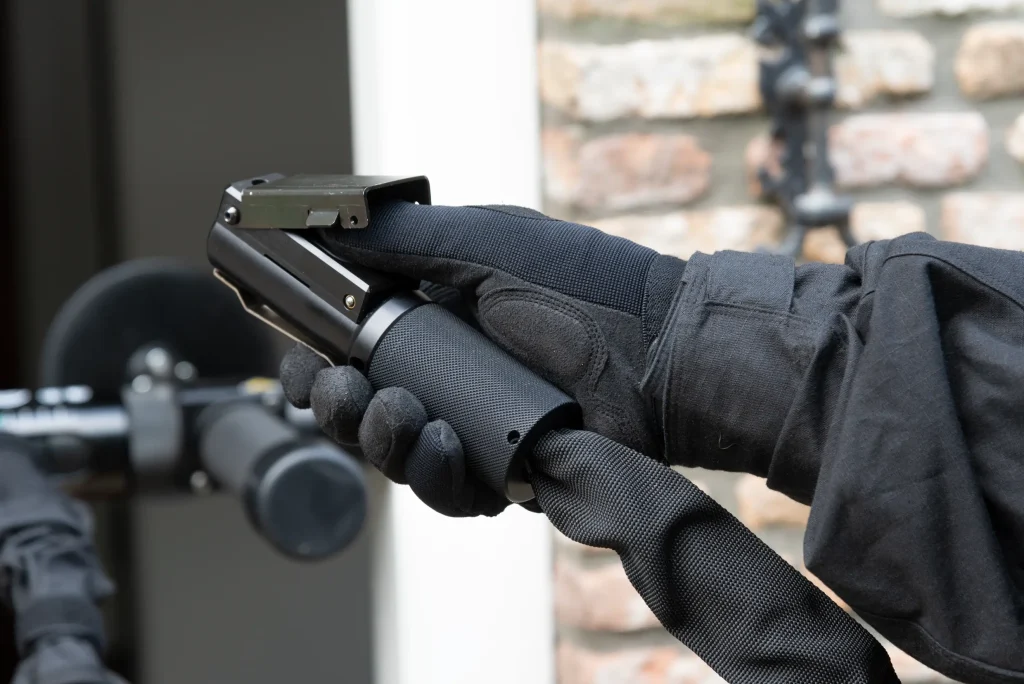

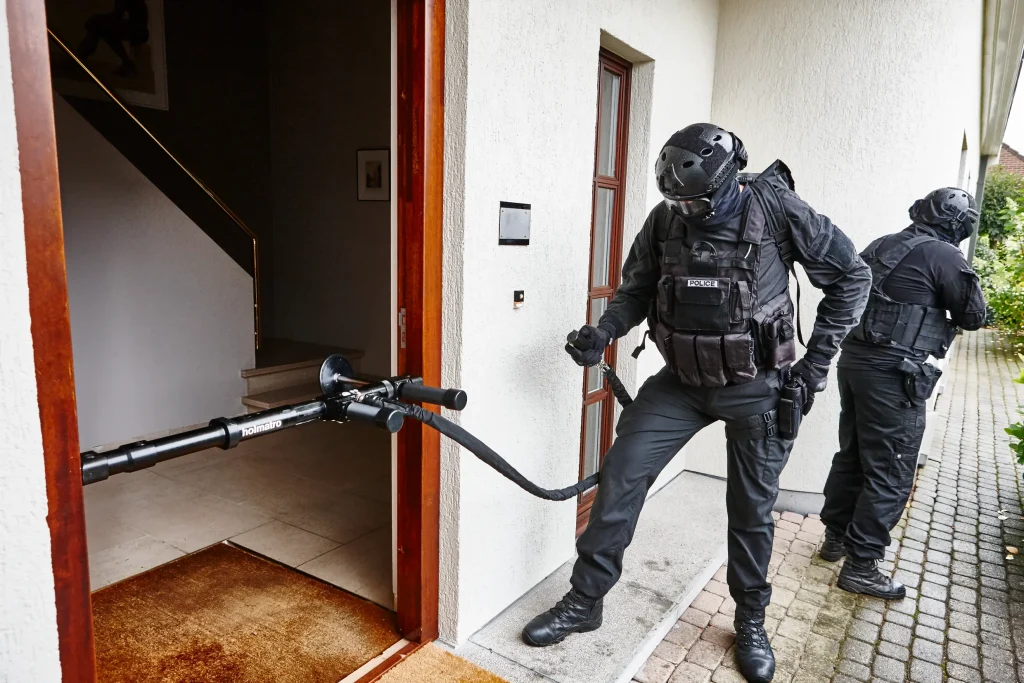

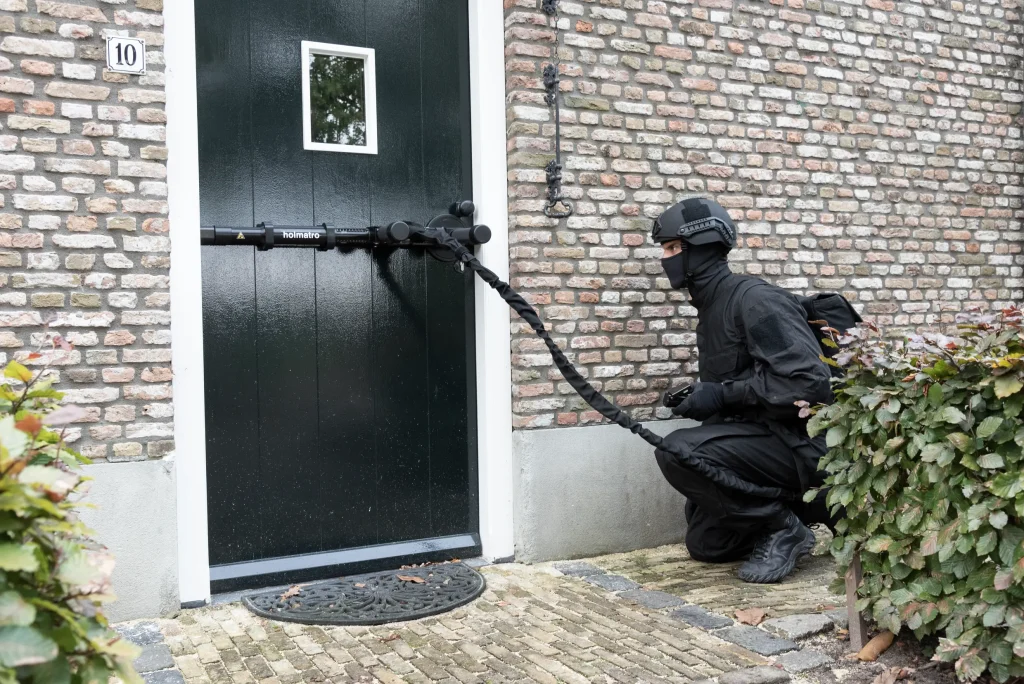

Remote operation
- Choice between using mounted control on 2 m. / 79 in. hose (part of Door Blaster Pack) or the separate Wireless Control Set (radio range: 100 m. / 328 ft. clear line of sight)
- To activate door opener from a distance
- To quickly release door opener from a distance
- Enhances operator safety
Repetitive use possible
- No interruption of your operation
