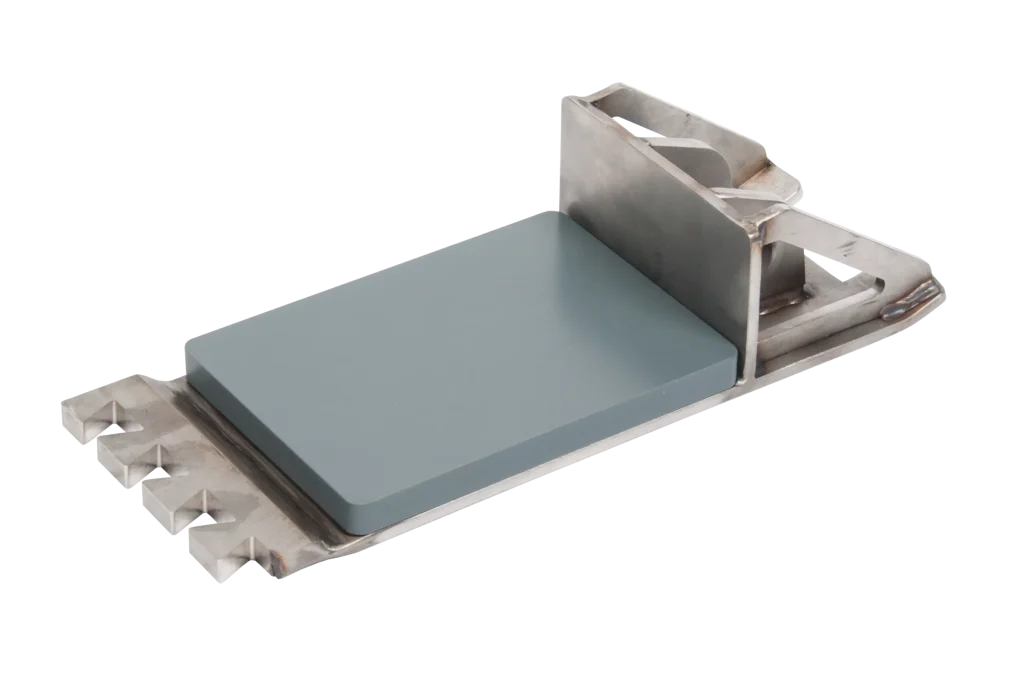

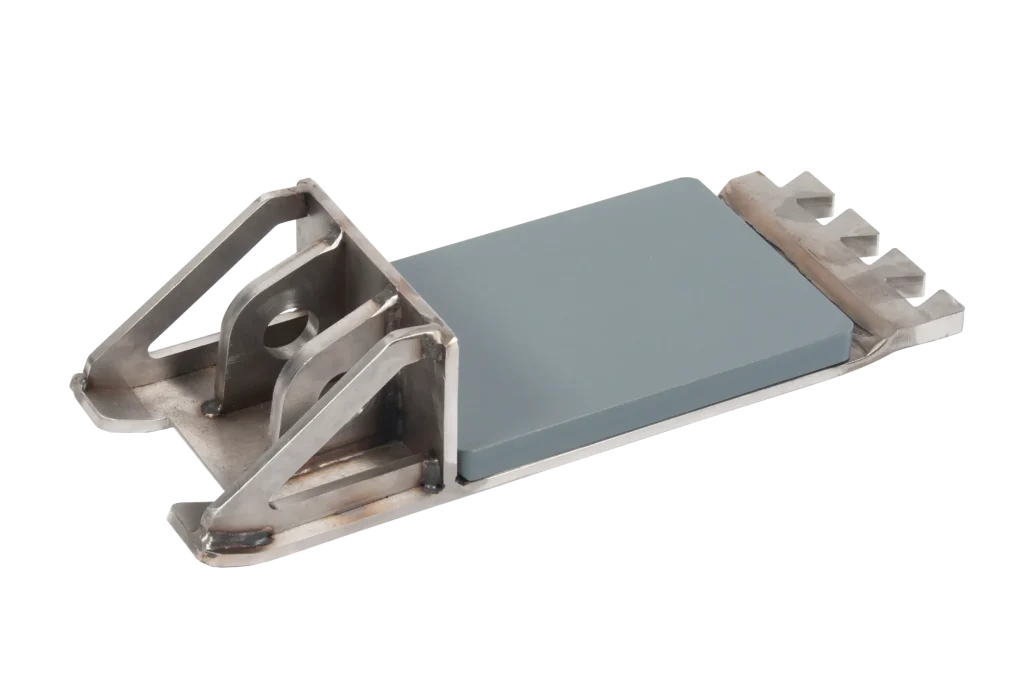

Push-Pull Bracket SPPB-LW
Features & benefits
- Efficient when there is limited insertion space
About the Push-Pull Bracket SPPB-LW
Specifications
Details
Article number
100.003.315
Basic specifications
model
SPPB-LW
Dimensions, weight and temperature
weight, ready for use
9.5 kg
weight, ready for use
20.9 lb
Technical drawing dimensions
dimension A
472 mm
dimension A
18.6 in
dimension B
179 mm
dimension B
7 in
dimension C
28 mm
dimension C
1.1 in
dimension D
106 mm
dimension D
4.2 in
dimension E
366 mm
dimension E
14.4 in
dimension F
50 mm
dimension F
2 in
Features
Low construction height; total height is 56 mm (2.20 inches)
- Efficient when there is limited insertion space
Lightweight components with optimally placed grips
- Easy to carry, handle, position and assemble by one or two persons (no forklift needed)
- Reduces the physical burden
- Maximum performance at a minimum weight
Modular system
- Easy to adapt to different load sizes and projects
- Plug and play; easy to assemble without the use of extra equipment
