200 ton Skidding System - Light Weight
Skidding Systems

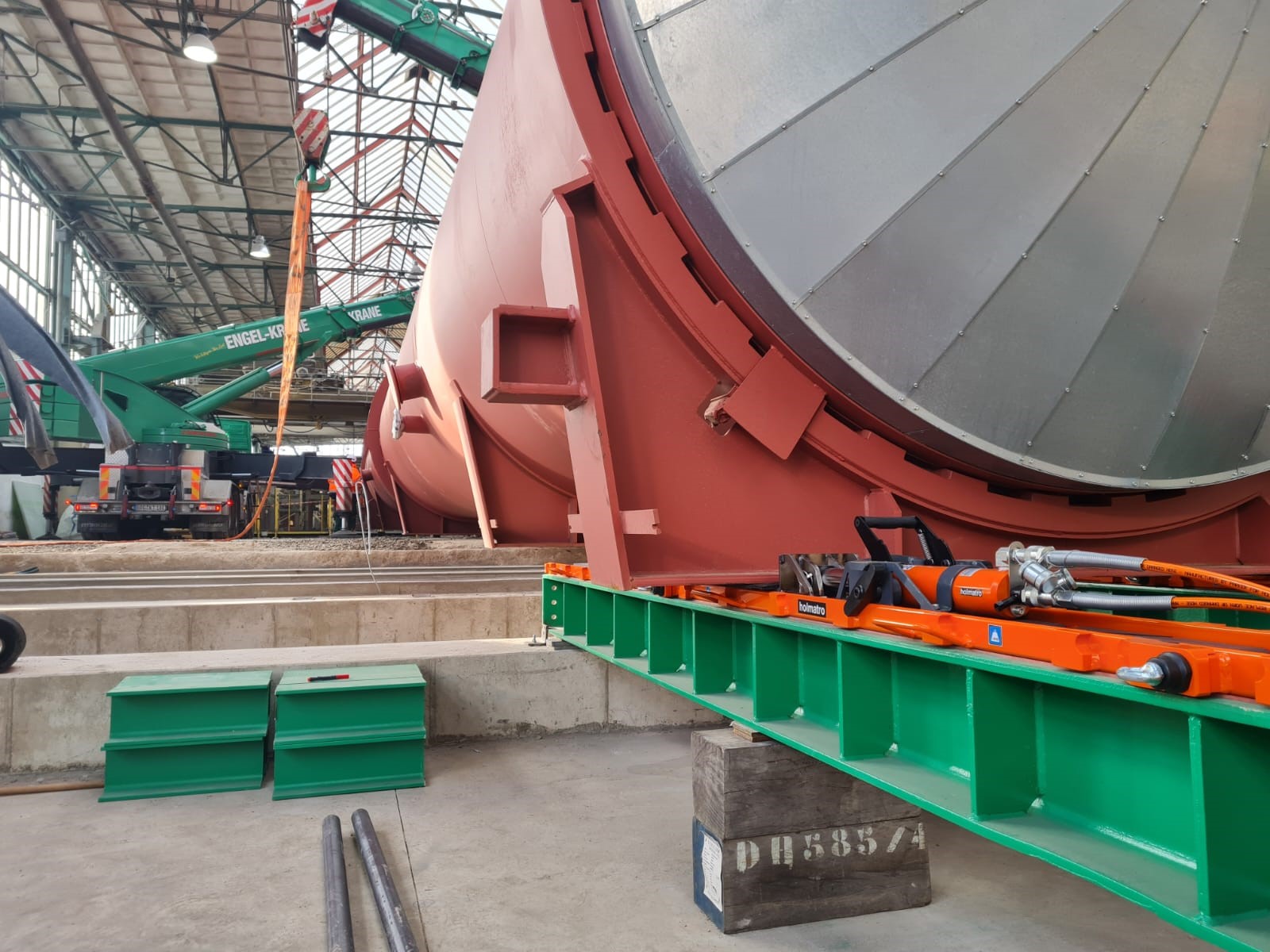

Holmatro's 200Ton Skidding System is exceptionally lightweight and designed for loads up to 200 tons. It boasts an impressively low construction height and consists of lightweight components, enabling easy usage without the need for additional lifting tools like a forklift. The 200-ton Skidding System is ideal for moving objects in situations with limited insertion space.
Beam SB-LW 1
Beam SB-LW 1.8
Extension Hose – With Couplers – VL 20 SOU – 20M
High Beam SHB-LW 1.2
High Beam SHB-LW 1.8
Push-Pull Bracket SPPB-LW
Push-Pull Unit SPPU-LW
Skidding Twin Pump 09 T 12 E + Trolley
Skidding Twin Pump 09 T 12 F + Trolley
Track ST-LW
The advised 200Ton Skidding system starter kit includes:
8 tracks
2 beams of 1 meter
2 beams of 1.8 meters
2 push-pull units
2 push-pull brackets
4 hoses,
Twin pump on a trolley
Storage frame.
The tracks are easy to connect to each other by means of a click system (no bolting). Stainless steel beams are placed in the tracks. With a handle on the push-pull unit the push or pull direction of Holmatro’s lightweight Skidding System can be switched in a split of a second. The return line of the push-pull cylinders is internal, which significantly reduces the chances of this being damaged. Because the supply and return couplers are positioned next to each other on the back side of the cylinder due to the use of the internal return line, the hoses needed for ingoing and outgoing oil are of equal length. The Skidding System is driven by a powerful hydraulic twin (split flow) pump.
Holmatro has developed extra high beams (optional) for situations where the contact surface of loads do not entirely fit on the front side of the push-pull unit. These form fit the standard beams, so that the total weight is optimally distributed across the entire system.
