Cylinder Accessories
Hydraulic System Components
These accessories are designed specifically for the Multi-Purpose Cylinders (HGC), allowing you to enhance the capabilities of your 10/15/25 ton HGC cylinders. These accessories are specially designed to ensure safety, stability, increased height, and improved gripping, enabling you to adapt the cylinders for a wide variety of applications.

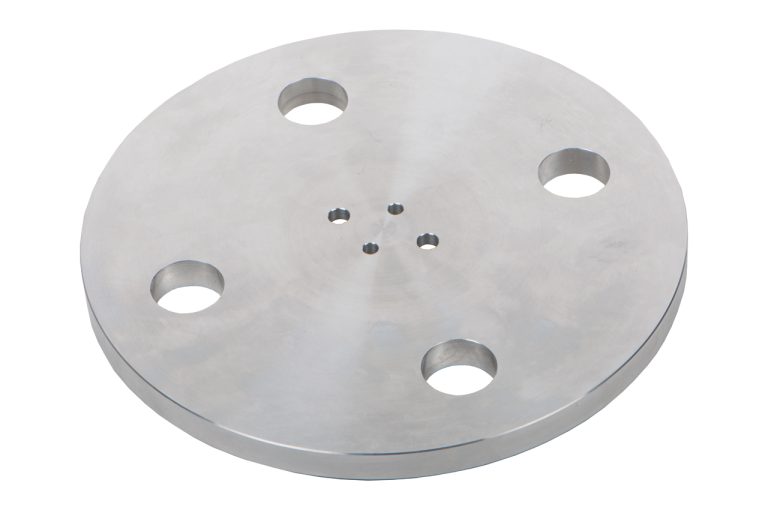

Aluminium Base Plate HGC 5 / 10
Aluminium base plate
• Suitable for HGC 5 and HGC 10
• Max. working pressure: 720 bar
• Standard supplied with 2x bolt …

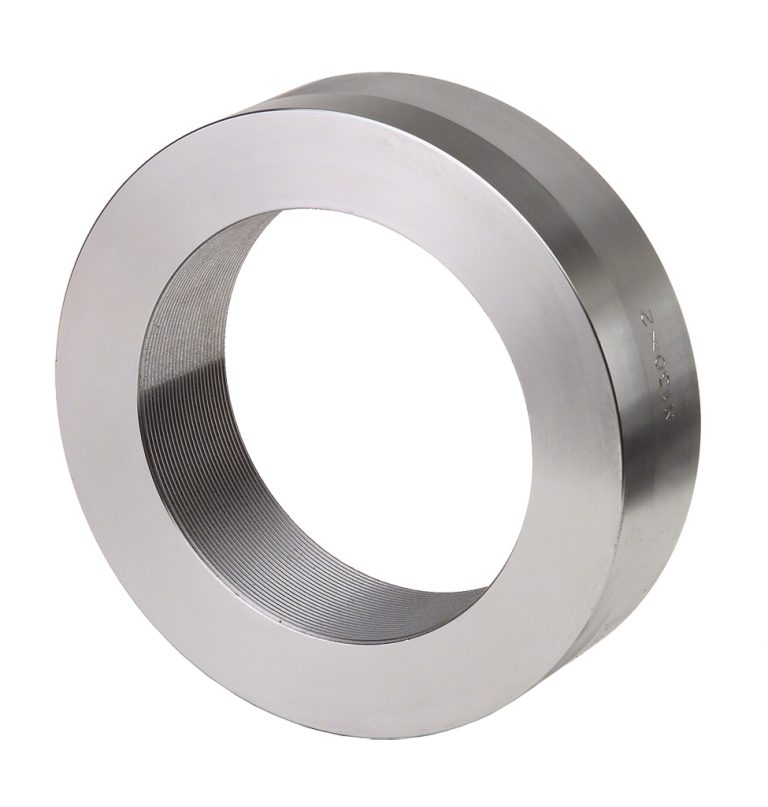

Assembly / Welding Ring HCJ 50
Assembly / Welding Ring
• Suitable for HCJ 50 cylinders
• Thread size: M130x2
• Max. working pressure: 720 bar
Assembly / Welding Ring HGC 10
Assembly / Welding Ring
• Suitable for HGC 10 cylinders
• Thread size: 2¼”-14 UNS
• Max. working pressure: 720 bar
Assembly / Welding Ring HGC 25
Assembly / Welding Ring
• Suitable for HGC 25 cylinders
• Thread size: 3 5/16″-12 UN
• Max. working pressure: 720 bar
Assembly / Welding Ring HGC 5
Assembly / Welding Ring
• Suitable for HGC 5 cylinders
• Thread size: 1½”-16 UN
• Max. working pressure: 720 bar
Assembly / Welding Ring HGC 50
Assembly / Welding Ring
• Suitable for HGC 50 cylinders
• Thread size: 5″-12 UN
• Max. working pressure: 720 bar
Connection Nipple HGC 10
Connection nipple
• To connect accessories to cylinders
• Suitable for HGC 10 and HCJ 10 cylinders
• Thread size: 1¼” NPT male …
Connection Nipple HGC 25
Connection Nipple
• To connect accessories to cylinders
• Suitable for HGC 25 and HCJ 25 cylinders
• Thread size: 2″ NPT male …
Connection Socket HGC 10
Connection socket
• To connect 2 extension tubes
• Suitable for HGC 10 and HCJ 10 cylinders
• Thread size: 1¼” NPT female …
Connection Socket HGC 25
Connection socket
• To connect 2 extension tubes
• Suitable for HGC 25 and HCJ 25 cylinders
• Thread size: 2″ NPT female …
Cross Head HGC 10
Cross head
• To provide better grip
• Suitable for HGC 10 and HCJ 10 cylinders
• Thread size: 1¼” NPT female
• Max. …
Cross Head HGC 25
Cross head
• To provide better grip
• Suitable for HGC 25 and HCJ 25 cylinders
• Thread size: 2″ NPT female
• Max. …
