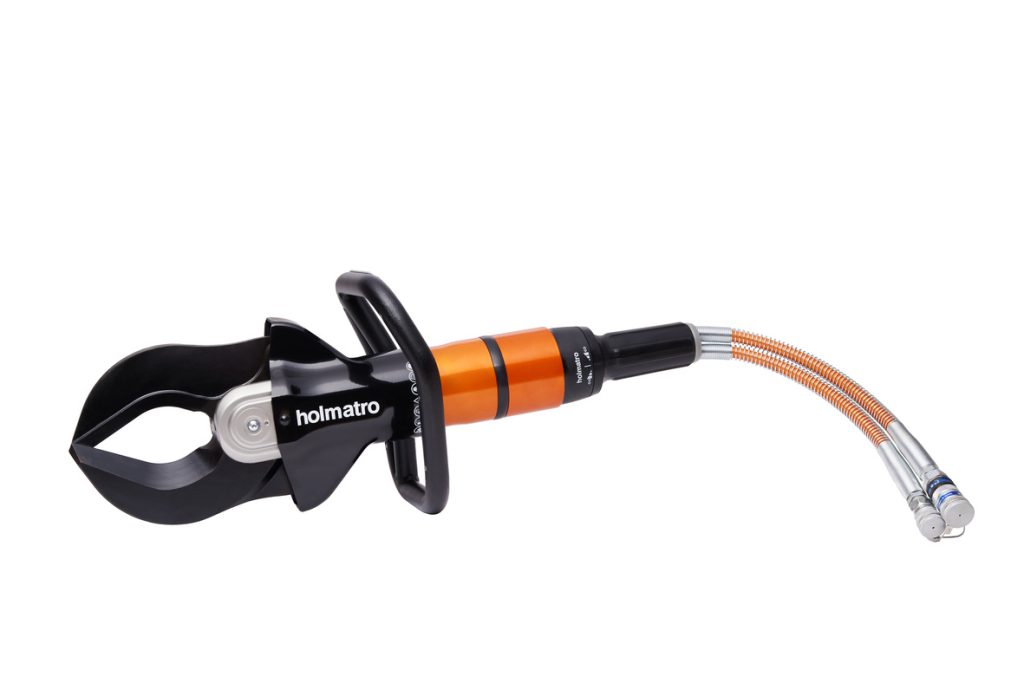

Mobile Cutter HMC100A30
Features & benefits
- Controlled cutting action with minimum vibration and noise, eliminating the risk of sparks.
- Tools can be operated by using both hands, enhancing safety during cutting tasks.
About the Mobile Cutter HMC100A30
Specifications
Details
Article number
101.003.218
Basic specifications
model
HMC100A30
max. working pressure
7252 psi
blade type
30 standard
cutter type
mobile
max. working pressure
500 / 50 (bar/Mpa)
battery included
no
application
Car recycling, Decommissioning, Demolition, Metal/scrap recycling
Performance
max. cutting force
557 kN / 56.8 t / 557 / 56.8 (kN/t)
max. cutting force
125219 lbf
max. cutting opening
170 mm
max. cutting opening
6.7 in
General specifications
required oil content (effective)
189 cc
required oil content (effective)
6.4 oz
Dimensions, weight and temperature
weight, ready for use
14.4 kg
weight, ready for use
31.7 lb
dimensions (LxWxH)
712 x 269 x 276 mm
dimensions (LxWxH)
28 x 10.6 x 10.9 in
temperature range
-20 +55 °C
temperature range
-4 +131 °F

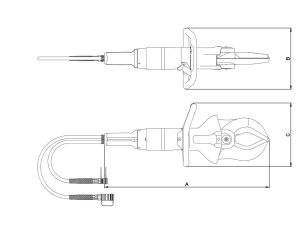

Technical drawing dimensions
dimension A
712 mm
dimension A
28 in
dimension B
269 mm
dimension B
10.6 in
dimension C
276 mm
dimension C
10.9 in
Cutting performance
max. cutting diameter round bar (S235 acc. to EN 10025-2)
26 mm
max. cutting diameter round bar (S235 acc. to EN 10025-2)
1 in
max. cutting diameter round tube (E235 acc. to EN 10305-1) based on wall thickness 3mm/0,12in.
80 mm
max. cutting diameter round tube (E235 acc. to EN 10305-1) based on wall thickness 3mm/0,12in.
3.1 in
catalytic converter
95 %
number of cuts per day
100
number of operating hours per day
8
Features
SAFE
- Controlled cutting action with minimum vibration and noise, eliminating the risk of sparks.
- Tools can be operated by using both hands, enhancing safety during cutting tasks.
- The dead man's function is to immediately stop the operation when hands are released.
- Guarded moving parts to further minimize the risk of accidents.
DURABLE & RELIABLE
- Made from high-grade aluminum, without compromising on durability.
- Flat central I-bolt construction minimizes blade separation, enhancing the cutting performance and providing easier access in narrow spaces.
- Central I-bolt and hinge pins equipped with grease nipples for easy maintenance.
- Proven dual-hose technology, couplers equipped with a locking ring.
ERGONOMIC:
- Engineered with high-grade aluminum, combining lightness and durability
- The ultimate balance of cutting force & weight: performance without compromise.
- New control handle, improved ergonomic design, offering better grip for optimal tool control.
- Ergonomic 360° carrying handle design increases operator comfort in various working positions.
