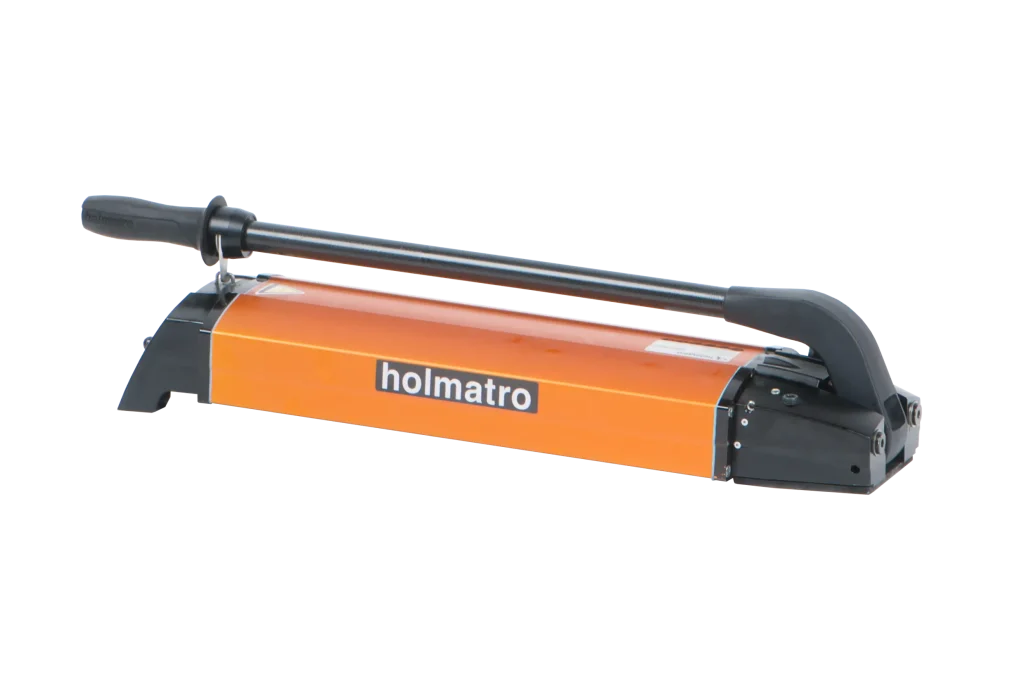

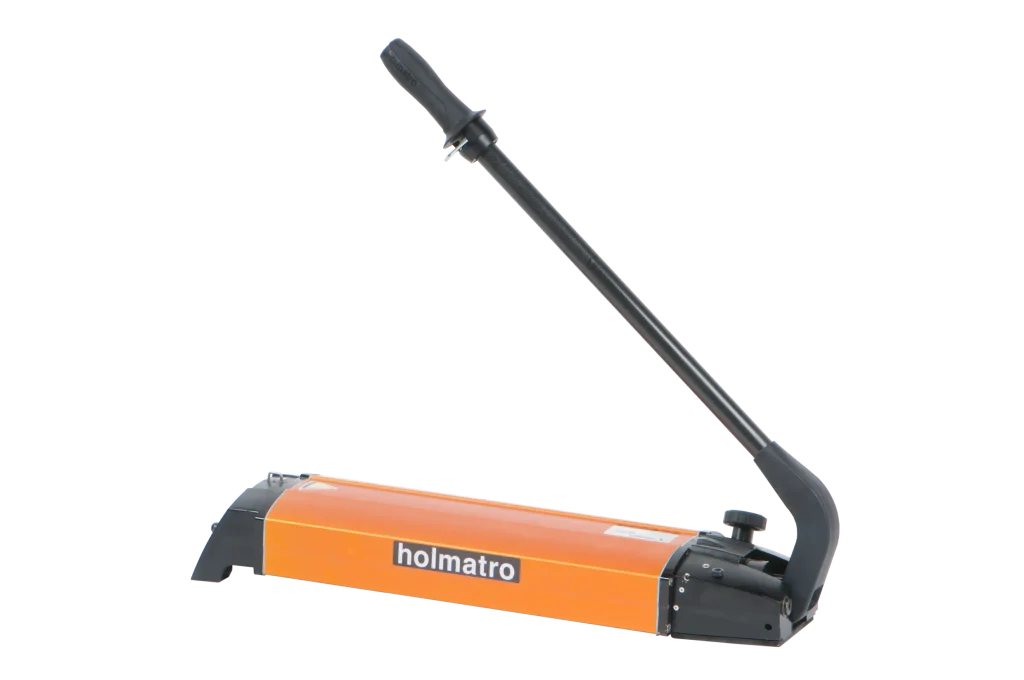

Hand Pump PA 38 H 2
About the Hand Pump PA 38 H 2
Specifications
Details
Article number
100.142.037
Basic specifications
model
PA 38 H 2
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
number of stages
2
second stage pressure range
45 - 720 / 4.5 - 72 (bar/Mpa)
first stage pressure range
0 - 45 / 0 - 4.5 (bar/Mpa)
first stage output (per stroke)
42.8 cc
second stage output (per stroke)
3.1 cc
first stage output (per stroke)
1.45 oz
second stage output (per stroke)
0.1 oz
max. operating force
35 kg
max. operating force
77.2 lb
capacity oil tank
4150 cc
capacity oil tank (effective)
3800 cc
capacity oil tank
140.3 oz
capacity oil tank (effective)
128.5 oz
first stage pressure range
0 - 653 psi
second stage pressure range
653 - 10443 psi
General specifications
operator type
hand
connection
3/8" NPT female
double acting optional
yes
Dimensions, weight and temperature
weight, ready for use
11.4 kg
weight, ready for use
25.1 lb
Technical drawing dimensions
dimension A
700 mm
dimension A
27.6 in
dimension B
183 mm
dimension B
7.2 in
dimension C
175 mm
dimension C
6.9 in
Features
Ergonomic design (1,2)
Lightweight; easy to carry and operate
Low operating force required; minimal user effort
Push & Unlock pump handle lock
Service- and maintenance-friendly
High oil output; quicker action both in the first and second stage
Accurately adjustable pressure release valve (4)
Pressure gauge connection on the pump block (5)
Oil level glass in the tank; check the oil level in both horizontal and vertical position (6)
Integrated filler funnel; top up oil easily and quickly without extra accessories (7)
