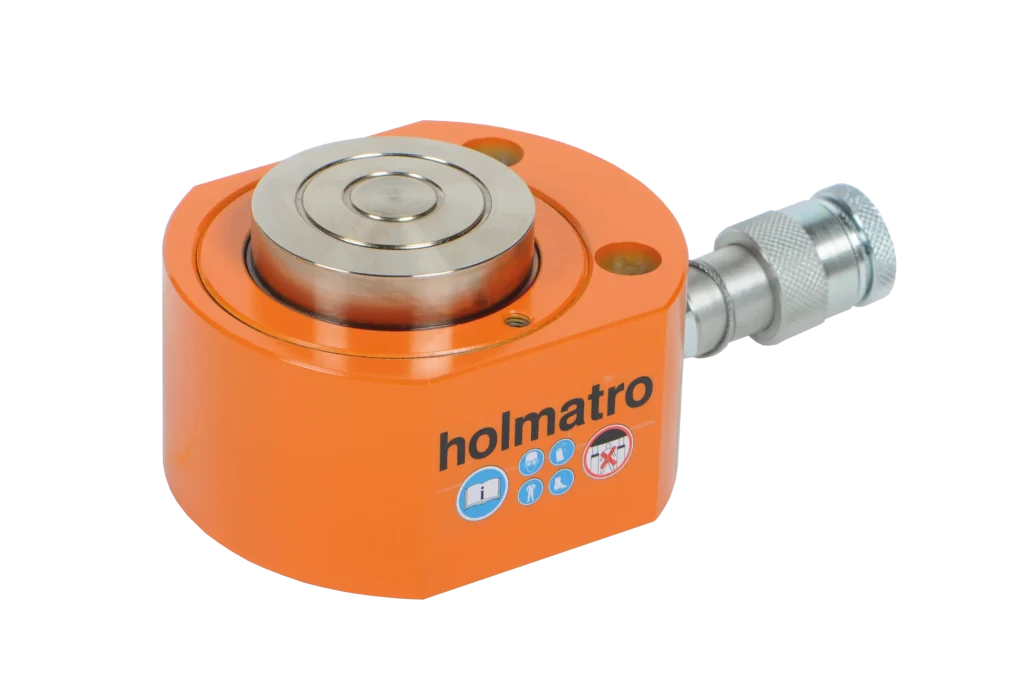

Flat Cylinder HFC 50 S 1.5
About the Flat Cylinder HFC 50 S 1.5
Specifications
Details
Article number
100.112.296
Basic specifications
model
HFC 50 S 1.5
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
tonnage
50 t
tonnage
110231 lb
stroke
15 mm
stroke
0.6 in
closed height
71 mm
closed height
2.8 in
capacity
510.4 kN / 52 t / 510.4 / 52 (kN/t)
capacity
114742 lbf
effective pressure area
70.9 cm2
effective pressure area
11 sq. in.
General specifications
required oil content (effective)
106 cc
required oil content (effective)
3.6 oz
acting type
single
return type
spring
material
steel
cylinder type
flat
connection
A 118
Dimensions, weight and temperature
weight, ready for use
7 kg
weight, ready for use
15.4 lb
Technical drawing dimensions
dimension A
71 mm
dimension A
2.8 in
dimension B
5.5 in
dimension B2
119 mm
dimension B2
4.7 in
dimension C
75 mm
dimension C
3 in
dimension D
77 mm
dimension D
3 in
dimension E
19 mm
dimension E
0.7 in
dimension F
68 mm
dimension F
2.7 in
dimension U
67 mm
dimension U
2.6 in
dimension V
13 mm
dimension V
0.5 in
dimension W
53 mm
dimension W
2.1 in
angle A1
5 °
Norms
ASME
B30.1
Features
Compact, flat version, efficient in case of limited insertion space
Stroke of 15mm on all models
