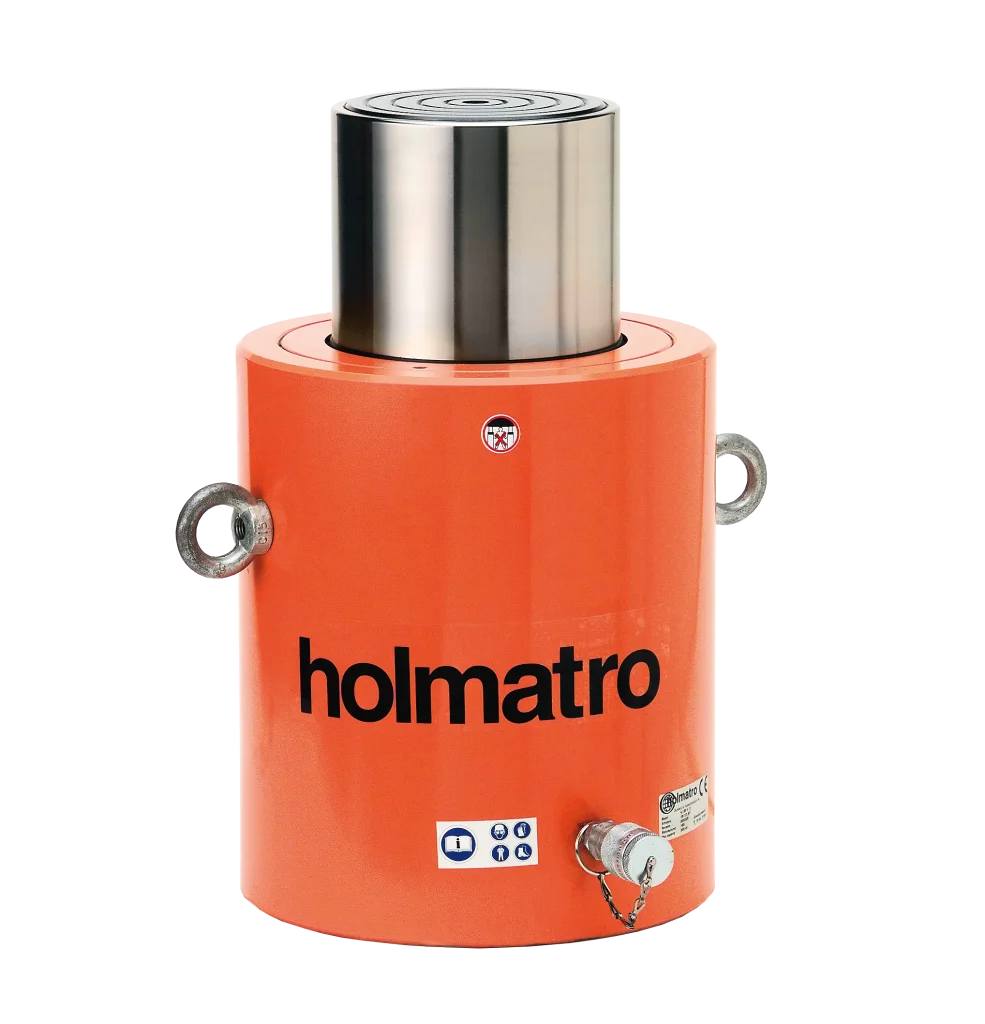

Cylinder HJ 300 G 15
Features & benefits
- Flat saddle; prevents damage to the plunger, easy to replace with tilting saddle
About the Cylinder HJ 300 G 15
Specifications
Details
Article number
100.112.050
Basic specifications
model
HJ 300 G 15
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
tonnage
300 t
tonnage
661387 lb
stroke
150 mm
stroke
5.9 in
closed height
382 mm
closed height
15 in
capacity
2933 kN / 299.1 t / 2933 / 299.1 (kN/t)
capacity
659365 lbf
effective pressure area
415 cm2
effective pressure area
64.3 sq. in.
General specifications
required oil content (effective)
6225 cc
required oil content (effective)
210.5 oz
required oil content (press)
6225 cc
required oil content (press)
210.5 oz
acting type
single
return type
gravity
material
steel
cylinder type
high tonnage
connection
A 118
Dimensions, weight and temperature
weight, ready for use
238 kg
weight, ready for use
524.7 lb
Technical drawing dimensions
dimension A
382 mm
dimension A
15 in
dimension B
316 mm
dimension B
12.4 in
dimension C
190 mm
dimension C
7.5 in
dimension D
70 mm
dimension D
2.8 in
dimension E
70 mm
dimension E
2.8 in
dimension F
370 mm
dimension F
14.6 in
I type
I-1
Features
Features & Benefits
- Flat saddle; prevents damage to the plunger, easy to replace with tilting saddle
