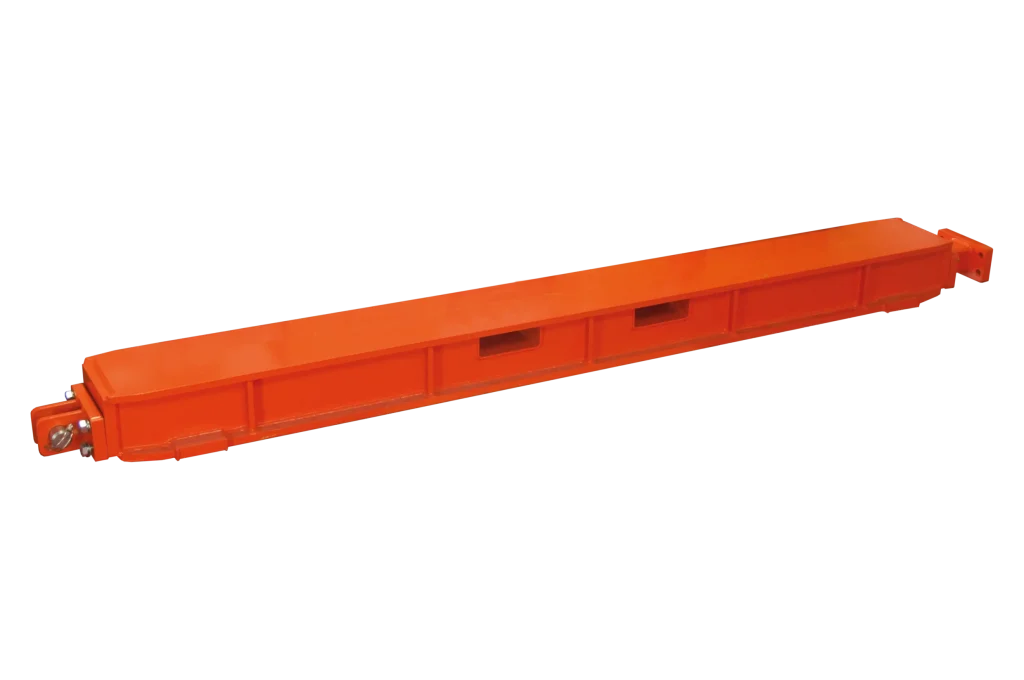

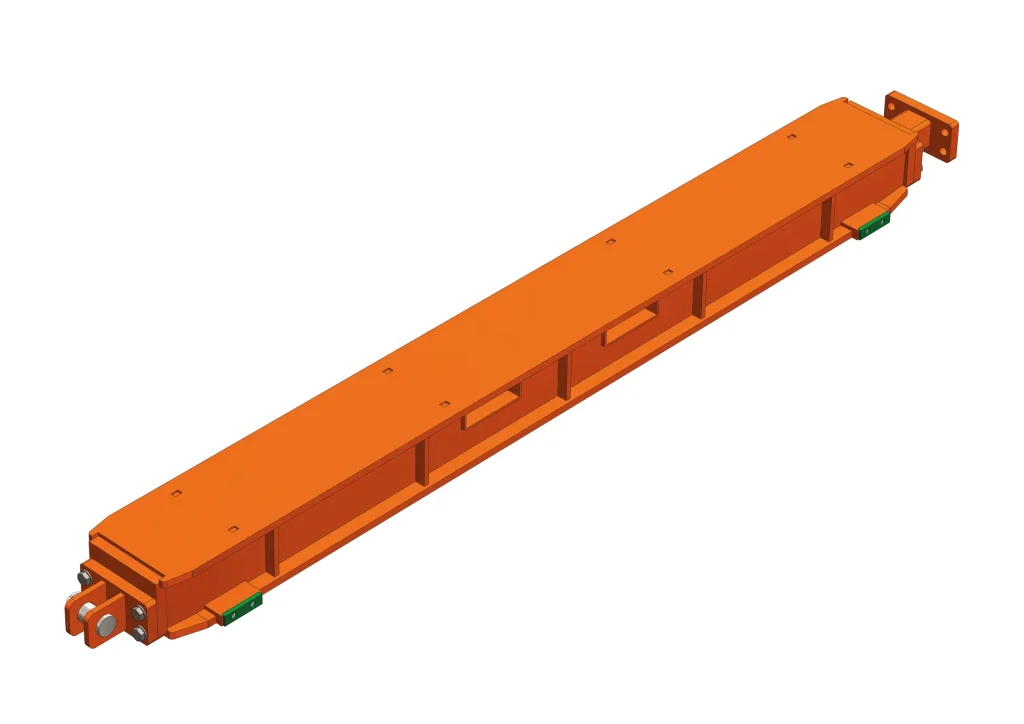

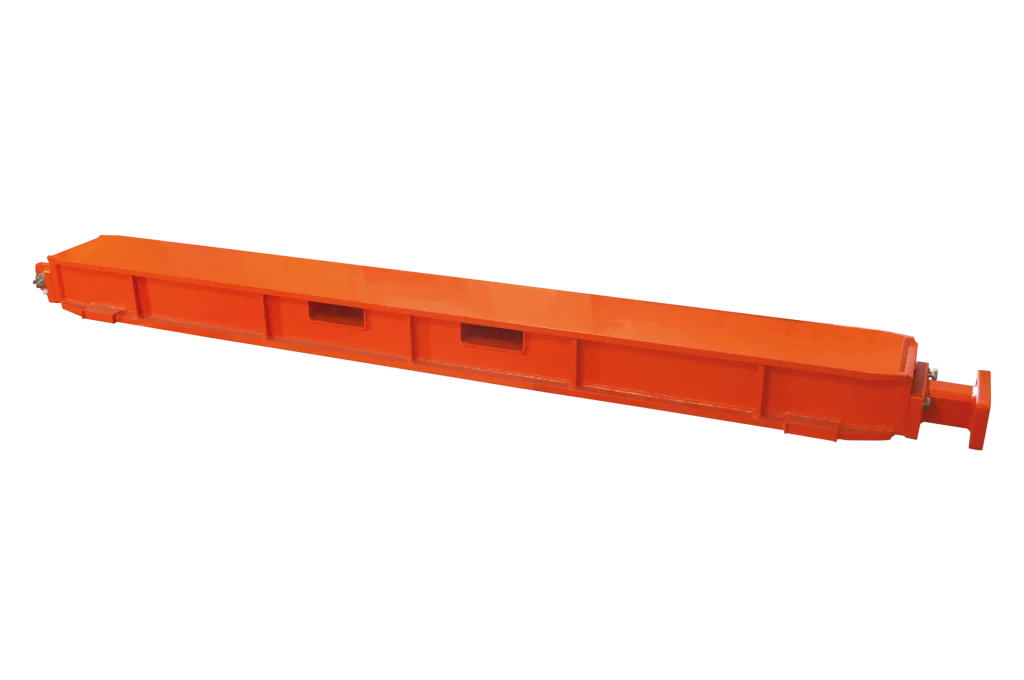

Beam SB-S

Extremely rigid Skidding System beams with a length of 3 meters. The load rests on the beams, which move horizontally in the tracks. The beam can be connected to the push-pull unit and/or other beams – within the same type Skidding System - when loads are longer than 3 meters. Does not bend with small loads.
Request Quotation Request demo

About the Beam SB-S

Specifications

Choose unit system
Details
Article number
100.002.526
Basic specifications
model
SB-S
Dimensions, weight and temperature
weight, ready for use
416 kg
weight, ready for use
917.1 lb
Technical drawing dimensions
dimension A
3045 mm
dimension A
119.9 in
dimension B
340 mm
dimension B
13.4 in
dimension C
195 mm
dimension C
7.7 in
dimension D
2900 mm
dimension D
114.2 in
dimension E
2720 mm
dimension E
107.1 in
dimension F
290 mm
dimension F
11.4 in
dimension G
2995 mm
dimension G
117.9 in

Features

Extremely rigid beams; does not bend with small loads
Modular system; easy to adapt to different load sizes and projects
