Stacking Ring SR80/28-50

Stacking Rings are used for the mechanical securing of the railway vehicle, when the vehicle has to hold its position for a longer time period.

Read more
Watch Wishlist
Stacking Ring SR80/28-50
Stacking ring SR80/20-50, SR127/53-50
  • Stacking Ring SR80/28-50
  • Stacking ring SR80/20-50, SR127/53-50
Specifications
Details
Articlenumber 101.001.624
Basic specifications
model SR80/28-50
suitable for jack HATC 80/28
Dimensions, weight and temperature
weight, ready for use 0.6 kg 1.3 lb
dimensions (AxBxC) 50 x 179 x 118 mm 2 x 7 x 4.6 in

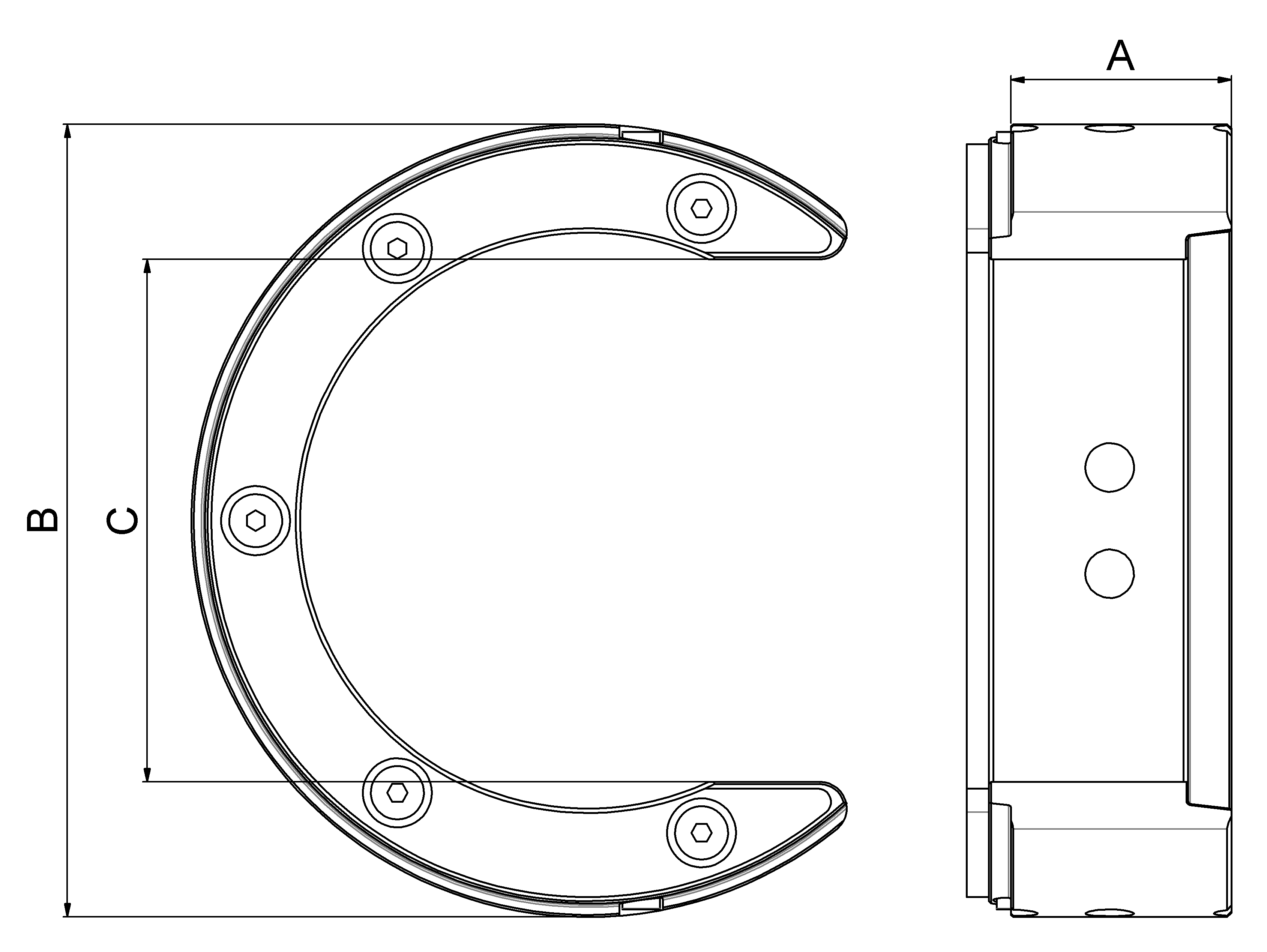

Technical drawing dimensions
dimension A 50 mm 2 in
dimension B 179 mm 7 in
dimension C 118 mm 4.6 in
Features
  • • Lightweight aluminum
  • • Easy to place around the plunger of the lifting cylinder.
