About the Toe Jack TJ 3610
Specifications
Details
Article number
150.012.049
Basic specifications
model
TJ 3610
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
closed height
448 mm
closed height
17.6 in
max. lifting height
250 mm
max. lifting height
9.8 in
max. lifting capacity on saddle
26527 lbf
min. insertion height toe
56 mm
min. insertion height toe
2.2 in
max. lifting capacity on saddle
118 / 12 (kN/t)
max. lifting capacity on toe
98 / 10 (kN/t)
Dimensions, weight and temperature
weight, ready for use
20.5 kg
weight, ready for use
45.2 lb
dimensions (AxBxC)
245 x 160 x 448 mm
dimensions (AxBxC)
9.6 x 6.3 x 17.6 in
Features
Lightweight and compact
- Can be brought in position very quickly
Safe
- It is possible to operate the jack from a safe distance

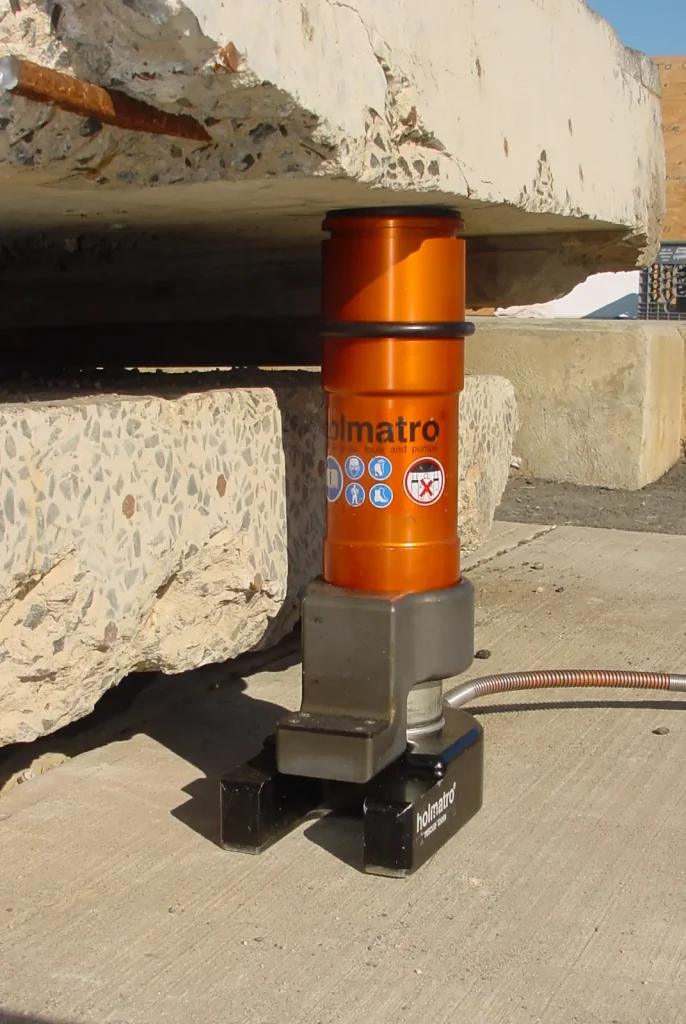

- When using the toe, the jack can be placed next to the object instead of underneath

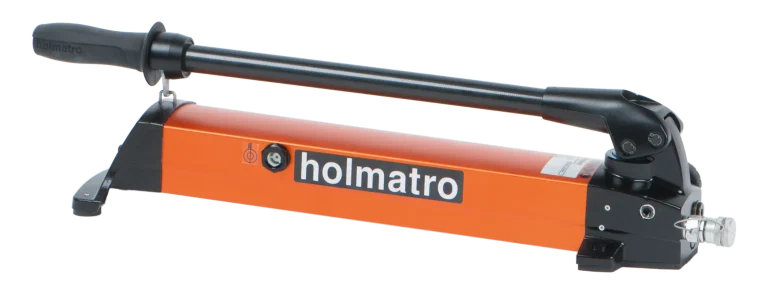

The jack can also be operated with a special low output duo pump
- Controlled lowering
- Operation of 2 jacks at the same time
With a low insertion height and a range of adapters (also custom made) the jack is suitable for a wide variety of trams and other objects
Steel wearing plates mounted on foot and toe
360° rotating hose connection for optimal ease of working
