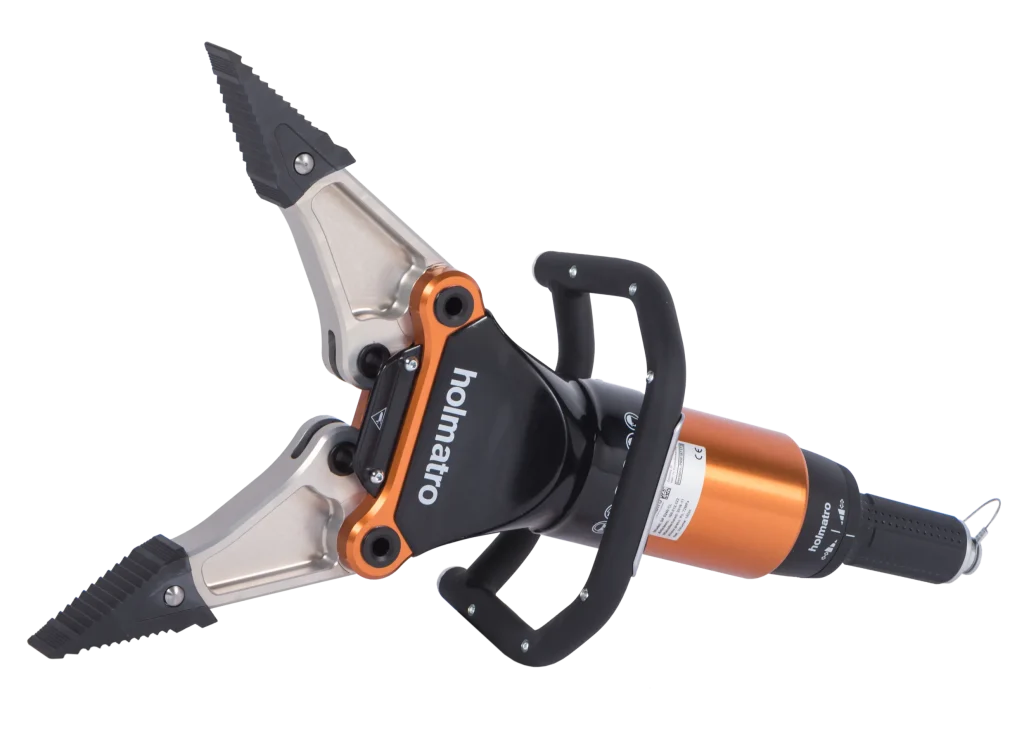

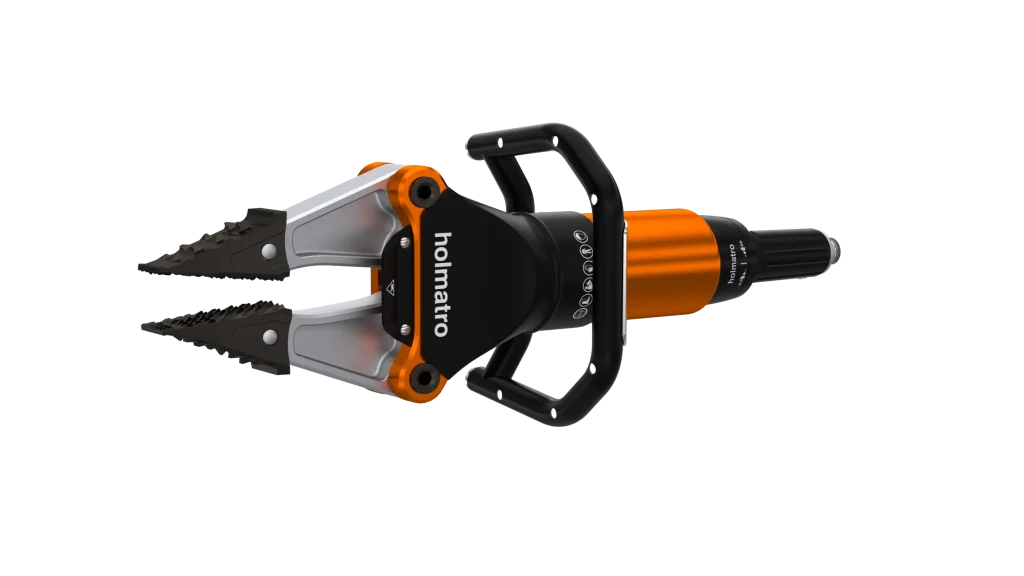

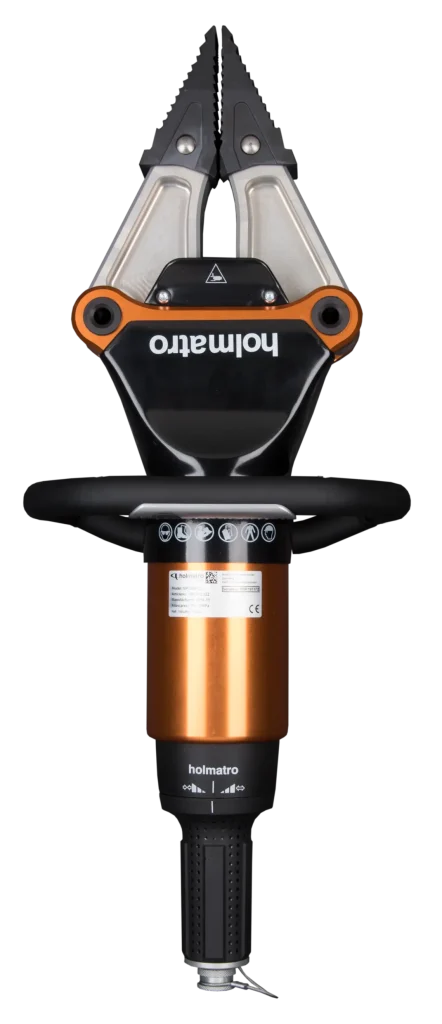

Spreader SP 5240 CL
| spreading distance: | 510 mm |
| spreading distance: | 20.1 in |
| max. spreading force: | 29450 lbf |
| max. spreading force: | 131 / 13.4 (kN/t) |
Features & benefits
- Easy to carry and handle
- Reducing physical burden
About the Spreader SP 5240 CL
Specifications
Details
Article number
150.012.322
Basic specifications
model
SP 5240 CL
equipped with (connector type)
CORE
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
max. spreading force
29450 lbf
theoretical calculated spreading force
875 / 89.2 (kN/t)
theoretical calculated spreading force
196708 lbf
min. spreading force (EN 13204)
8992 lbf
spreading distance
510 mm
spreading distance
20.1 in
max. squeezing force
10566 lbf

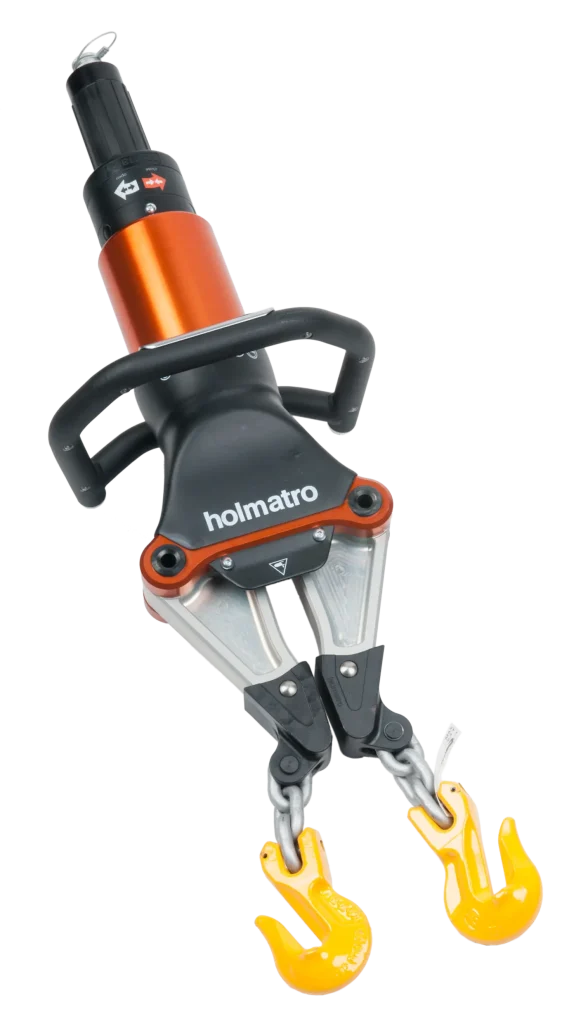

max. pulling force
10566 lbf
pulling distance
393 mm
pulling distance
15.5 in
max. spreading force
131 / 13.4 (kN/t)
min. spreading force (EN 13204)
40 / 4.1 (kN/t)
max. squeezing force
47 / 4.8 (kN/t)
max. pulling force
47 / 4.8 (kN/t)
directives
2006/42/EC
min. squeezing force (EN 13204 2025 Ed.)
6070 lbf
min. squeezing force (EN 13204 2025 Ed.)
27 / 2.8 (kN/t)
Dimensions, weight and temperature
dimensions (AxBxC)
685 x 274 x 207 mm
dimensions (AxBxC)
27 x 10.8 x 8.2 in
weight (without hose)
9.6 kg
weight (without hose)
21.2 lb
weight, ready for use (EN13204:2025 & NFPA1960)
10.9 kg
weight, ready for use (EN13204:2025 & NFPA1960)
24 lb
Norms
NFPA 1960 compliant
yes
NFPA 1960, HPF
10566 lbf
NFPA 1960, HPF
47 / 4.8 (kN/t)
NFPA 1960, HSF
11915 lbf
NFPA 1960, HSF
53 / 5.4 (kN/t)
NFPA 1960, LPF
5395 lbf
NFPA 1960, LPF
24 / 2.4 (kN/t)
NFPA 1960, LSF
7868 lbf
NFPA 1960, LSF
35 / 3.6 (kN/t)
EN 13204 2025 Ed classification
SP2-40/510
AMCA 240-22 certified
6000 cycles
Features
Compact & ultra-lightweight, no concessions on performance
- Easy to carry and handle
- Reducing physical burden
- Maximum performance at minimum weight

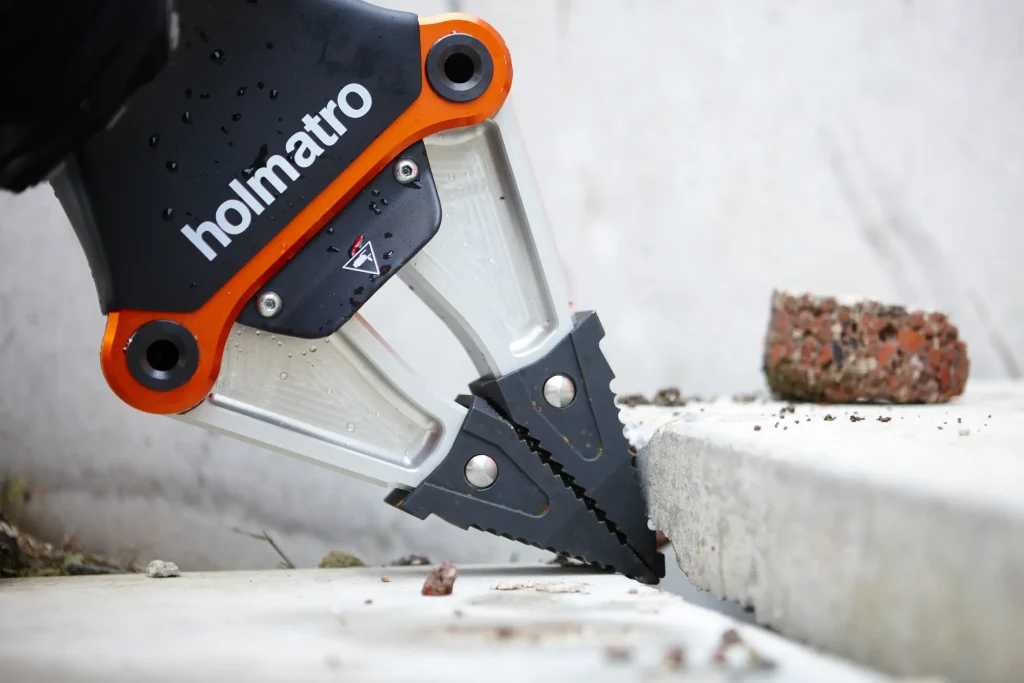

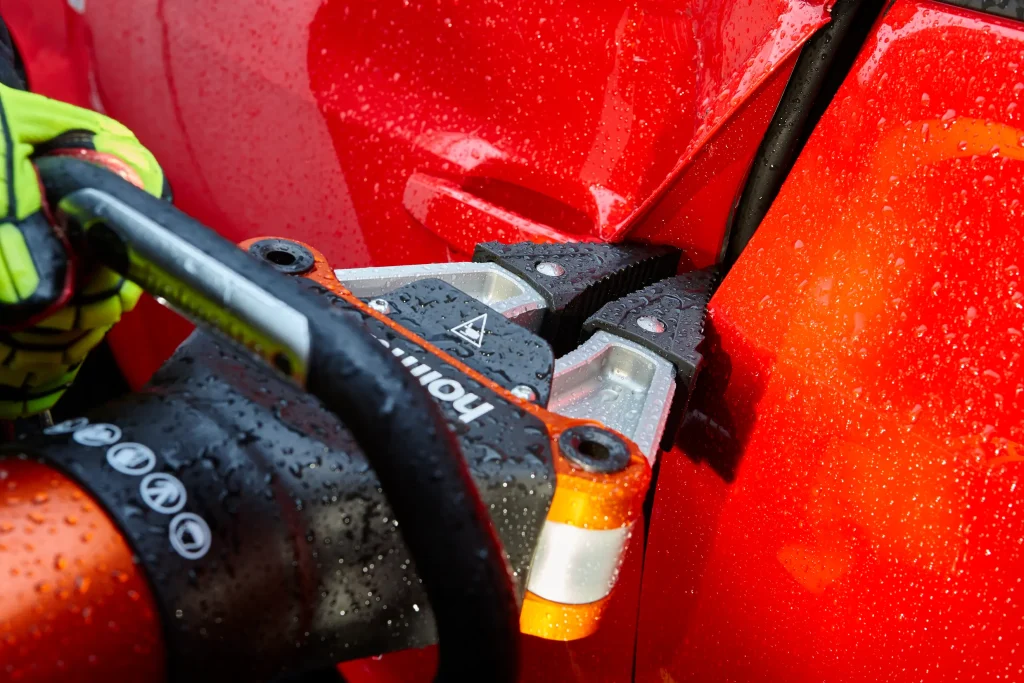

Effective profile on the spreading tips
- Perfect grip in every situation

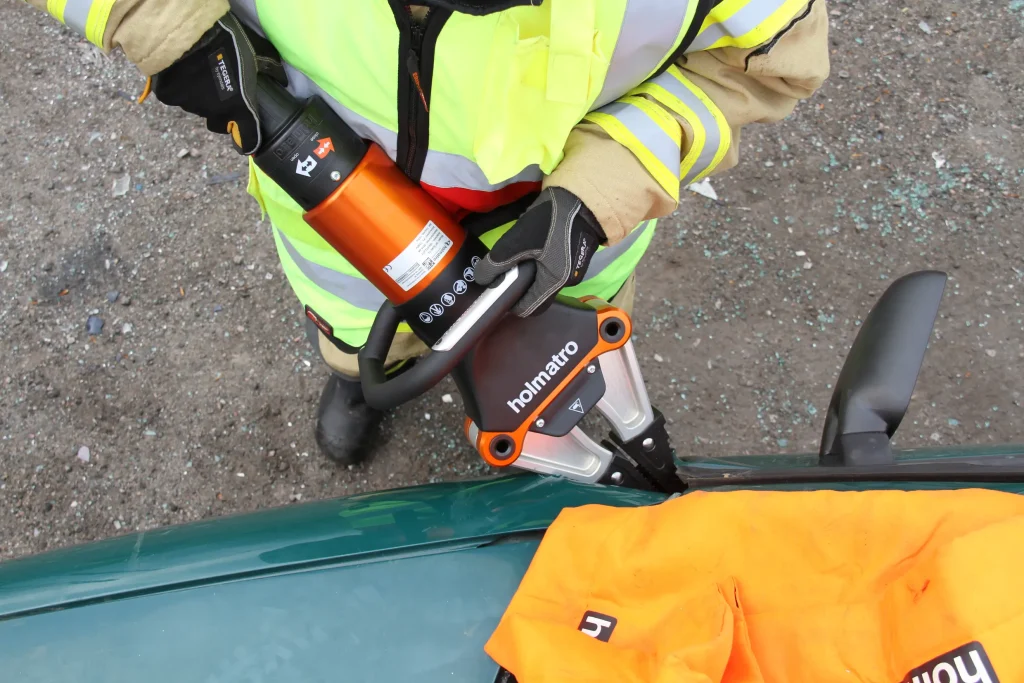

Ergonomic carrying handle
- New design increases operator comfort in various working positions

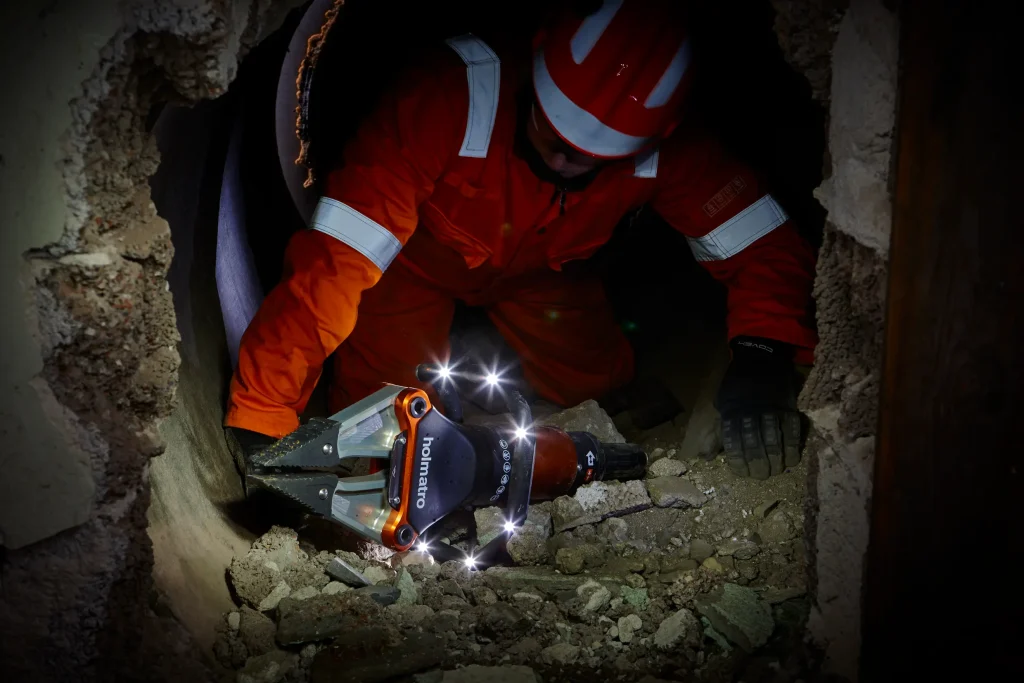

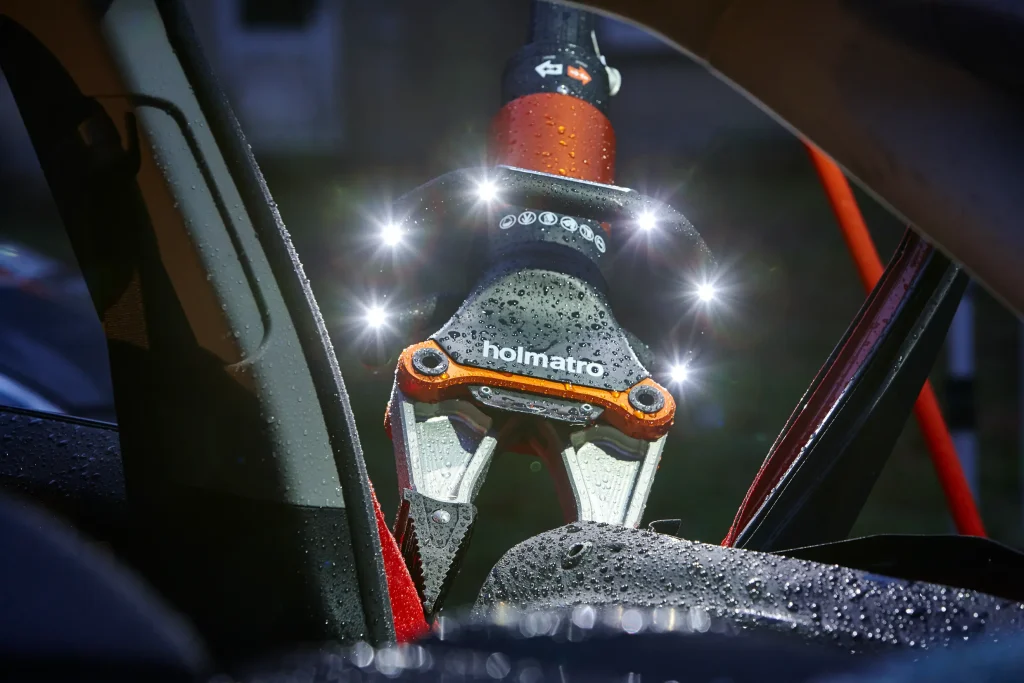

New LED lighting in the carrying handle
- No less than six LED lights with a higher light output
- Rescuers can start their job right away, both during the day and at night, without working in their own shadow
New control handle
- Improved ergonomic design, offering better grip for optimal tool control
