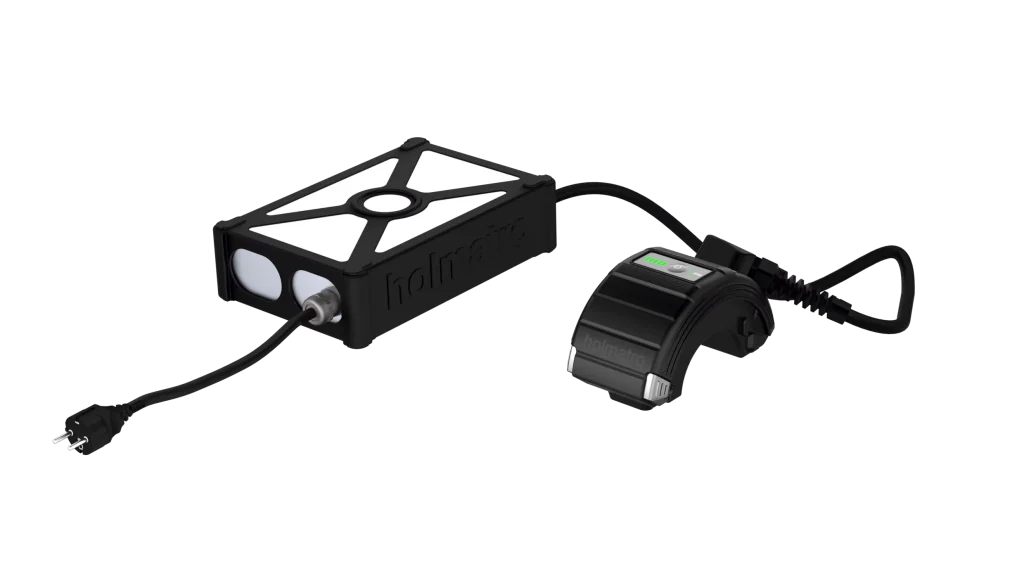

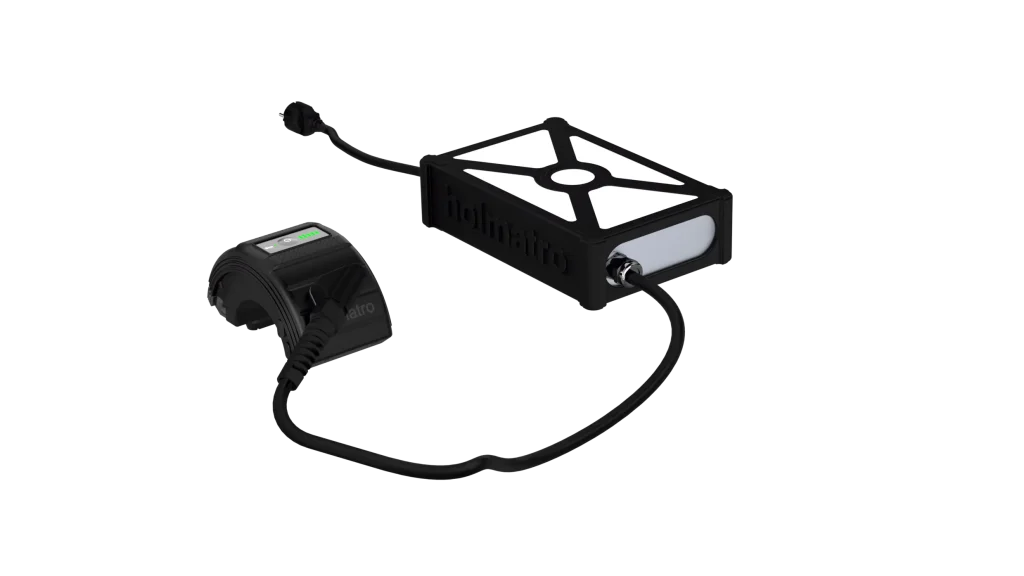

Mains Power Connector PMC6 (KR)
About the Mains Power Connector PMC6 (KR)
Specifications
Details
Article number
151.001.304
Basic specifications
model
PMC6 (KR)
Performance
protection rate
IP66
General specifications
max. current
4 A
mains voltage
100-240 VAC
mains frequency
50-60 Hz
power
750 W
output voltage
28 VDC
mains cable length
7 m
mains cable length
23 ft
tool cable length
3.5 m
tool cable length
11 ft
plug type
F
region type
KR
Dimensions, weight and temperature
weight, ready for use
5.7 kg
weight, ready for use
12.6 lb
Technical drawing dimensions
dimension D
188 mm
dimension D
7.4 in
dimension E
107 mm
dimension E
4.2 in
dimension F
110 mm
dimension F
4.3 in
dimension G
3500 mm
dimension G
137.8 in
dimension H
7000 mm
dimension H
275.6 in
