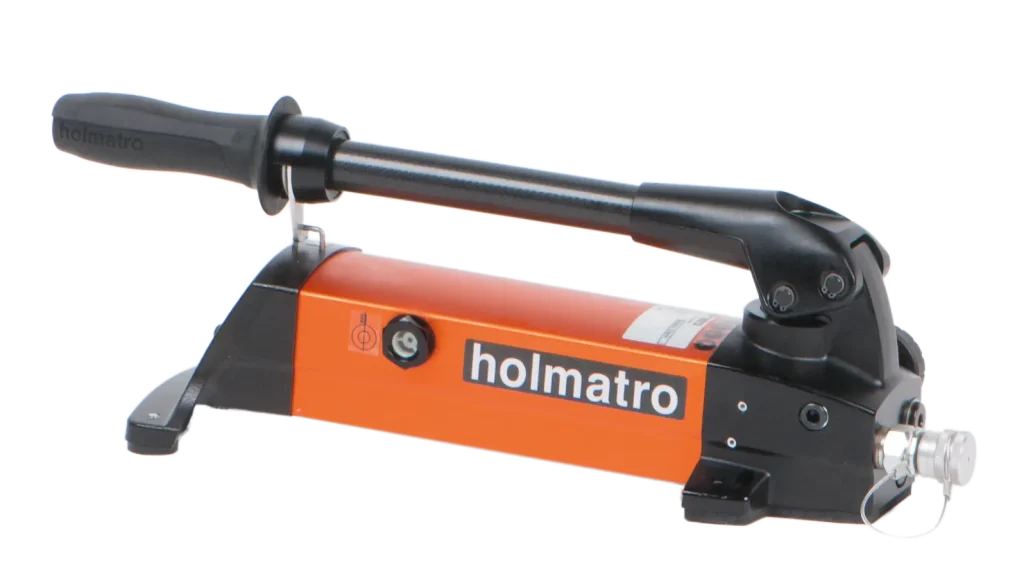

About the Hand Pump PA 04 H 2 S
Specifications
Details
Article number
150.142.046
Basic specifications
model
PA 04 H 2 S
equipped with (connector type)
single hose
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
number of stages
2
capacity oil tank (effective)
410 cc
capacity oil tank (effective)
13.9 oz
General specifications
operator type
hand
Dimensions, weight and temperature
weight, ready for use
3.5 kg
weight, ready for use
7.7 lb
dimensions (AxBxC)
485 x 135 x 165 mm
dimensions (AxBxC)
19.1 x 5.3 x 6.5 in
Features
Compact & lightweight
- Easy to carry, handle and store
Higher flow
- To complete your actions quicker
Soft-grip pump handle
- Offers more comfort and grip during operation of the pump
‘Push & Unlock’ system
- You can start pumping immediately, no need to remove a clasp first
Hydraulic oil level indicator
- For quick and easy monitoring of the oil level from the outside of the pump
Built-in funnel
- Filling up your pump with oil has never been easier
Non-slip rubber underneath
- Prevents the pump from slipping during its operation
Soft-grip relief valve
- Offers good grip, which makes operation of the valve easier
