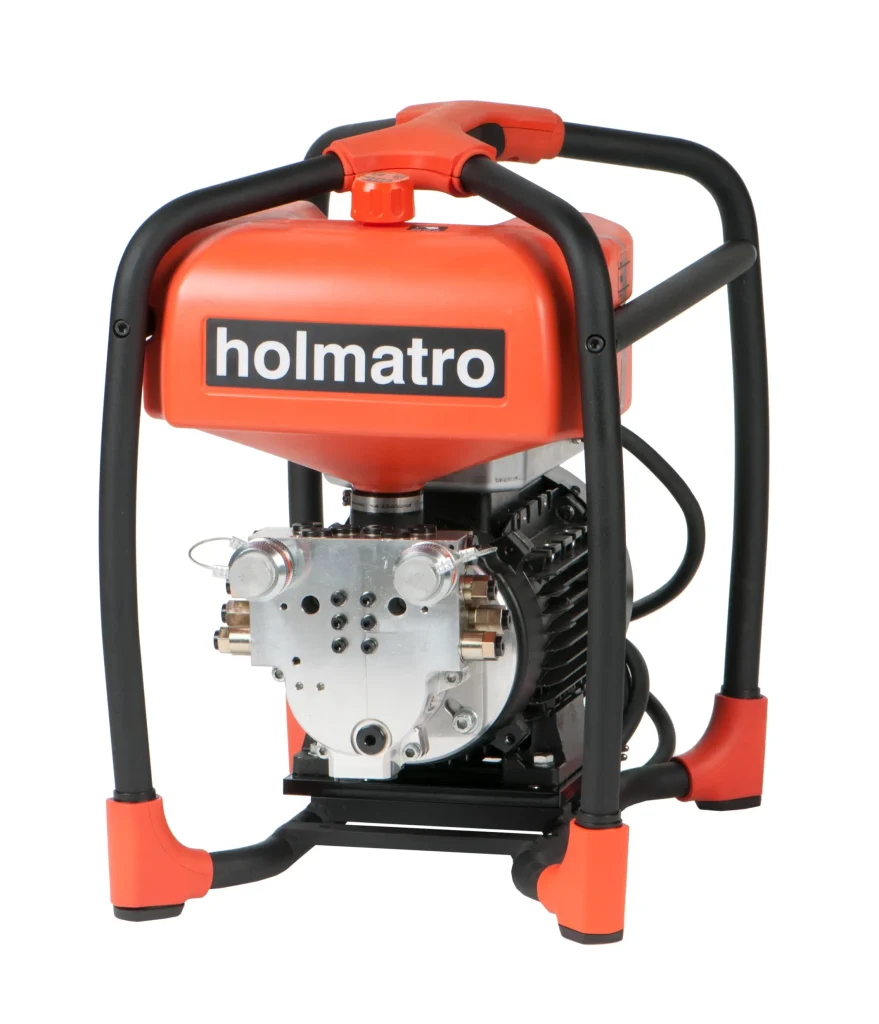

Electric Duo Pump SR 20 DC 2
| operator type: | electric motor |
| number of tool connections: | 2 |
| weight, ready for use: | 34 kg |
| weight, ready for use: | 75 lb |
Features & benefits
- Much higher flow/speed in 2nd stage for quicker rescue operations
- Lower flow/speed in 3rd stage for more tool control
About the Electric Duo Pump SR 20 DC 2
Specifications
Details
Article number
150.152.730
Basic specifications
model
SR 20 DC 2
equipped with (connector type)
CORE
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
number of stages
3
capacity oil tank (effective)
4000 cc
capacity oil tank (effective)
135.3 oz
General specifications
pump type
3-stage axial pump
operator type
electric motor
number of tool connections
2
number of tools simultaneously usable
2
engine
230 VAC - 1.8 kW - 50 Hz - 1 Ph
required power
7.2 KVA
Dimensions, weight and temperature
weight, ready for use
34 kg
weight, ready for use
75 lb
dimensions (AxBxC)
455 x 315 x 460 mm
dimensions (AxBxC)
17.9 x 12.4 x 18.1 in
Norms
EN 13204 classification
MTO
NFPA 1960 compliant
yes
EN 13204 2025 Ed classification
MTO
Features
3-stage pump technology
- Much higher flow/speed in 2nd stage for quicker rescue operations
- Lower flow/speed in 3rd stage for more tool control
Compact
- Ergonomic, compact design
Hydraulic oil level indicator
- For quick and easy monitoring of oil level from the outside of the pump
Large hydraulic oil capacity
- Pump can be used with any tool including the biggest rams (STO models)
- Enough oil to operate any two resce tools at the same time (MTO models)
Soft-grip carrying handle
- Better grip
- Ergonomic design for improved carrying balance
- Pump easier to carry
