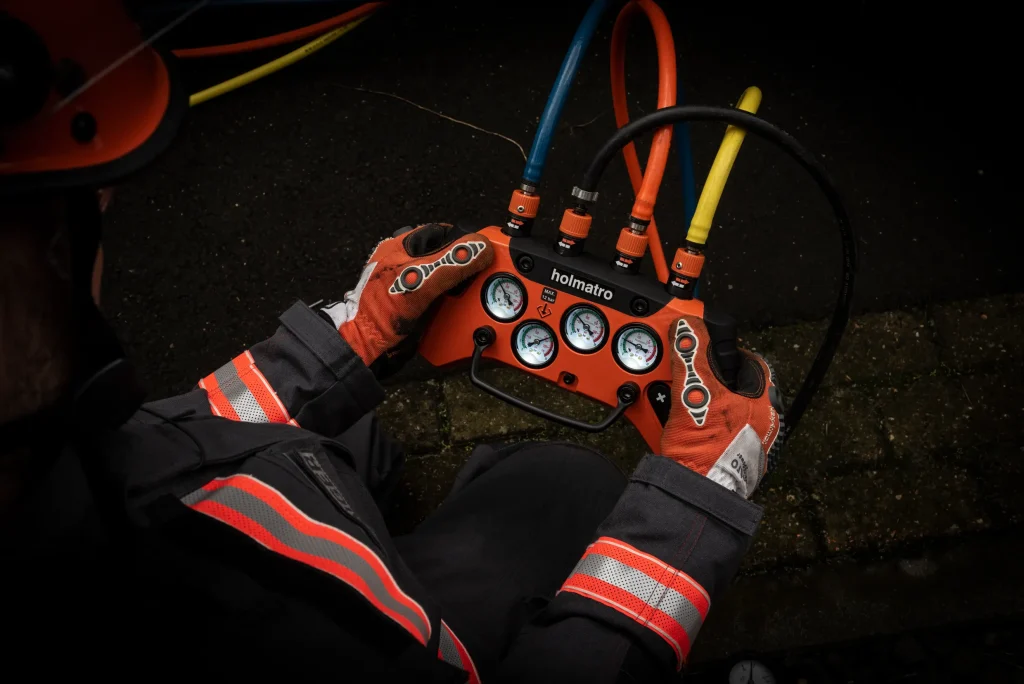

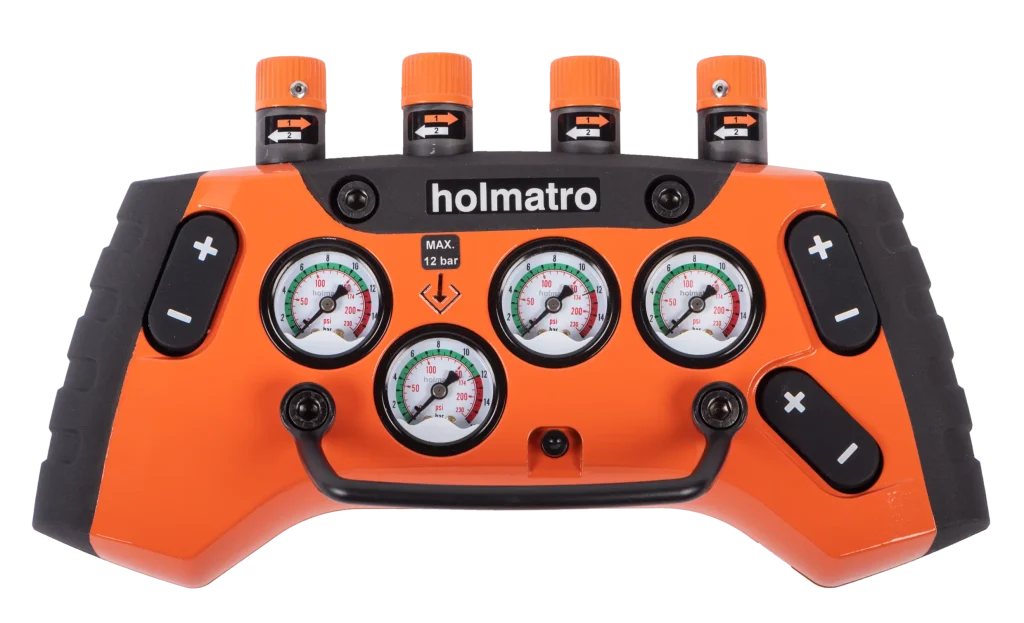

Control Unit HTC12
Features & benefits
- Precise air flow regulation for controlled and safe action
About the Control Unit HTC12
Specifications
Details
Article number
151.002.137
Basic specifications
model
HTC12
max. working pressure
174 psi
max. working pressure
12 / 1.2 (bar/Mpa)
Dimensions, weight and temperature
weight, ready for use
2.4 kg
weight, ready for use
5.3 lb
dimensions (AxBxC)
320 x 180 x 100 mm
dimensions (AxBxC)
12.6 x 7.1 x 3.9 in
Norms
NFPA 1936 compliant
yes
EN 13731 compliant
Yes
Features
Intuitive button operation
- Precise air flow regulation for controlled and safe action
Safety coupler
- Unlocks in two steps for improved safety: pressure release before hose disconnection
- Hose cannot get ejected with force
Built-in non-return valves
- No risk of air pressure shifting from one attached product to the other:
- Three Lifting Bags or Stack Bags can be lifted and lowered independently
- Three OmniShore Struts can be extended or retracted independently
LED-illuminated pressure gauges
- Optimal visibility for safe use in the dark
Additional pressure gauge for air source
- Easy checking of incoming air pressure
- Allows for timely air source replacement
Lightweight
- Easy to hold
Carrying bar
- For easy carrying
- Protects against damage and prevents accidental operation when the control is upside down
