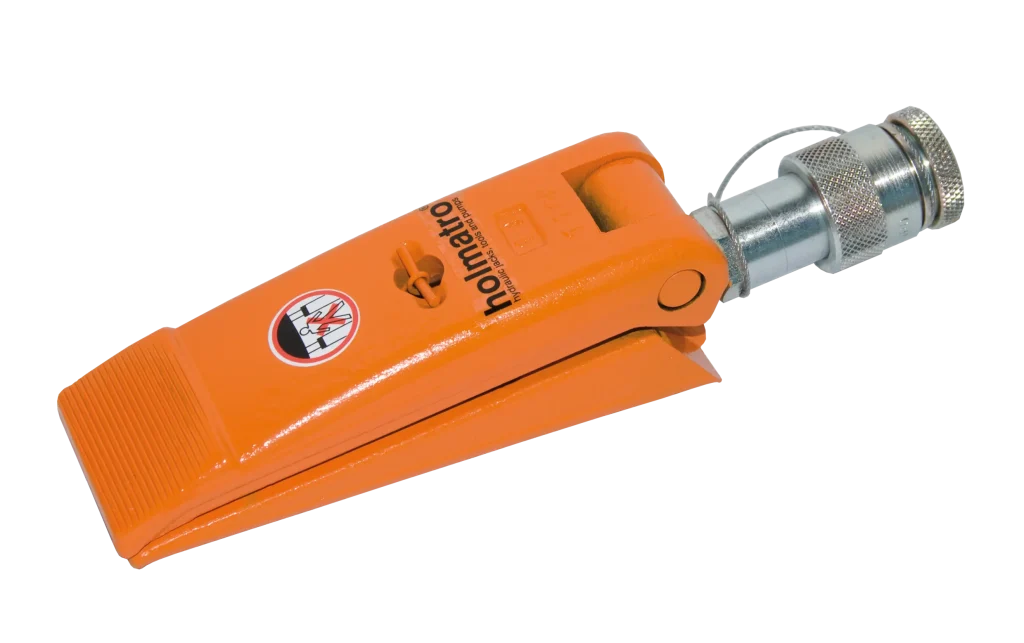

Wedge HW 1000

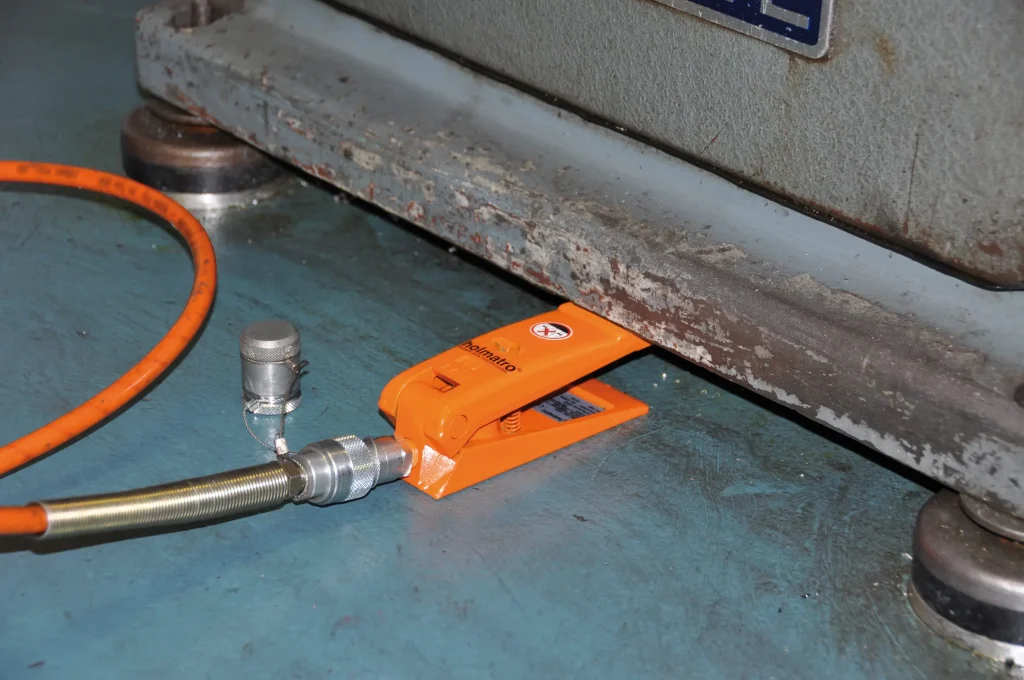

Holmatro hydraulic wedges, otherwise known as spreaders or lifting wedges, are used to lift heavy loads or to separate parts of a construction from one another. The shape of the hydraulic wedge make it possible to use it with a minimal insertion space (6 to 9 mm). There are hydraulic (lifting) wedges that only lift vertically and wedges that can be used in all positions. Hydraulic wedges are lightweight and compact and can therefore be used in small spaces where it is not possible to use other lifting mechanisms.
Holmatro hydraulic wedges, otherwise known as spreaders or lifting wedges, are used to lift heavy loads or to separate parts of a construction from one another. The shape of the hydraulic wedge make it possible to use it with a minimal insertion space (6 to 9 mm). There are hydraulic (lifting) wedges that only lift vertically and wedges that can be...
Find a partner

Features & benefits

  • Compact
  • Lightweight
Show all

Industrial configurator

Supports you in choosing the right tool & setup for your application.

About the Wedge HW 1000

Specifications

Choose unit system
Details
Article number
100.562.009
Basic specifications
model
HW 1000
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
max. spreading force
10 kN / 1 t / 10 / 1 (kN/t)
max. spreading force
2248 lbf
tonnage
1 t
tonnage
2205 lb
min. insertion space
15 mm
min. insertion space
0.6 in
lifting stroke
90 mm
lifting stroke
3.5 in
General specifications
required oil content (effective)
10 cc
required oil content (effective)
0.3 oz
return type
spring
Dimensions, weight and temperature
weight, ready for use
2.1 kg
weight, ready for use
4.6 lb

Features

Features & Benefits
  • Compact
  • Lightweight
  • Anti-skid profile on wedge arms
  • Usable in all positions

Downloads

HW 1000, Spec sheet, A4 metric

HW 1000, Spec sheet, Letter imperial

Lifting Solutions – Industrial Tools

Technical drawing, Wedge, Spring Return, HW 1000
