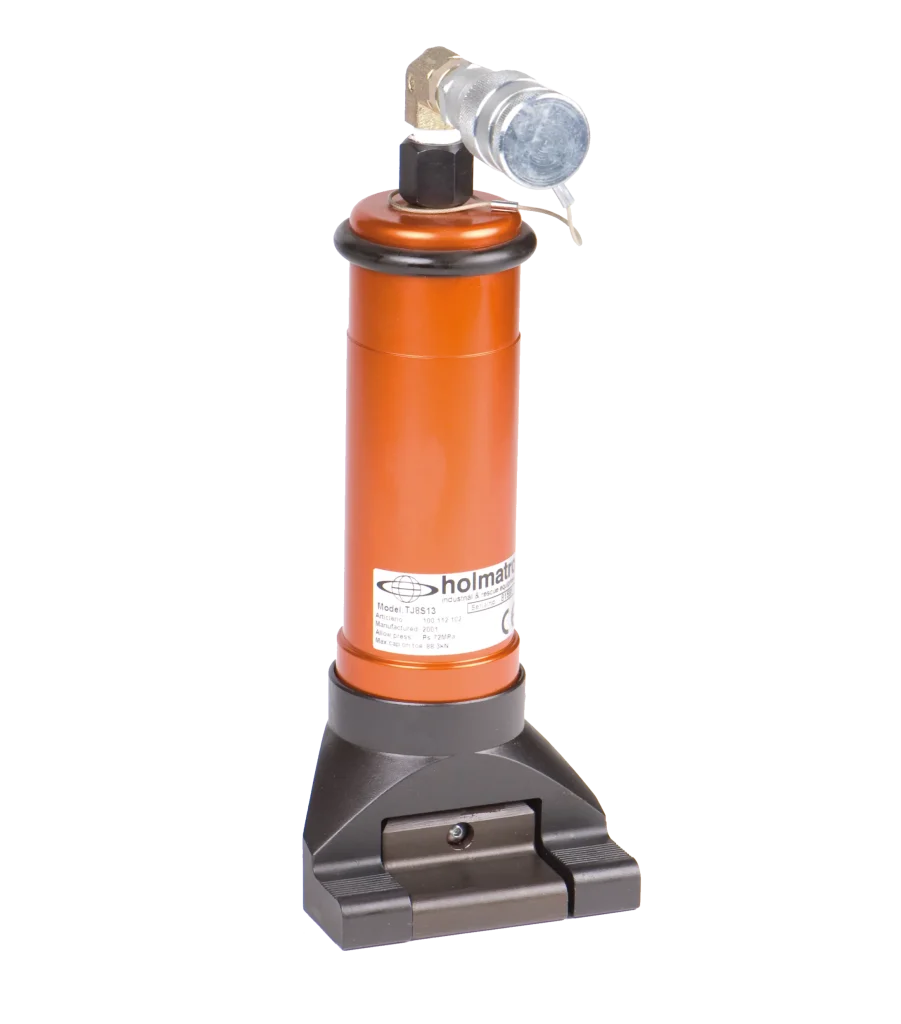

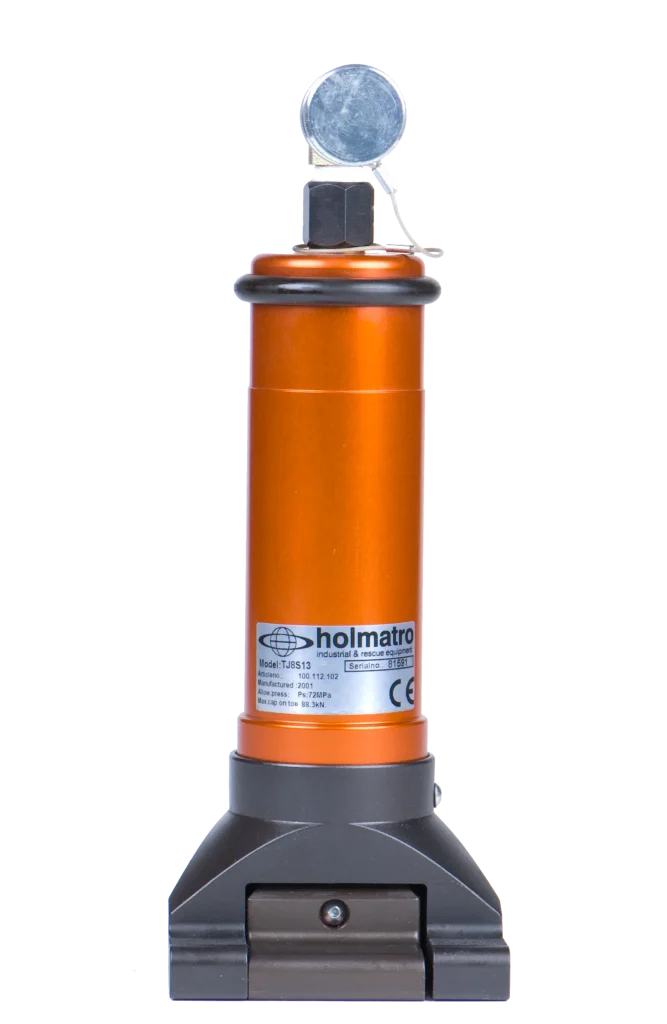

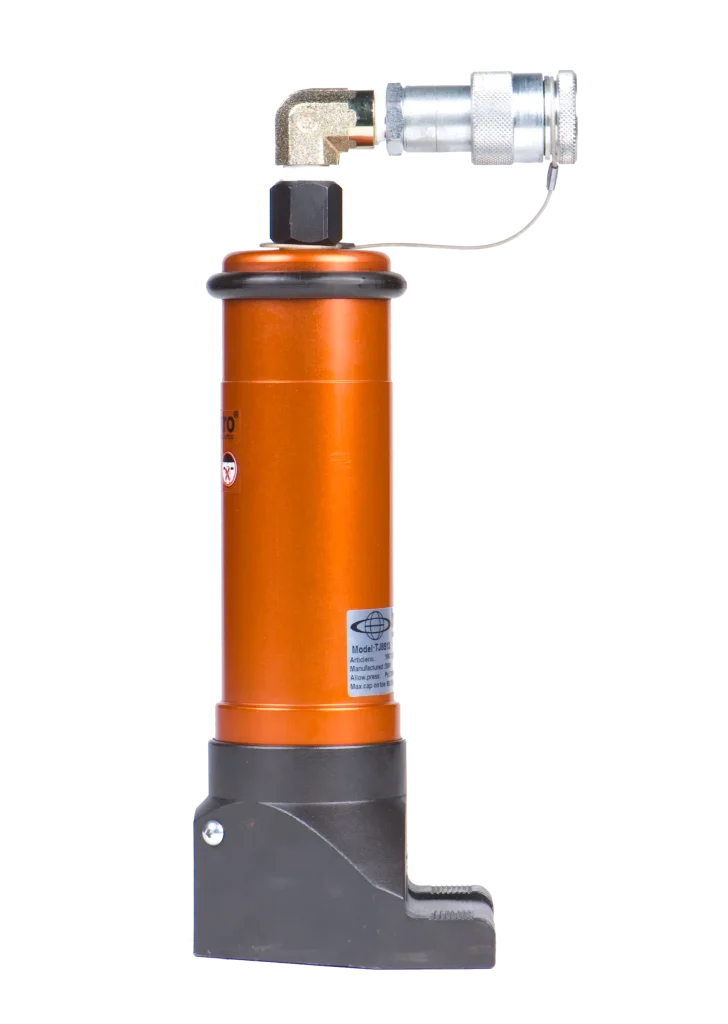

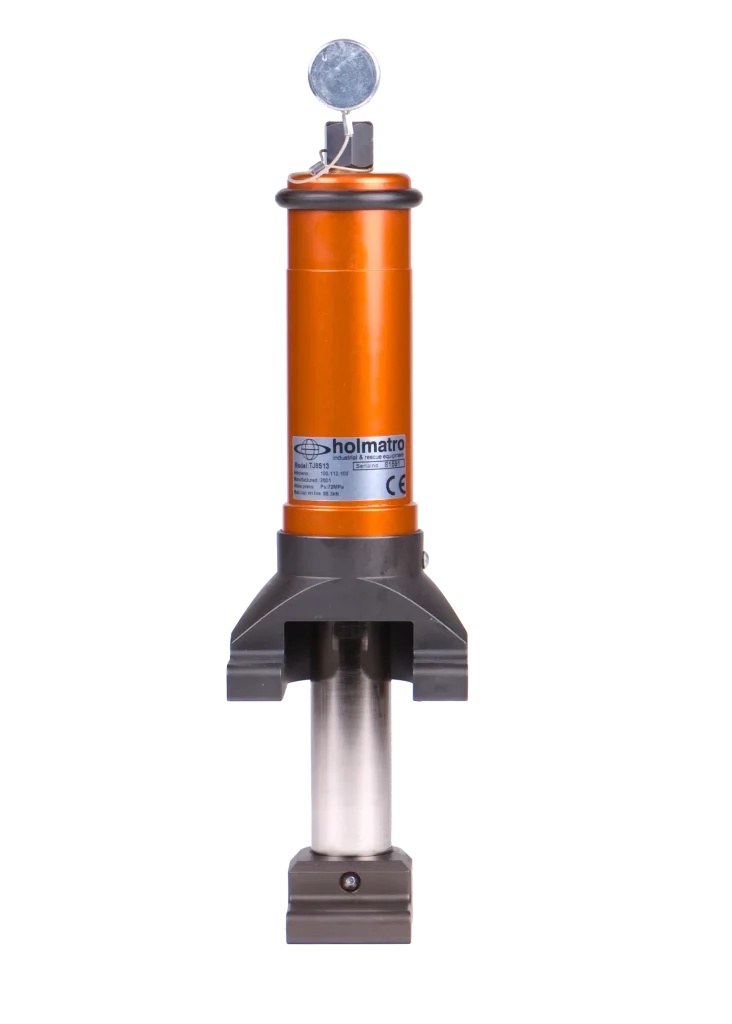

Toe Jack – TJ 8 S 13
Features & benefits
- Anti-skid profile on the toe
- Usable in all positions
About the Toe Jack – TJ 8 S 13
Specifications
Details
Article number
100.112.102
Basic specifications
model
TJ 8 S 13
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
tonnage
8 t
tonnage
17637 lb
stroke
130 mm
stroke
5.1 in
closed height
319 mm
closed height
12.6 in
capacity (toe), min.
88.3 kN / 9 t / 88.3 / 9 (kN/t)
capacity (toe), min.
19851 lbf
General specifications
required oil content (effective)
207 cc
required oil content (effective)
7 oz
return type
spring
cylinder type
machine lift
connection
A 118
Dimensions, weight and temperature
weight, ready for use
6.5 kg
weight, ready for use
14.3 lb
Features
Features & Benefits
- Anti-skid profile on the toe
- Usable in all positions
- Compact construction, low weight
- Minimum tip clearance 18.5 mm
- Toe can be rotated 360°
