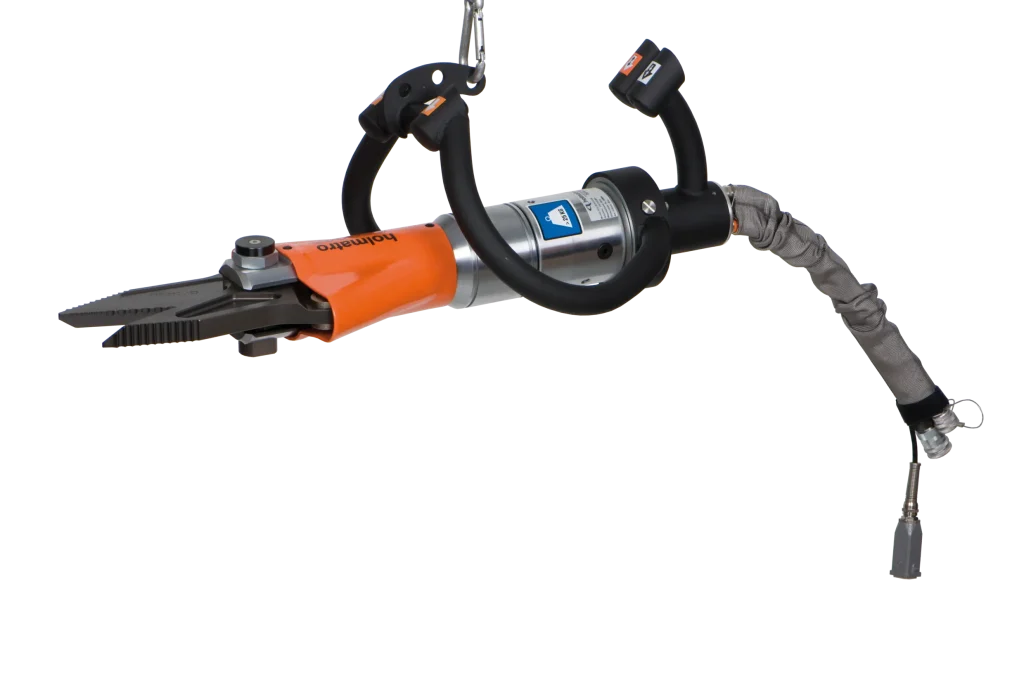

Stationary Cutter – 2 hand controlled HSC200STH40

Holmatro Industrial Stationary Cutters are specially designed for continuous use in industrial processes where repetitive tasks are performed at a fixed point e.g. a production line. This model prioritizes durability, making it suitable for high load frequency applications, and ergonomics to meet prolonged physical demands. The HSC200STH40 is equipped with blades combing cutting & spreading function, which makes it ideal recycling of house hold appliances like refrigerators and heat pumps. Constructed entirely from high-grade steel, the Stationary Cutter ensures robustness and reliability in its stationary setup. To address the weight increase compared to portable aluminum models, a balancer is incorporated to maintain ease of use and operator comfort. With a strong commitment to safety, durability, and ergonomics, Holmatro's Industrial Cutting Tools stand out as reliable and high-performance tools, meeting the diverse cutting needs of industrial, heavy-duty applications while ensuring user comfort and safety.
Holmatro Industrial Stationary Cutters are specially designed for continuous use in industrial processes where repetitive tasks are performed at a fixed point e.g. a production line. This model prioritizes durability, making it suitable for high load frequency applications, and ergonomics to meet prolonged physical demands.

The HSC200STH40 is equ...
Find a partner

Features & benefits

  • Two-hand operation for enhanced safety during cutting tasks.
  • Dead man's function to immediately stop the operation when hands are released.
Show all

About the Stationary Cutter – 2 hand controlled HSC200STH40

Specifications

Choose unit system
Details
Article number
101.003.331
Basic specifications
model
HSC200STH40
max. working pressure
5076 psi
blade type
40 straight
cutter type
stationary - horizontal assembled blades
max. working pressure
350 / 35 (bar/Mpa)
spotlight
yes
application
Recycling of domestic appliances
Performance
max. spreading force
92 kN / 9.4 t / 92 / 9.4 (kN/t)
max. spreading force
20682 lbf
max. spreading opening
305 mm
max. spreading opening
12 in
max. cutting force
264 kN / 26.9 t / 264 / 26.9 (kN/t)
max. cutting force
59350 lbf
max. cutting opening
296 mm
max. cutting opening
11.7 in
General specifications
required oil content (effective)
84 cc
required oil content (effective)
2.8 oz
Dimensions, weight and temperature
weight, ready for use
26.6 kg
weight, ready for use
58.6 lb
temperature range
-20 +80 °C
temperature range
-4 +176 °F
Technical drawing dimensions
dimension A
639 mm
dimension A
25.2 in
dimension B
361 mm
dimension B
14.2 in
dimension C
312 mm
dimension C
12.3 in
Cutting performance
number of cuts per day
200
number of operating hours per day
24

Technical Drawing

Technical Drawing of Stationary Cutters, ICU20STH_

Features

SAFE
  • Two-hand operation for enhanced safety during cutting tasks.
  • Dead man's function to immediately stop the operation when hands are released.
  • Guarded moving parts to further minimize the risk of accidents.
DURABLE
  • Solid blades
  • High-grade steel body & plunger for endurance
  • Blade greasing grooves for smooth and efficient cutting operations
  • Central bolt with greasing nipple
  • Interchangeable blades for versatile use
  • High-grade, anodized aluminum body
  • High-grade steel plunger for endurance
  • Blade greasing grooves for smooth and efficient cutting operations.
  • Central bolt with greasing nipple
  • Interchangeable blades for versatile use
ERGONOMIC
  • Easy to operate.
  • Push button control.
  • Stays on torque due to permanent locking of central bolt.
  • A rotation mechanism that makes it possible to rotate a tool in any direction and under any angle.
  • Use of balancer makes the tool virtual weightless.

Downloads

HSC200STH40, Spec sheet, A4 metric

HSC200STH40, Spec sheet, Letter imperial

Cutting Solutions – Industrial Cutting Tools

Safety Guide – Industrial Cutting Tools

Maintenance Instruction – Industrial Cutting Tools for ICU 05, BCU 05, ICU 10, ICU 20

Technical Drawing of Stationary Cutters, ICU20STH_
