Stacking Ring SR127/53-50

Name: Stacking Ring SR127/53-50 - Holmatro
SKU: 101.001.626

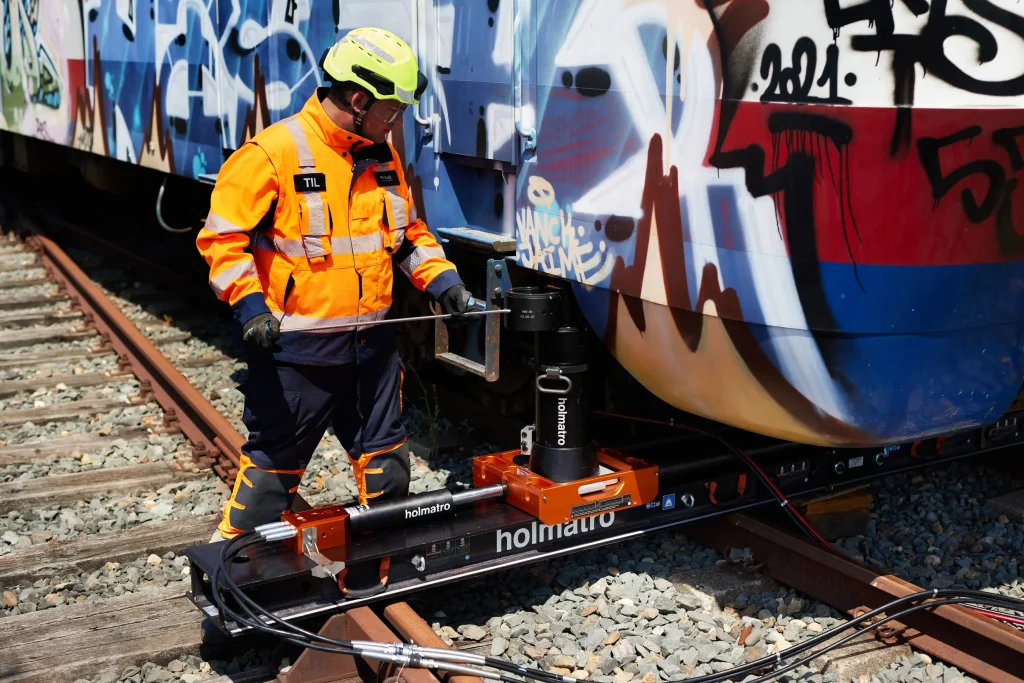

The stacking rings are used for mechanical locking of the vehicle, allowing operators to work safely underneath an elevated load. Installation of the stacking rings is done using a fork, maintaining a safe distance from the vehicle during the process.

Request Quotation Request demo

Features & benefits

Lightweight aluminum

Easy to place around the plunger of the lifting cylinder.

Show all

About the Stacking Ring SR127/53-50

Specifications

Metric Imperial

Details

Article number

101.001.626

Basic specifications

model

SR127/53-50

suitable for jack

HATC 127/53

Dimensions, weight and temperature

weight, ready for use

1.8 kg

weight, ready for use

4 lb

dimensions (AxBxC)

50 x 230 x 154 mm

dimensions (AxBxC)

2 x 9.1 x 6.1 in

Technical drawing dimensions

dimension A

50 mm

dimension A

2 in

dimension B

230 mm

dimension B

9.1 in

dimension C

154 mm

dimension C

6.1 in

Features

Features & Benefits

Lightweight aluminum
Easy to place around the plunger of the lifting cylinder.
Mechanically locks the load in position for a longer time.
Enabling you to work safe near and under the load.
We offer a special fork, to place the stacking rings in the right position from a safe distance.
