Traverse Sleds
Lifting & Sliding Components
Telescopic cylinders are placed on Traverse Sleds, which are located on the Beam. Sled Fill Plates can be placed under the Telescopic Cylinder if necessary, when spaces between the cylinders and the lifting points need to be filled. The Top Plate is used on each Traverse Sled to ensure there is no sliding on the lifting cylinders, but only on the Traverse Sleds (only in combination with the Sled Fill Plates). The Locking Device will prevent the vehicle from sliding during the lifting.

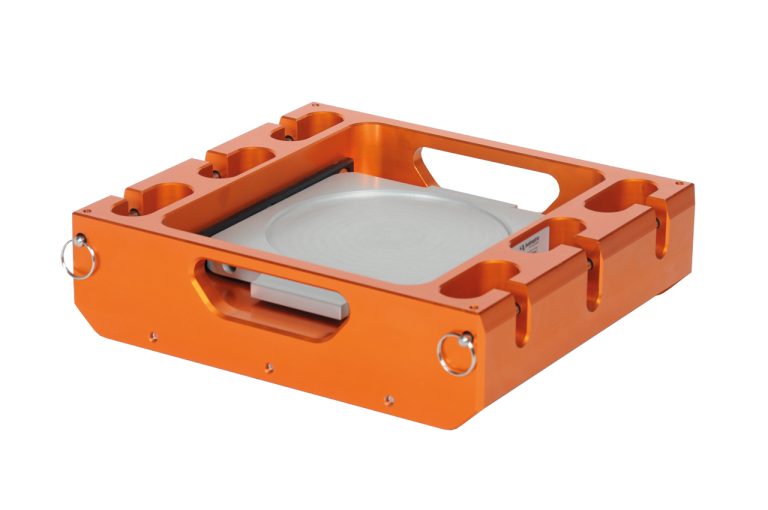

Traverse Sled TS 232
The traverse sleds, also known as carriages, facilitate the side movement required for rerailing the derailed vehicle and are used …

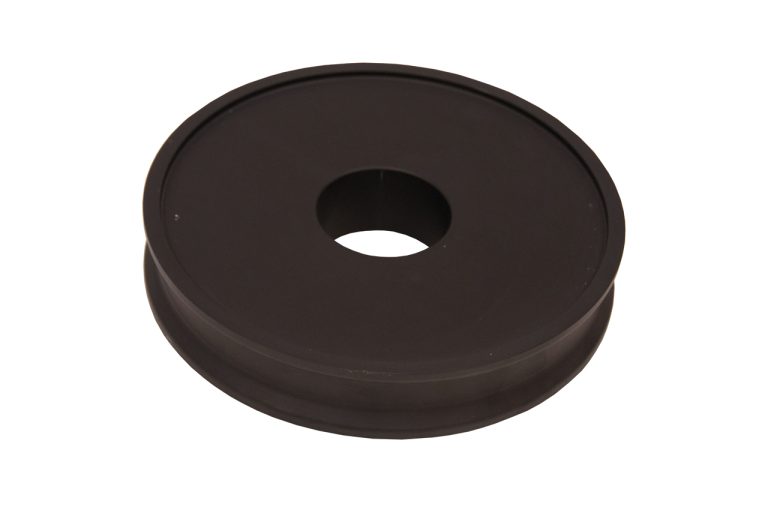

Sled Fill Plate SFP 260×50
For safety and stability, Holmatro always advises extending your cylinders from the bottom. The larger surface area at the base …

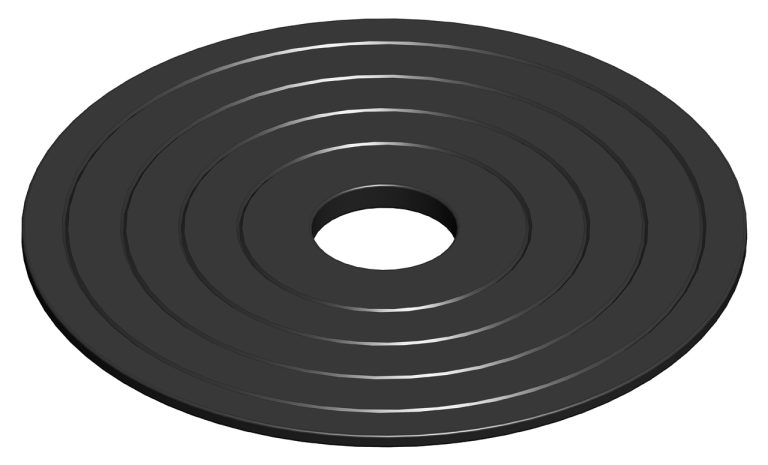

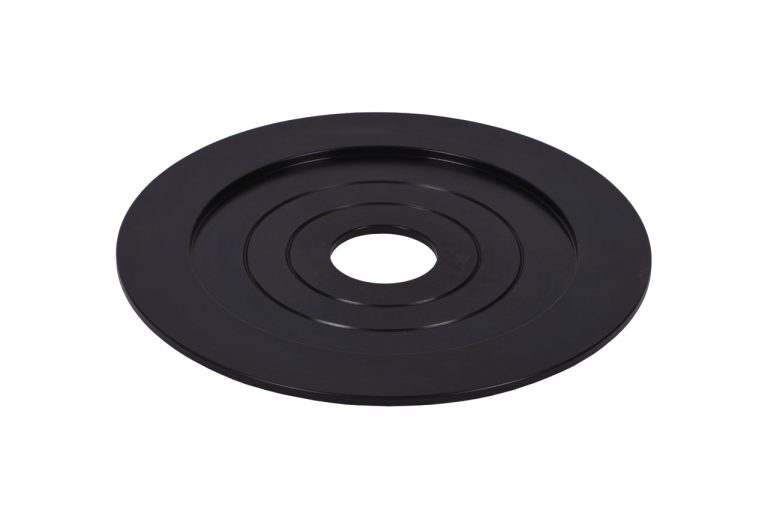

Adapter plate AP 181×5
Adapter Plate for the HATC 80/28 Cylinder, to be combined with the Sled Fill Plate, to fill out the diameter …
Sled Top Plate STP 260×10
When nor not sliding on the cylinders, but directly on the traverse sled, a top plate is required!

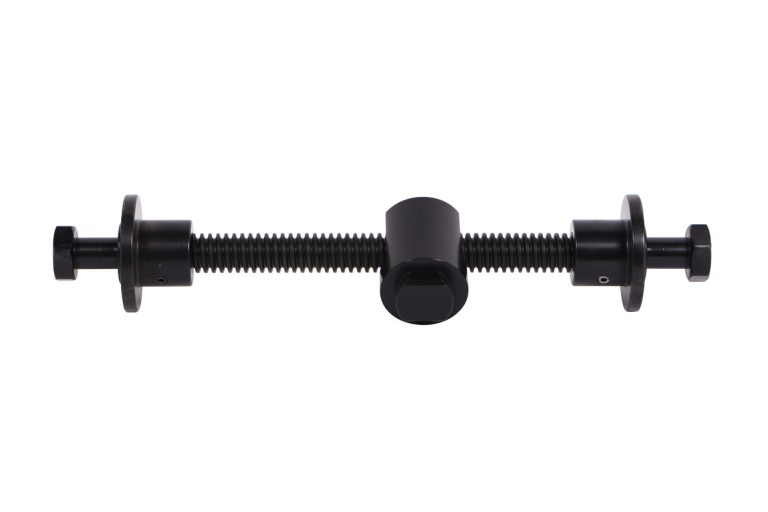

Locking Device Rerailing LDR 30 B
Should you work in sloped position, the Holmatro locking device prevents the system from shifting downwards and therefore prevents from …
