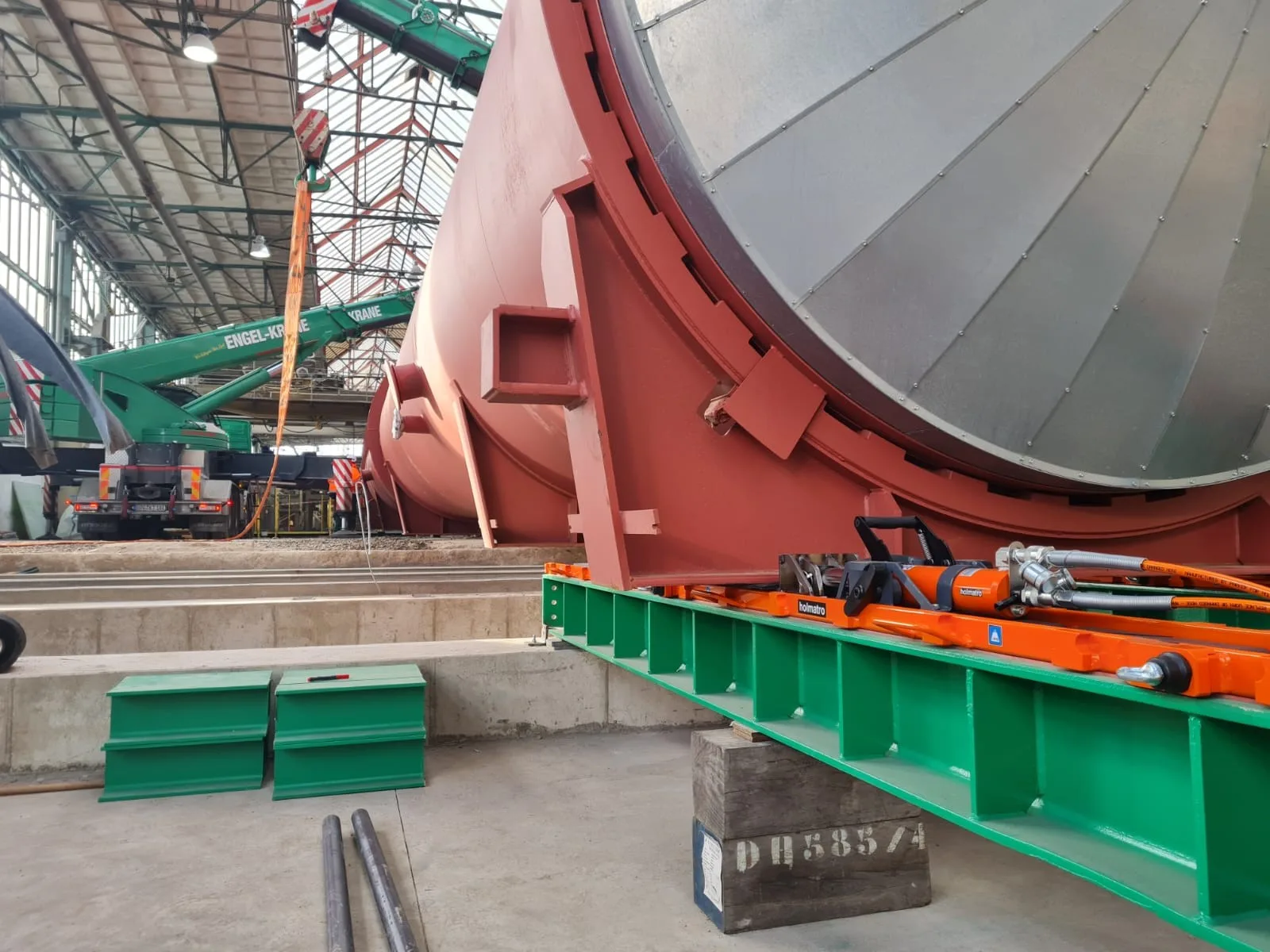

200Ton Skidding System

Holmatro’s light weight skidding system offers an extremely lightweight, fast and easy to set up solution for the horizontal movement of objects and installations with exceptional sizes and low insertion space. Due to its weight and ergonomic design the light weight skidding system can easily be handled & positioned by just one or two persons, without the need for a forklift or use of extra equipment. Changing the push or pull direction can be done in a split of a second! The maximum capacity of the system is 200 tons, assuming two skidding units are used as described in the advised starter kit.

Features & benefits

• 200-ton capacity: 2 X 100 ton
• Extreme low construction height; total height is only 56 mm / 2.20 inches
  • Allows for efficient operation in spaces with limited insertion space.
• Lightweight components with optimally placed grips
  • Easy to carry, handle, position and assemble by one or two persons (no forklift needed)
  • Reduces the physical burden
  • Maximum performance at a minimum weight
• Modular system
  • Easy to adapt to different load sizes and projects
  • Plug and play; easy to assemble without the use of extra equipment
• Push-pull unit equipped with equal capacity for both pushing and pulling;
• Ability to push or pull the load into position, instead of only pushing
• Accurate control in both directions
• Quick Direction Change: the system’s handle allows for a swift change of direction, enabling seamless switching between push and pull directions. Without repositioning!
• With an internal return line in the push-pull cylinder, The risk of damage to the line is reduced
• Maintaining equal hose length for ingoing and outgoing oil.
• The push-pull cylinder comes with integrated safety features, providing protection against overpressure for enhanced safety during operation.
• High beams form fit the standard beams; in case of loads whereby the contact surface not entirely fits on the front side of the push-pull unit
• Total load is optimally spread across the entire system
• Low Sliding Resistance: sliding pads with an extremely low friction coefficient minimize sliding resistance between tracks and beams, allowing smooth movement during skidding operations.

Holmatro’s Skidding Systems provide reliable and effective solutions for transporting industrial objects of
exceptional sizes and weights to their intended locations. With the flexibility and strength of these modular
systems, moving heavy loads becomes a manageable and efficient process, offering an alternative to
traditional crane-based operations. Thanks to the user friendly modular construction of both systems they
are easy to adapt to each load size and project.
