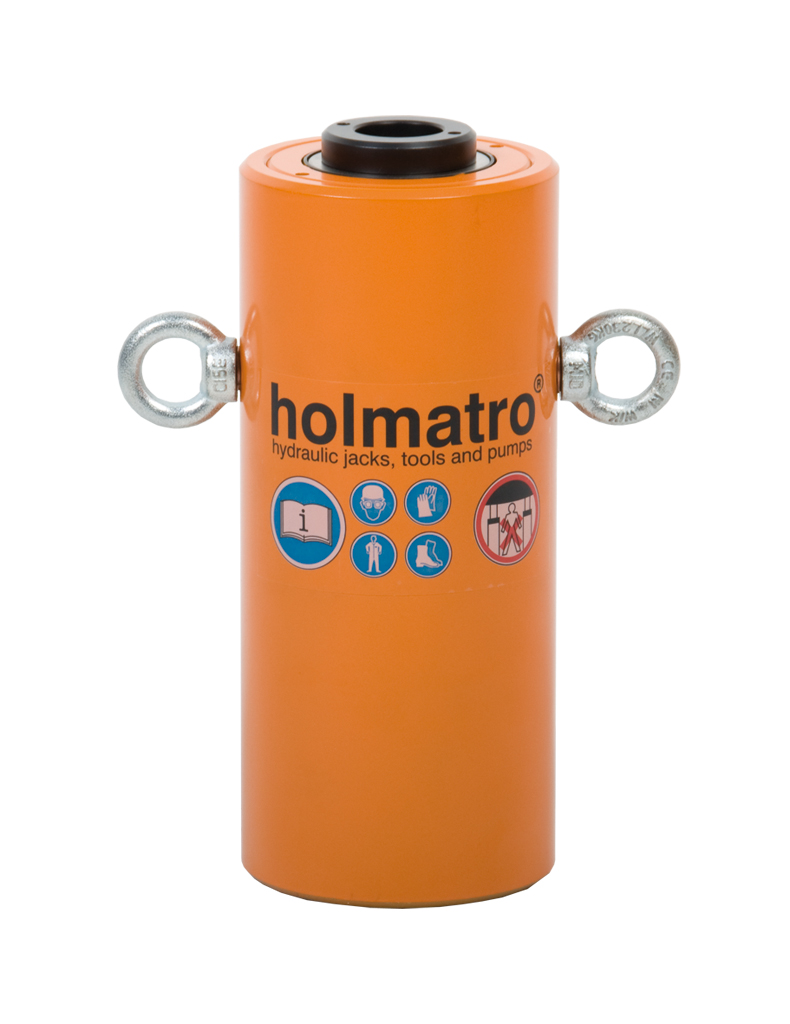

Hollow Plunger Cylinder HHJ 30 H 15
About the Hollow Plunger Cylinder HHJ 30 H 15
Specifications
Details
Article number
100.122.045
Basic specifications
model
HHJ 30 H 15
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
tonnage
30 t
tonnage
66139 lb
stroke
150 mm
stroke
5.9 in
closed height
285 mm
closed height
11.2 in
capacity (press)
293.7 kN / 29.9 t / 293.7 / 29.9 (kN/t)
capacity (press)
66026 lbf
capacity (retract)
131 kN / 13.4 t / 131 / 13.4 (kN/t)
capacity (retract)
29450 lbf
effective pressure area (press)
40.8 cm2
effective pressure area (press)
6.3 sq. in.
effective pressure area (retract)
18.2 cm2
effective pressure area (retract)
2.8 sq. in.
General specifications
required oil content (press)
613 cc
required oil content (press)
20.7 oz
required oil content (retract)
274 cc
required oil content (retract)
9.3 oz
acting type
double
return type
hydraulic
material
steel
cylinder type
hollow plunger
connection
A 118
Dimensions, weight and temperature
weight, ready for use
23 kg
weight, ready for use
50.7 lb
Technical drawing dimensions
dimension A
285 mm
dimension A
11.2 in
dimension B
120 mm
dimension B
4.7 in
dimension C
70 mm
dimension C
2.8 in
dimension D1
70 mm
dimension D1
2.8 in
dimension D2
85 mm
dimension D2
3.3 in
dimension E
40 mm
dimension E
1.6 in
dimension F
275 mm
dimension F
10.8 in
I type
I-2
dimension P
50 mm
dimension P
2 in
dimension R
33 mm
dimension R
1.3 in
dimension S
M50x1,5 threadsize
Features
Suitable for pulling, lifting, tensioning in all positions
Protected against ejection of the plunger
Hollow saddle; prevents damage to the plunger
Protected against over pressure on return side; A418 valve
