400 ton Skidding System
Skidding Systems
Holmatro Industrial ToolsHolmatro’s 400-ton Skidding System consists of robust, shock-resistant parts. The maximum capacity of the system is 400 tons, assuming two skidding units are used. The total construction height is 244 mm (9.61 inches) and can carry loads over a relatively large unsupported span when the surface is uneven. The Skidding System is driven by a powerful hydraulic twin (split flow) pump
Track ST-S
Beam SB-S
Push-Pull Unit SPPU-S
Skidding Twin Pump 09 T 12 E + Trolley
Skidding Twin Pump 09 T 12 F + Trolley
Extension Hose – With Couplers – VL 20 SOU – 20M

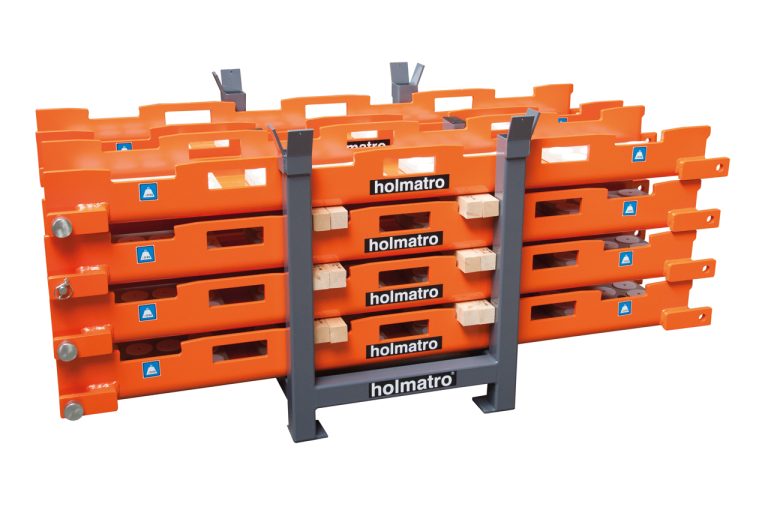

Skid Track Storage Frame 200T STSF-S
Our tracks, with a standard length of 2 meters, are easy to connect to each other using steel pins (no bolted connections). Extremely rigid steel beams with a stainless steel sliding surface are placed in the tracks, which reduces the resistance on the tracks and the chance of bending due to small loads to virtually zero. The push-pull units are fitted with easily dismantled wings
that allow the push or pull direction of the system to be changed quickly. The cylinders in the push-pull units are connected with hydraulic hoses to a powerful hydraulic pump.
Advised start kit for 400-ton lightweight skidding system:
8 Tracks
2 Beams
2 Push-Pull units
1 Twinpump
4 Hoses
1 Storage frame
