Hand Pump PA 09 H 2
About the Hand Pump PA 09 H 2
Specifications
Details
Article number
100.142.034
Basic specifications
model
PA 09 H 2
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
number of stages
2
second stage pressure range
45 - 720 / 4.5 - 72 (bar/Mpa)
first stage pressure range
0 - 45 / 0 - 4.5 (bar/Mpa)
first stage output (per stroke)
22 cc
second stage output (per stroke)
2.1 cc
first stage output (per stroke)
0.74 oz
second stage output (per stroke)
0.07 oz
max. operating force
33 kg
max. operating force
72.8 lb
capacity oil tank
1000 cc
capacity oil tank (effective)
900 cc
capacity oil tank
33.8 oz
capacity oil tank (effective)
30.4 oz
first stage pressure range
0 - 653 psi
second stage pressure range
653 - 10443 psi
General specifications
operator type
hand
connection
3/8" NPT female
double acting optional
no
Dimensions, weight and temperature
weight, ready for use
4.7 kg
weight, ready for use
10.4 lb
Technical drawing dimensions
dimension A
619 mm
dimension A
24.4 in
dimension B
135 mm
dimension B
5.3 in
dimension C
170 mm
dimension C
6.7 in
Features

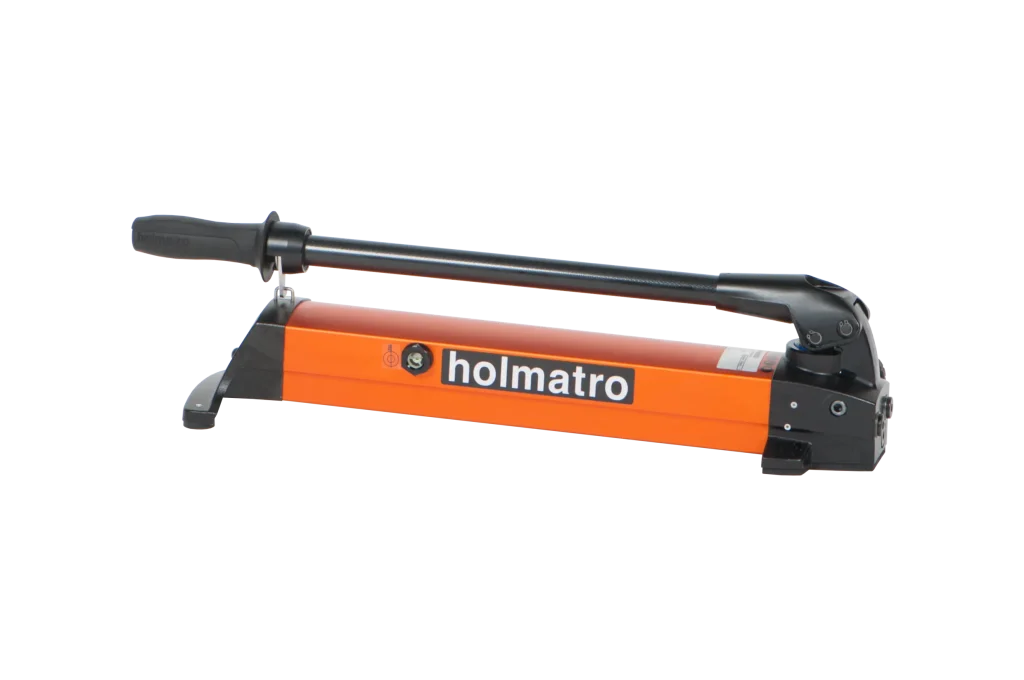

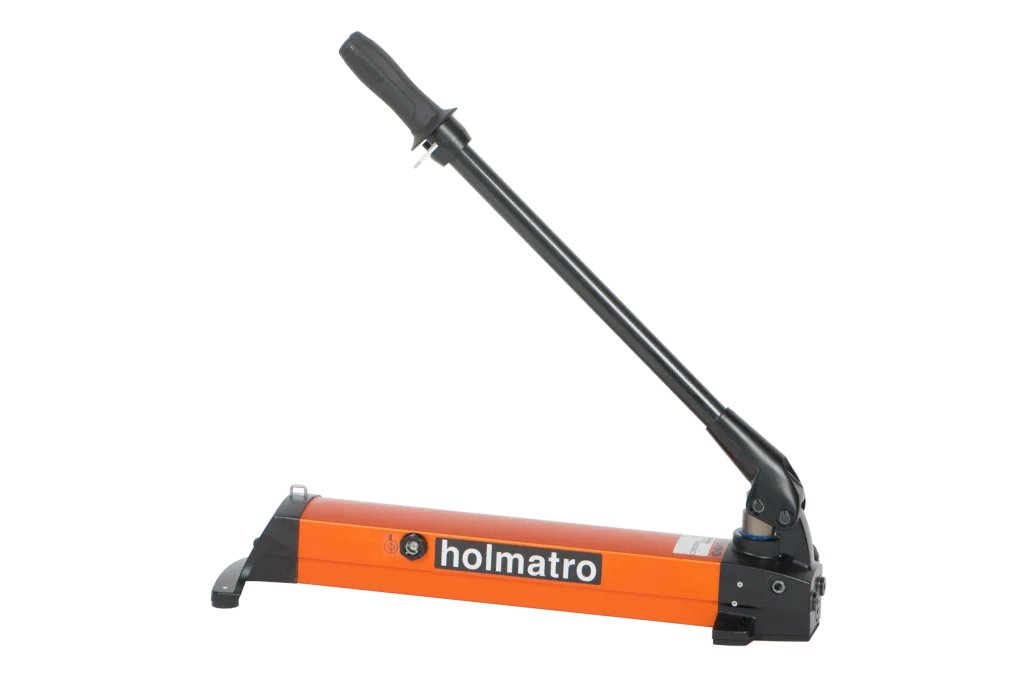

Ergonomic design (1,2)
Lightweight; easy to carry and operate
Low operating force required; minimal user effort
Push & Unlock pump handle lock
Service- and maintenance-friendly
High oil output; quicker action both in the first and second stage
Accurately adjustable pressure release valve (4)
Pressure gauge connection on the pump block (5)
Oil level glass in the tank; check the oil level in both horizontal and vertical position (6)
Integrated filler funnel; top up oil easily and quickly without extra accessories (7)
