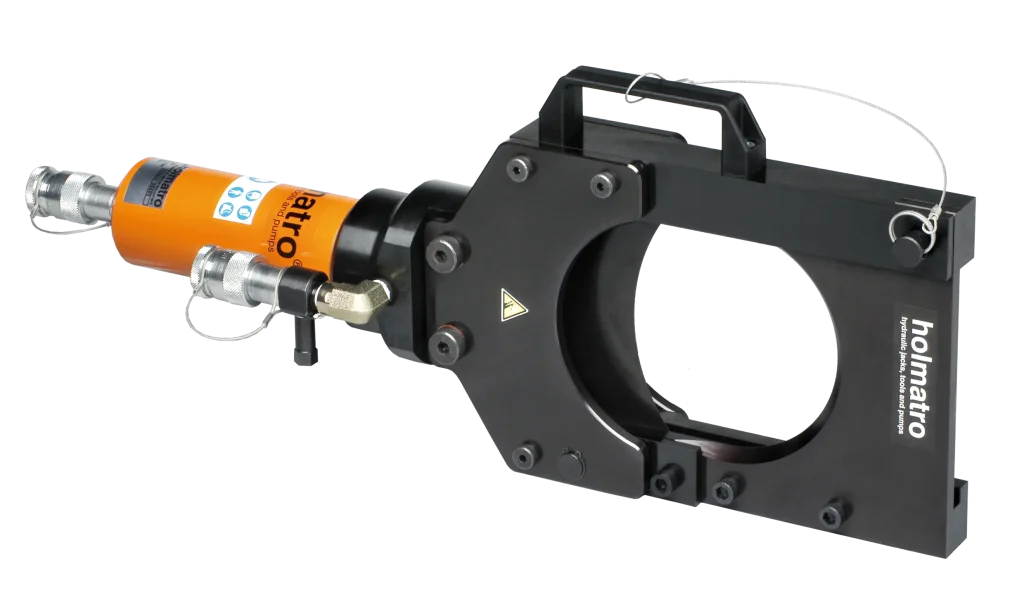

Guillotine Cable Cutter HCC 150
About the Guillotine Cable Cutter HCC 150
Specifications
Details
Article number
100.522.150
Basic specifications
model
HCC 150
max. working pressure
10443 psi
cutter type
guillotine
max. working pressure
720 / 72 (bar/Mpa)
Performance
capacity
203.6 kN / 20.8 t / 203.6 / 20.8 (kN/t)
capacity
45771 lbf
max. jaw opening
150 mm
max. jaw opening
5.9 in
capacity Ø ground cable
140 mm
capacity Ø ground cable
5.5 in
capacity Ø telephone cable
145 mm
capacity Ø telephone cable
5.7 in
General specifications
required oil content (effective)
245 cc
required oil content (effective)
8.3 oz
return type
hydraulic
Dimensions, weight and temperature
weight, ready for use
24.9 kg
weight, ready for use
54.9 lb
dimensions (LxWxH)
684 x 273 x 135 mm
dimensions (LxWxH)
26.9 x 10.7 x 5.3 in
Features
Compact
Lightweight
Spark-free; safe alternative for grinding
Quick and reliable
Usable in all positions
Hardened blade that can be sharpened
