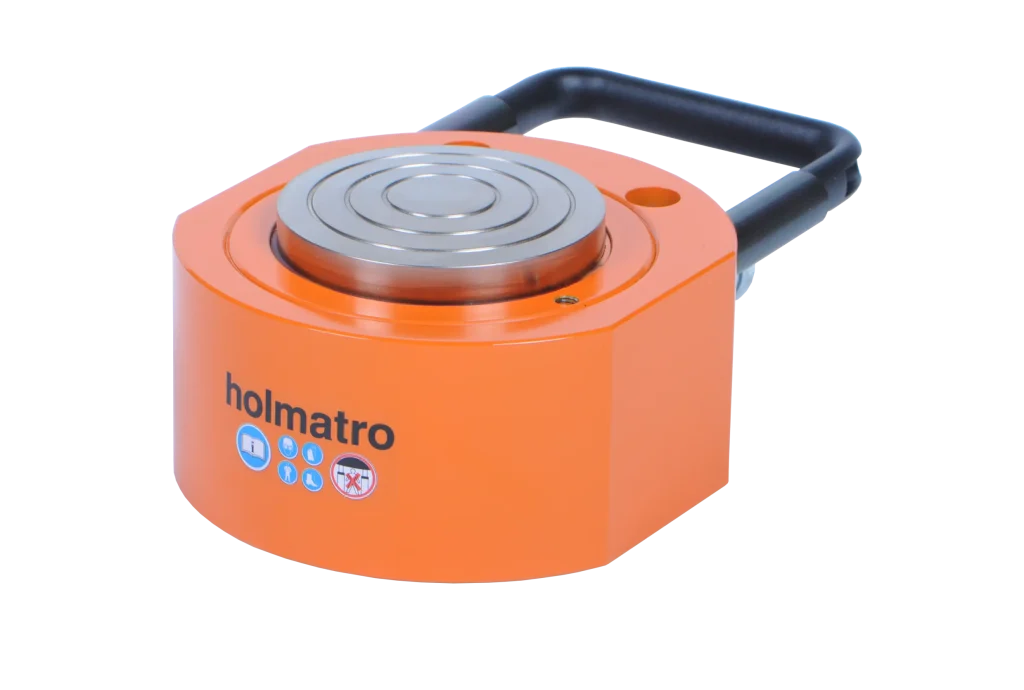

Flat Cylinder HFC 100 S 1.5
About the Flat Cylinder HFC 100 S 1.5
Specifications
Details
Article number
100.112.298
Basic specifications
model
HFC 100 S 1.5
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
tonnage
100 t
tonnage
220462 lb
stroke
15 mm
stroke
0.6 in
closed height
90 mm
closed height
3.5 in
capacity
1030.5 kN / 105.1 t / 1030.5 / 105.1 (kN/t)
capacity
231666 lbf
effective pressure area
143.1 cm2
effective pressure area
22.2 sq. in.
General specifications
required oil content (effective)
215 cc
required oil content (effective)
7.3 oz
acting type
single
return type
spring
material
steel
cylinder type
flat
connection
A 118
Dimensions, weight and temperature
weight, ready for use
18.1 kg
weight, ready for use
39.9 lb
Technical drawing dimensions
dimension A
90 mm
dimension A
3.5 in
dimension B
190 mm
dimension B
7.5 in
dimension B2
173 mm
dimension B2
6.8 in
dimension C
110 mm
dimension C
4.3 in
dimension D
76 mm
dimension D
3 in
dimension E
19 mm
dimension E
0.7 in
dimension F
86 mm
dimension F
3.4 in
I type
I-2
dimension Q
85 mm
dimension Q
3.3 in
dimension U
76 mm
dimension U
3 in
dimension V
13 mm
dimension V
0.5 in
dimension W
74 mm
dimension W
2.9 in
Norms
ASME
B30.1
Features
Compact, flat version, efficient in case of limited insertion space
Stroke of 15mm on all models
