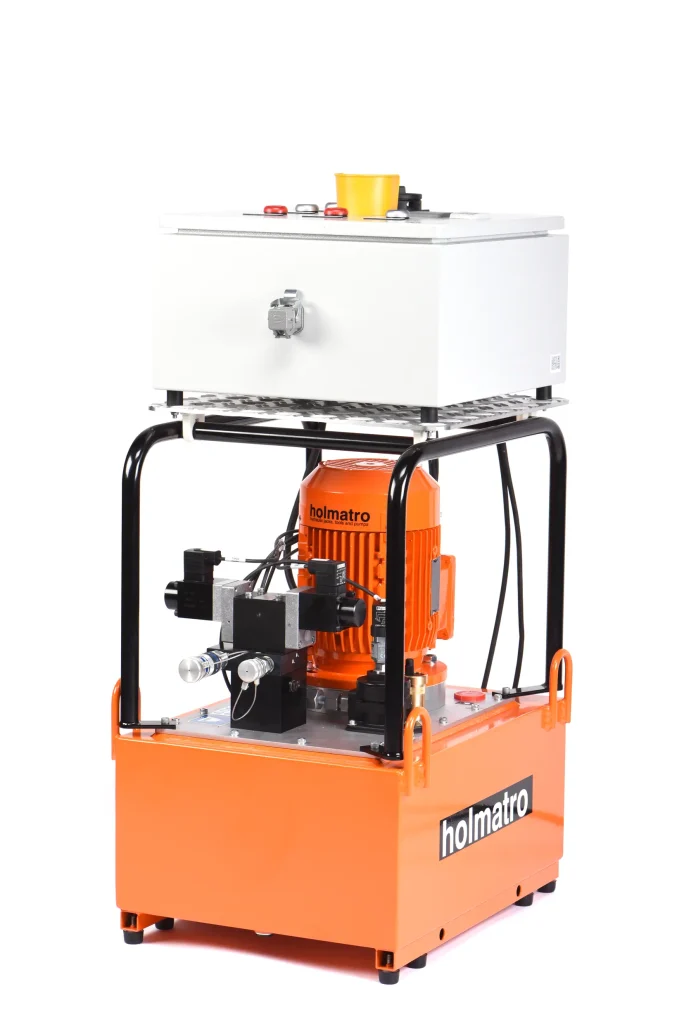

Extremely Durable Pump IPU-S32S25E-EC

The IPU-S32S25E-EC - your pump unit for heavy-duty applications Applications like fridge recycling require a cutting system equipped for intensive use, in a heavy-duty environment. We have developed a bespoke pump, which perfectly suits this application: •Oil level, oil filter- and temperature sensor; to reduces the ware on the pump modules •Alarm function for the oil level, oil filter- and temp sensors •Lowered pump module that is in the oil of the pump, also to further reduce the ware •Pump will automatically switch off when not in use for longer than 15 minutes •Control box with robust transformer, made out of sheet metal •Less vibrations
The IPU-S32S25E-EC - your pump unit for heavy-duty applications
Applications like fridge recycling require a cutting system equipped for intensive use, in a heavy-duty environment. We have developed a bespoke pump, which perfectly suits this application:
•Oil level, oil filter- and temperature sensor; to reduces the ware on the pump modules
•Alarm...
Find a partner

Industrial configurator

Supports you in choosing the right tool & setup for your application.

About the Extremely Durable Pump IPU-S32S25E-EC

Specifications

Choose unit system
Details
Article number
101.002.639
Basic specifications
model
IPU-S32S25E-EC
max. working pressure
5076 psi
for cutter type
stationary HSC200STH40
max. working pressure
350 / 35 (bar/Mpa)
Performance
number of stages
1
first stage pressure range
0 - 350 / 0 - 35 (bar/Mpa)
first stage output / min.
3200 cc
first stage output / min.
108.2 oz
capacity oil tank (effective)
25000 cc
capacity oil tank (effective)
845.4 oz
first stage pressure range
0 - 5076 psi
General specifications
operator type
electric motor
engine
400 VAC - 2.2 kW - 50 Hz - 3 Ph
speed
2850 rpm
Dimensions, weight and temperature
weight, ready for use
120 kg
weight, ready for use
264.6 lb
dimensions (AxBxC)
523 x 640 x 650 mm
dimensions (AxBxC)
20.6 x 25.2 x 25.6 in
Technical drawing dimensions
dimension A
523 mm
dimension A
20.6 in
dimension B
640 mm
dimension B
25.2 in
dimension C
650 mm
dimension C
25.6 in
