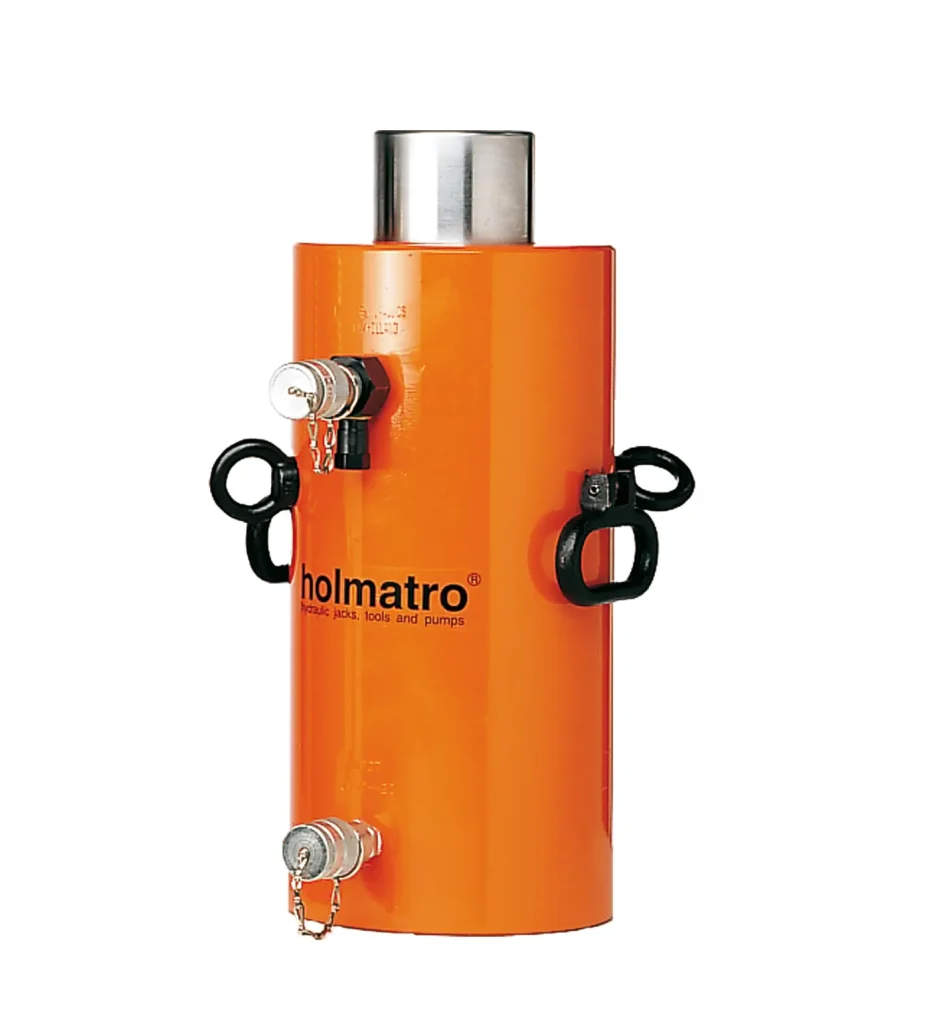

Cylinder HJ 200 H 15
About the Cylinder HJ 200 H 15
Specifications
Details
Article number
100.122.071
Basic specifications
model
HJ 200 H 15
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
tonnage
200 t
tonnage
440925 lb
stroke
150 mm
stroke
5.9 in
closed height
327 mm
closed height
12.9 in
capacity
2040.6 kN / 208.1 t / 2040.6 / 208.1 (kN/t)
capacity
458745 lbf
effective pressure area (press)
283.5 cm2
effective pressure area (press)
43.9 sq. in.
effective pressure area (retract)
82.5 cm2
effective pressure area (retract)
12.8 sq. in.
General specifications
required oil content (effective)
3015 cc
required oil content (effective)
101.9 oz
required oil content (press)
4253 cc
required oil content (press)
143.8 oz
required oil content (retract)
1238 cc
required oil content (retract)
41.9 oz
acting type
double
return type
hydraulic
material
steel
cylinder type
high tonnage
connection
A 118
Dimensions, weight and temperature
weight, ready for use
121 kg
weight, ready for use
266.8 lb
Technical drawing dimensions
dimension A
327 mm
dimension A
12.9 in
dimension B
261 mm
dimension B
10.3 in
dimension C
160 mm
dimension C
6.3 in
dimension D1
70 mm
dimension D1
2.8 in
dimension D2
85 mm
dimension D2
3.3 in
dimension E
60 mm
dimension E
2.4 in
dimension F
320 mm
dimension F
12.6 in
I type
I-1
dimension P
60 mm
dimension P
2.4 in
Features
Flat saddle; prevents damage to the plunger, easy to replace with tilting saddle
Protected against over pressure on return side; A418 valve
