Cylinder HJ 100 G 30

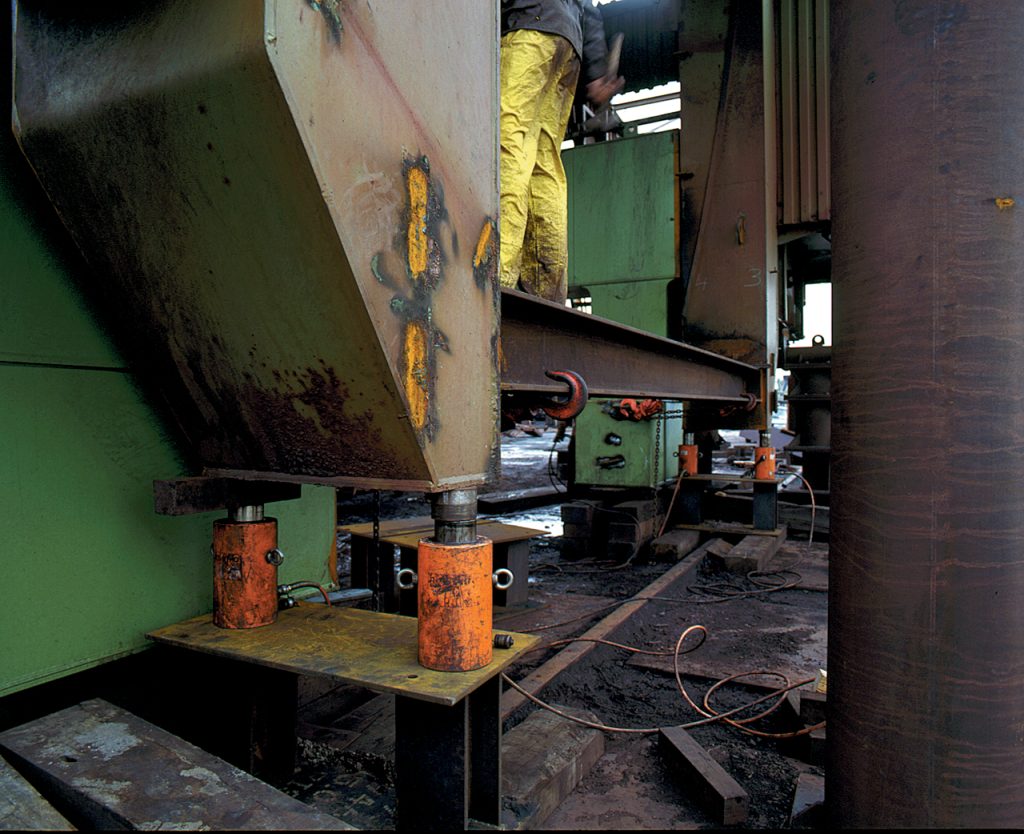

About the Cylinder HJ 100 G 30
Specifications
Details
Article number
100.112.040
Basic specifications
model
HJ 100 G 30
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
tonnage
100 t
tonnage
220462 lb
stroke
300 mm
stroke
11.8 in
closed height
497 mm
closed height
19.6 in
capacity
1029.3 kN / 105 t / 1029.3 / 105 (kN/t)
capacity
231396 lbf
effective pressure area
143 cm2
effective pressure area
22.2 sq. in.
General specifications
required oil content (effective)
4290 cc
required oil content (effective)
145.1 oz
acting type
single
return type
gravity
material
steel
cylinder type
high tonnage
connection
A 118
Dimensions, weight and temperature
weight, ready for use
82 kg
weight, ready for use
180.8 lb
Technical drawing dimensions
dimension A
497 mm
dimension A
19.6 in
dimension B
178 mm
dimension B
7 in
dimension C
105 mm
dimension C
4.1 in
dimension D
70 mm
dimension D
2.8 in
dimension E
52 mm
dimension E
2 in
dimension F
490 mm
dimension F
19.3 in
I type
I-1
Features
Flat saddle; prevents damage to the plunger, easy to replace with tilting saddle
