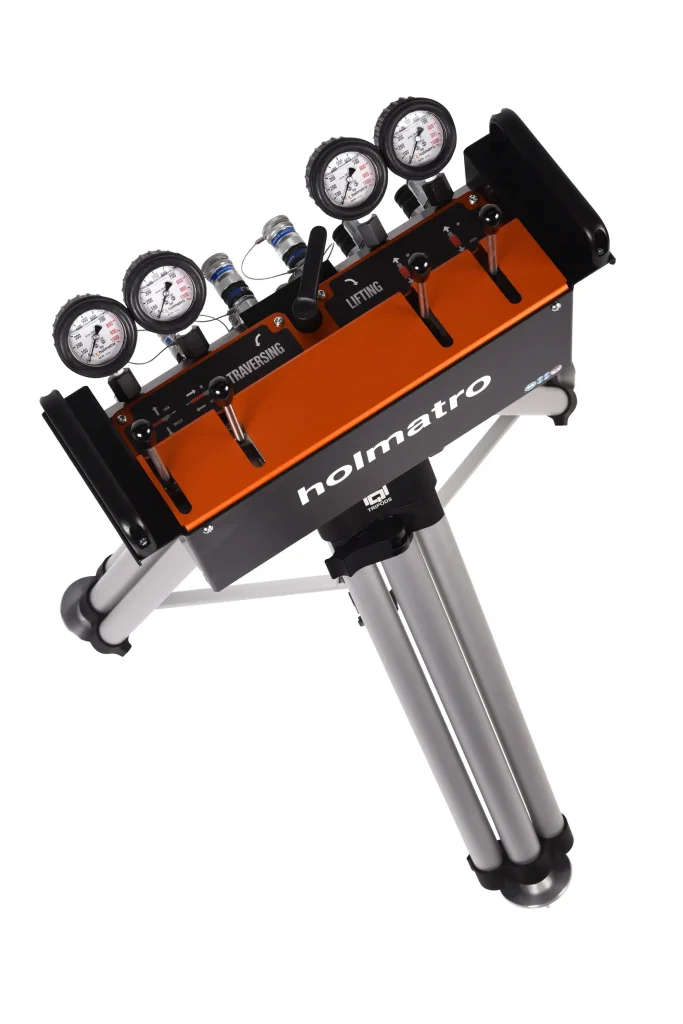

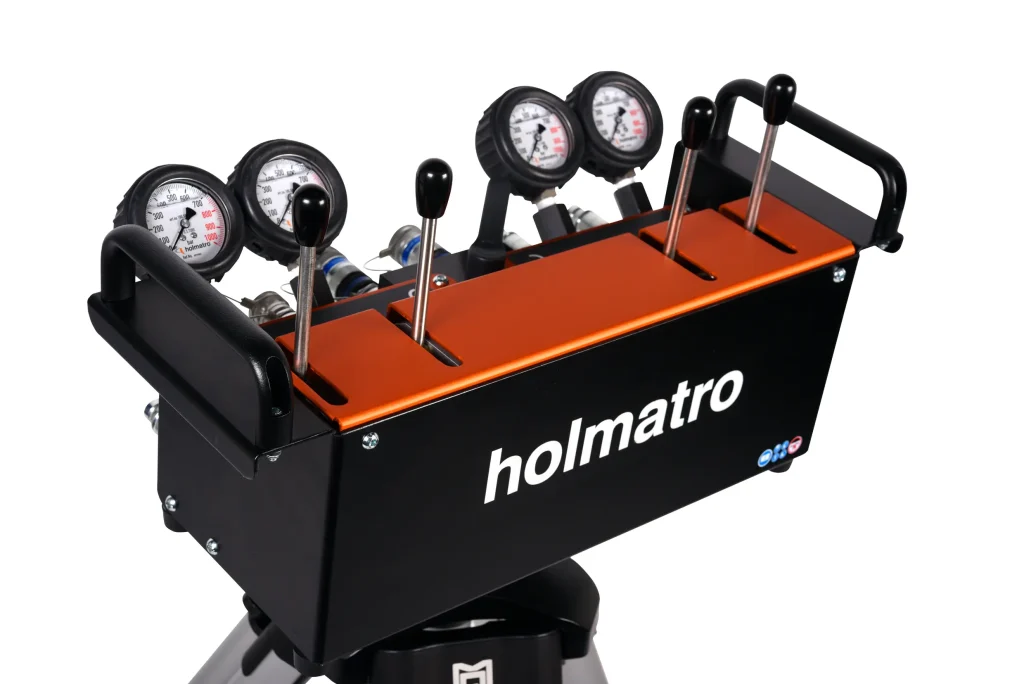

Control panel for rerailing HCT 4V

When working in demanding circumstances and time is of the essence, you want to ensure a safe work environment above all. Our rerailing control table allows you to manage your rerailing operation from a safe distance. The separated oil flows enable you to control your cylinders both individually and simultaneously. With the development and design we focus on both safety and ergonomics, resulting in a controlled & lightweight solution for your rerailing operation. The control table is easy to carry and install thanks to its foldable design and convenient carrying handles. Colored hoses & matching colors on the outlets of the control table & pump unit reduce the possibility of incorrect assembly and thus faulty operations.
Standard supplied with:
  • Hoses to connect the control table with the pump unit.
  • Quick couplers & dust caps: outlets for traversing.
  • Flat face couplers: dust cap function incorporated: outlets for lifting.
When working in demanding circumstances and time is of the essence, you want to ensure a safe work environment above all.

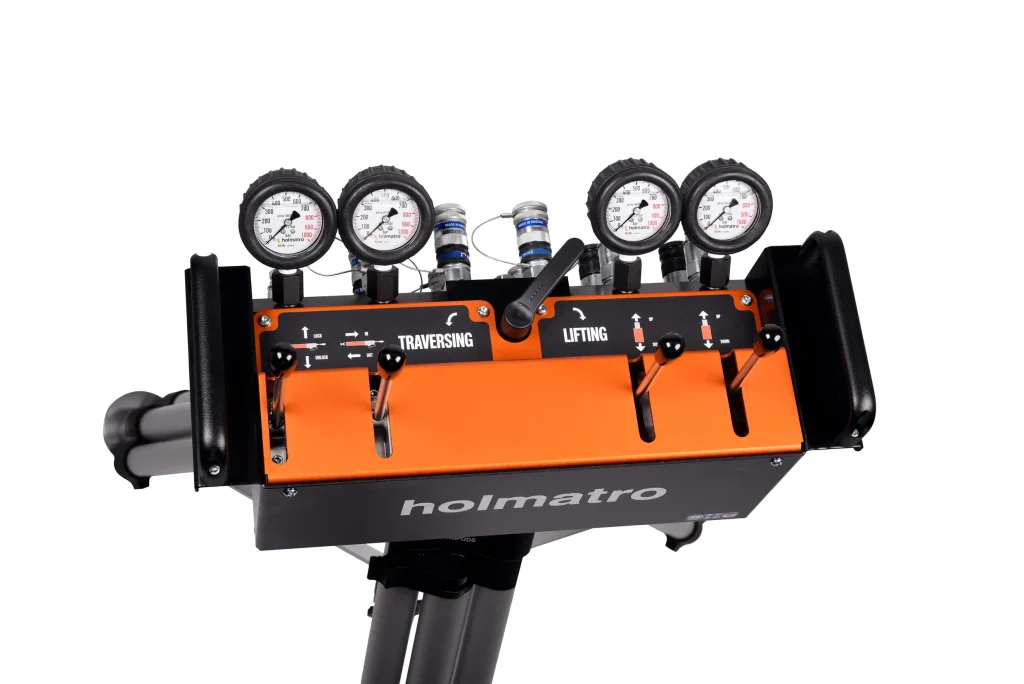

Our rerailing control table allows you to manage your rerailing operation from a safe distance. The separated oil flows enable you to control your cylinders both individually and simultaneously.

With the development and design...

Features & benefits

  • Separated oil flows for a safe & controlled operation.

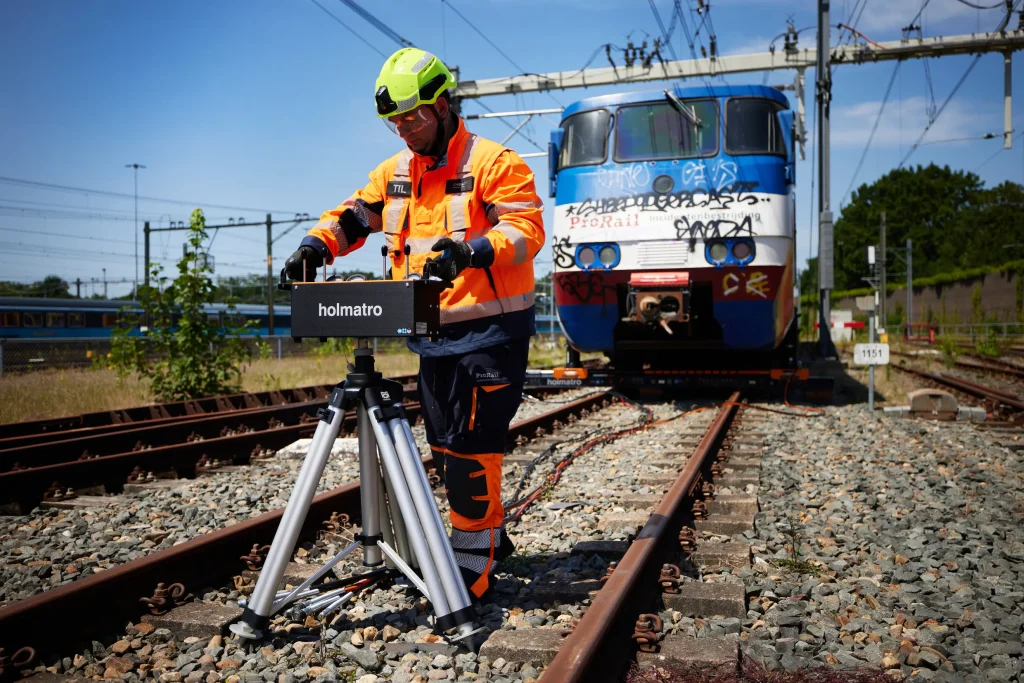

  • Control the load from a safe distance.
Show all

About the Control panel for rerailing HCT 4V

Specifications

Choose unit system
Details
Article number
101.002.799
Basic specifications
model
HCT 4V
max. working pressure
7977 psi
max. working pressure
550 / 55 (bar/Mpa)
Dimensions, weight and temperature
temperature range
-20 +55 °C
temperature range
-4 +131 °F
dimensions (AxBxC)
1550 x 510 x 292 mm
dimensions (AxBxC)
61 x 20.1 x 11.5 in
Technical drawing dimensions
dimension A
1550 mm
dimension A
61 in
dimension B
510 mm
dimension B
20.1 in
dimension C
292 mm
dimension C
11.5 in
dimension D
1372 mm
dimension D
54 in

Features

Features & benefits
  • Separated oil flows for a safe & controlled operation.
  • Control the load from a safe distance.

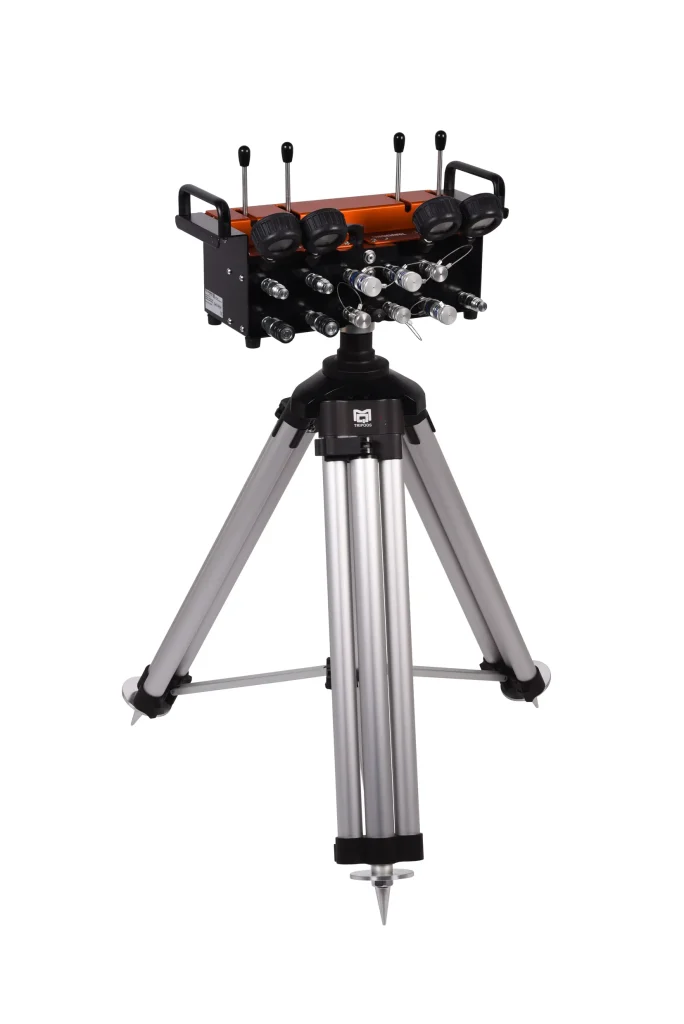

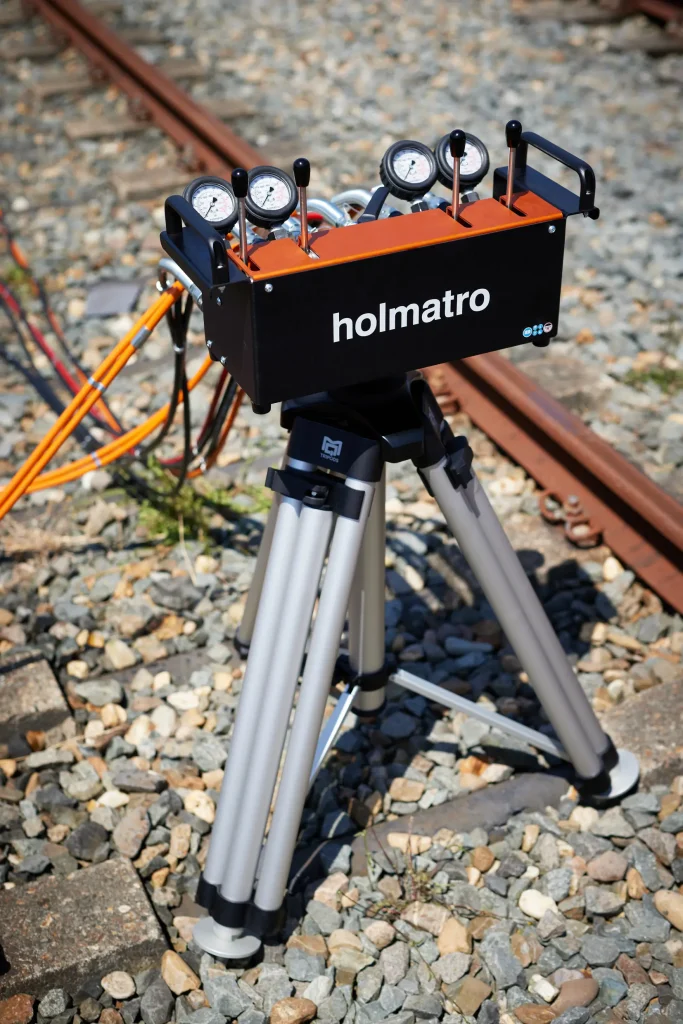

  • Tripod to increase stability no matter the surface, flat or sloping site.
  • Made of lightweight aluminum.
  • Colored hoses & matching colors on the outlets of the control table & pump

Downloads

HCT 4V, Spec sheet, A4 metric

HCT 4V, Spec sheet, Letter imperial
