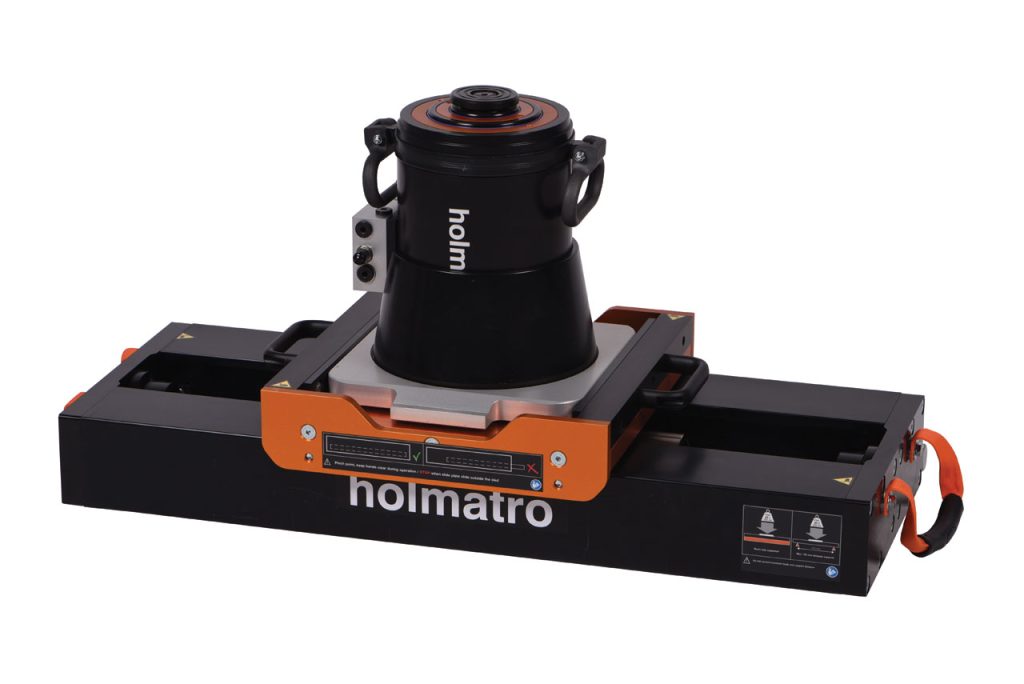

Compact Rerailing Unit CRU
Features & benefits
- Compact, lightweight, and user-friendly: weight ready for use only 54 kg, divisible into parts of <40 kg:
- Easy transportation towards the accident.
About the Compact Rerailing Unit CRU
Specifications
Details
Article number
101.001.262
Basic specifications
model
CRU
max. working pressure
7977 psi
max. working pressure
550 / 55 (bar/Mpa)
Performance
tonnage
21 t
tonnage
46297 lb
stroke
300 mm
stroke
11.8 in
max. number of lifting points
1
max. lifting & traversing capacity
46311 lbf
max. lifting & traversing capacity
206 / 21 (kN/t)
General specifications
acting type
double
return type
hydraulic
material
aluminium
Dimensions, weight and temperature
weight, ready for use
53.9 kg
weight, ready for use
118.8 lb
dimensions (LxWxH)
850 x 379 x 153 mm
dimensions (LxWxH)
33.5 x 14.9 x 6 in
Features
Features & benefits
- Compact, lightweight, and user-friendly: weight ready for use only 54 kg, divisible into parts of <40 kg:
- Easy transportation towards the accident.
- Easy to install due to its compact dimensions.
- Equal, split flow pump unit available
- Remote controlled valves give you an excellent overview of the situation.
- Core hose technology: press & return 1 one, single hose enabling you to switch between control valves, while the pump is running.
- Suitable for lightweight railway vehicles e.g., tram, metro
