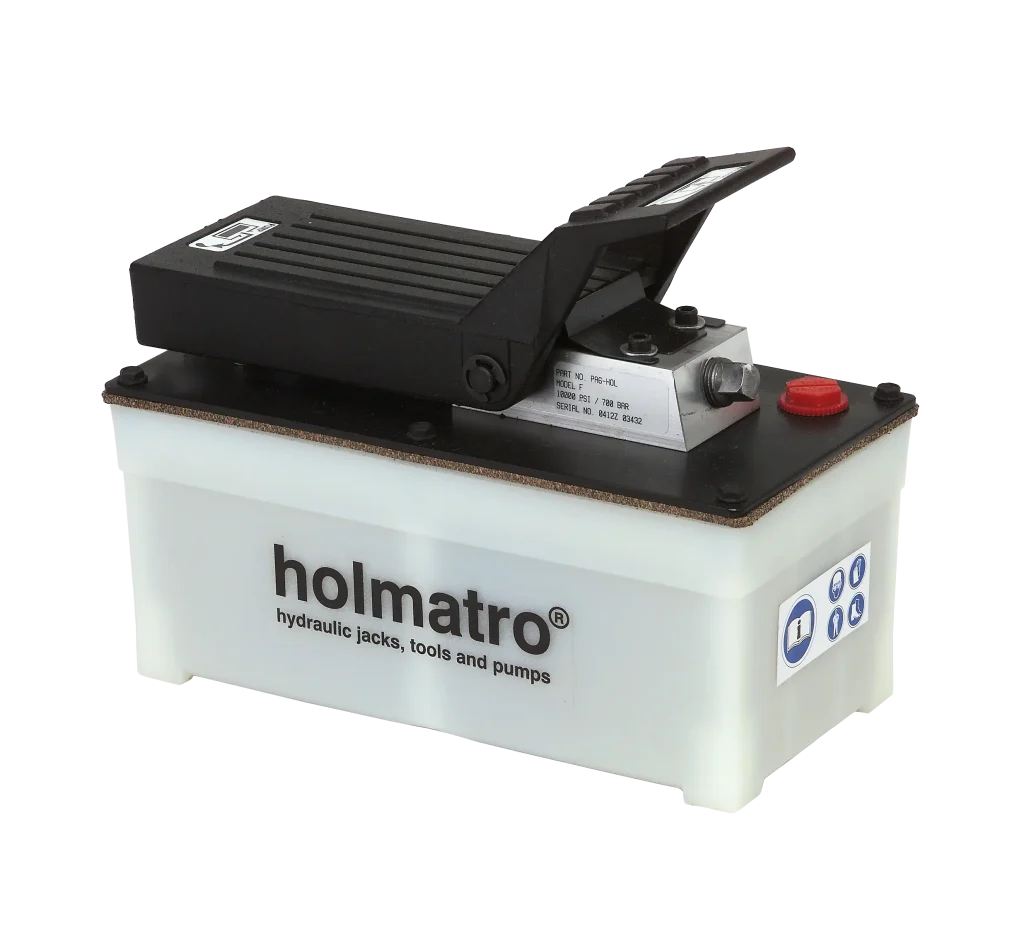

Compact Air Pump AHS 1400 FS
| capacity oil tank (effective): | 1400 cc |
| capacity oil tank (effective): | 47.3 oz |
| operator type: | air |
About the Compact Air Pump AHS 1400 FS
Specifications
Details
Article number
100.602.001
Basic specifications
model
AHS 1400 FS
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
max. air pressure
123 psi
output unloaded
960 (cc/min) / 139236.2 (cu. in./min.)
output loaded
410 (cc/min) / 59465.5 (cu. in./min.)
air consumption unloaded
700 (l/min)
air consumption unloaded
184.9 gpm
air consumption loaded
580 (l/min)
air consumption loaded
153.2 gpm
capacity oil tank (effective)
1400 cc
capacity oil tank (effective)
47.3 oz
max. air pressure
8.5 / 0.8 (bar/Mpa)
General specifications
operator type
air
connection
3/8" NPT female
suitable for (tool type)
single acting
Dimensions, weight and temperature
weight, ready for use
6.5 kg
weight, ready for use
14.3 lb
temperature range
-20 + 55 °C
temperature range
-4 + 131 °F
dimensions (AxBxC)
282 x 128 x 200 mm
dimensions (AxBxC)
11.1 x 5 x 7.9 in
Technical Drawing
AHS 1400 FS, 100.602.001
Features
Lightweight
Ideal for pulling, pressing
Safe: when the air pressure is lost, the oil pressure is maintained
Low-noise: built-in silencer
Stops automatically when the maximum pressure is reached
