Base Plate BP 80/28

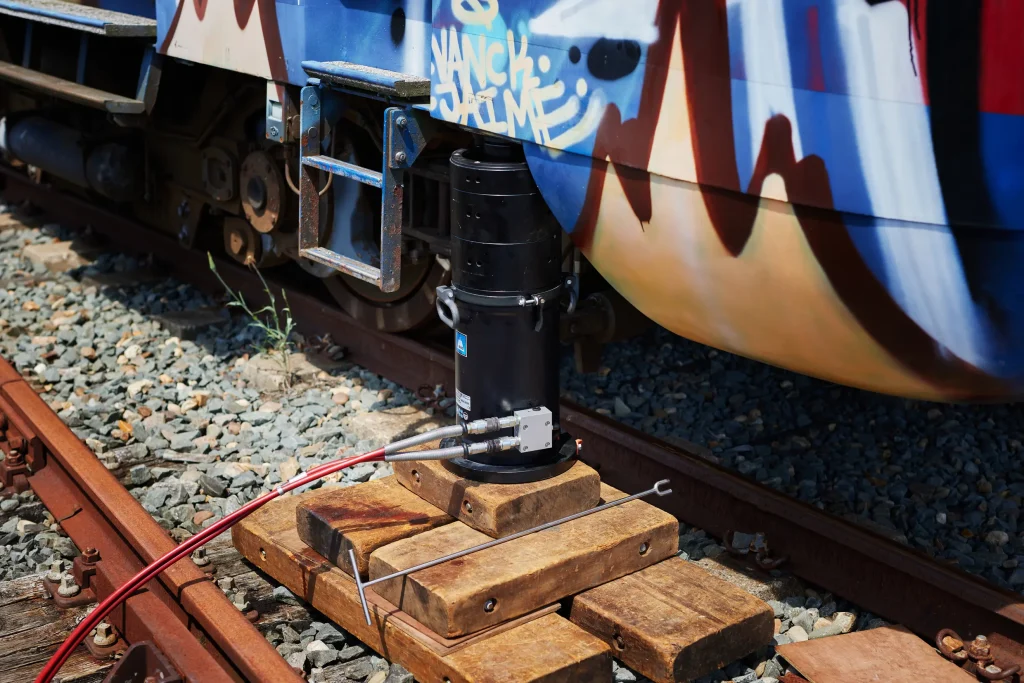

The base plates are intentionally separated from our cylinders, providing a secure, more stable foundation for your entire system and load. Base plates are used when working directly from the ground, rather than placing the cylinders on to the traverse sled.

Standard supplied with:

Optimally placed grips; easy to carry.

Request Quotation Request demo

Features & benefits

Creates stability and therefore safety.

Show all

About the Base Plate BP 80/28

Specifications

Metric Imperial

Details

Article number

101.001.087

Basic specifications

model

BP 80/28

Dimensions, weight and temperature

weight, ready for use

4.5 kg

weight, ready for use

9.9 lb

Technical drawing dimensions

dimension A

25 mm

dimension A

1 in

dimension B

300 mm

dimension B

11.8 in

dimension C

184 mm

dimension C

7.2 in

dimension D

10 mm

dimension D

0.4 in

Features

Features & benefits

Creates stability and therefore safety.

Downloads

BP 80/28, Spec sheet, A4 metric

pdf

283.1 KB

Download

BP 80/28, Spec sheet, Letter imperial

pdf

270.2 KB

Download
