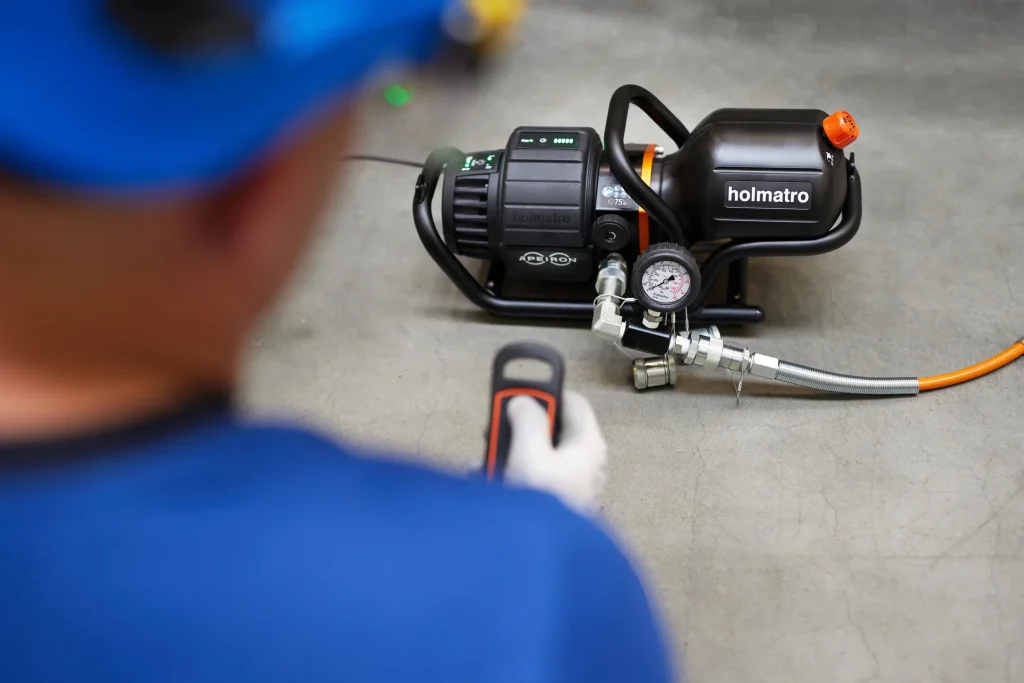

APEIRON Holmatro Battery Pump HBP05S02

With the Holmatro APEIRON HBP05S02, we introduce a single acting battery pump standard that offers unparalleled performance and limitless possibilities, empowering you to keep going in even the most demanding circumstances. The patented pump technology with electronic motor control ensures consistent, long-lasting performance. It’s powered by a high-quality, purpose-built battery with large, high-quality cells. Real-time feedback on charge status and temperature always keeps you in control. This advanced system ensures optimal efficiency, seamless and safe operation. The Apeiron HBP05S02 features an accurate & controllable manual pressure release valve that is integrated is the valve block of the pump. Therefore, loads can be lowered safely and under full control. The Apeiron is proven to last longer in rigorous endurance testing: less downtime, more work done!

Standard supplied with:

2 Batteries

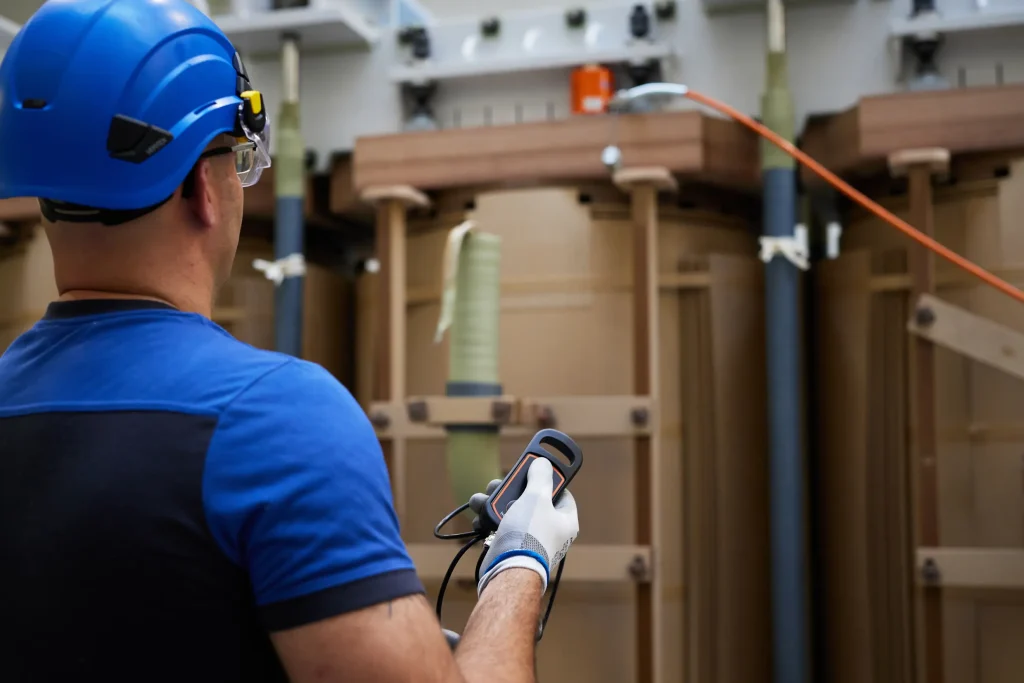

Hand pendant control, 3m length cord
Couplers that suit the application: plug and play

Find a partner

Features & benefits

Electronic motor control and pressure monitoring: constant lifetime performance.

Patented staging and sectoring technology reduces oil heating, minimizing wear and tear.

Show all

About the APEIRON Holmatro Battery Pump HBP05S02

Specifications

Metric Imperial

Details

Article number

101.003.400

Basic specifications

model

HBP05S02

max. working pressure

10443 psi

max. working pressure

720 / 72 (bar/Mpa)

battery included

Yes, 2 pcs

connectivity, mobile app

Bluetooth

Performance

number of stages

stepless

capacity oil tank

2500 cc

capacity oil tank (effective)

2000 cc

capacity oil tank

84.5 oz

capacity oil tank (effective)

67.6 oz

protection rate

IP44

vibration level

>2.5 m/s²

high pressure output / min

500 cc

high pressure output / min

16.91 oz

low pressure output / min

3100 cc

low pressure output / min

104.82 oz

General specifications

operator type

battery

acting type

single

engine

28 VDC - 0.95 kW

couplers

yes, 1 pcs A119 male

Dimensions, weight and temperature

weight, ready for use

13.3 kg

weight, ready for use

29.3 lb

dimensions (LxWxH)

520 x 225 x 260 mm

dimensions (LxWxH)

20.5 x 8.9 x 10.2 in

weight (excl. battery)

11.7 kg

weight (excl. battery)

25.8 lb

temperature range

-20 +55 °C

temperature range

-4 +131 °F

dimensions (AxBxC)

520 x 260 x 225 mm

dimensions (AxBxC)

20.5 x 10.2 x 8.9 in

Features

Extremely Durable

Electronic motor control and pressure monitoring: constant lifetime performance.
Patented staging and sectoring technology reduces oil heating, minimizing wear and tear.
A purpose-built battery with large, high-quality cells minimizes wear and tear through seamless connectivity with the pump.
Integrated protection frame to protect vital parts.

Unparalleled Speed

The fastest battery pump with patented Stepless Speed Maximization technology:
o 50% faster at 700bar, 90% faster at 500bar (*).
o Can run up to 50% more cycles on one battery charge (*).
o Battery charging time on charger: only 20 minutes to 80%.
Continuous optimized settings: maximum speed at any tool load.
(*) compared to the main competitors

Seamless Operation & Operator Safety:

Maximum operating flexibility and control with two operation speed modes.
o Operating speed mode selectable on the pump and hand pendant control.

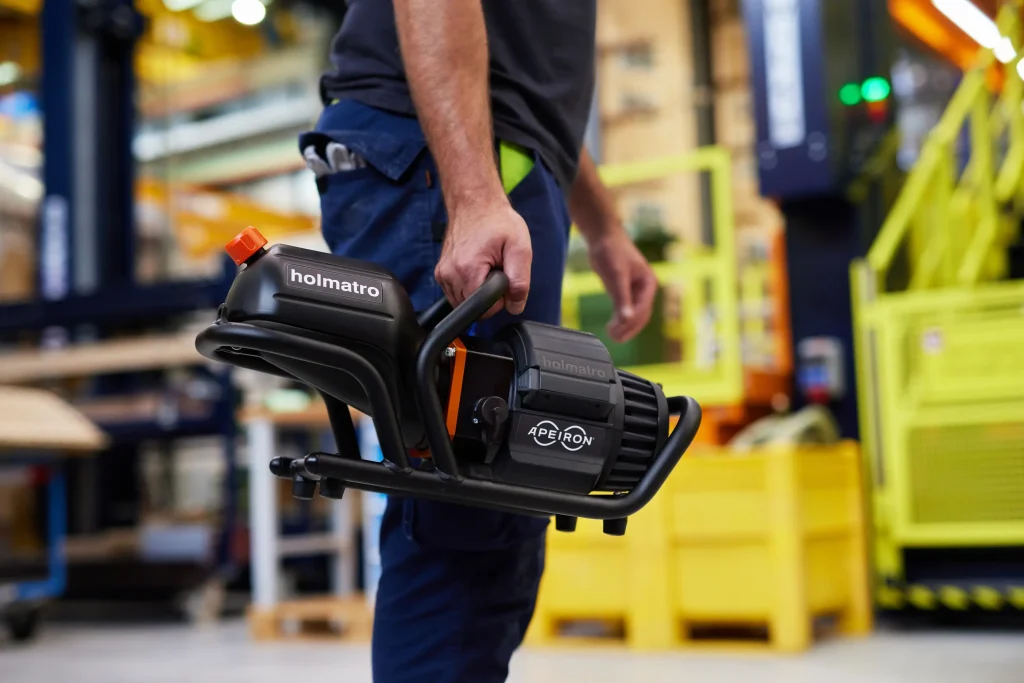

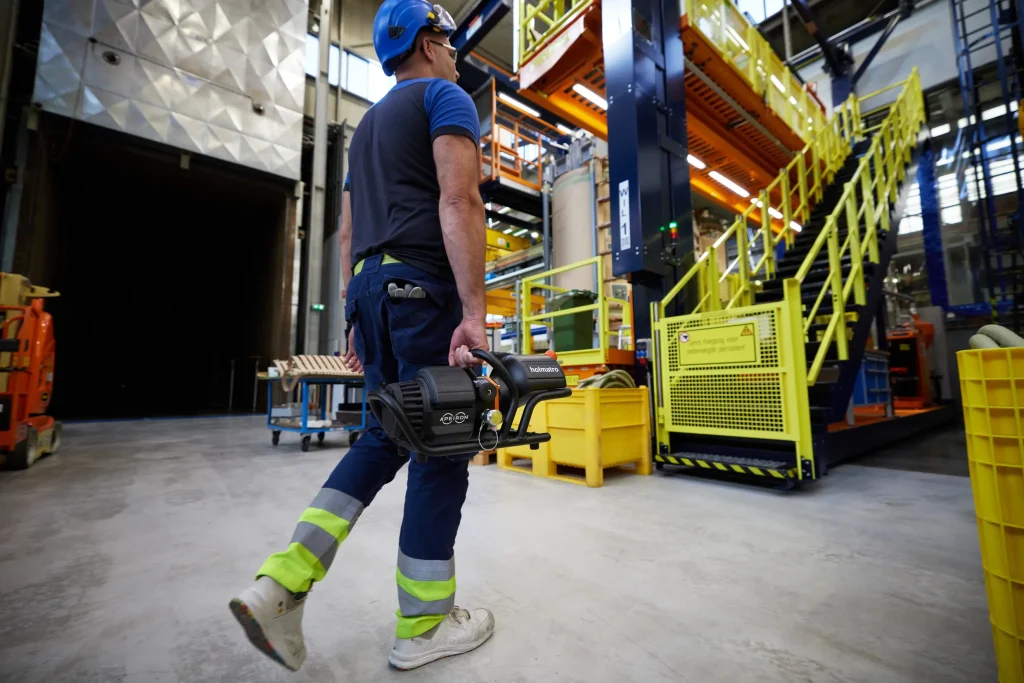

Designed with the user in mind: intuitive, compact & portable.
Connect the Apeiron to your mobile device & the MyHolmatro app:
o Real-time diagnostics during every operation.
o Monitor battery condition, state of charge, pump stage, motor temperature, working pressure (including peak pressure), and speed mode.
