APEIRON Holmatro Battery Pump HBP05C02

The Holmatro Apeiron Battery Pump platform has enabled the development of a purpose-built battery pump for Mobile Cutting Solutions. APEIRON for Cutting is the ideal solution for applications requiring maximum mobility, reduced weight and reliable operation in environments without access to external power. Compact & Ergonomic • Weight: o Apeiron Battery Pump: over 50 % lighter compared to the IPU-M 2035 Pump. o Mobile Cutter: average 25 % lighter compared to Battery Cutter. Fast • Operational speed gain: 50% faster compared to the IPU-M 2035 Pump. Portable • No need for an external power source.

Standard supplied with:

2 Batteries
Couplers that suit the application: plug and play

Find a partner

Features & benefits

Electronic motor control and pressure monitoring: constant lifetime performance.

Patented staging and sectoring technology reduces oil heating, minimizing wear and tear.

Show all

About the APEIRON Holmatro Battery Pump HBP05C02

Specifications

Metric Imperial

Details

Article number

101.003.448

Basic specifications

model

HBP05C02

equipped with (connector type)

dual hoses

max. working pressure

7252 psi

max. working pressure

500 / 50 (bar/Mpa)

battery included

Yes, 2 pcs

connectivity, mobile app

Bluetooth

Performance

number of stages

stepless

capacity oil tank

2500 cc

capacity oil tank (effective)

2000 cc

capacity oil tank

84.5 oz

capacity oil tank (effective)

67.6 oz

protection rate

IP44

vibration level

>2.5 m/s²

high pressure output / min

700 cc

high pressure output / min

23.67 oz

low pressure output / min

3100 cc

low pressure output / min

104.82 oz

General specifications

operator type

battery

number of tool connections

engine

28 VDC - 0.95 kW

couplers

yes

Dimensions, weight and temperature

weight, ready for use

13.3 kg

weight, ready for use

29.3 lb

dimensions (LxWxH)

520 x 234 x 260 mm

dimensions (LxWxH)

20.5 x 9.2 x 10.2 in

weight (excl. battery)

11.7 kg

weight (excl. battery)

25.8 lb

temperature range

-20 +55 °C

temperature range

-4 +131 °F

dimensions (AxBxC)

520 x 260 x 234 mm

dimensions (AxBxC)

20.5 x 10.2 x 9.2 in

Features

Extremely Durable

Electronic motor control and pressure monitoring: constant lifetime performance.
Patented staging and sectoring technology reduces oil heating, minimizing wear and tear.
A purpose-built battery with large, high-quality cells minimizes wear and tear through seamless connectivity with the pump.
Integrated protection frame to protect vital parts.

Unparalleled Speed

The fastest industrial battery pump with patented Stepless Speed Maximization technology.
Battery charging time on charger: only 20 minutes to 80%.
Continuous optimized settings: maximum speed at any tool load.

Seamless Operation & Operator Safety

Maximum operating flexibility and control with two operating speed modes.
Designed with the user in mind: intuitive, compact & portable

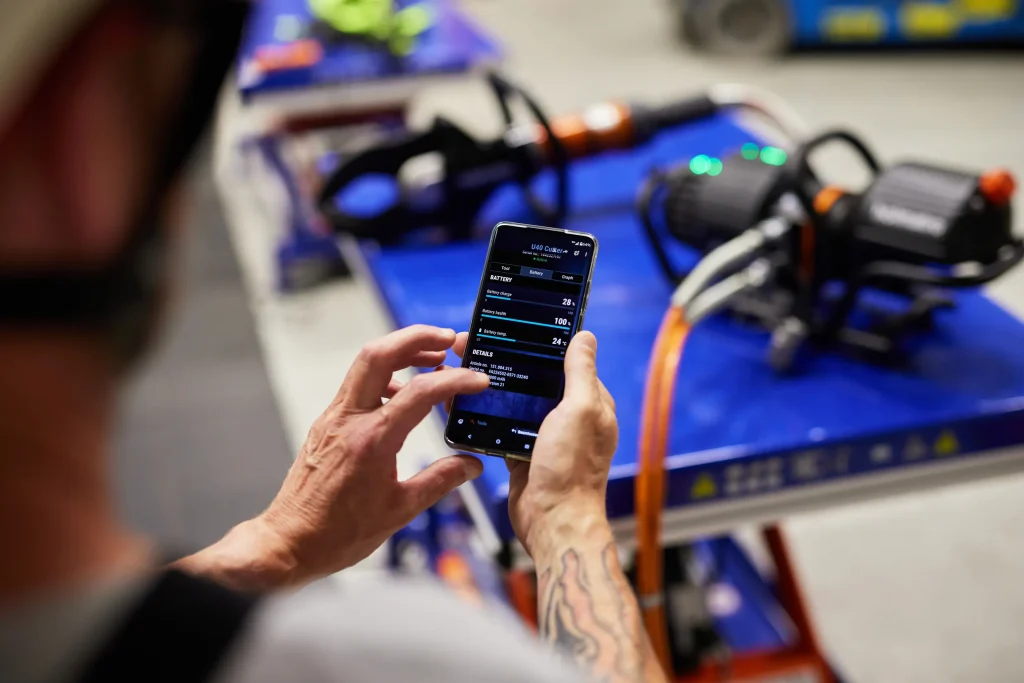

Connect the Apeiron to your mobile device & the MyHolmatro app:
o Real-time diagnostics during every operation:
o Monitor battery condition, state of charge, pump stage, motor temperature, working pressure (including peak pressure), and speed mode.
