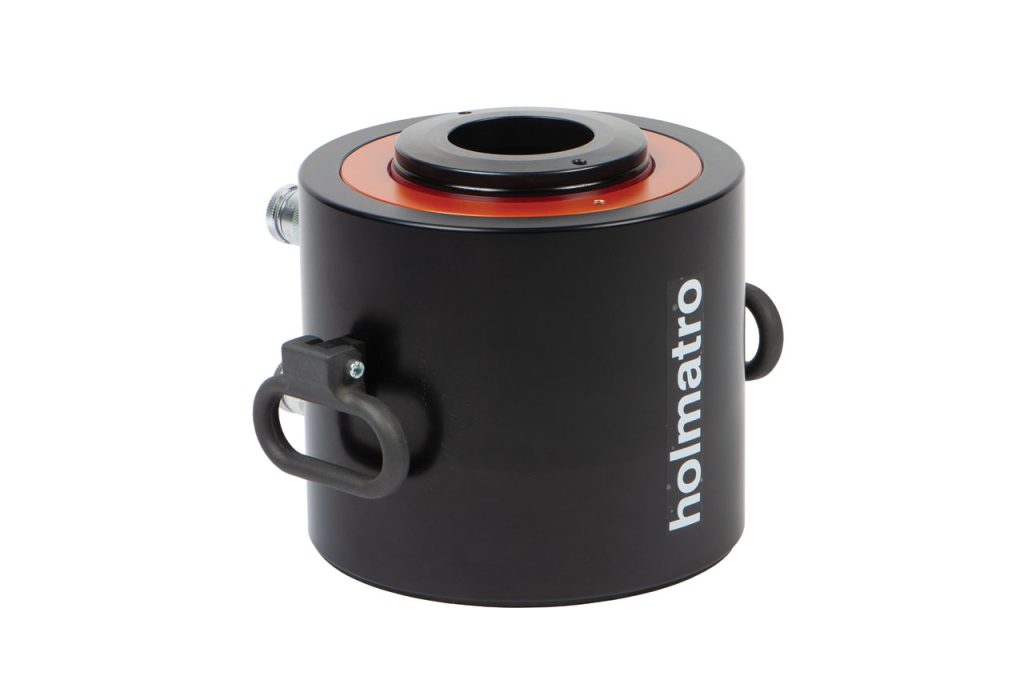

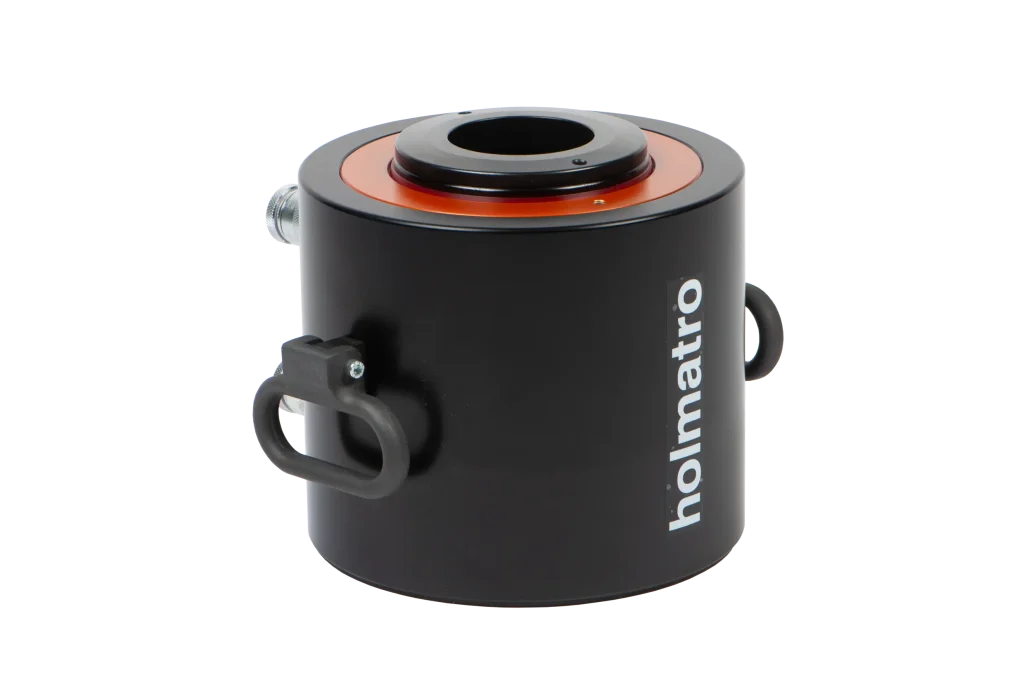

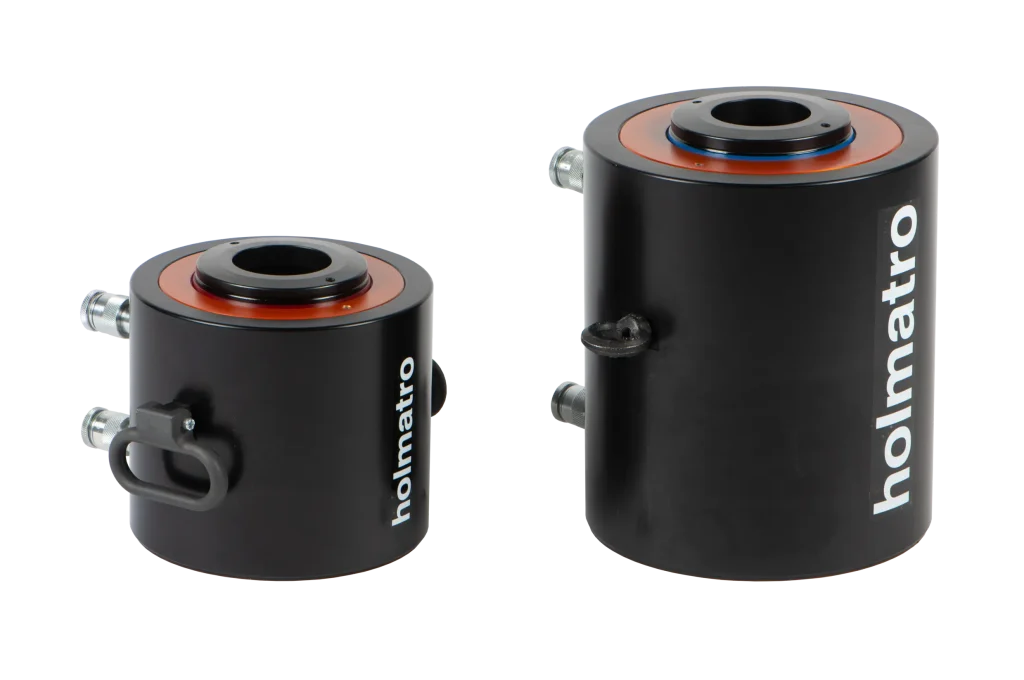

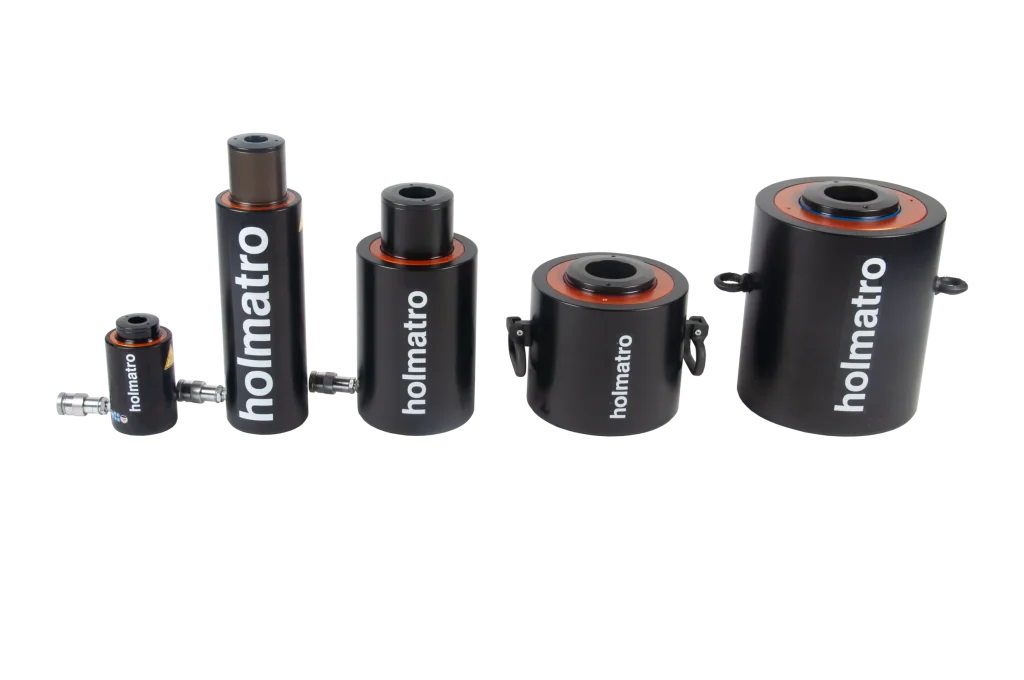

Aluminum Hollow Plunger Cylinder HAHC100H15
About the Aluminum Hollow Plunger Cylinder HAHC100H15
Specifications
Details
Article number
100.112.383
Basic specifications
model
HAHC100H15
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
tonnage
100 t
tonnage
220462 lb
stroke
150 mm
stroke
5.9 in
closed height
329 mm
closed height
13 in
capacity
1029 kN / 104.9 t / 1029 / 104.9 (kN/t)
capacity
231328 lbf
capacity (retract)
431 kN / 43.9 t / 431 / 43.9 (kN/t)
capacity (retract)
96893 lbf
effective pressure area (press)
142.9 cm2
effective pressure area (press)
22.1 sq. in.
effective pressure area (retract)
59.9 cm2
effective pressure area (retract)
9.3 sq. in.
General specifications
required oil content (effective)
1246 cc
required oil content (effective)
42.1 oz
required oil content (press)
2144 cc
required oil content (press)
72.5 oz
required oil content (retract)
898 cc
required oil content (retract)
30.4 oz
acting type
double
return type
hydraulic
material
aluminium
cylinder type
hollow plunger
connection
A 118
Dimensions, weight and temperature
weight, ready for use
39.7 kg
weight, ready for use
87.5 lb
Technical drawing dimensions
dimension A
329 mm
dimension A
13 in
dimension B
245 mm
dimension B
9.6 in
dimension C
140 mm
dimension C
5.5 in
dimension D
80 mm
dimension D
3.1 in
dimension E
41 mm
dimension E
1.6 in
dimension F
313 mm
dimension F
12.3 in
dimension G
88.5 mm
dimension G
3.5 in
dimension P
68 mm
dimension P
2.7 in
dimension R
80 mm
dimension R
3.1 in
Norms
ASME
B30.1
Features
Up to 60% lighter compared to steel cylinders - easy & ergonomic
Compact design and a lower build-in
Suitable for pulling, lifting, tensioning in all positions
Duo power ring; a combination of a superior seal and an extremely strong composite bearing for a longer life span
The plunger is coated with a hardened anodized layer, which makes it extremely wear & corrosion resistant
Safety valve for protection against overpressure on return side
