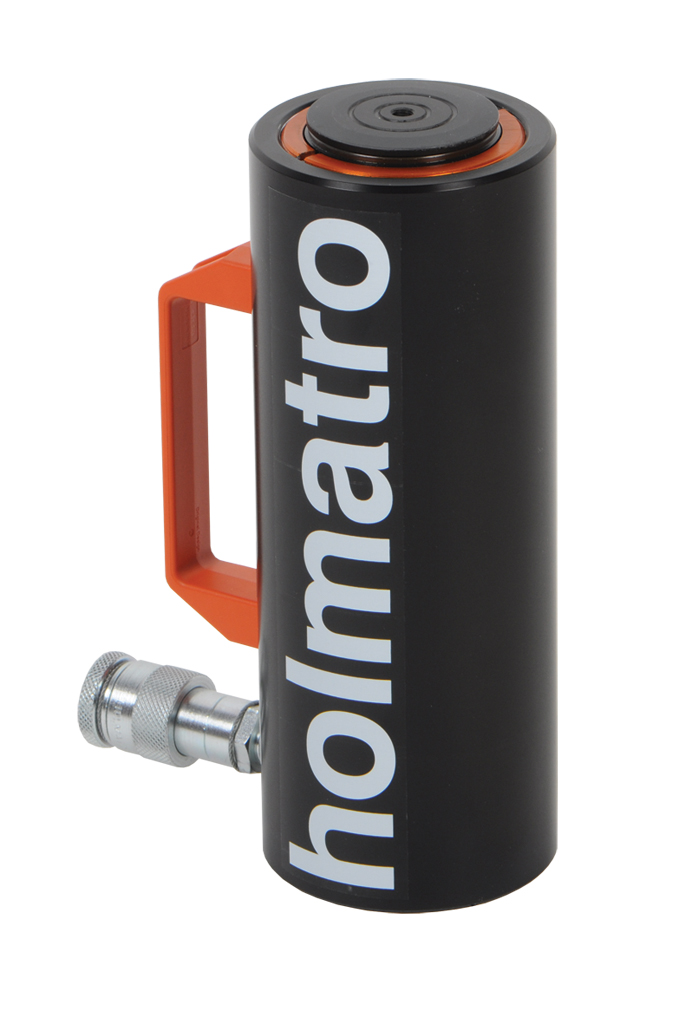

Aluminium Cylinder HAC 30 S 15
About the Aluminium Cylinder HAC 30 S 15
Specifications
Details
Article number
100.112.262
Basic specifications
model
HAC 30 S 15
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
tonnage
30 t
tonnage
66139 lb
stroke
150 mm
stroke
5.9 in
closed height
282 mm
closed height
11.1 in
capacity
318.1 kN / 32.4 t / 318.1 / 32.4 (kN/t)
capacity
71512 lbf
effective pressure area
44.2 cm2
effective pressure area
6.9 sq. in.
General specifications
required oil content (effective)
663 cc
required oil content (effective)
22.4 oz
acting type
single
return type
spring
material
aluminium
cylinder type
standard
connection
A 118
Dimensions, weight and temperature
weight, ready for use
7 kg
weight, ready for use
15.4 lb
Technical drawing dimensions
dimension A
282 mm
dimension A
11.1 in
dimension B
106 mm
dimension B
4.2 in
dimension C
66 mm
dimension C
2.6 in
dimension D
76 mm
dimension D
3 in
dimension E
28 mm
dimension E
1.1 in
dimension F
275 mm
dimension F
10.8 in
dimension G
7 mm
dimension G
0.3 in
I type
I-2
dimension Q
43 mm
dimension Q
1.7 in
angle A2
40 °
Norms
ASME
B30.1
Features
Up to 50% lighter compared to steel cylinders - easy & ergonomic
Duo power ring; a combination of a superior seal and an extremely strong composite bearing for a longer life span
XL saddle optimally protects the plunger and guides the load as effectively as possible
The plunger is coated with a hardened anodized layer, which makes it extremely wear & corrosion resistant
