Spreader PSP40

Made in China.
Cordless Spreader, part of the Holmatro Pentheon Series. Designed to offer you unrivaled performance, superior usability, advanced connectivity and exceptional serviceability.

Read more
Watch Wishlist

Insights at your fingertips

Get the MyHolmatro App now!

Made in China
Spreader PSP40
Spreader PSP40
Spreader PSP40
PSP40 with Cutting tips
Spreader PSP40
Spreader PSP40 (excl. battery)
Spreader PSP40 (excl. battery)
Spreader PSP40 (excl. battery)
Spreader PSP40 (excl. battery)
Spreader PSP40 (excl. battery)
Spreader PSP40
Spreader PSP40
Spreader PSP40
Spreader PSP40
  • Spreader PSP40
  • video
  • video
  • video
  • Spreader PSP40
  • Spreader PSP40
  • PSP40 with Cutting tips
  • Spreader PSP40
  • Spreader PSP40 (excl. battery)
  • Spreader PSP40 (excl. battery)
  • Spreader PSP40 (excl. battery)
  • Spreader PSP40 (excl. battery)
  • Spreader PSP40 (excl. battery)
  • Spreader PSP40
  • Spreader PSP40
  • Spreader PSP40
  • Spreader PSP40
Specifications
Details
Articlenumber 157.001.027
Basic specifications
model PSP40
max. working pressure 720 / 72 (bar/Mpa) 10443 psi
battery included no
Performance
max. spreading force 280 / 28.6 (kN/t) 62947 lbf
theoretical calculated spreading force 875 / 89.2 (kN/t) 196708 lbf
min. spreading force (EN 13204) 43 / 4.4 (kN/t) 9667 lbf
spreading distance 725 mm 28.5 in
max. squeezing force 59 / 6 (kN/t) 13264 lbf
max. pulling force 51.7 / 5.3 (kN/t) 11623 lbf
pulling distance 613 mm 24.1 in
protection rate IP57
directives 2006/42/EC, 2014/30/EU, 2014/53/EU
Dimensions, weight and temperature
weight (excl. battery) 17.9 kg 39.5 lb

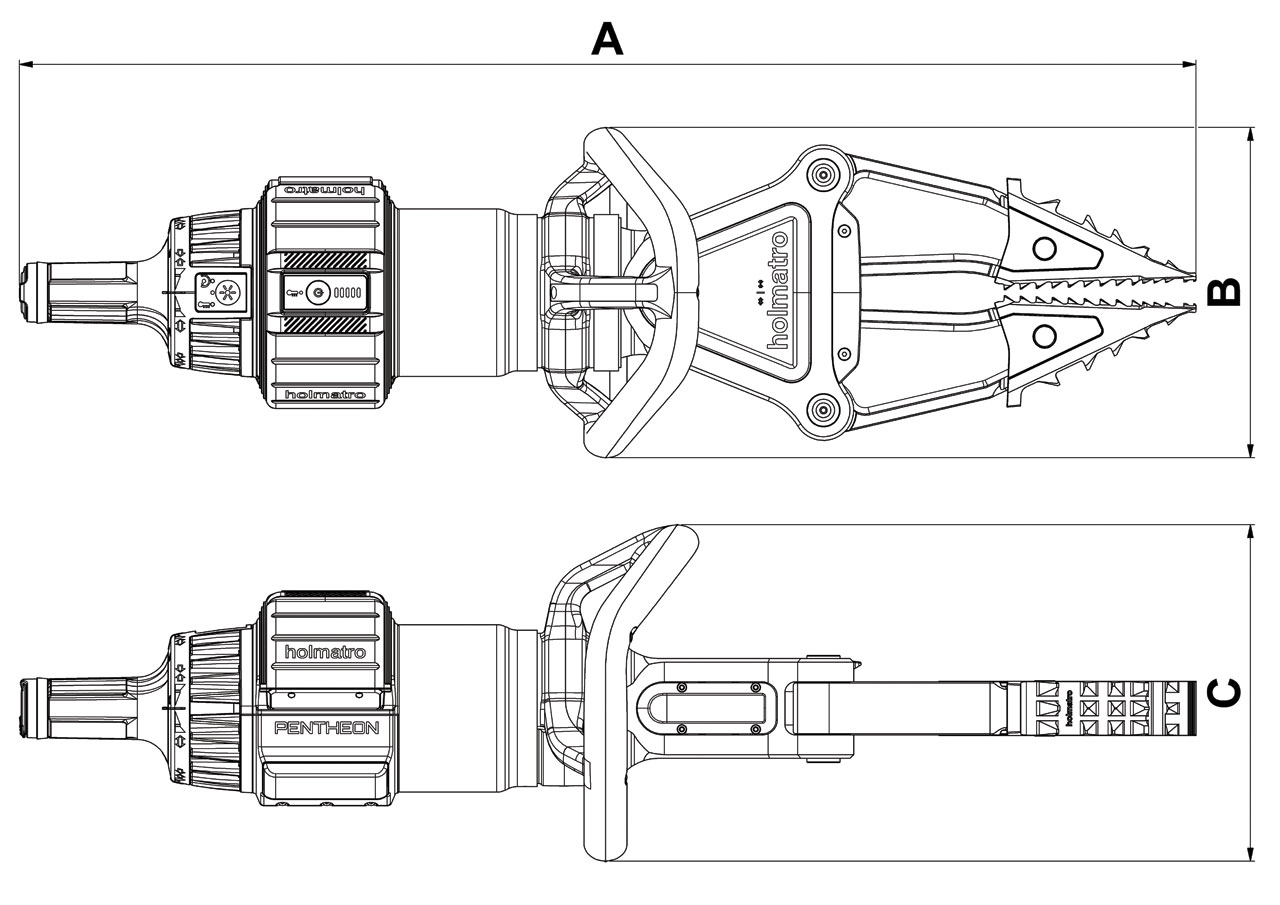

dimensions (AxBxC) 956 x 270 x 276 mm 37.6 x 10.6 x 10.9 in
weight, ready for use (incl. battery) 19.5 kg 43 lb
Norms
EN 13204 classification AS43/725-19.5
EN 13204 compliant yes
NFPA 1960, HPF 51.7 / 5.3 (kN/t) 11623 lbf
NFPA 1960, HSF 69.2 / 7.1 (kN/t) 15557 lbf
NFPA 1960, LPF 27 / 2.8 (kN/t) 6070 lbf
NFPA 1960, LSF 39.1 / 4 (kN/t) 8790 lbf
Features
  • • Unparalleled speed for faster rescue operations
    - Fastest spreader on the market thanks to Stepless Speed Maximization (patented) – The tool continuously optimizes its motor and pump settings, giving you maximum speed at any tool load
    - Maximum operating flexibility with two operation modes – Reduced speed training/demo mode and high speed Pentheon mode
  • • Ultimate speed control for more controlled tool handling
    - Two-speed inline control handle – Switch between high-speed and low-speed and keep perfect control at all times
  • • Guaranteed maximum power during a tool’s entire lifespan
    - Electronic motor control and pressure monitoring – Constant lifetime performance for every Pentheon tool
  • • Battery management made easy
    - Charge batteries directly on the tools with the On-Tool Charging System
    - Priority charging for on-tool batteries over batteries on a separate charger
    - Charge up to six batteries automatically – Connect up to three chargers to one single outlet
    - Holmatro battery – Power Pentheon tools as well as OmniLock struts (patented) and other upcoming Holmatro products
  • • Superb ergonomics for effortless handling
    - Easy tool operation on all sides of a vehicle – Inline control handle with 360° access
    - Hold every tool in any position – 360° carrying handle made of tough, damage-proof material
  • • Continue your mission under all conditions
    - Flawless performance under water, at high and low outdoor temperatures and in rain and snow
    - Easier communication during rescue operations – A new and improved drive system ensures tool operation at a lower sound level
    - Automatic LED lights in the carrying handle, powered by the main battery. The lights can also be operated manually
  • • Realtime tool insights to adapt and change tactics
    - Connect every tool to your tablet or phone with Bluetooth®
    - Easy to use and intuitive MyHolmatro app
    - Real-time diagnostics during every operation – Monitor battery state of health and state of charge, pump stage, motor temperature, working pressure (including peak pressure) and speed mode
  • • Automatically keep your tools in perfect condition
    - Quickly and easily perform an automated Pentheon Self Check with the MyHolmatro app – Automatically check the drive system, speed and pressure, battery firmware and battery state of health
  • • Effortless tool maintenance
    - Premium tool service thanks to the Holmatro Inspection Procedures (HIP) – An extensive software program for Authorized Holmatro (Dealer) Service Technicians
  • • Phenomenal grip over the full spreading range
    - Extreme Grip Spreader Tips with teeth on the inside and outside offer immediate grip and bite sharply into the material
