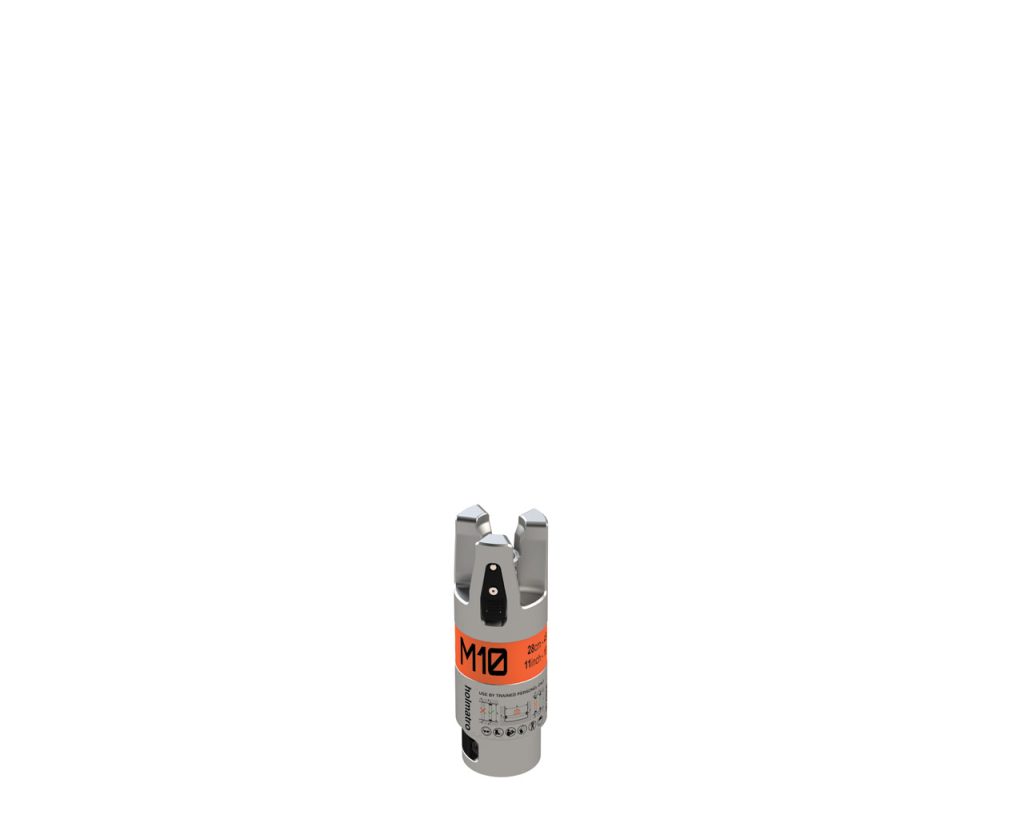

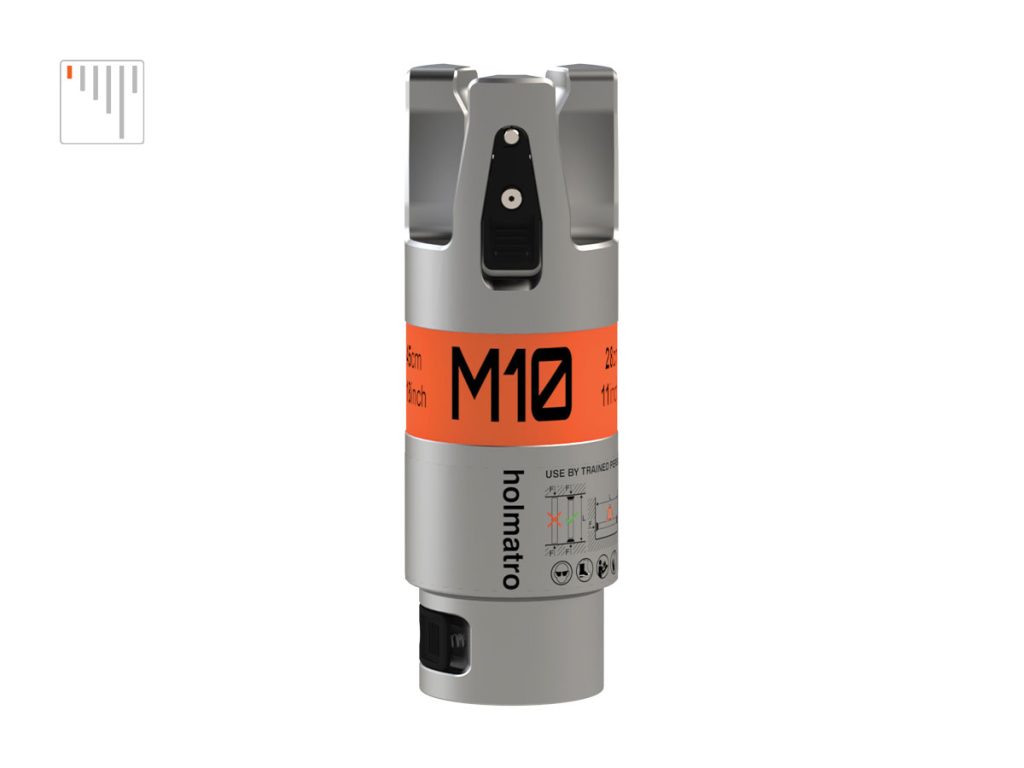

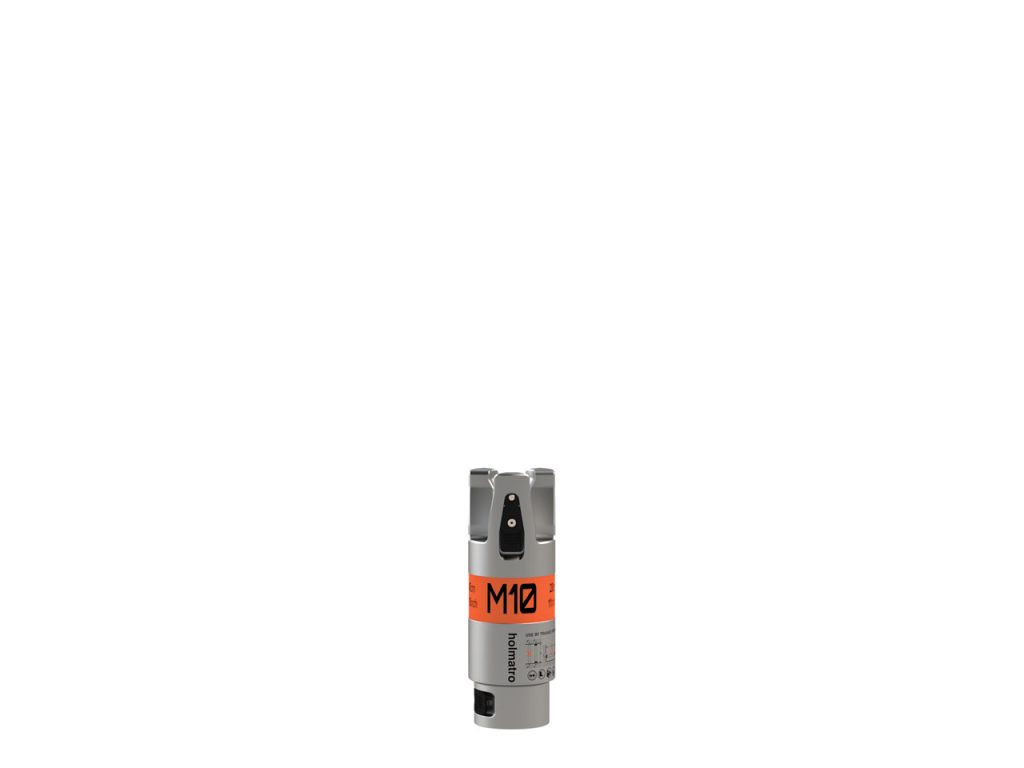

Strut M10
Features & benefits
- One single system for all shoring operations

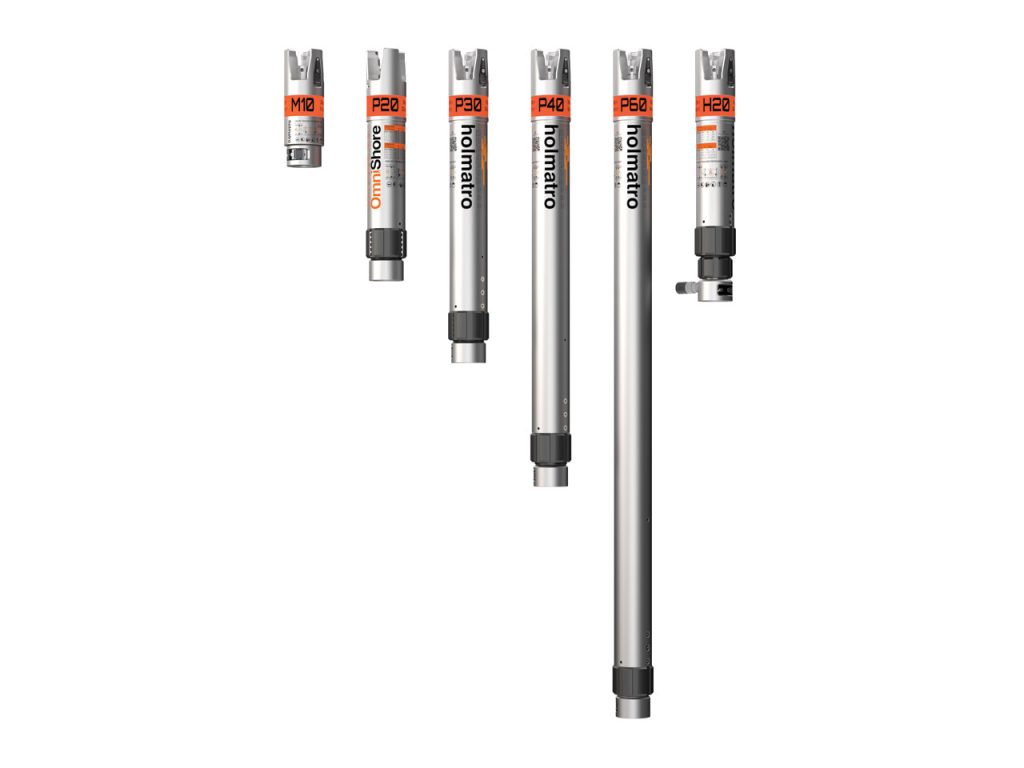

- Build any application with a system of only six different struts
About the Strut M10
Specifications
Details
Article number
151.004.920
Basic specifications
model
M10
locking system
thread
strut type
mechanical
Performance
total spreading stroke
185 mm
total spreading stroke
7.3 in
retracted length
285 mm
retracted length
11.2 in
extended length
470 mm
extended length
18.5 in
Dimensions, weight and temperature
weight, ready for use
3.6 kg
weight, ready for use
7.9 lb
dimensions (AxBxC)
285 x 97 x 97 mm
dimensions (AxBxC)
11.2 x 3.8 x 3.8 in
Features
Designed to save weight and space on your truck
- One single system for all shoring operations
- Build any application with a system of only six different struts
- Construct lengths up to 17 ft / 5.2 m with only five different struts
- No fixed length extensions needed – Each strut also functions as an extension pipe
Quick and easy setup
- Every strut can be connected to every other strut thanks to the patented Trident Coupler
- Each accessory fits on both ends of all the struts
- No accurate measurement needed – Two connected struts offer you twice the plunger stroke
Maximum safety
- All strut combinations are allowed and safe – The patented Trident Coupler only allows you to connect two struts max
- Strongest struts in the market – Rigorously tested in multiple setups
- Designed in compliance with FEMA US&R requirements
- Holmatro developed OmniShore according to the criteria of testing used by FEMA’s US&R Structures Sub Group to evaluate similar type shoring.
Clear information labels
- Overview of all possible strut combinations, corresponding lengths and work load limits
- QR code linking to up-to-date manuals and tabulated data
User friendly design
- Easy to carry – Lightweight
- No risk of the plunger falling out – Every strut has a stop block
- Smooth winding of the nut at all times – A groove on every plunger acts as a drain for dirt
- Easy tightening of the locknut – Each strut has slots for the Shoring Hammer
Automatic snap-lock mechanism
- Connect and disconnect all accessories within a second
- No protruding parts – Flush to strut body
