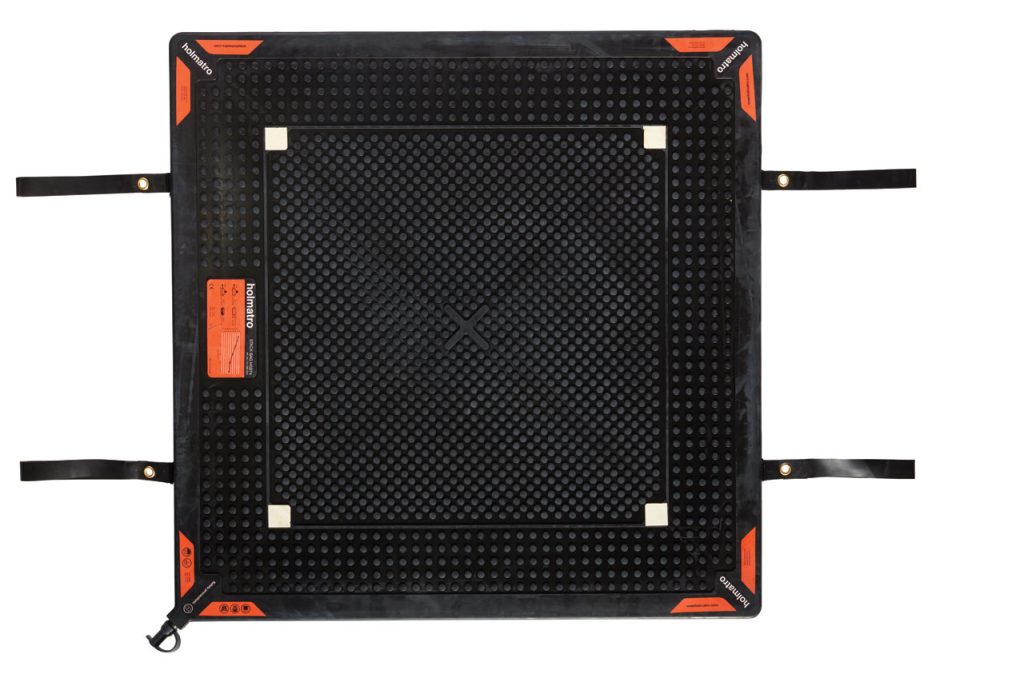

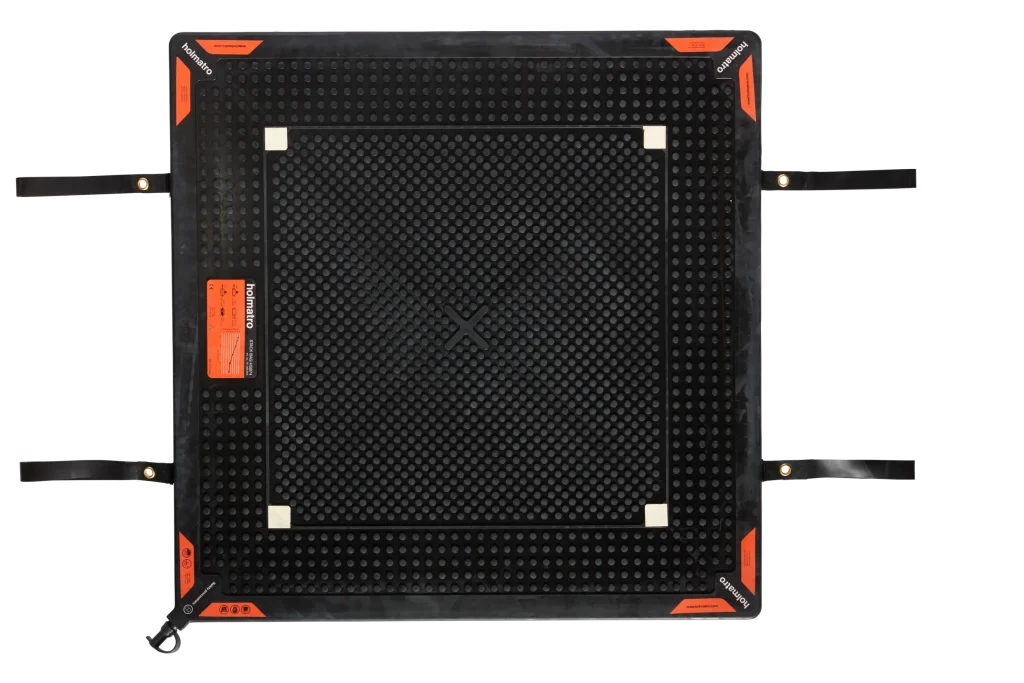

About the Stack Bag HSB74
Specifications
Details
Article number
151.000.950
Basic specifications
model
HSB74
max. working pressure
174 psi
max. working pressure
12 / 1.2 (bar/Mpa)
Performance
max. lifting capacity
162762 lbf
max. inflation height
170 mm
max. inflation height
6.7 in
thickness incl. profile
27 mm
thickness incl. profile
1.1 in
max. lifting capacity
724 / 73.8 (kN/t)
max. lifting capacity (12 bar/174 psi)
162762 lbf
max. lifting capacity (12 bar/174 psi)
724 / 73.8 (kN/t)
max. lifting capacity (8 bar/116 psi)
108583 lbf
max. lifting capacity (8 bar/116 psi)
483 / 49.3 (kN/t)
lifting capacity at max. lifting height (12 bar/174 psi)
83179 lbf
lifting capacity at max. lifting height (12 bar/174 psi)
370 / 37.7 (kN/t)
lifting capacity at max. lifting height (8 bar/116 psi)
55303 lbf
lifting capacity at max. lifting height (8 bar/116 psi)
246 / 25.1 (kN/t)
lifting capacity at insertion height plus 25 mm / 1 in. (8 bar /116 psi)
98691 lbf
lifting capacity at insertion height plus 25 mm / 1 in. (12 bar /174 psi)
147924 lbf
lifting capacity at insertion height plus 25 mm / 1 in. (12 bar /174 psi)
658 / 67.1 (kN/t)
lifting capacity at insertion height plus 25 mm / 1 in. (8 bar /116 psi)
439 / 44.8 (kN/t)
General specifications
material
reinforced with 2 aramide inlays
air content (8 bar/116 psi)
555 l
air content (8 bar/116 psi)
146.6 gal / 19.6 cu ft
Dimensions, weight and temperature
weight, ready for use
23.8 kg
weight, ready for use
52.5 lb
dimensions (AxBxC)
840 x 840 x 27 mm
dimensions (AxBxC)
33.1 x 33.1 x 1.1 in
Norms
NFPA 1960 compliant
yes
EN 13731 compliant
Yes
Features
Flat surface when inflated
- Greater contact surface
- For safe and stable lifting
- Easy to handle, first time right
Up to three bags can be stacked
- For greater lifting height (max 510 mm / 20 inch)
- Stacked bags have a smaller footprint than conventional bags to lift the same distance
Carrying straps
- 2 x 2 straps on opposite sides of the bag for easy carrying
Clear markings of contact area
- For quick and easy stacking of up to three bags
Optimized non-slip design
- To help prevent stacked bags from shifting
Clear indication of safety warnings, technical specifications and lifting height
- To help you work safer and easier
Data Matrix label for asset management
- To help you register, inspect and maintain the Stack Bags
Compliant with relevant safety standards
- Meets EN 13731 and NFPA 1936 2020ED
