About the Stack Bag HSB27
Specifications
Details
Article number
151.000.948
Basic specifications
model
HSB27
max. working pressure
174 psi
max. working pressure
12 / 1.2 (bar/Mpa)
Performance
max. lifting capacity
59574 lbf
max. inflation height
170 mm
max. inflation height
6.7 in
thickness incl. profile
27 mm
thickness incl. profile
1.1 in
max. lifting capacity
265 / 27 (kN/t)
max. lifting capacity (12 bar/174 psi)
59574 lbf
max. lifting capacity (12 bar/174 psi)
265 / 27 (kN/t)
max. lifting capacity (8 bar/116 psi)
39791 lbf
max. lifting capacity (8 bar/116 psi)
177 / 18 (kN/t)
lifting capacity at max. lifting height (12 bar/174 psi)
18884 lbf
lifting capacity at max. lifting height (12 bar/174 psi)
84 / 8.6 (kN/t)
lifting capacity at max. lifting height (8 bar/116 psi)
12589 lbf
lifting capacity at max. lifting height (8 bar/116 psi)
56 / 5.7 (kN/t)
lifting capacity at insertion height plus 25 mm / 1 in. (8 bar /116 psi)
33721 lbf
lifting capacity at insertion height plus 25 mm / 1 in. (12 bar /174 psi)
50357 lbf
lifting capacity at insertion height plus 25 mm / 1 in. (12 bar /174 psi)
224 / 22.8 (kN/t)
lifting capacity at insertion height plus 25 mm / 1 in. (8 bar /116 psi)
150 / 15.3 (kN/t)
General specifications
material
reinforced with 2 aramide inlays
air content (8 bar/116 psi)
171 l
air content (8 bar/116 psi)
45.2 gal / 6 cu ft
Dimensions, weight and temperature
weight, ready for use
9.2 kg
weight, ready for use
20.3 lb

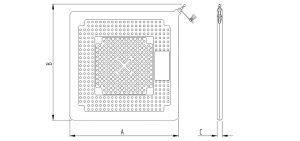

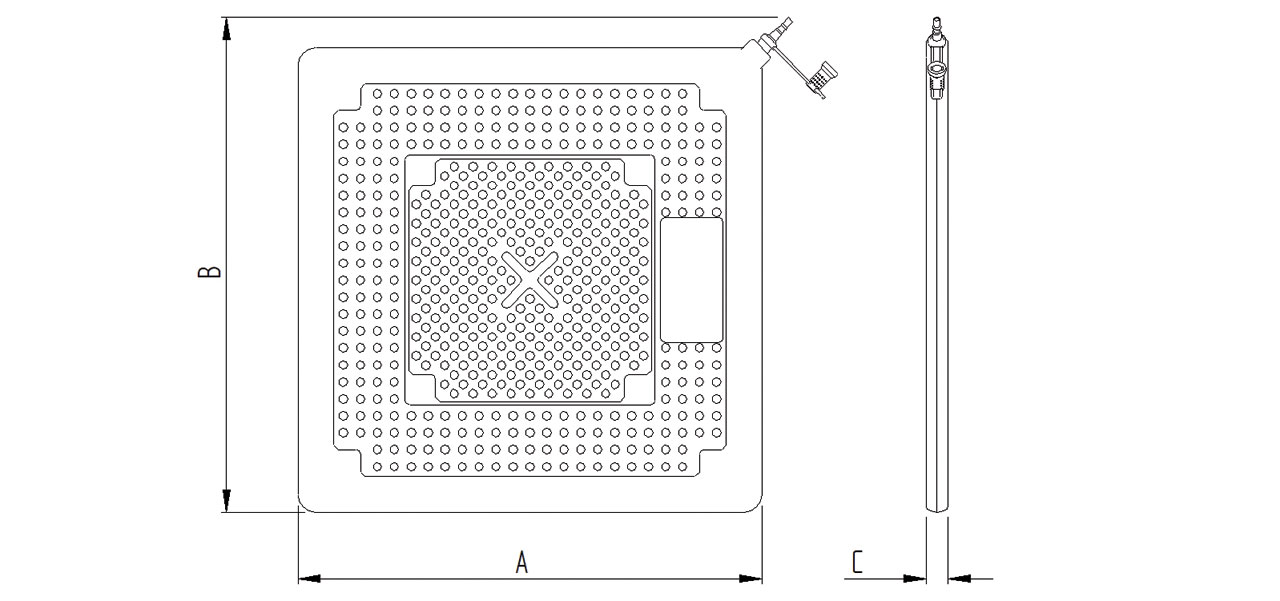

dimensions (AxBxC)
520 x 520 x 27 mm
dimensions (AxBxC)
20.5 x 20.5 x 1.1 in
Norms
NFPA 1960 compliant
yes
EN 13731 compliant
Yes
Features
Flat surface when inflated
- Greater contact surface
- For safe and stable lifting
- Easy to handle, first time right

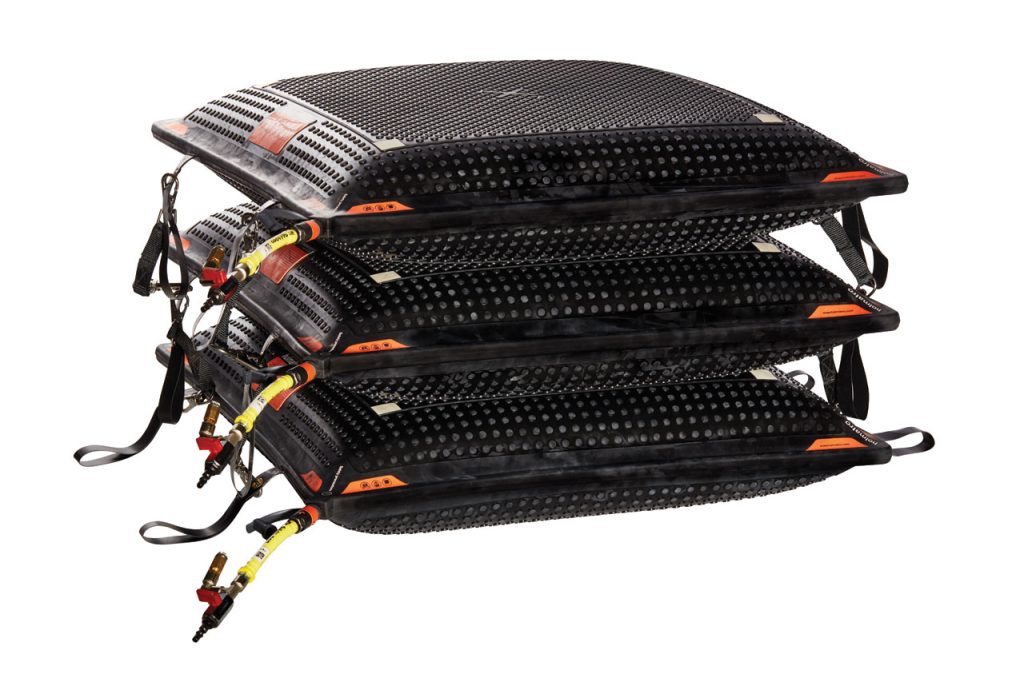

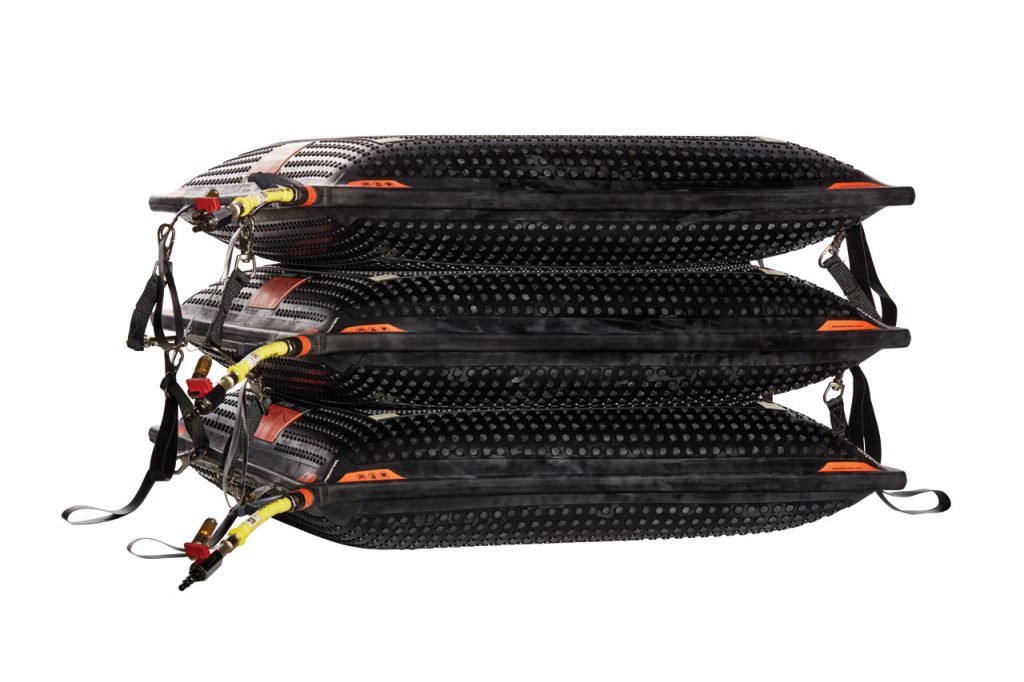

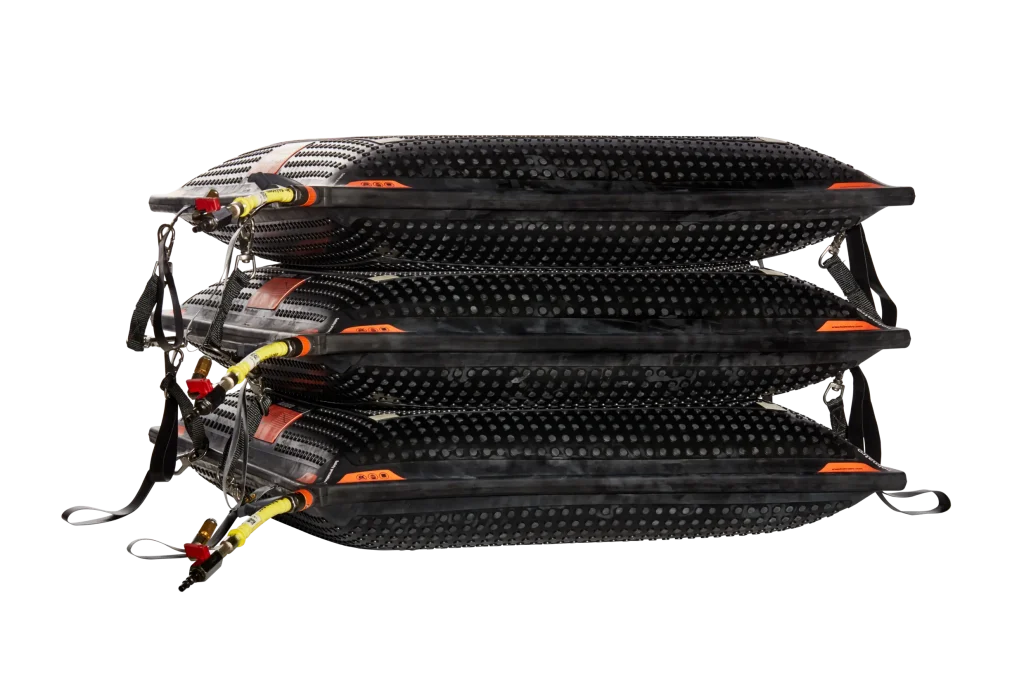

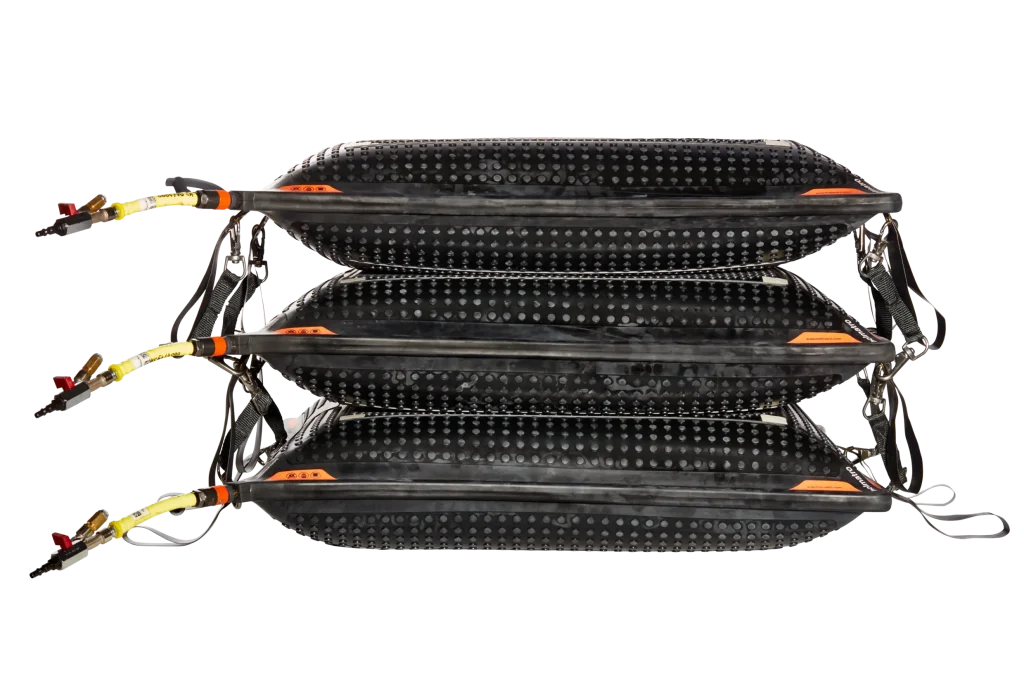

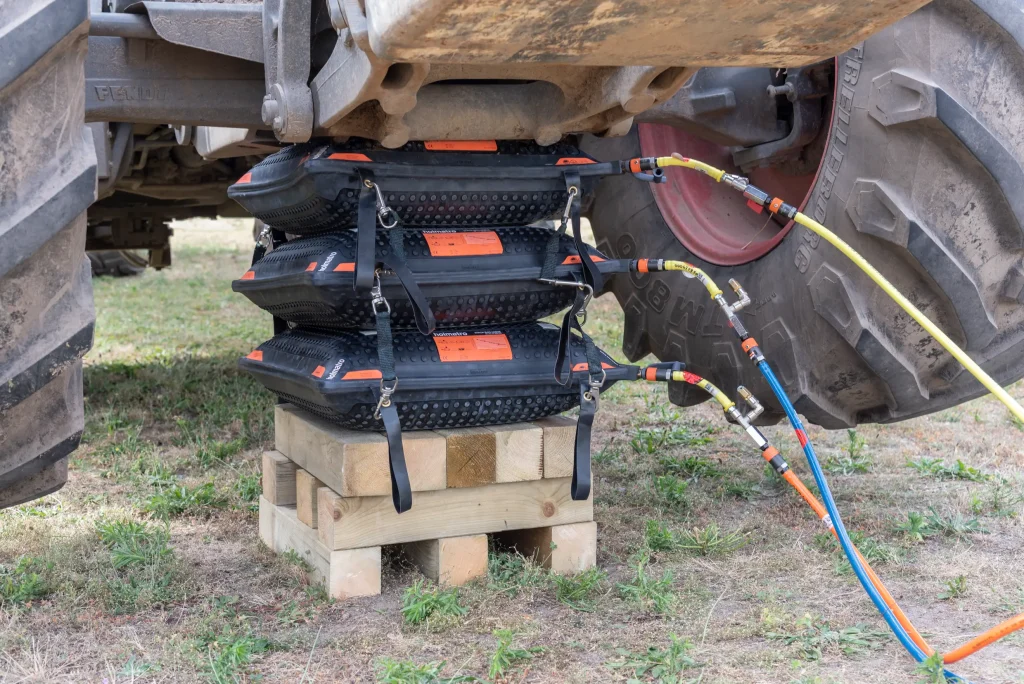

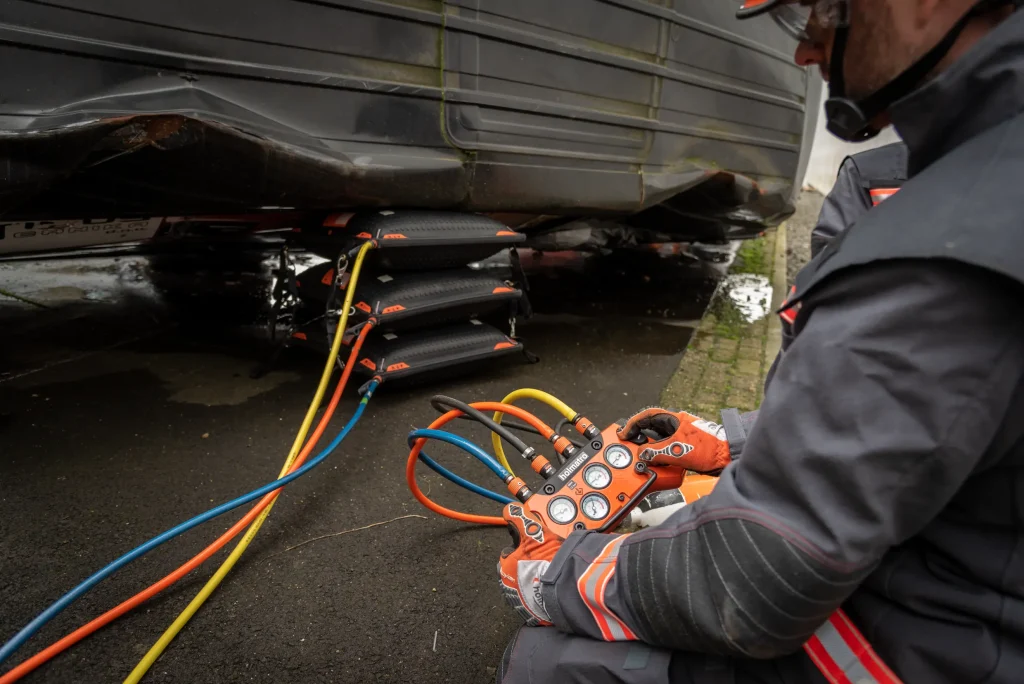

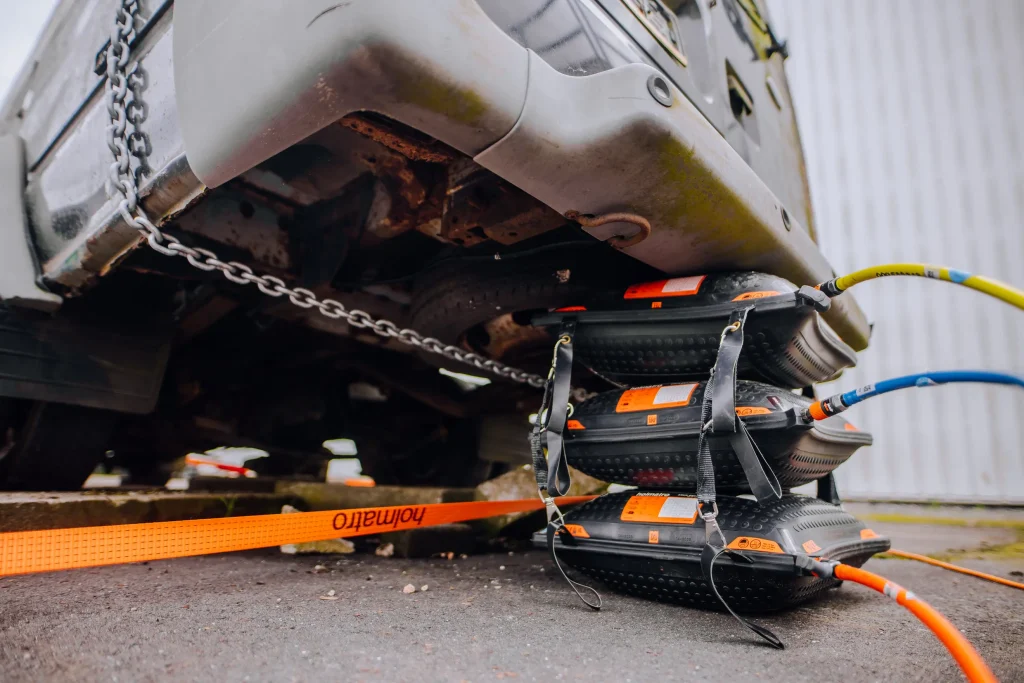

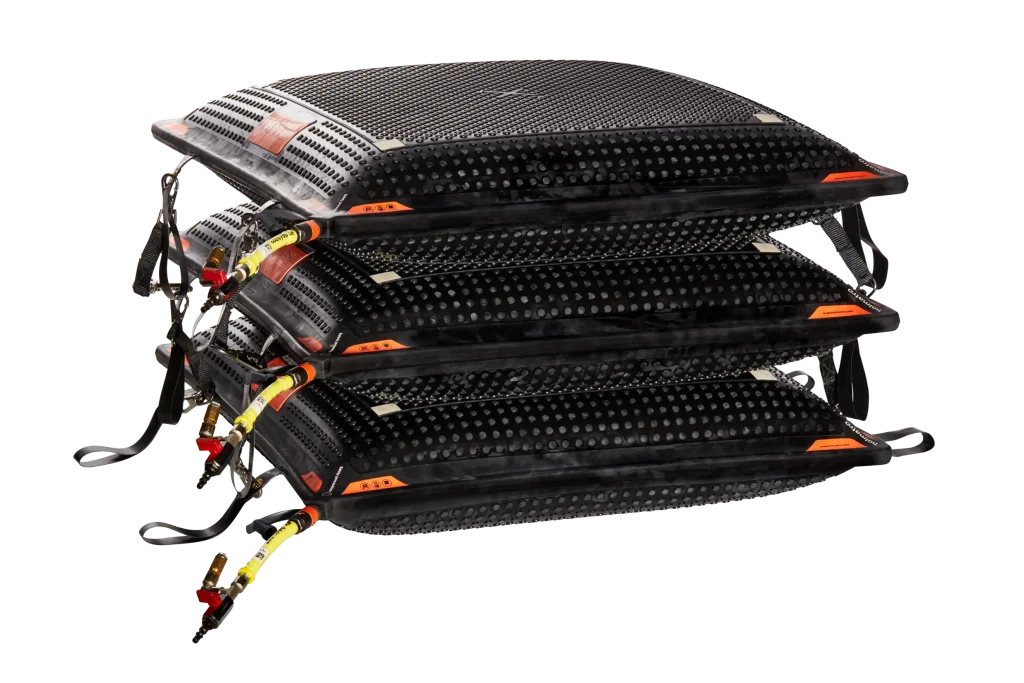

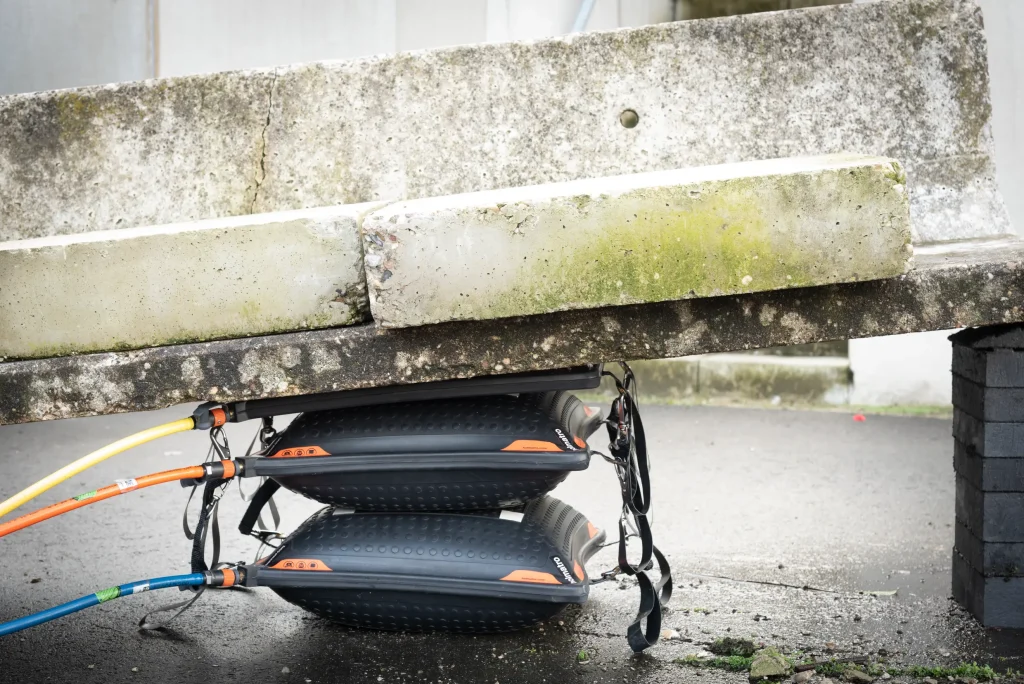

Up to three bags can be stacked
- For greater lifting height (max 510 mm / 20 inch)
- Stacked bags have a smaller footprint than conventional bags to lift the same distance

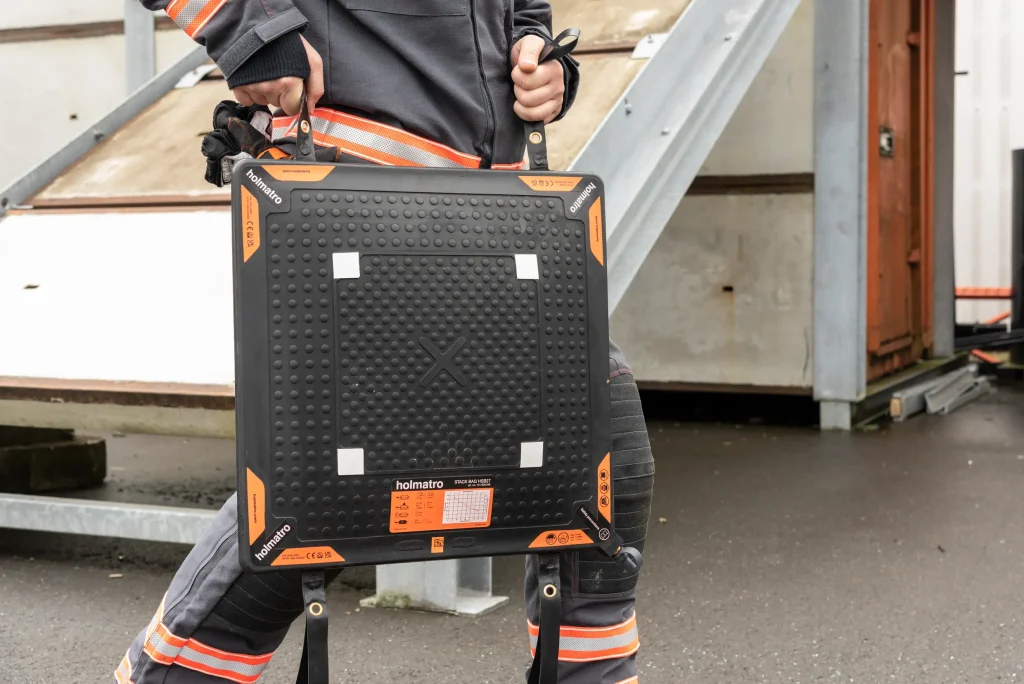

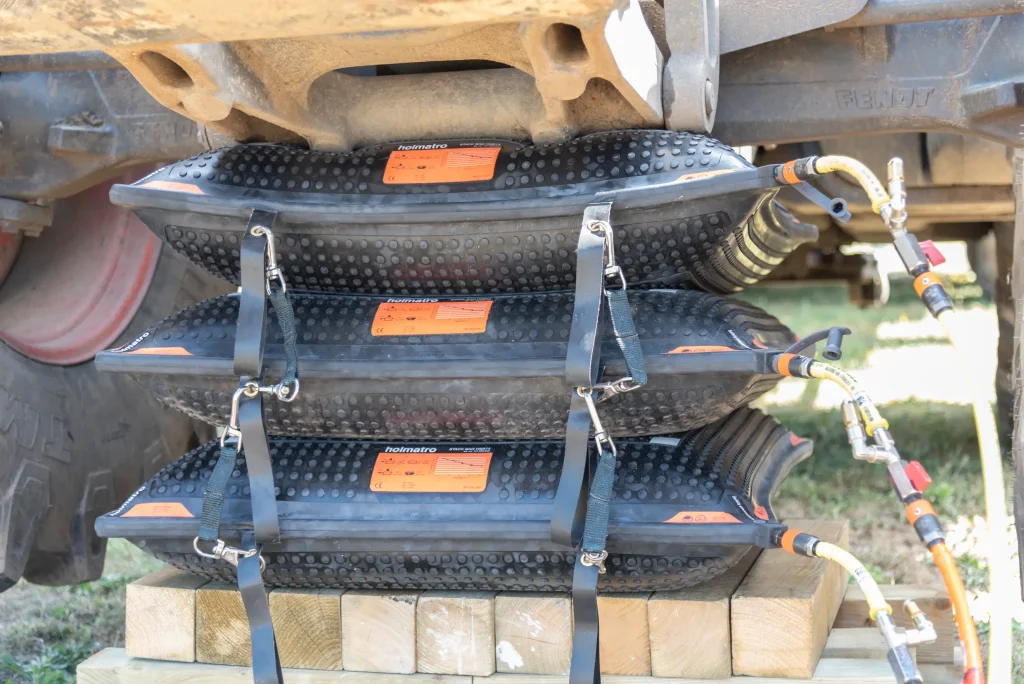

Carrying straps
- 2 x 2 straps on opposite sides of the bag for easy carrying

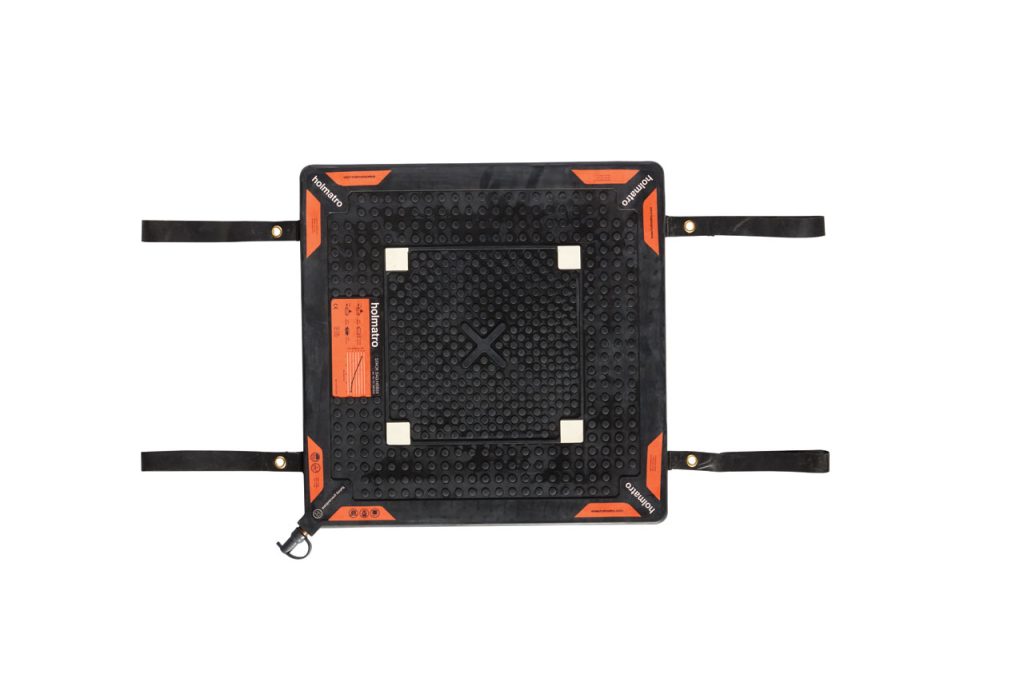

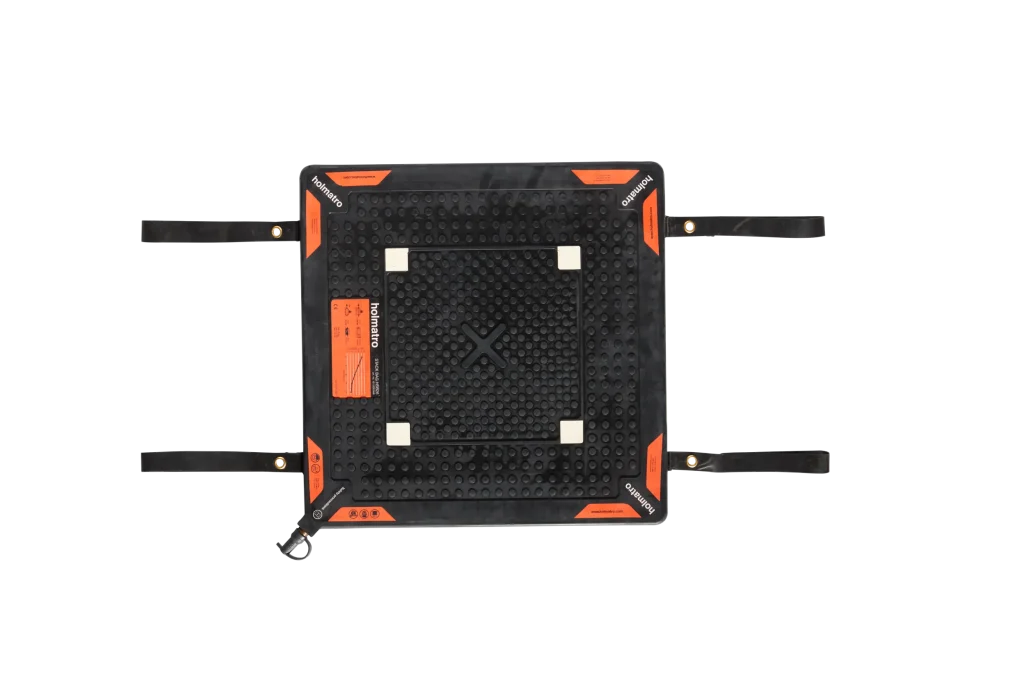

Clear markings of contact area
- For quick and easy stacking of up to three bags

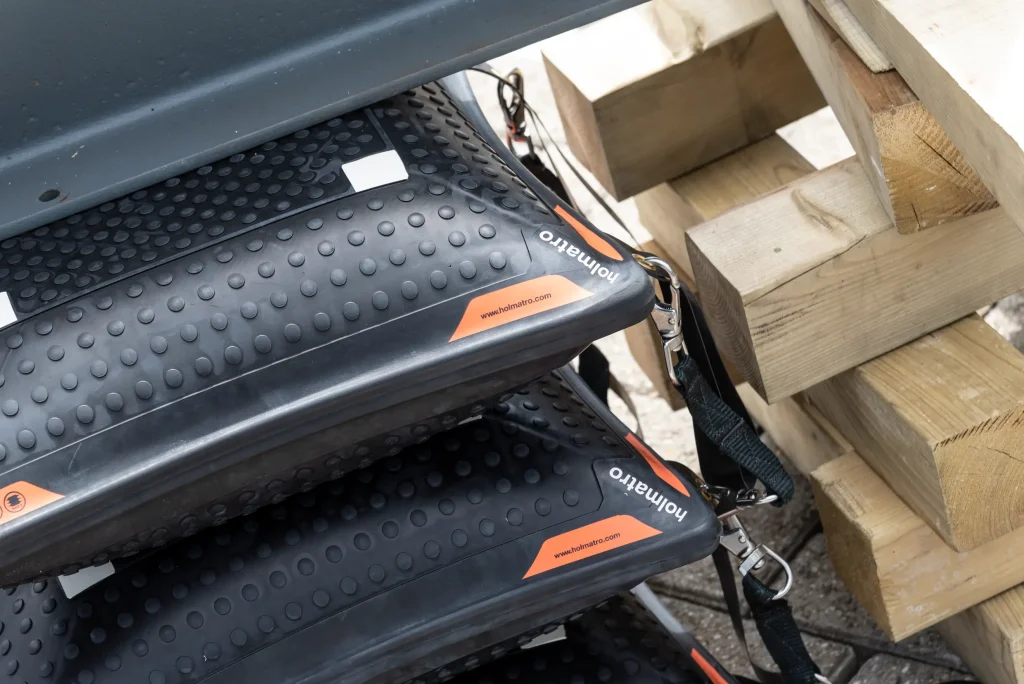

Optimized non-slip design
- To help prevent stacked bags from shifting
Clear indication of safety warnings, technical specifications and lifting height
- To help you work safer and easier
Data Matrix label for asset management
- To help you register, inspect and maintain the Stack Bags
Compliant with relevant safety standards
- Meets EN 13731 and NFPA 1936 2020ED
