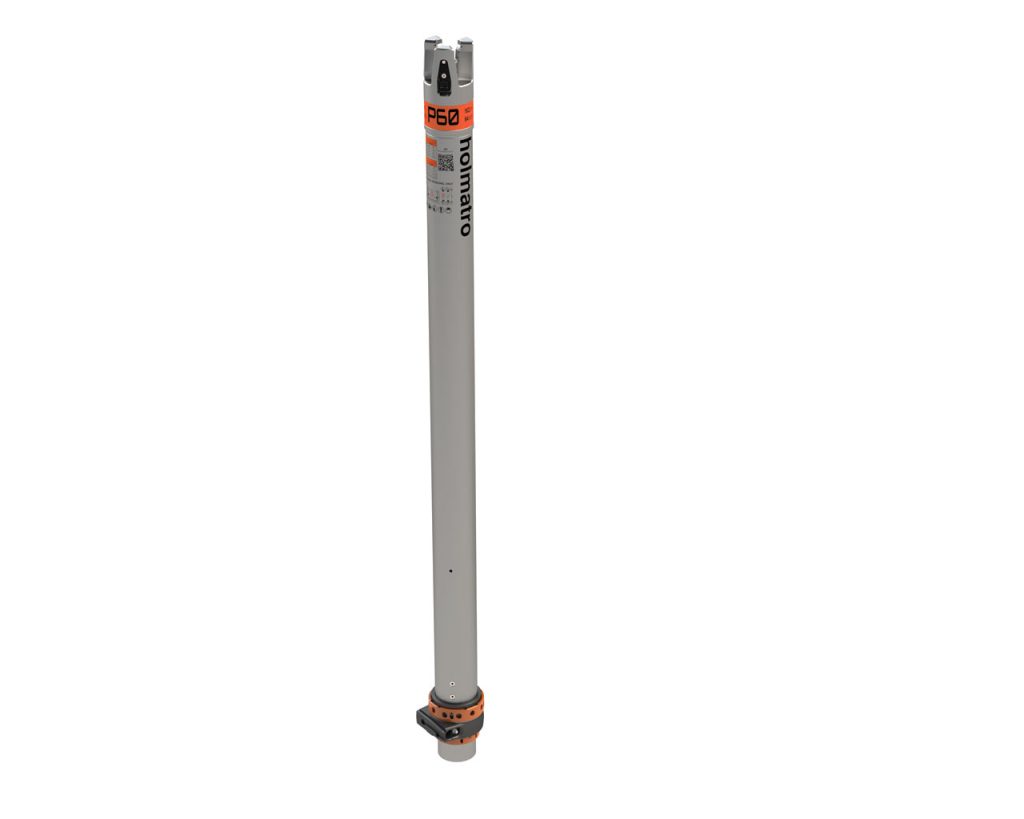

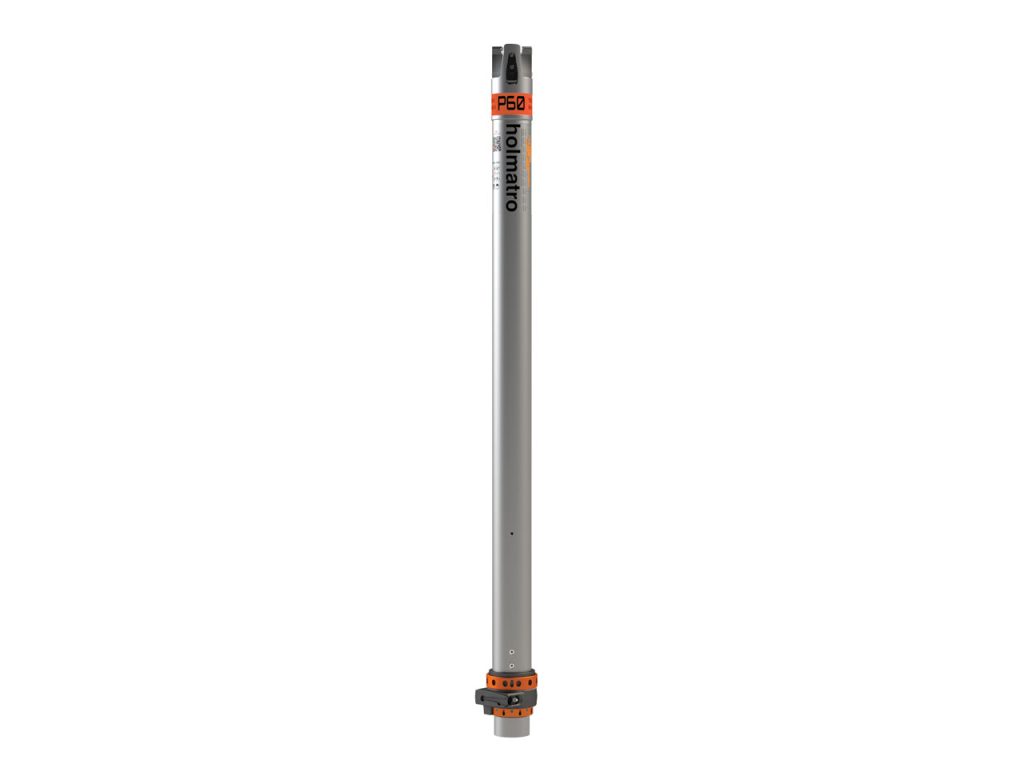

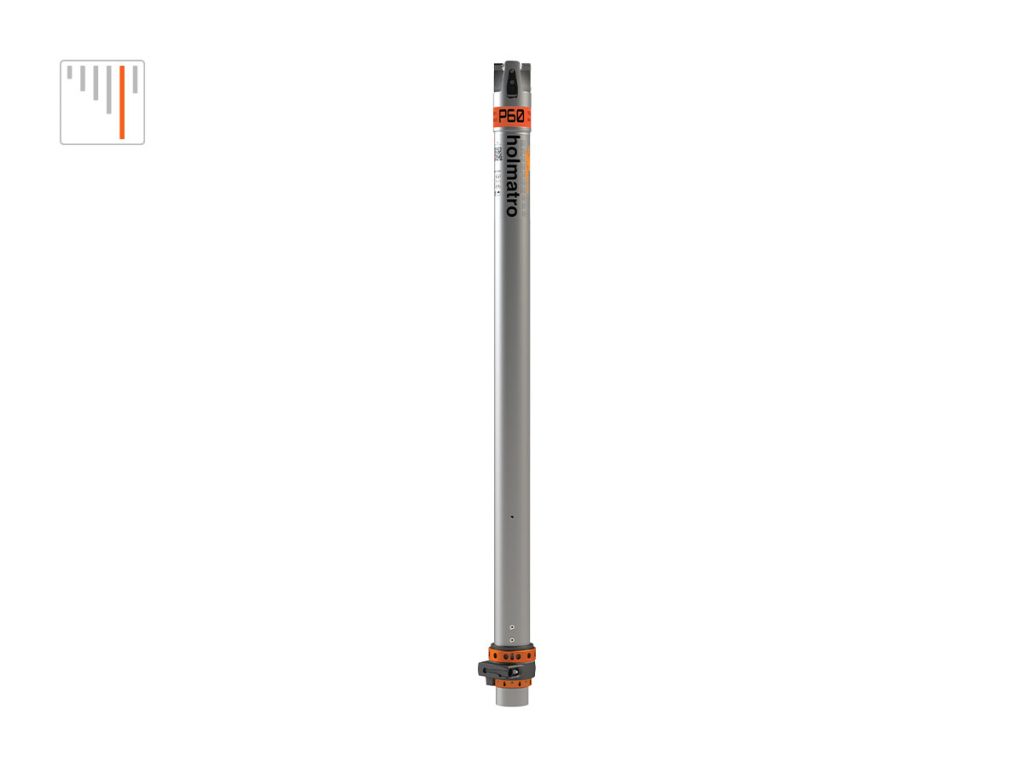

OmniLock Strut P60OL
Features & benefits
- No one needs to be near a moving load – Monitor and operate the OmniLock struts from a distance
- Auto-follow has your back – OmniLock automatically follows and locks a load in both directions
About the OmniLock Strut P60OL
Specifications
Details
Article number
151.004.144
Basic specifications
model
P60OL
locking system
OmniLock nut
strut type
electric
Performance
stroke
1030 mm
stroke
40.6 in
retracted length
1620 mm
retracted length
63.8 in
extended length
2650 mm
extended length
104.3 in
Dimensions, weight and temperature
weight, ready for use
19.4 kg
weight, ready for use
42.8 lb
dimensions (AxBxC)
1620 x 121 x 133 mm
dimensions (AxBxC)
63.8 x 4.8 x 5.2 in
Features
OmniLock: Full control with less manpower
- No one needs to be near a moving load – Monitor and operate the OmniLock struts from a distance
- Auto-follow has your back – OmniLock automatically follows and locks a load in both directions
- Less people needed – Control multiple OmniLock struts simultaneously with the Wireless Controller
Designed to save weight and space on your truck

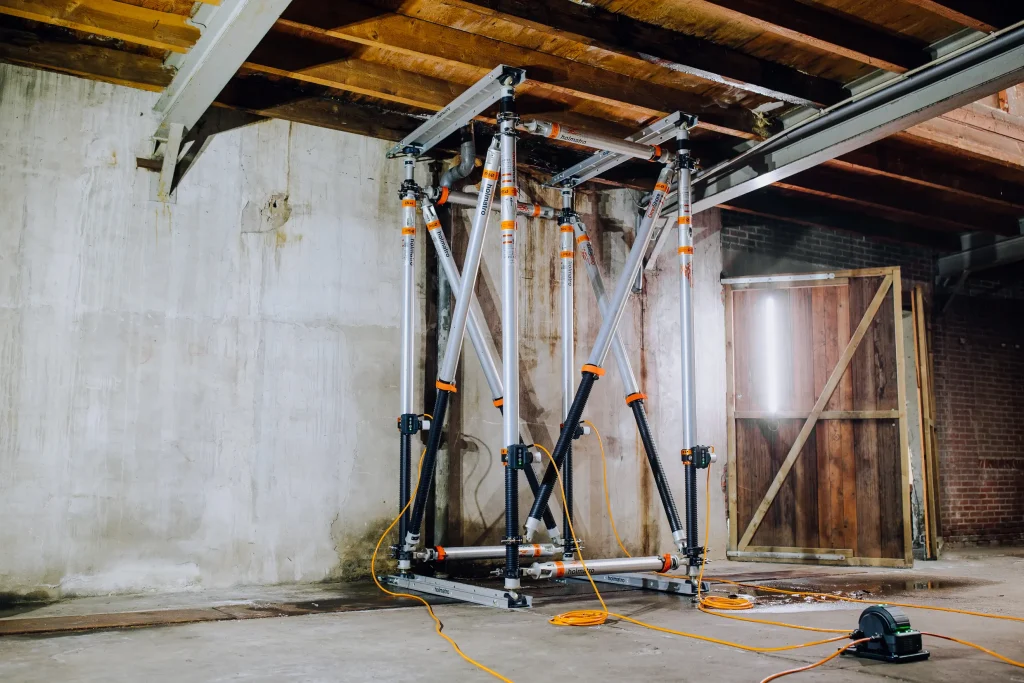

- One single system for all shoring operations
- Build any application with a system of only six different struts
- Construct lengths up to 17 ft / 5.2 m with only five different struts
- No fixed length extensions needed – Each strut also functions as an extension pipe
Quick and easy setup
- Every strut can be connected to every other strut thanks to the patented Trident Coupler
- Each accessory fits on both ends of all the struts
- No accurate measurement needed – Two connected struts offer you twice the plunger stroke
- Easy alignment of struts – The angle of OmniLock struts is shown on the Wireless Controller
Maximum safety
- Extend or retract an OmniLock strut remotely with instant stepless lock should the primary system fail
- All strut combinations are allowed and safe – The patented Trident Coupler only allows you to connect two struts max
- Strongest struts in the market – Rigorously tested in multiple setups
- Holmatro developed OmniShore according to the criteria of testing used by FEMA’s US&R Structures Sub Group to evaluate similar type shoring
Multifunctional equipment
- Use your strut as an extension pipe
User friendly design
- Easy to carry – Lightweight
- No risk of the plunger falling out – Every strut has a stop block
- Smooth winding of the nut at all times – A groove on every plunger acts as a drain for dirt
- Easy tightening of the locknut – Each strut has slots for the Shoring Hammer
Automatic snap-lock mechanism
- Connect and disconnect all accessories within a second
- No protruding parts – Flush to strut body
Clear information labels
- Overview of all possible strut combinations, corresponding lengths and work load limits
- QR code linking to up-to-date manuals and tabulated data
