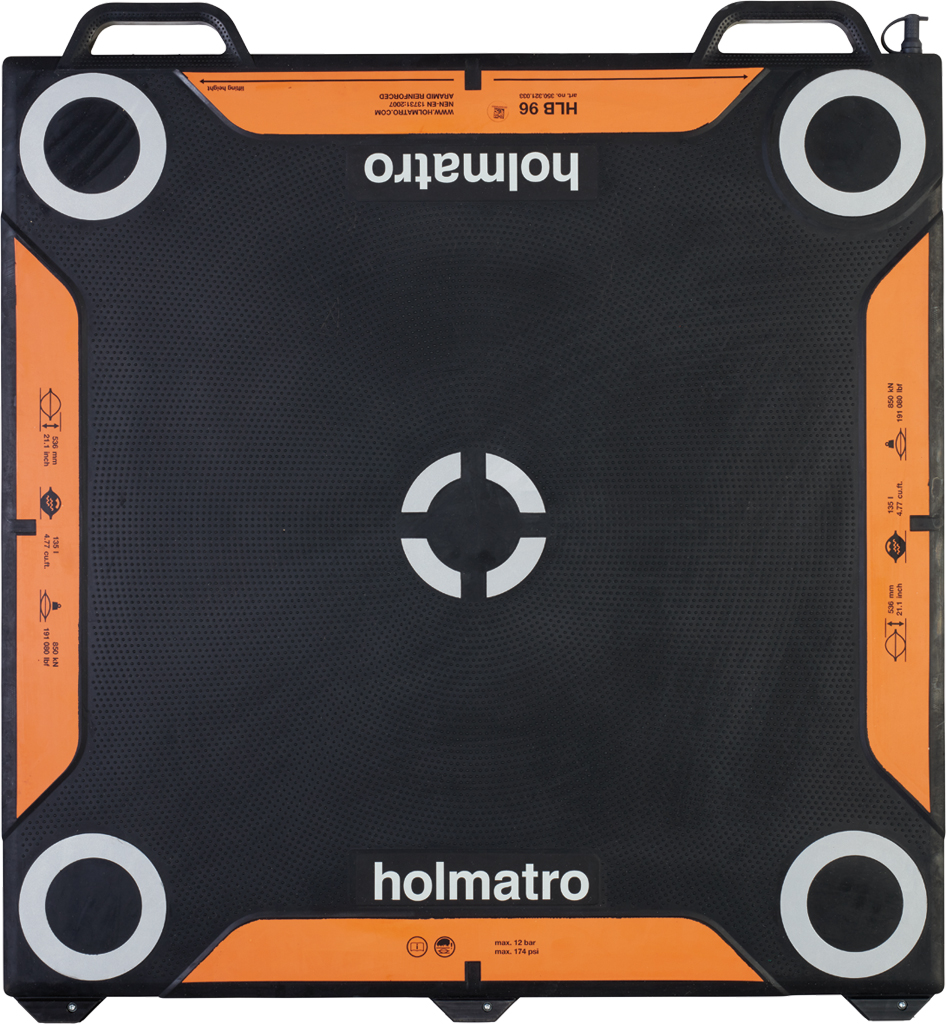

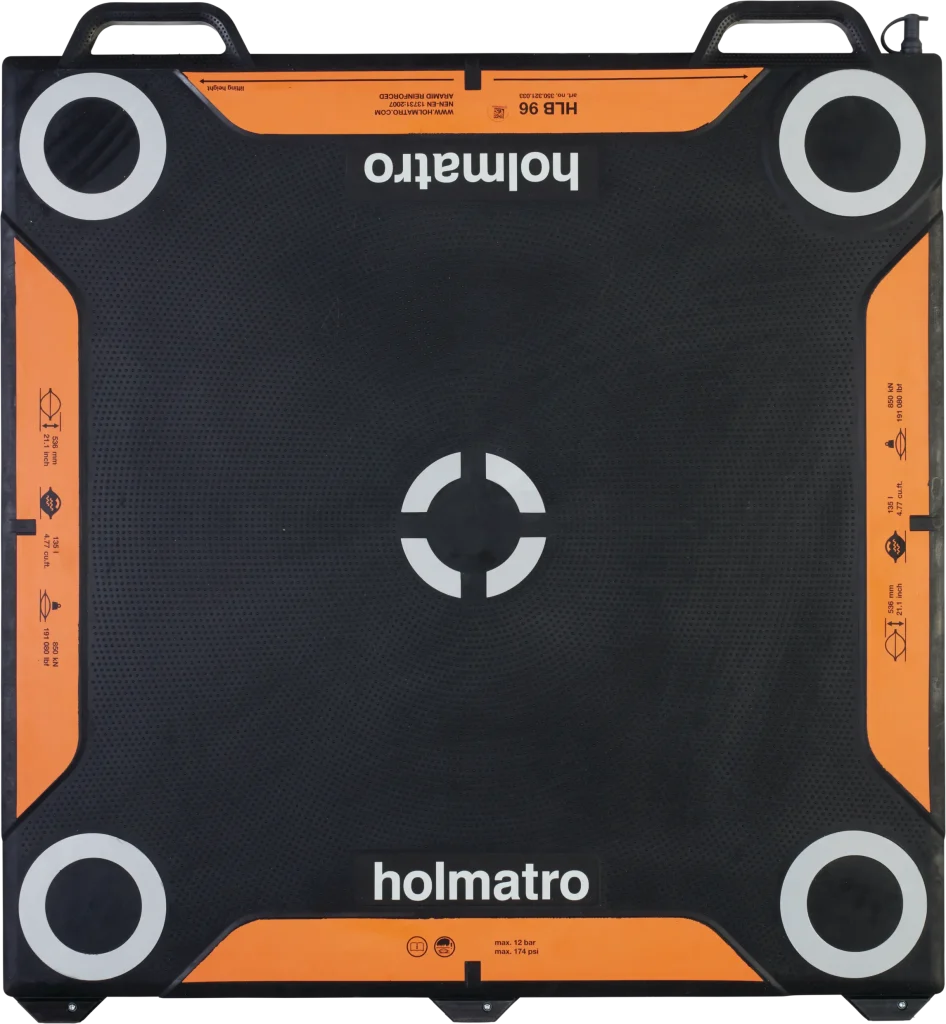

Lifting Bag HLB 96
Features & benefits
- For easy carrying
- Quickly pull the right lifting bag from storage
About the Lifting Bag HLB 96
Specifications
Details
Article number
350.321.033
Basic specifications
model
HLB 96
max. working pressure
174 psi
max. working pressure
12 / 1.2 (bar/Mpa)
Performance
max. lifting capacity
211320 lbf
max. inflation height
565 mm
max. inflation height
22.2 in
thickness incl. profile
27 mm
thickness incl. profile
1.1 in
max. lifting capacity
940 / 95.9 (kN/t)
max. lifting capacity (12 bar/174 psi)
211320 lbf
max. lifting capacity (12 bar/174 psi)
940 / 95.9 (kN/t)
max. lifting capacity (8 bar/116 psi)
140955 lbf
max. lifting capacity (8 bar/116 psi)
627 / 63.9 (kN/t)
General specifications
material
reinforced with 3 aramide inlays
air content (8 bar/116 psi)
1079 l
air content (8 bar/116 psi)
285 gal / 38.1 cu ft
Dimensions, weight and temperature
weight, ready for use
25 kg
weight, ready for use
55.1 lb
thread hole
M6 threadsize
dimensions (AxBxC)
987 x 910 x 27 mm
dimensions (AxBxC)
38.9 x 35.8 x 1.1 in
Norms
EN 13731 compliant
Yes
Features
Integrated carrying handle with capacity indication
- For easy carrying
- Quickly pull the right lifting bag from storage
Standard equipped with slider pads

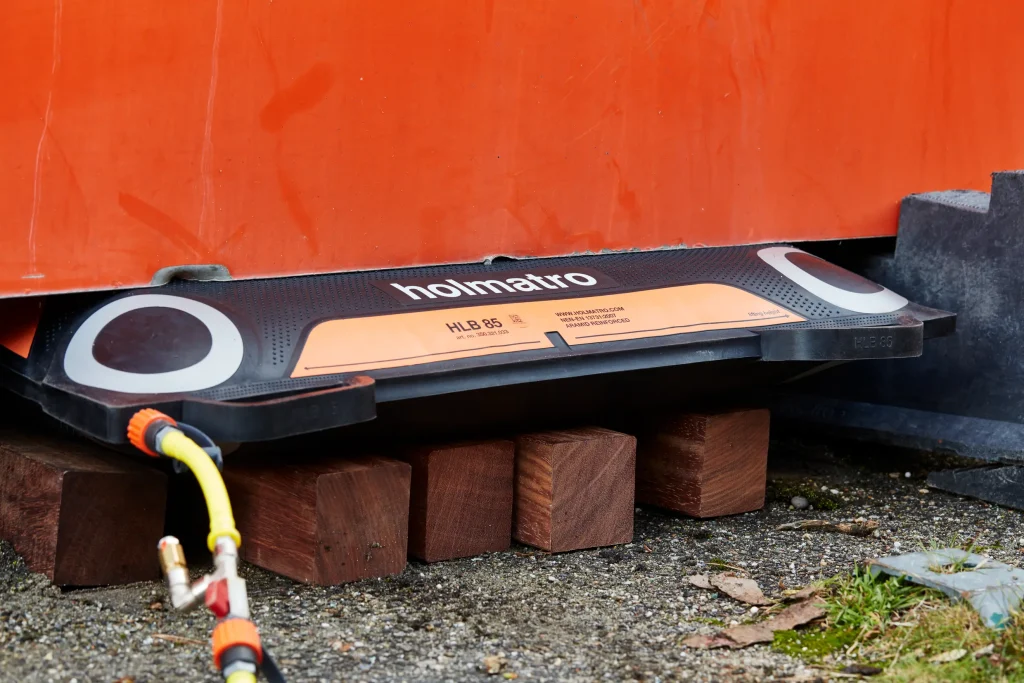

- For easy insertion underneath an object
Non-slip surface with interlocking profile
- To maximize the contact area and stability of inflated lifting bags
Reflective markings on all corners and in center
- For optimal visibility in the dark
Compliant with relevant safety standards
- Meets EN 13731 and other legislative requirements
Center markings on all sides
- To help you position a smaller bag onto a larger model
Inserts for optional lifting eyes
- To attach a rope for easy maneuvering of your lifting bag
