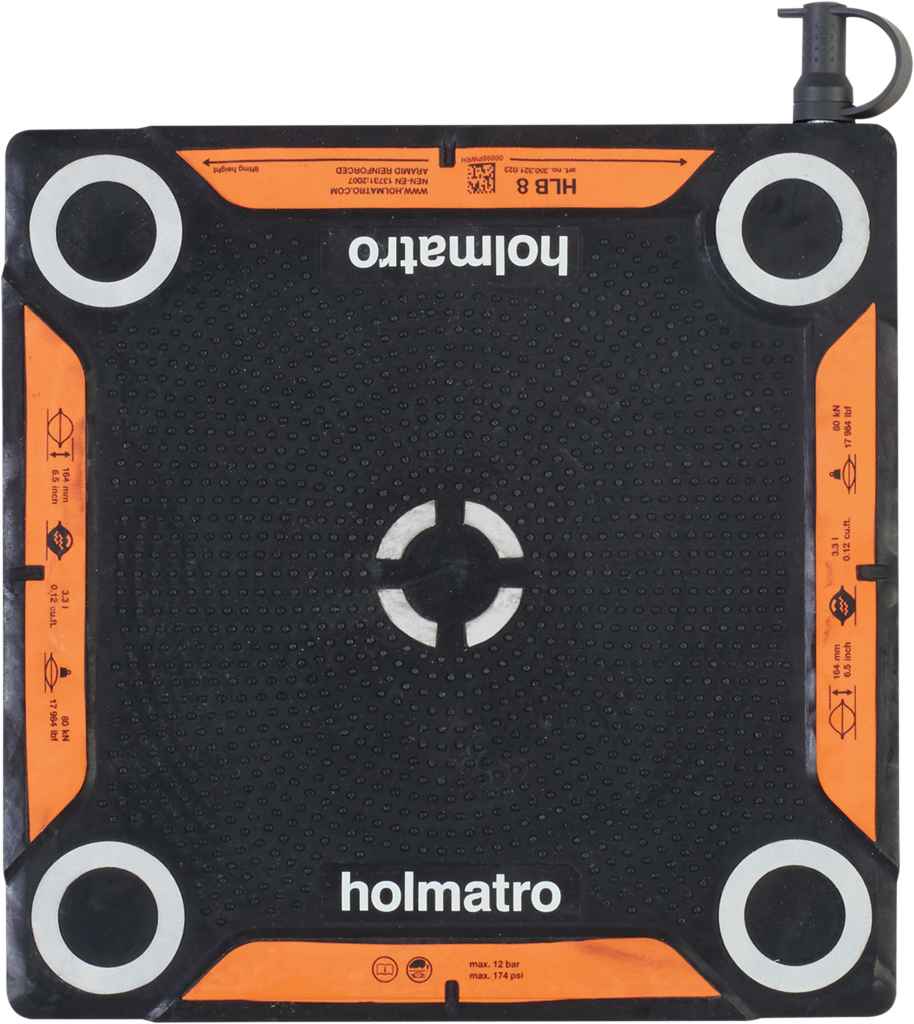

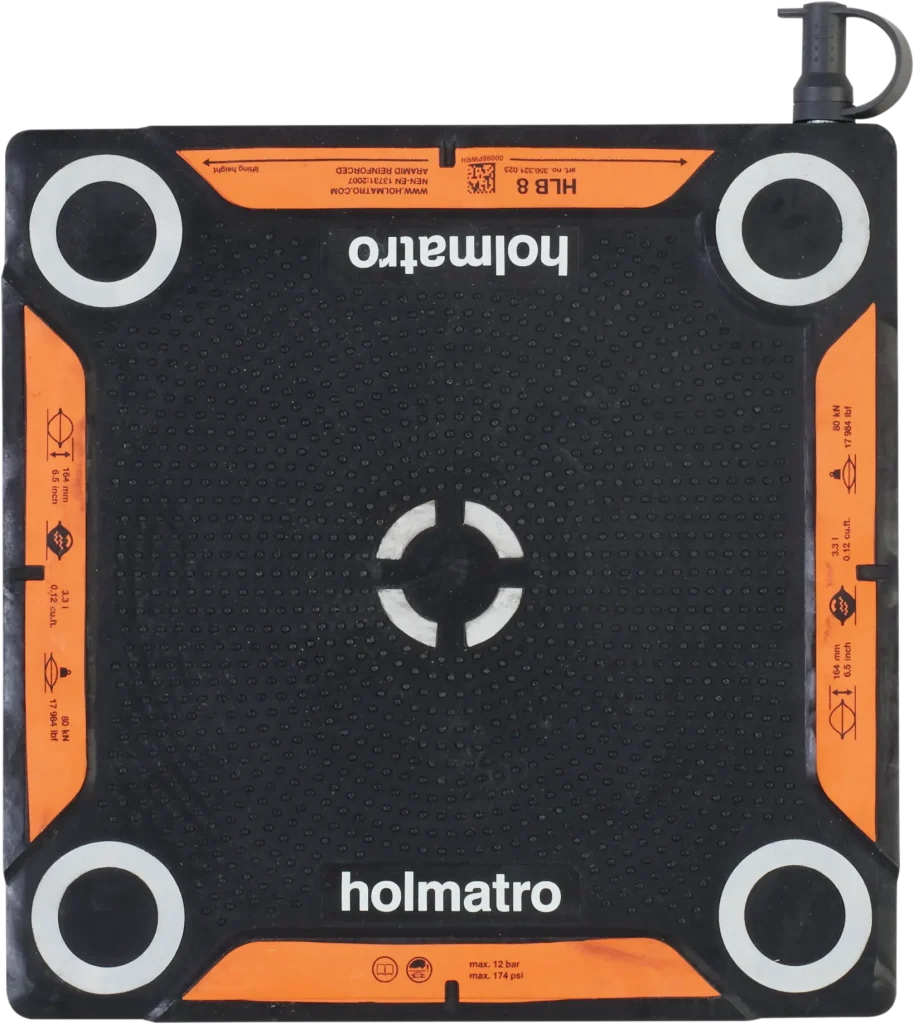

About the Lifting Bag HLB 8
Specifications
Details
Article number
350.321.023
Basic specifications
model
HLB 8
max. working pressure
174 psi
max. working pressure
12 / 1.2 (bar/Mpa)
Performance
max. lifting capacity
18434 lbf
max. inflation height
179 mm
max. inflation height
7 in
thickness incl. profile
22 mm
thickness incl. profile
0.9 in
max. lifting capacity
82 / 8.4 (kN/t)
max. lifting capacity (12 bar/174 psi)
18434 lbf
max. lifting capacity (12 bar/174 psi)
82 / 8.4 (kN/t)
max. lifting capacity (8 bar/116 psi)
12364 lbf
max. lifting capacity (8 bar/116 psi)
55 / 5.6 (kN/t)
General specifications
material
reinforced with 3 aramide inlays
air content (8 bar/116 psi)
26.4 l
air content (8 bar/116 psi)
7 gal / 0.9 cu ft
Dimensions, weight and temperature
weight, ready for use
2.1 kg
weight, ready for use
4.6 lb

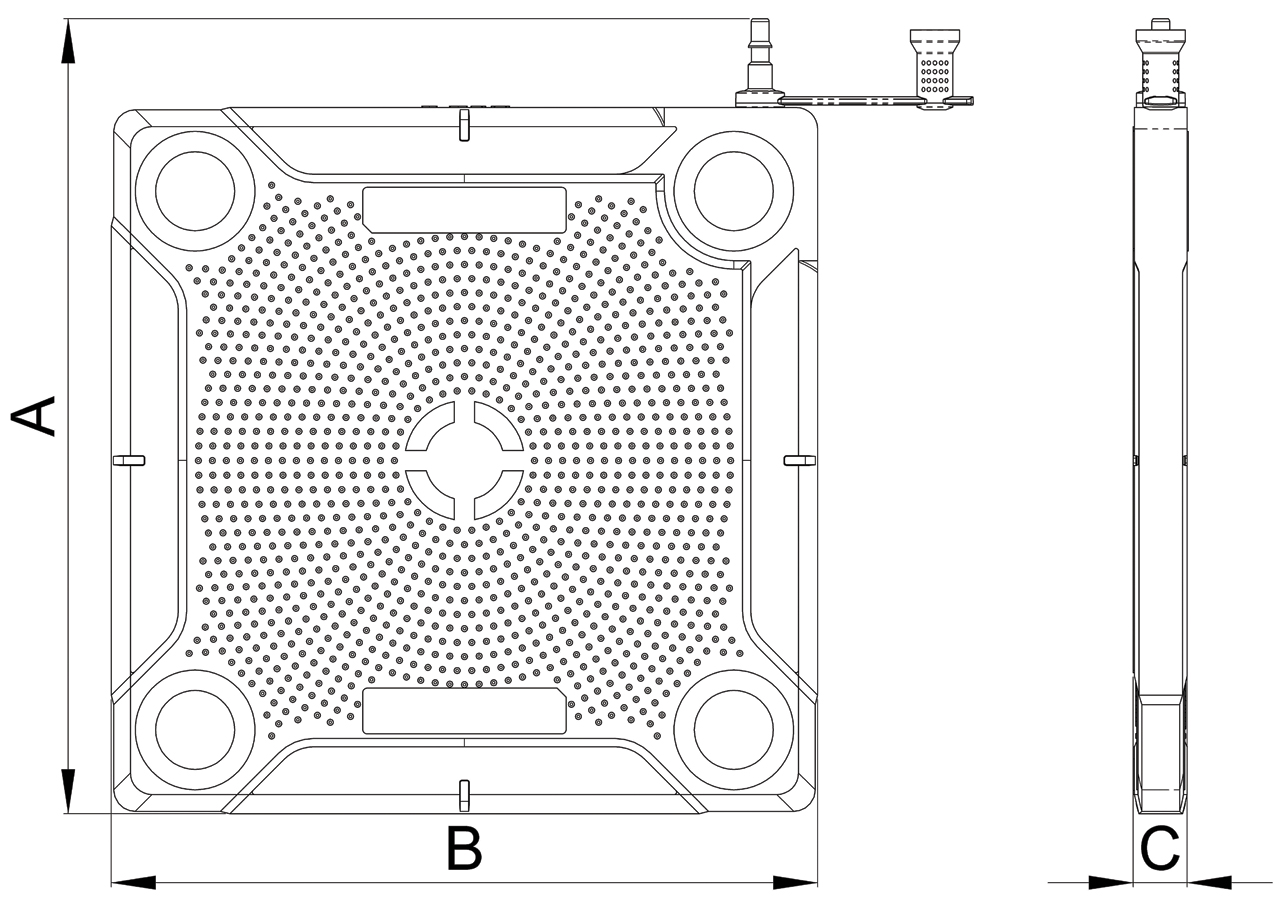

dimensions (AxBxC)
335 x 295 x 22 mm
dimensions (AxBxC)
13.2 x 11.6 x 0.9 in
Norms
EN 13731 compliant
Yes
Features
Clear indication of safety warnings, technical specifications and lifting height
- To help you work safer and easier

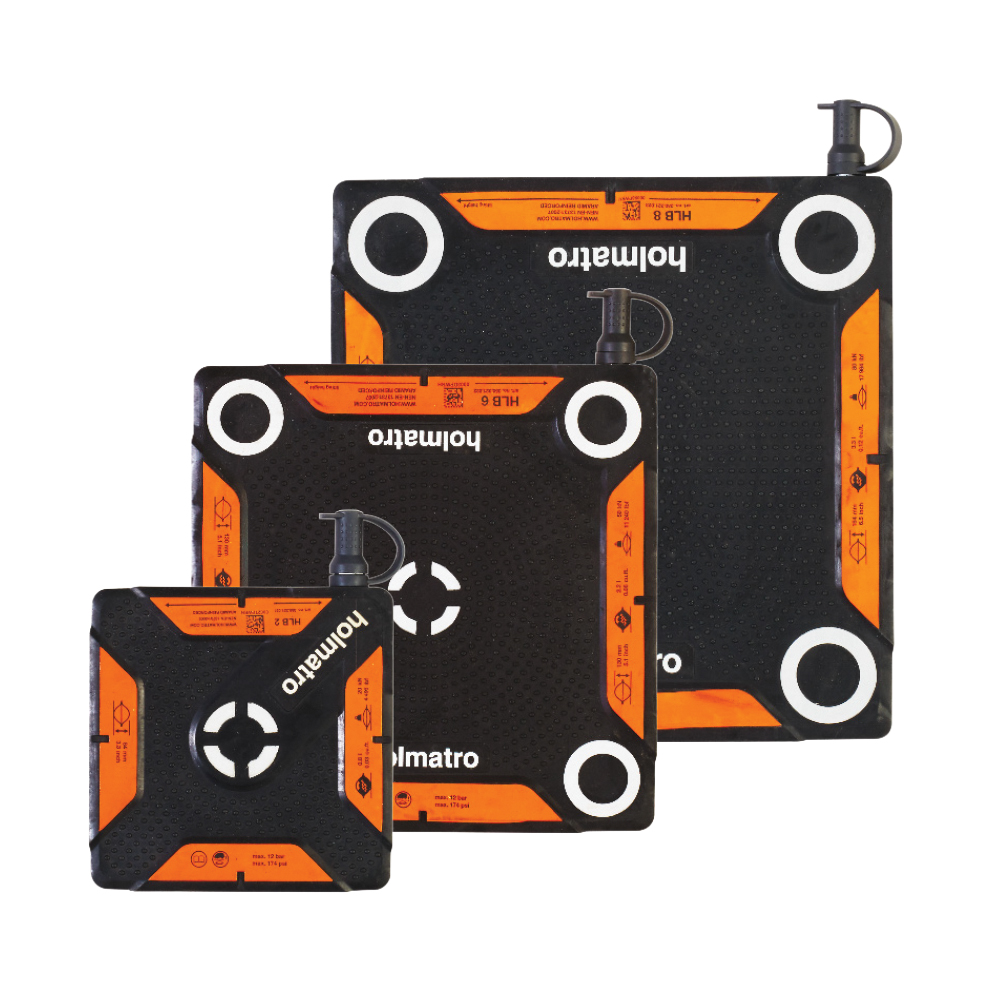

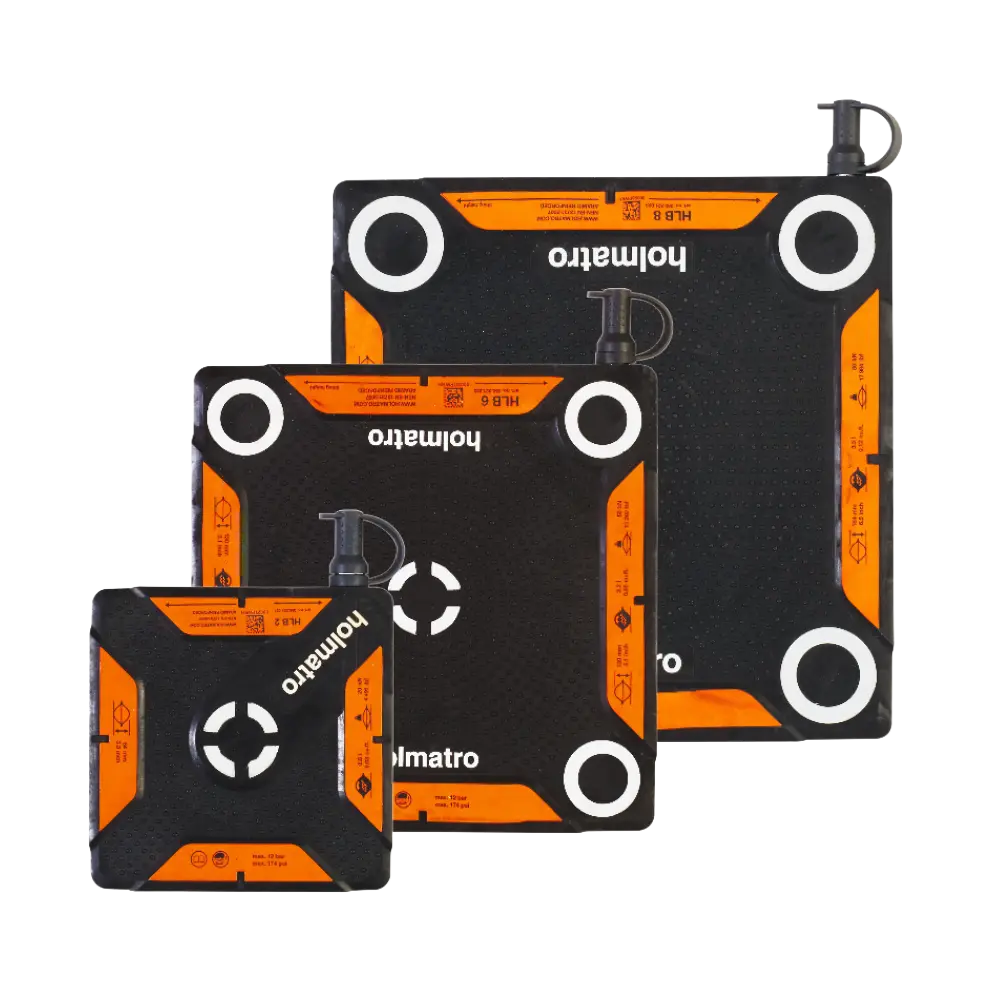

Center markings on all sides
- To help you position a smaller bag onto a larger model
Non-slip surface with interlocking profile
- To maximize the contact area and stability of inflated lifting bags
Reflective markings on all corners and in center
- For optimal visibility in the dark
Compliant with relevant safety standards
- Meets EN 13731 and other legislative requirements
