Lifting Bag HLB 21
Features & benefits

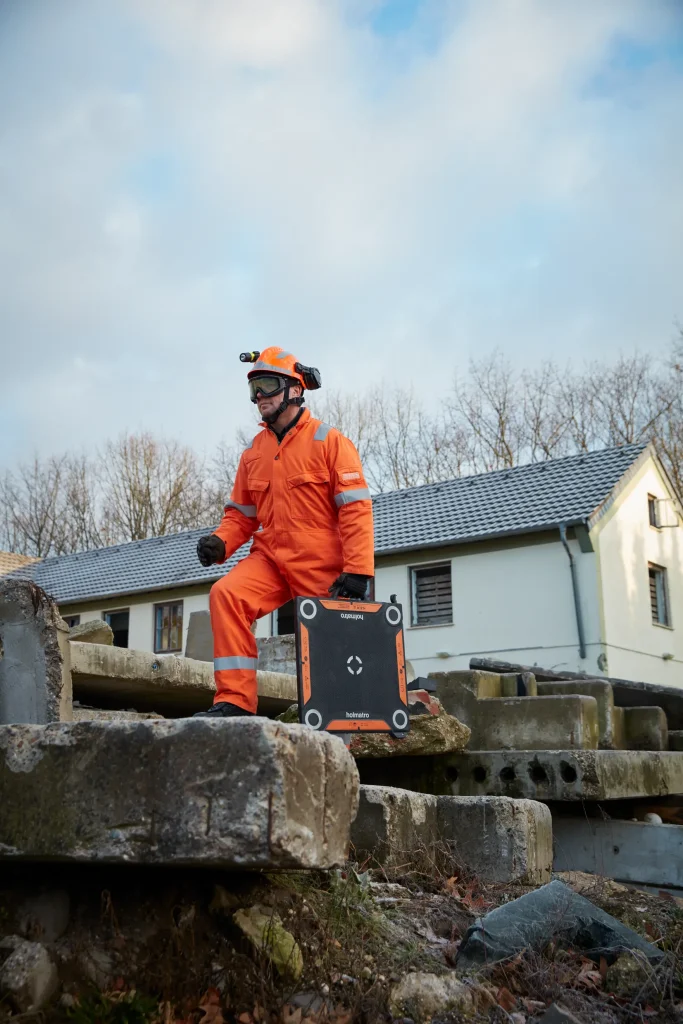

- For easy carrying

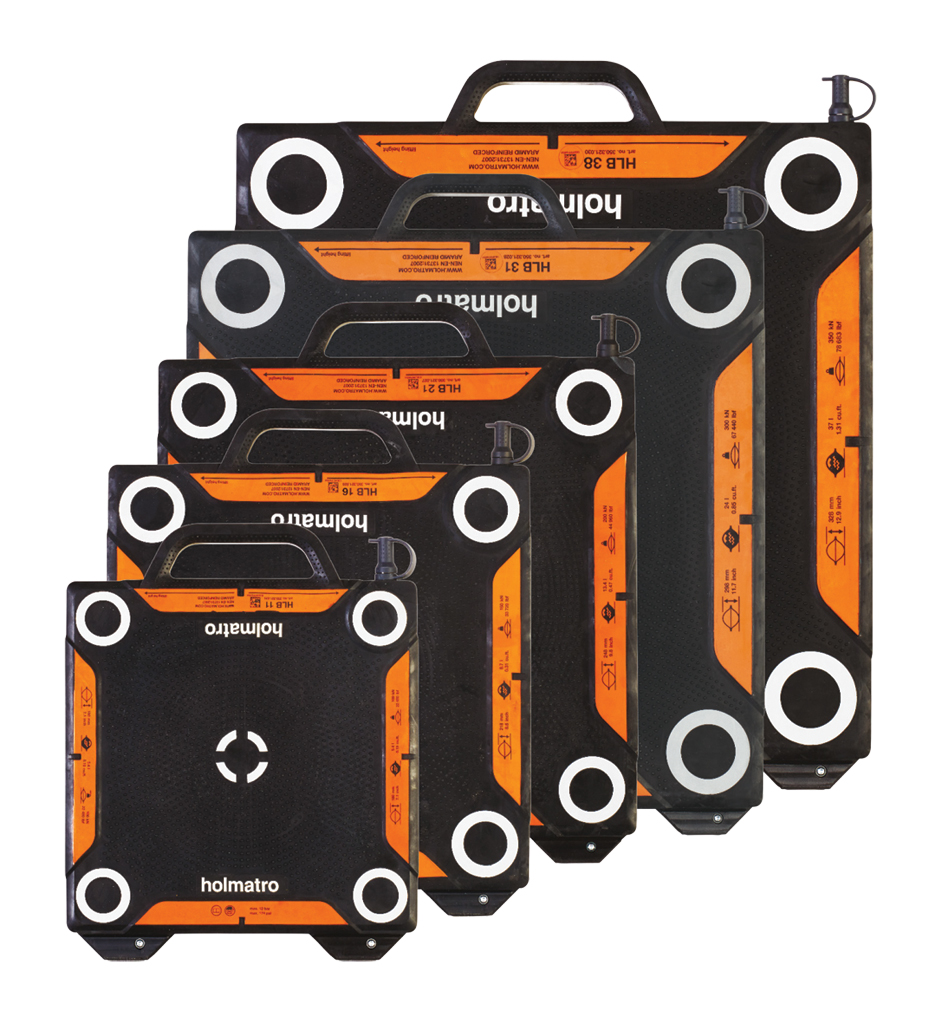

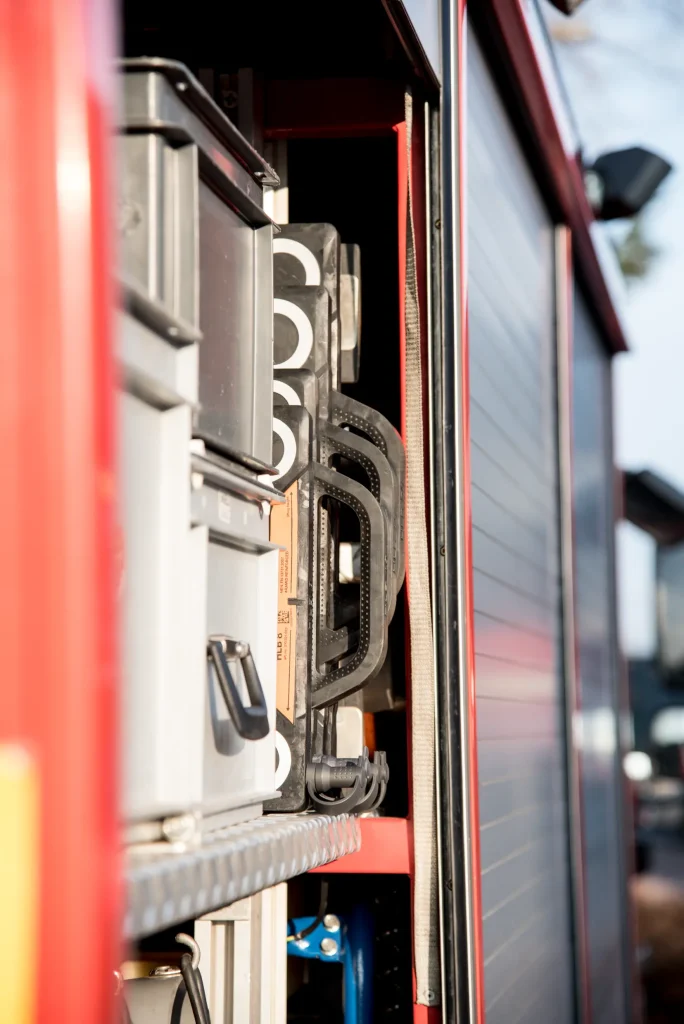

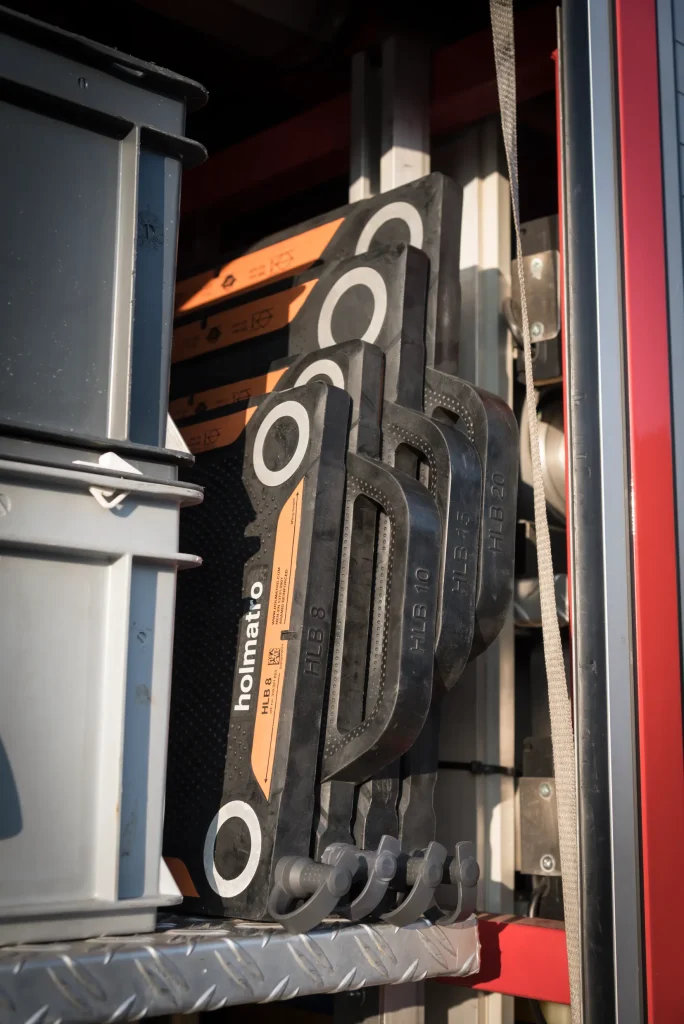

- Quickly pull the right lifting bag from storage
About the Lifting Bag HLB 21
Specifications
Details
Article number
350.321.027
Basic specifications
model
HLB 21
max. working pressure
174 psi
max. working pressure
12 / 1.2 (bar/Mpa)
Performance
max. lifting capacity
47210 lbf
max. inflation height
266 mm
max. inflation height
10.5 in
thickness incl. profile
25 mm
thickness incl. profile
1 in
max. lifting capacity
210 / 21.4 (kN/t)
max. lifting capacity (12 bar/174 psi)
47210 lbf
max. lifting capacity (12 bar/174 psi)
210 / 21.4 (kN/t)
max. lifting capacity (8 bar/116 psi)
29900 lbf
max. lifting capacity (8 bar/116 psi)
133 / 13.6 (kN/t)
General specifications
material
reinforced with 3 aramide inlays
air content (8 bar/116 psi)
107.2 l
air content (8 bar/116 psi)
28.3 gal / 3.8 cu ft
Dimensions, weight and temperature
weight, ready for use
5.6 kg
weight, ready for use
12.3 lb

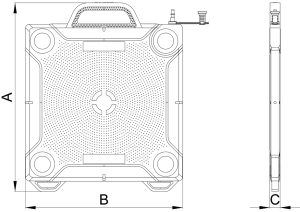

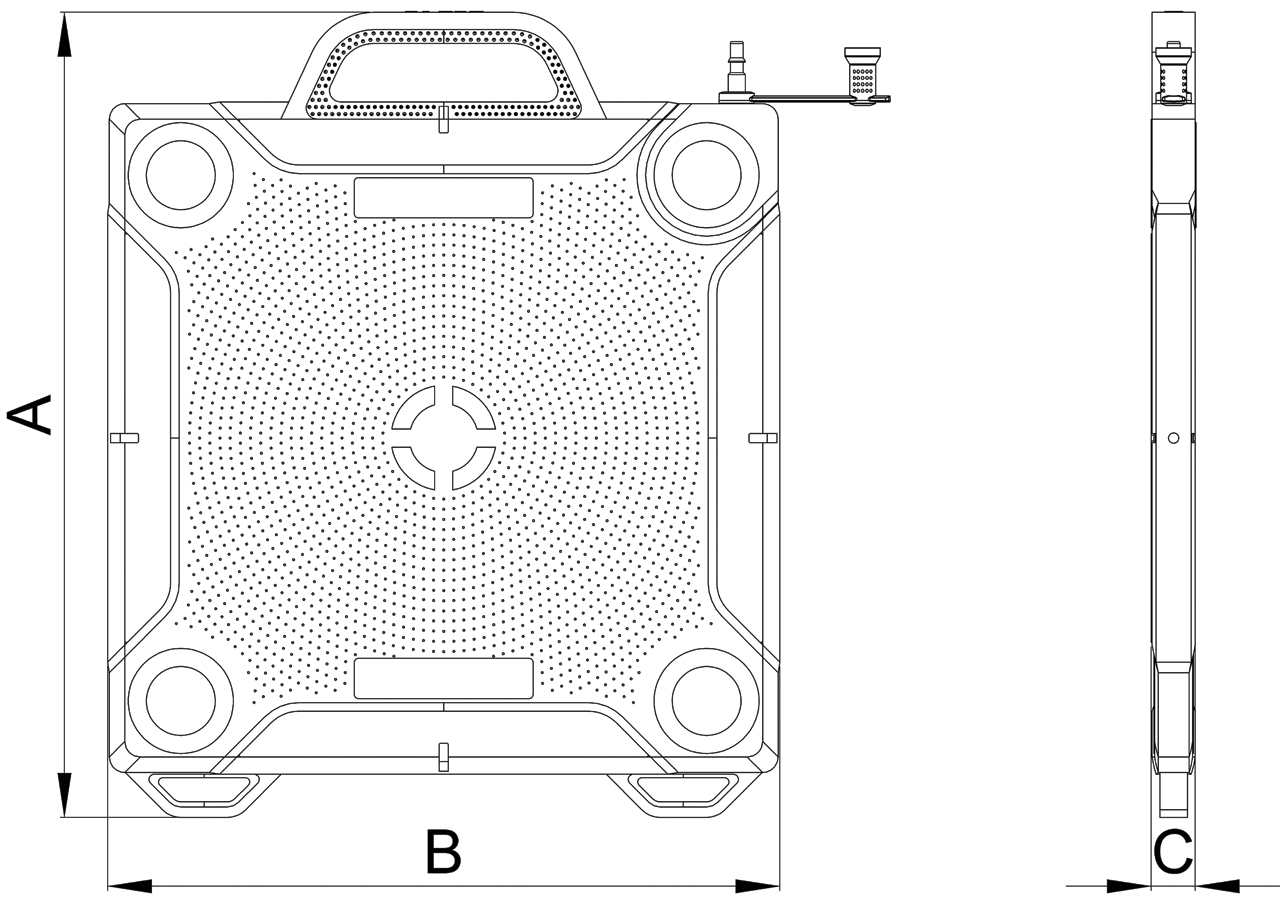

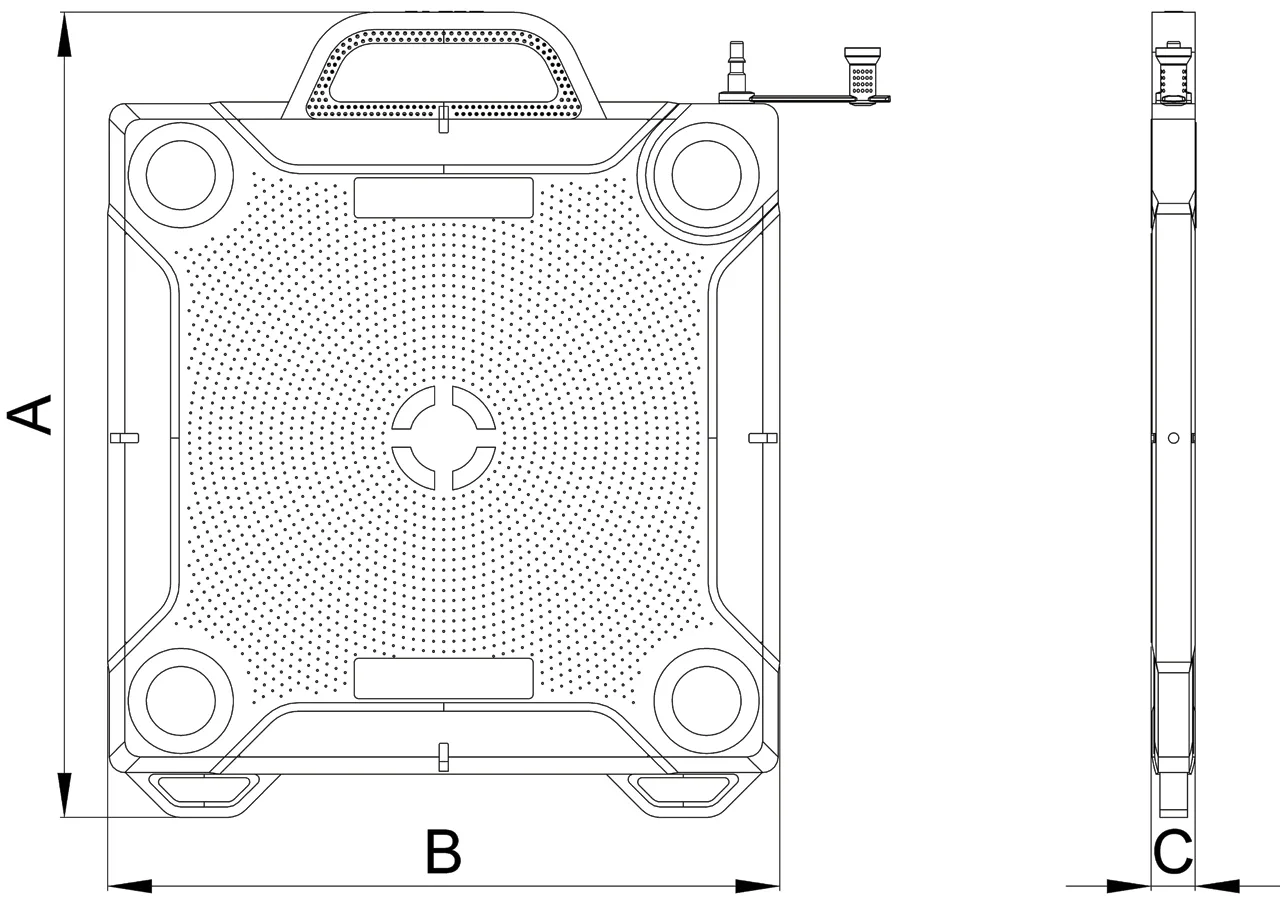

dimensions (AxBxC)
517 x 440 x 25 mm
dimensions (AxBxC)
20.4 x 17.3 x 1 in
Norms
EN 13731 compliant
Yes
Features

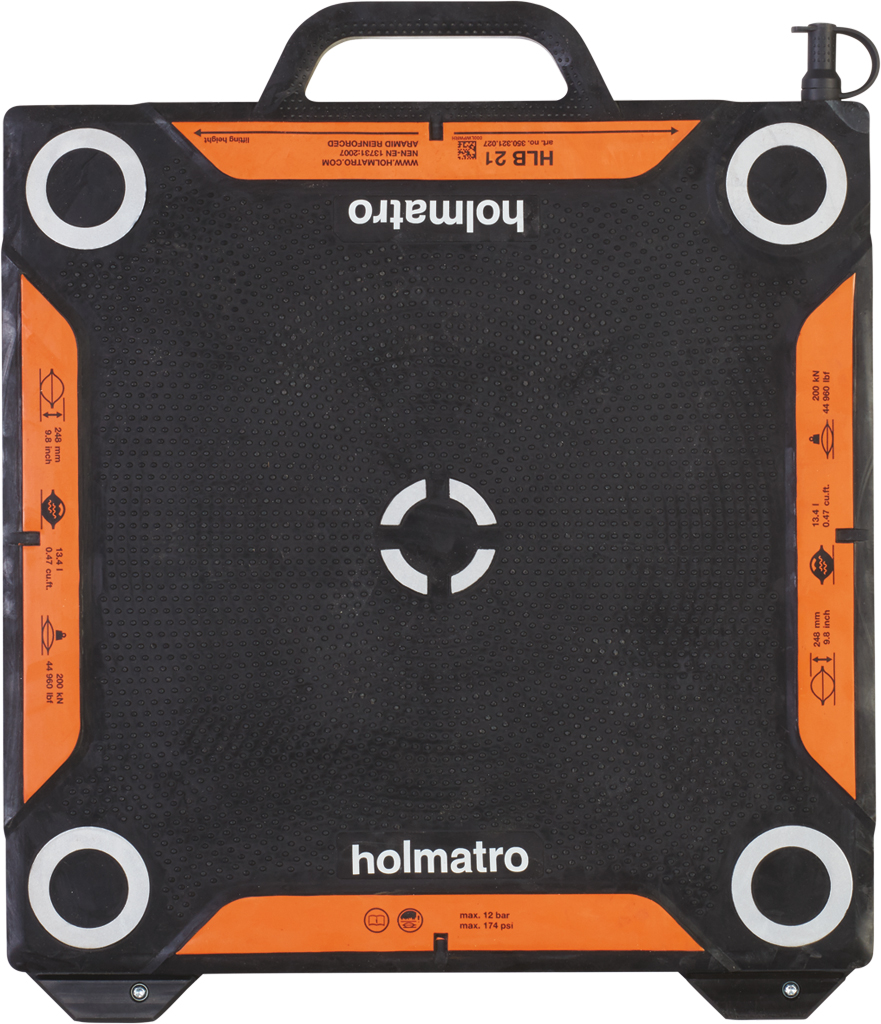

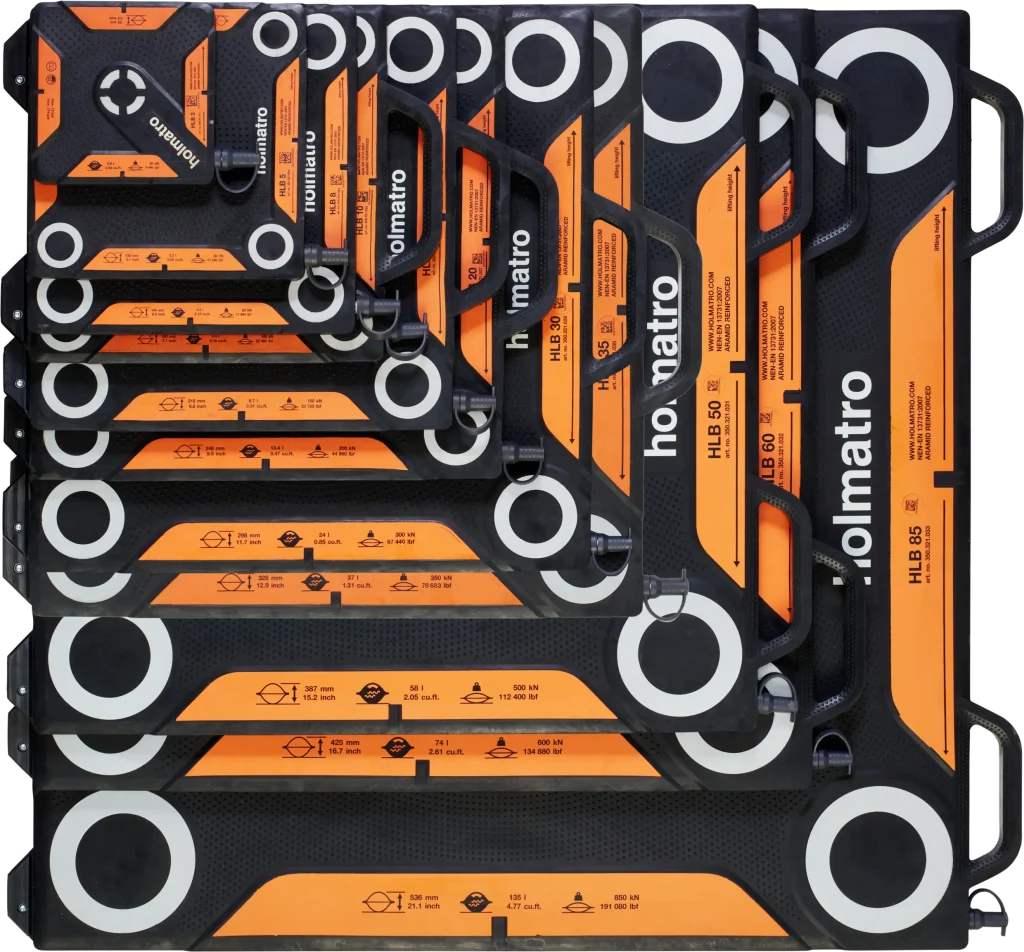

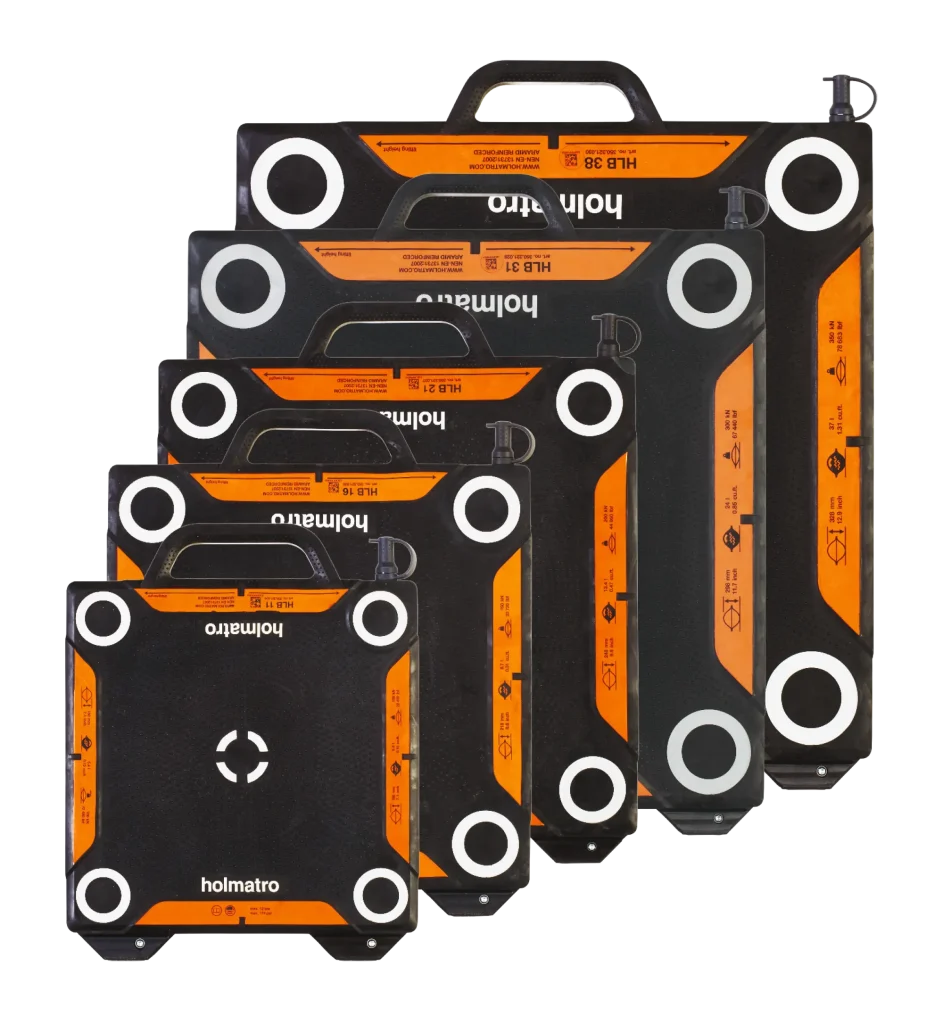

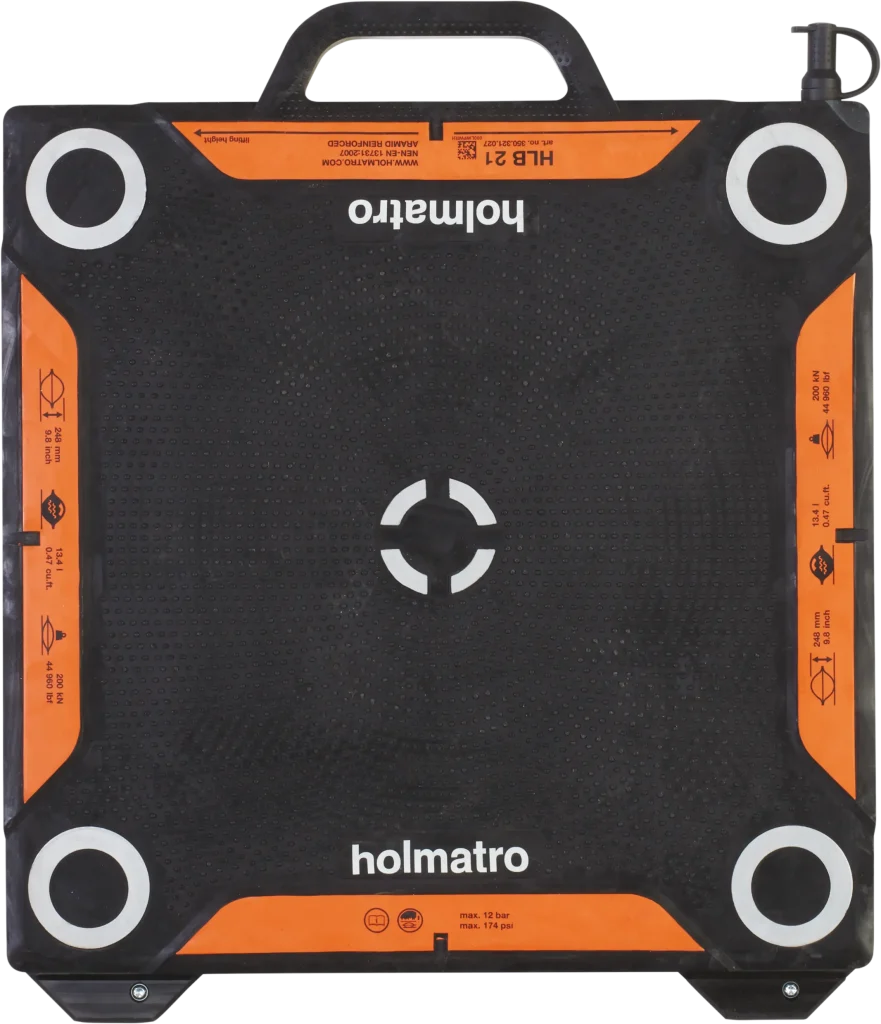

Integrated carrying handle with capacity indication
- For easy carrying
- Quickly pull the right lifting bag from storage
Standard equipped with slider pads

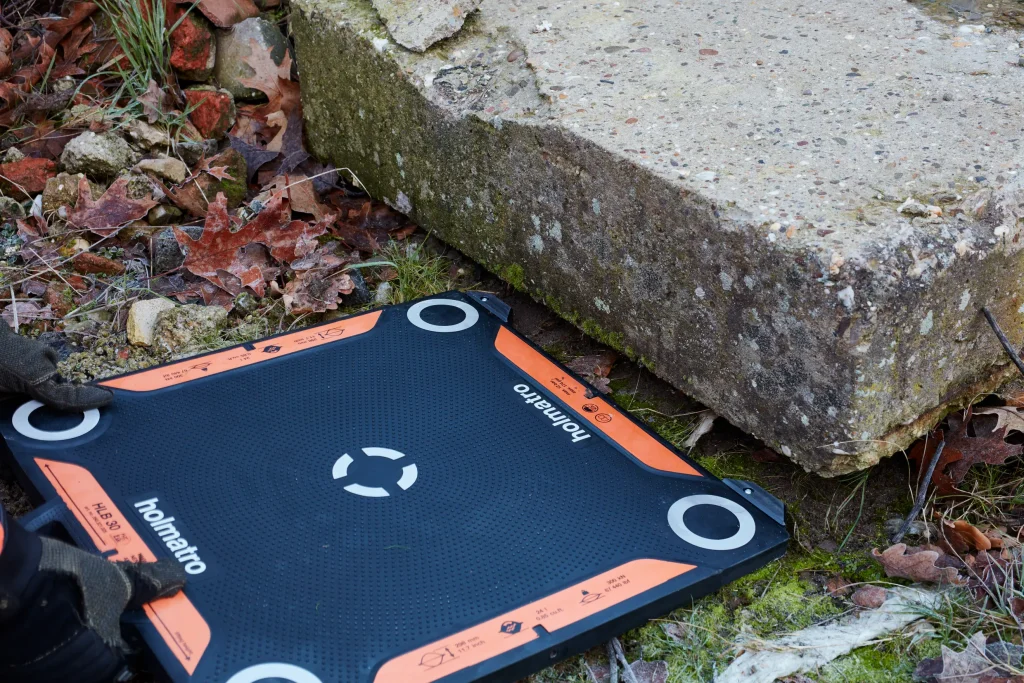

- For easy insertion underneath an object
Non-slip surface with interlocking profile
- To maximize the contact area and stability of inflated lifting bags

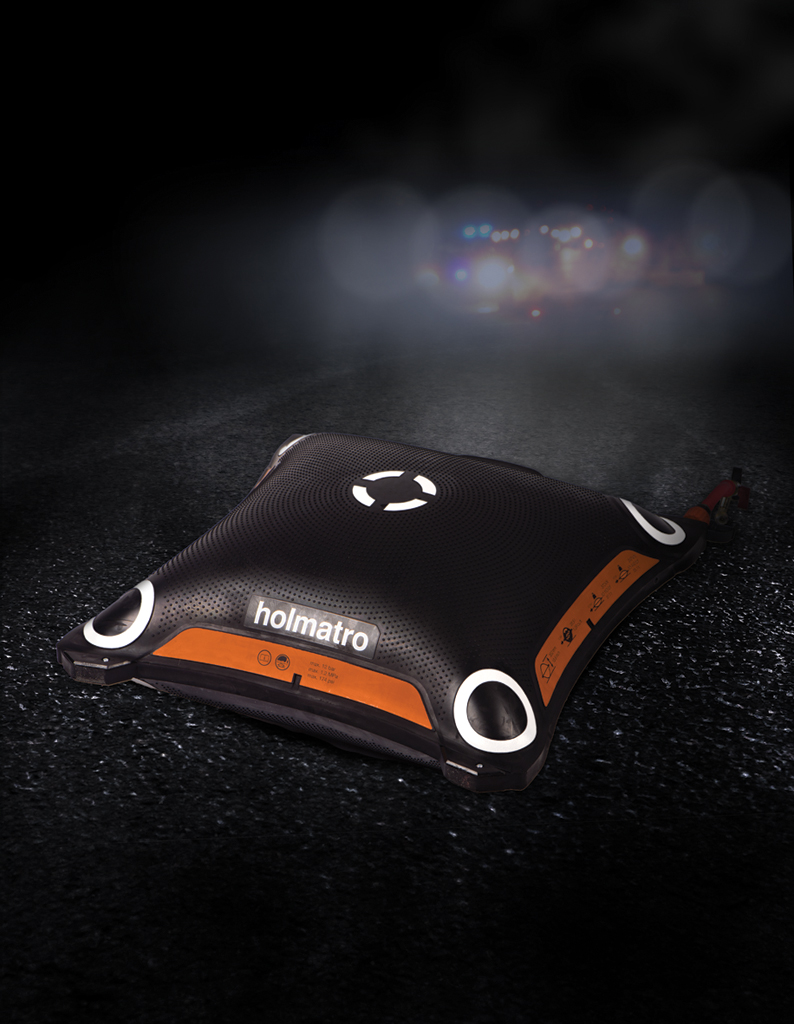

Reflective markings on all corners and in center
- For optimal visibility in the dark
Compliant with relevant safety standards
- Meets EN 13731 and other legislative requirements
Clear indication of safety warnings, technical specifications and lifting height
- To help you work safer and easier

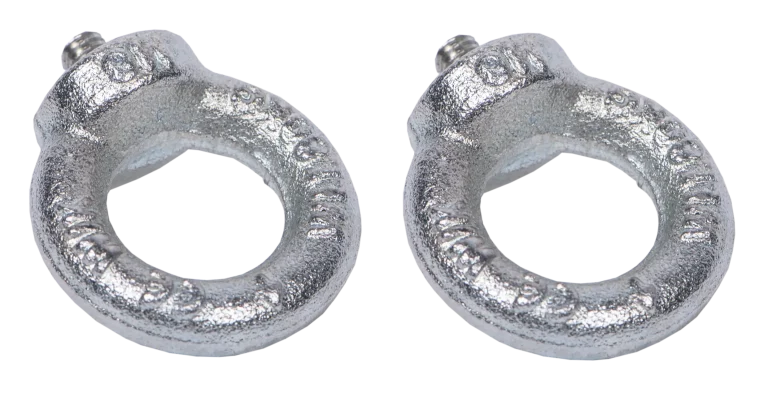

Inserts for optional lifting eyes
- To attach a rope for easy maneuvering of your lifting bag
