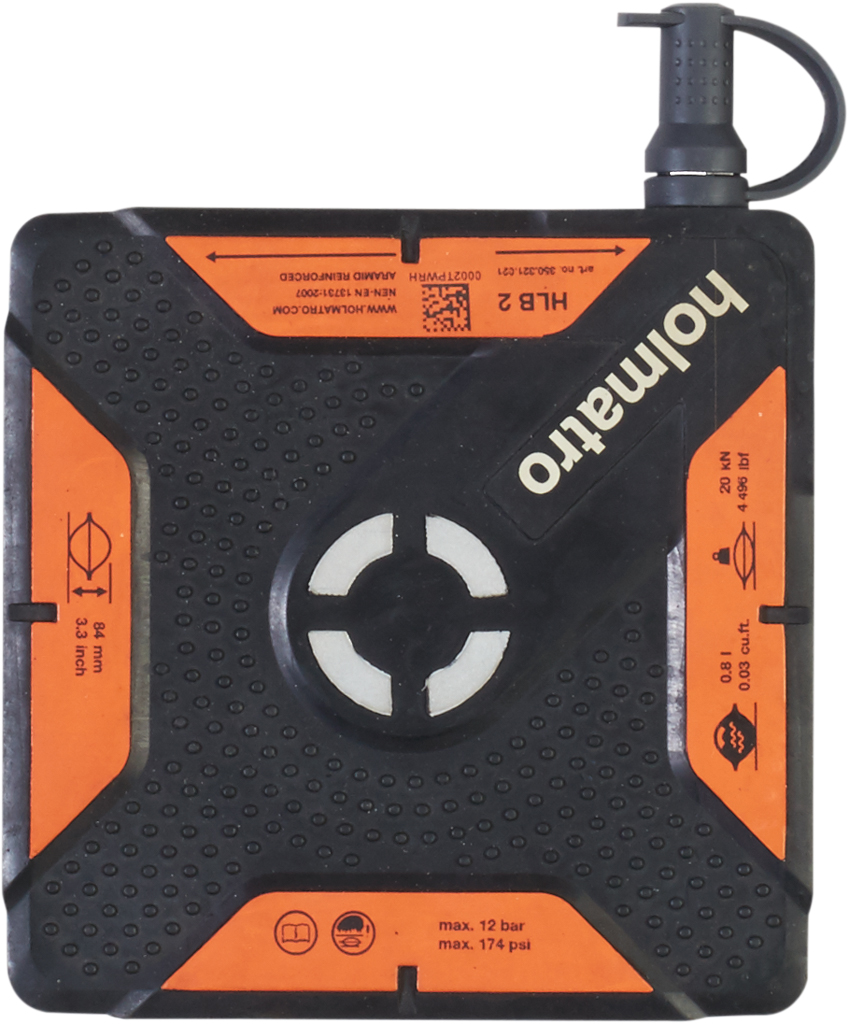

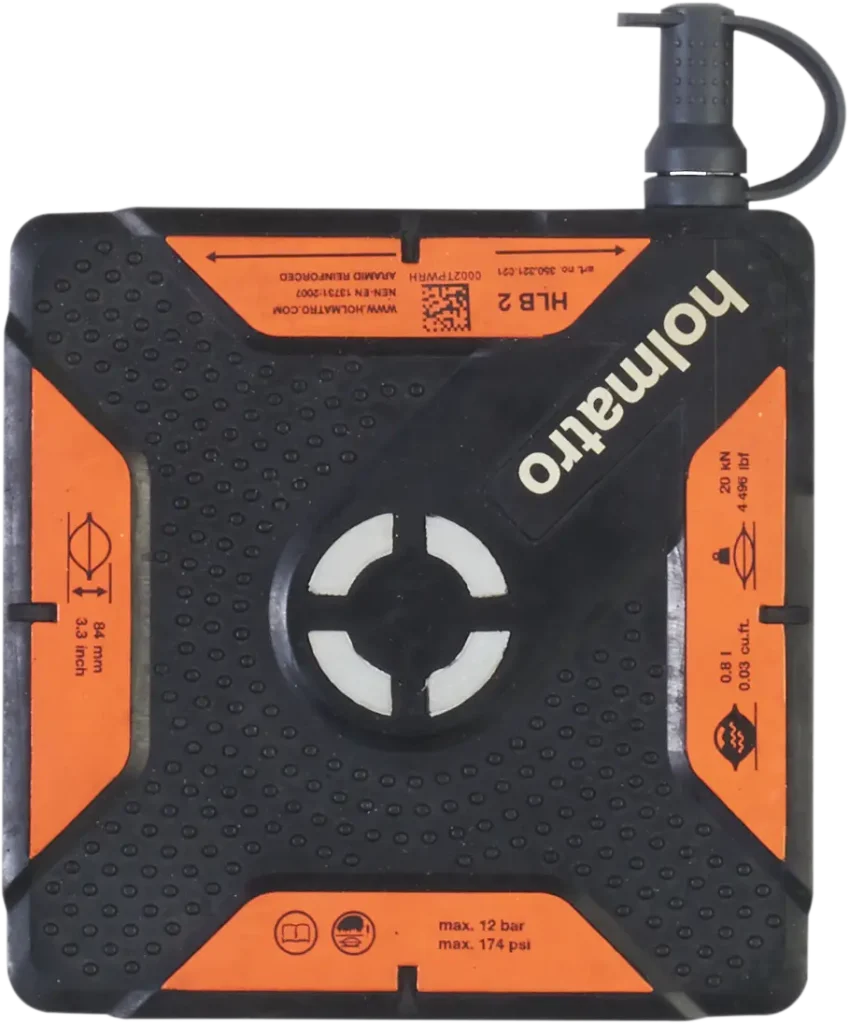

About the Lifting Bag HLB 2
Specifications
Details
Article number
350.321.021
Basic specifications
model
HLB 2
max. working pressure
174 psi
max. working pressure
12 / 1.2 (bar/Mpa)
Performance
max. lifting capacity
4721 lbf
max. inflation height
94 mm
max. inflation height
3.7 in
thickness incl. profile
22 mm
thickness incl. profile
0.9 in
max. lifting capacity
21 / 2.1 (kN/t)
max. lifting capacity (12 bar/174 psi)
4721 lbf
max. lifting capacity (12 bar/174 psi)
21 / 2.1 (kN/t)
max. lifting capacity (8 bar/116 psi)
3147 lbf
max. lifting capacity (8 bar/116 psi)
14 / 1.4 (kN/t)
General specifications
material
reinforced with 3 aramide inlays
air content (8 bar/116 psi)
6.4 l
air content (8 bar/116 psi)
1.7 gal / 0.2 cu ft
Dimensions, weight and temperature
weight, ready for use
0.7 kg
weight, ready for use
1.5 lb

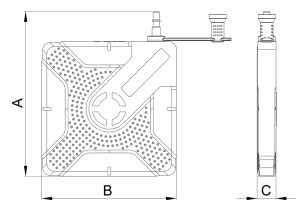

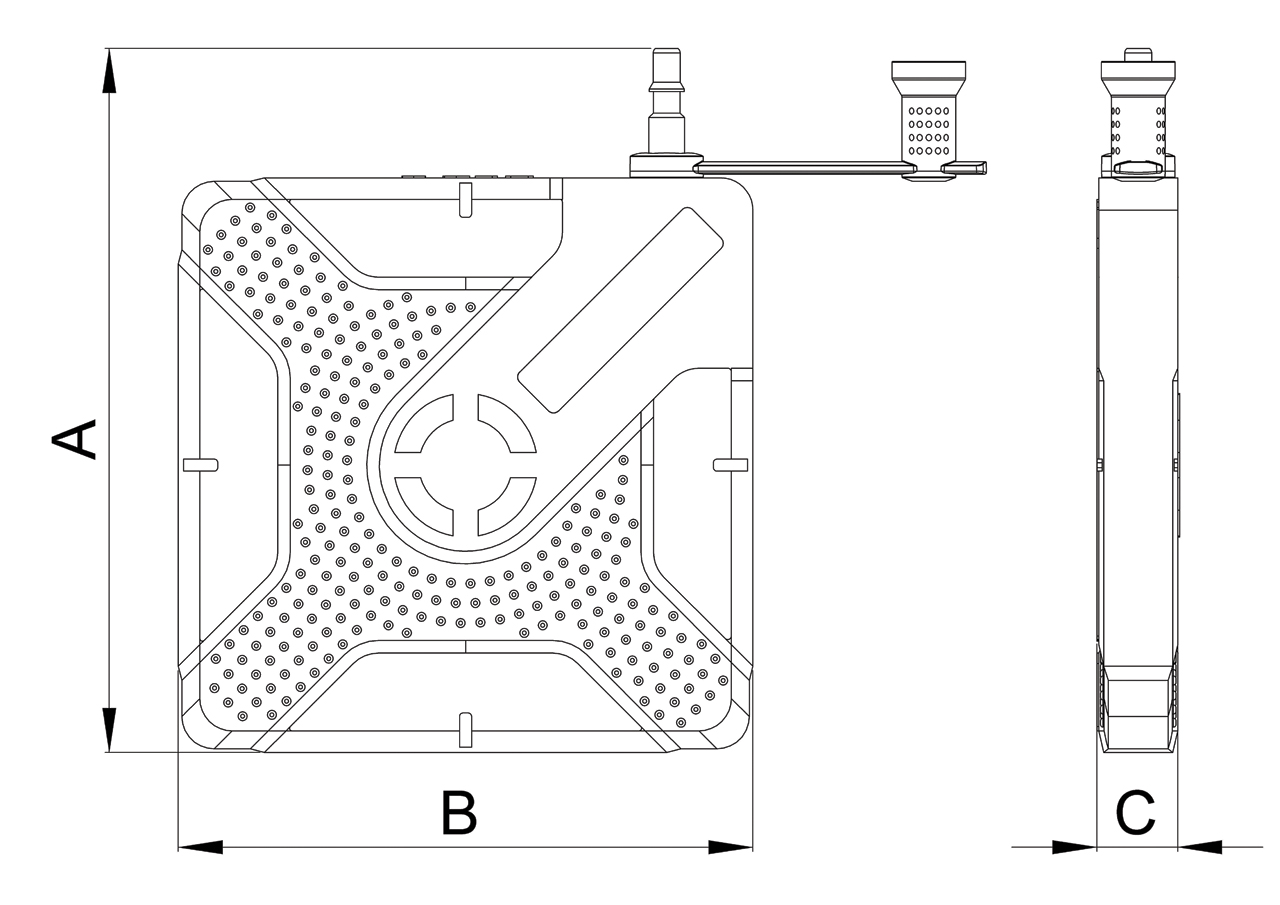

dimensions (AxBxC)
200 x 160 x 22 mm
dimensions (AxBxC)
7.9 x 6.3 x 0.9 in
Norms
EN 13731 compliant
Yes
Features
Clear indication of safety warnings, technical specifications and lifting height
- To help you work safer and easier
Center markings on all sides
- To help you position a smaller bag onto a larger model
Non-slip surface with interlocking profile
- To maximize the contact area and stability of inflated lifting bags
Reflective markings
- For optimal visibility in the dark
Compliant with relevant safety standards
- Meets EN 13731 and other legislative requirements
