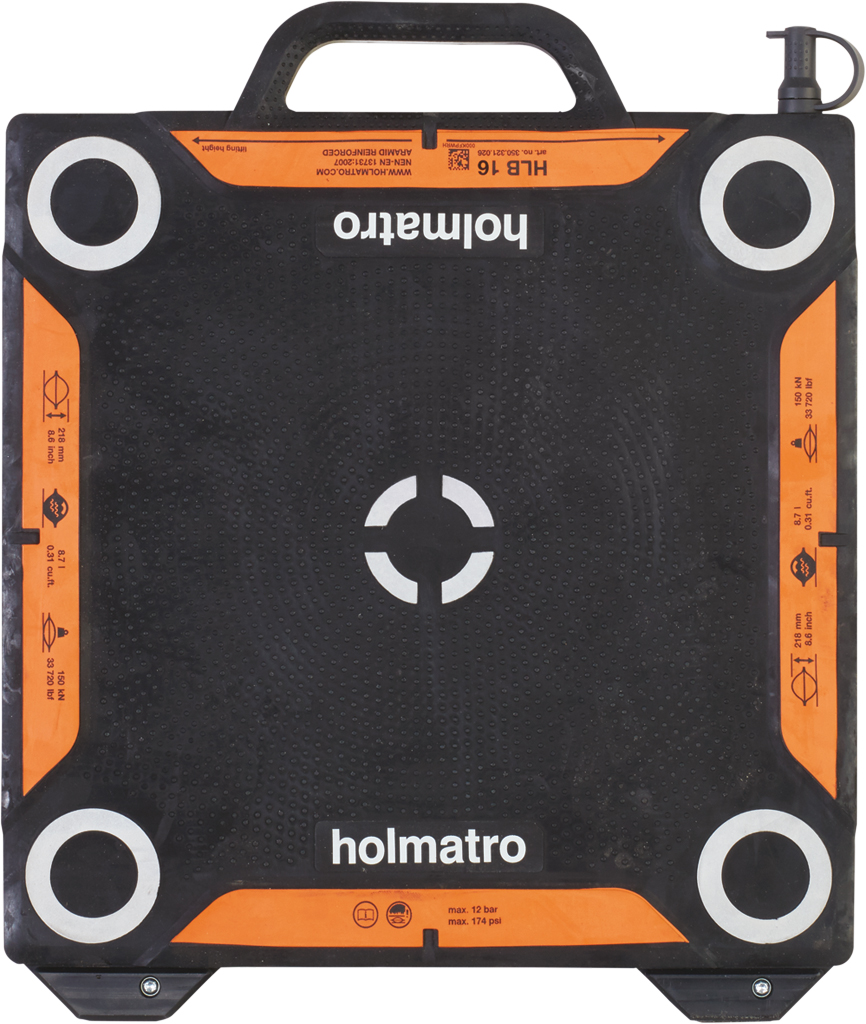

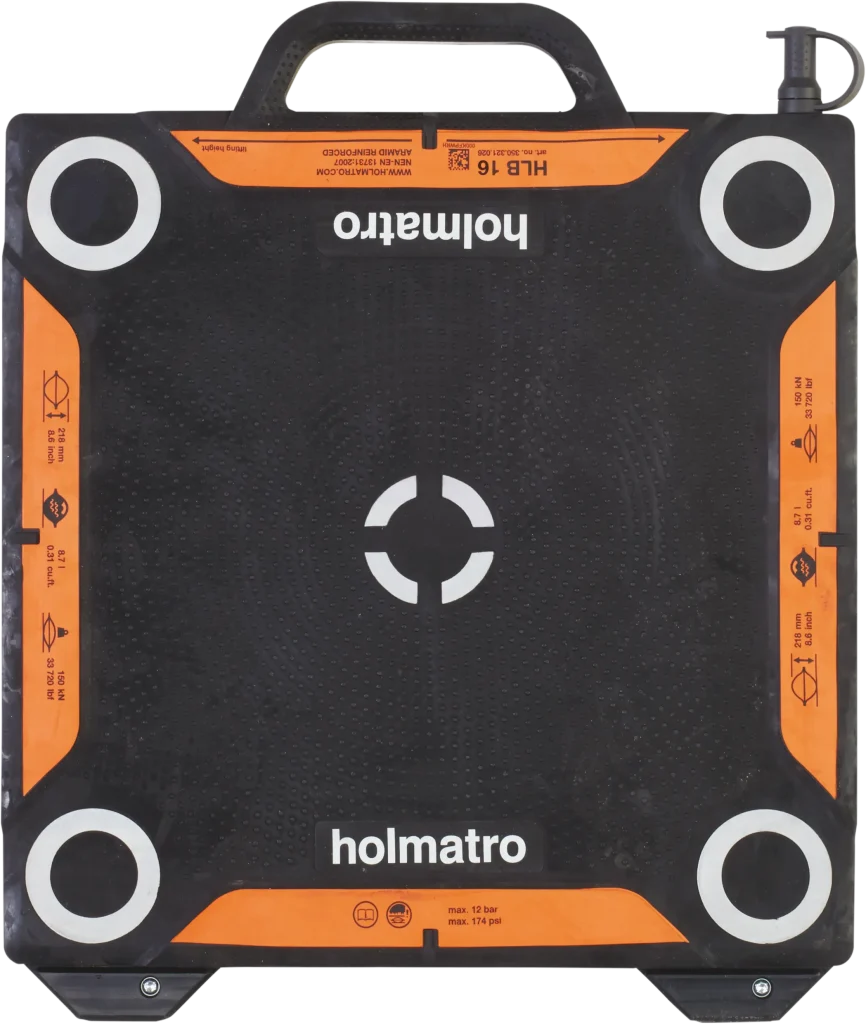

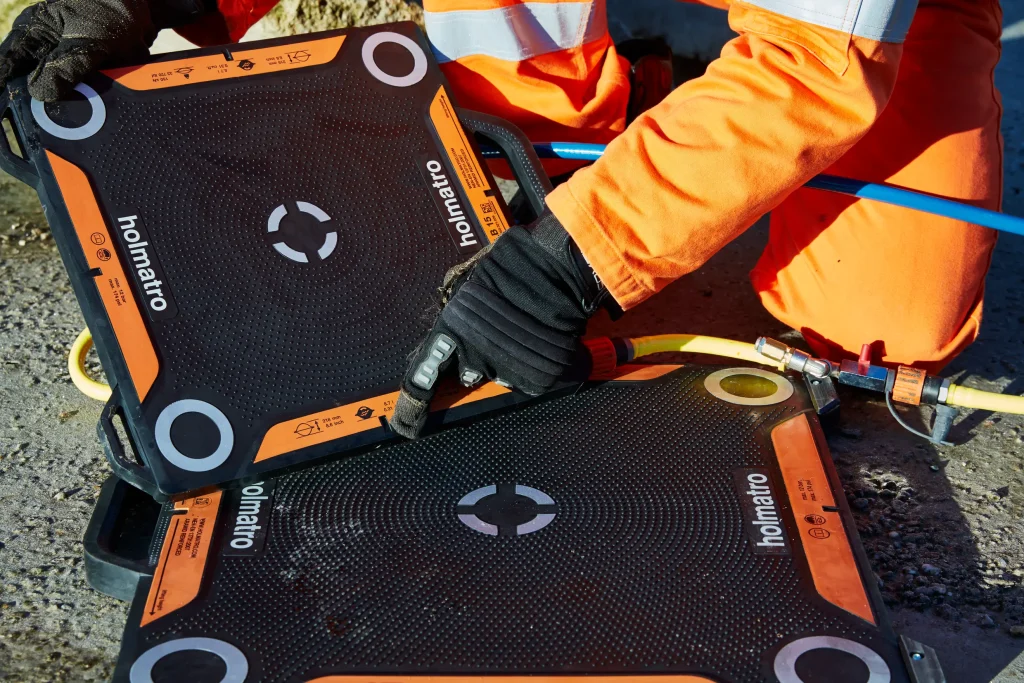

Lifting Bag HLB 16
Features & benefits
- For easy carrying
- Quickly pull the right lifting bag from storage
About the Lifting Bag HLB 16
Specifications
Details
Article number
350.321.026
Basic specifications
model
HLB 16
max. working pressure
174 psi
max. working pressure
12 / 1.2 (bar/Mpa)
Performance
max. lifting capacity
34845 lbf
max. inflation height
236 mm
max. inflation height
9.3 in
thickness incl. profile
25 mm
thickness incl. profile
1 in
max. lifting capacity
155 / 15.8 (kN/t)
max. lifting capacity (12 bar/174 psi)
34845 lbf
max. lifting capacity (12 bar/174 psi)
155 / 15.8 (kN/t)
max. lifting capacity (8 bar/116 psi)
23155 lbf
max. lifting capacity (8 bar/116 psi)
103 / 10.5 (kN/t)
General specifications
material
reinforced with 3 aramide inlays
air content (8 bar/116 psi)
69.6 l
air content (8 bar/116 psi)
18.4 gal / 2.5 cu ft
Dimensions, weight and temperature
weight, ready for use
4.5 kg
weight, ready for use
9.9 lb
dimensions (AxBxC)
467 x 390 x 25 mm
dimensions (AxBxC)
18.4 x 15.4 x 1 in
Norms
EN 13731 compliant
Yes
Features

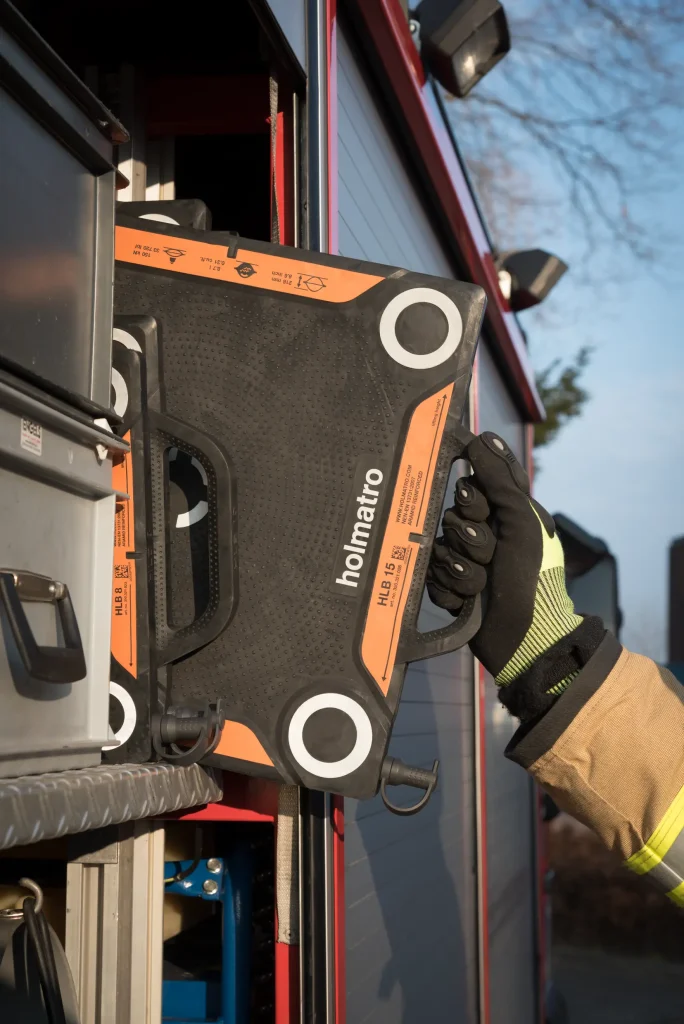

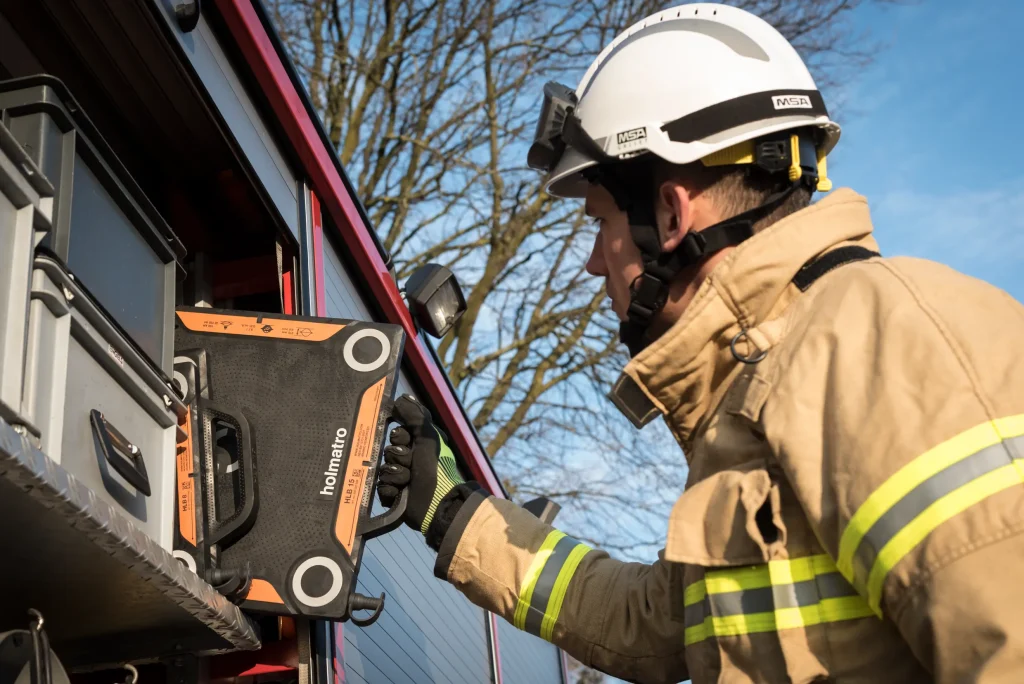

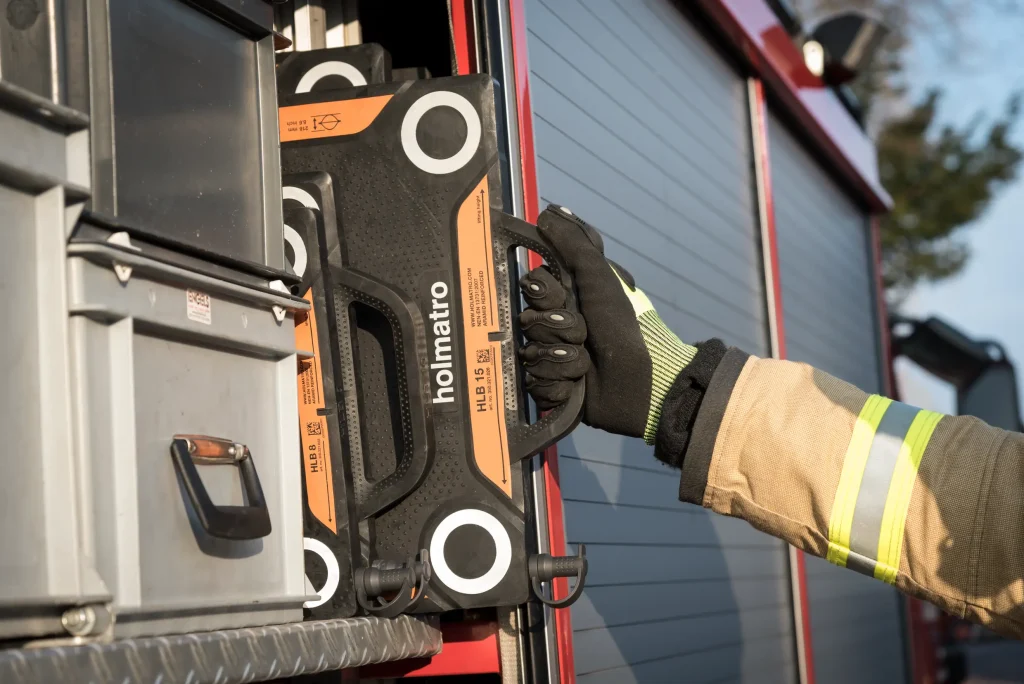

Integrated carrying handle with capacity indication
- For easy carrying
- Quickly pull the right lifting bag from storage
Standard equipped with slider pads
- For easy insertion underneath an object
Non-slip surface with interlocking profile
- To maximize the contact area and stability of inflated lifting bags
Reflective markings on all corners and in center
- For optimal visibility in the dark
Compliant with relevant safety standards
- Meets EN 13731 and other legislative requirements
Clear indication of safety warnings, technical specifications and lifting height
- To help you work safer and easier
Center markings on all sides
- To help you position a smaller bag onto a larger model
