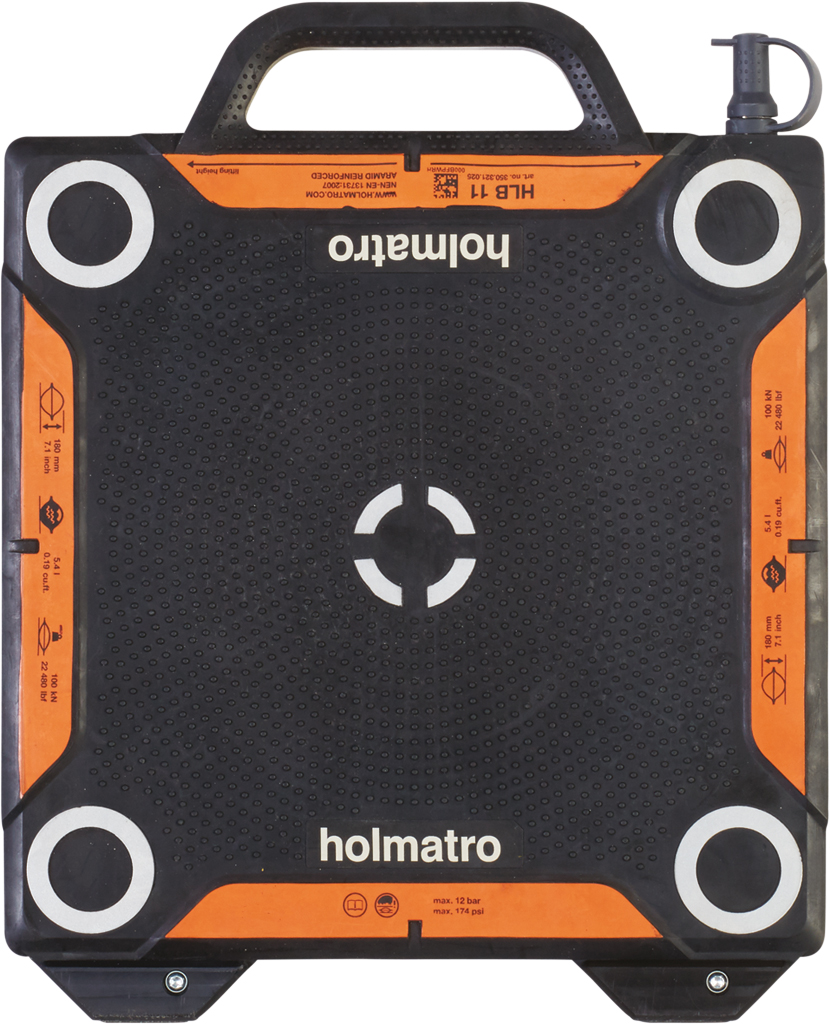

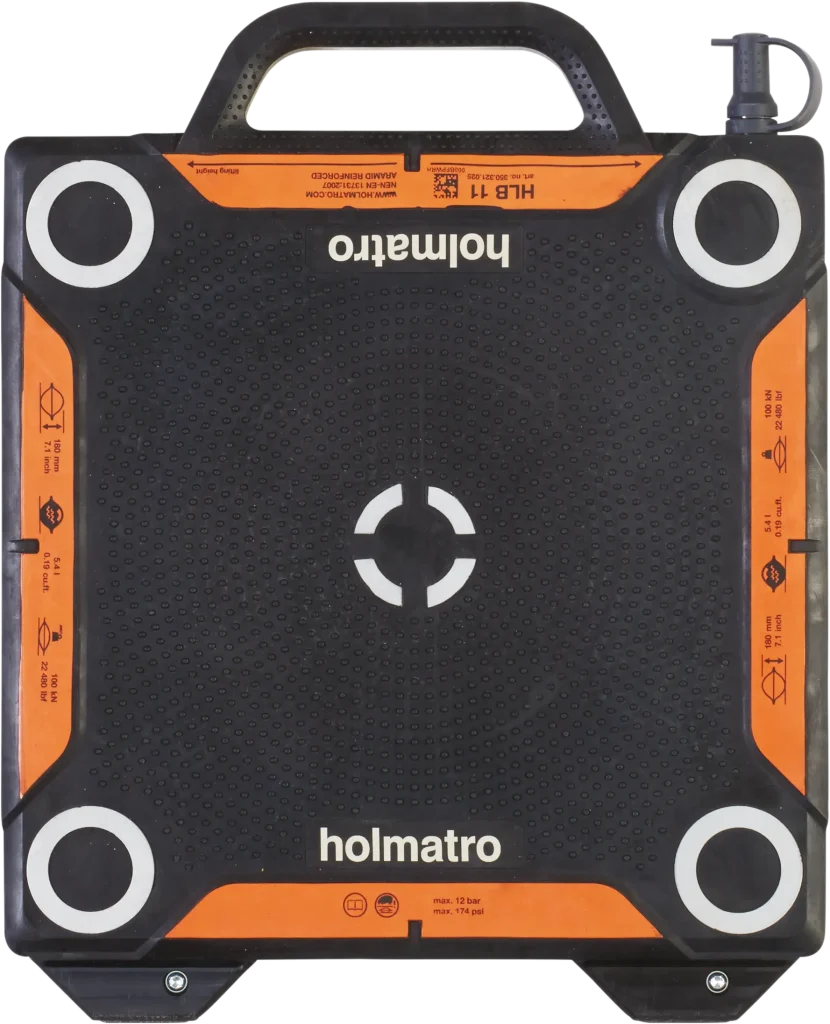

Lifting Bag HLB 11
Features & benefits
- For easy carrying
- Quickly pull the right lifting bag from storage
About the Lifting Bag HLB 11
Specifications
Details
Article number
350.321.025
Basic specifications
model
HLB 11
max. working pressure
174 psi
max. working pressure
12 / 1.2 (bar/Mpa)
Performance
max. lifting capacity
24729 lbf
max. inflation height
207 mm
max. inflation height
8.2 in
thickness incl. profile
25 mm
thickness incl. profile
1 in
max. lifting capacity
110 / 11.2 (kN/t)
max. lifting capacity (12 bar/174 psi)
24729 lbf
max. lifting capacity (12 bar/174 psi)
110 / 11.2 (kN/t)
max. lifting capacity (8 bar/116 psi)
16411 lbf
max. lifting capacity (8 bar/116 psi)
73 / 7.4 (kN/t)
General specifications
material
reinforced with 3 aramide inlays
air content (8 bar/116 psi)
43.2 l
air content (8 bar/116 psi)
11.4 gal / 1.5 cu ft
Dimensions, weight and temperature
weight, ready for use
3.2 kg
weight, ready for use
7.1 lb
dimensions (AxBxC)
403 x 325 x 25 mm
dimensions (AxBxC)
15.9 x 12.8 x 1 in
Norms
EN 13731 compliant
Yes
Features

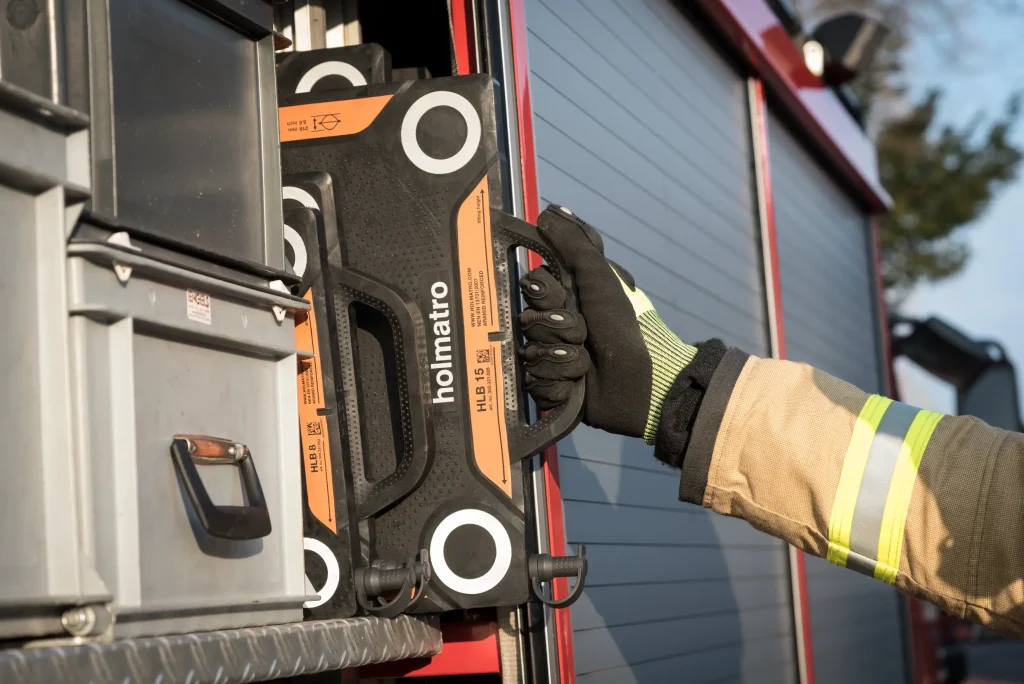

Integrated carrying handle with capacity indication
- For easy carrying
- Quickly pull the right lifting bag from storage
Standard equipped with slider pads
- For easy insertion underneath an object
Non-slip surface with interlocking profile
- To maximize the contact area and stability of inflated lifting bags
Reflective markings on all corners and in center
- For optimal visibility in the dark.
Compliant with relevant safety standards
- Meets EN 13731 and other legislative requirements
Clear indication of safety warnings, technical specifications and lifting height
- To help you work safer and easier
Center markings on all sides
- To help you position a smaller bag onto a larger model
