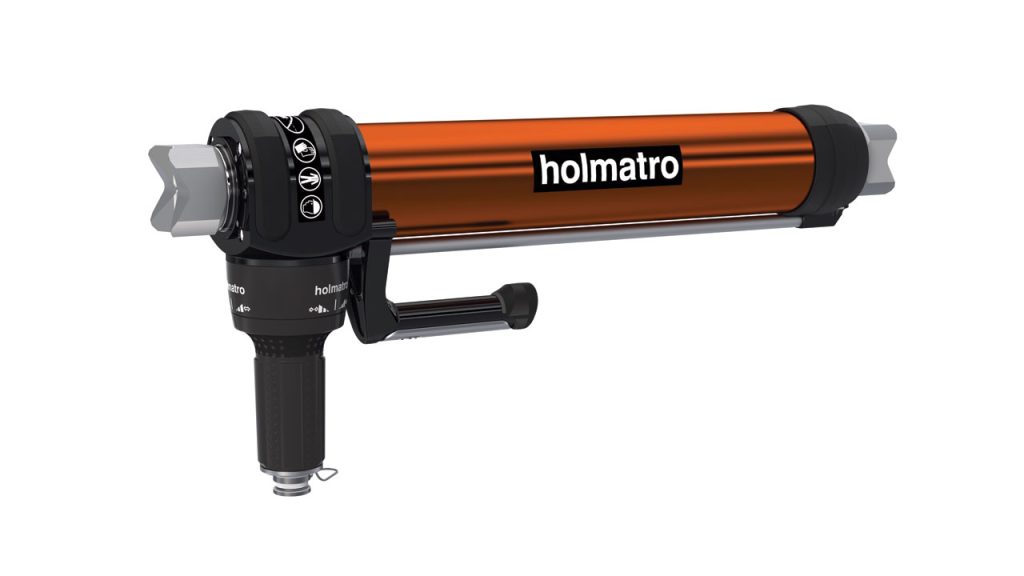

Telescopic Ram TR 5370 LP
Features & benefits
- Lighter than ever, thanks to new materials, component integration and smart design. Easier to carry and handle, reducing physical strain.
About the Telescopic Ram TR 5370 LP
Specifications
Details
Article number
150.032.100
Basic specifications
model
TR 5370 LP
equipped with (connector type)
CORE
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
max. spreading force 1st plunger
51931 lbf
max. spreading force 2nd plunger
24954 lbf
spreading stroke 1st plunger
450 mm
spreading stroke 1st plunger
17.7 in
spreading stroke 2nd plunger
425 mm
spreading stroke 2nd plunger
16.7 in
total spreading stroke
875 mm
total spreading stroke
34.5 in
retracted length
635 mm
retracted length
25 in
extended length
1510 mm
extended length
59.5 in
max. spreading force 1st plunger
231 / 23.6 (kN/t)
max. spreading force 2nd plunger
111 / 11.3 (kN/t)
General specifications
number of plungers
2
Dimensions, weight and temperature

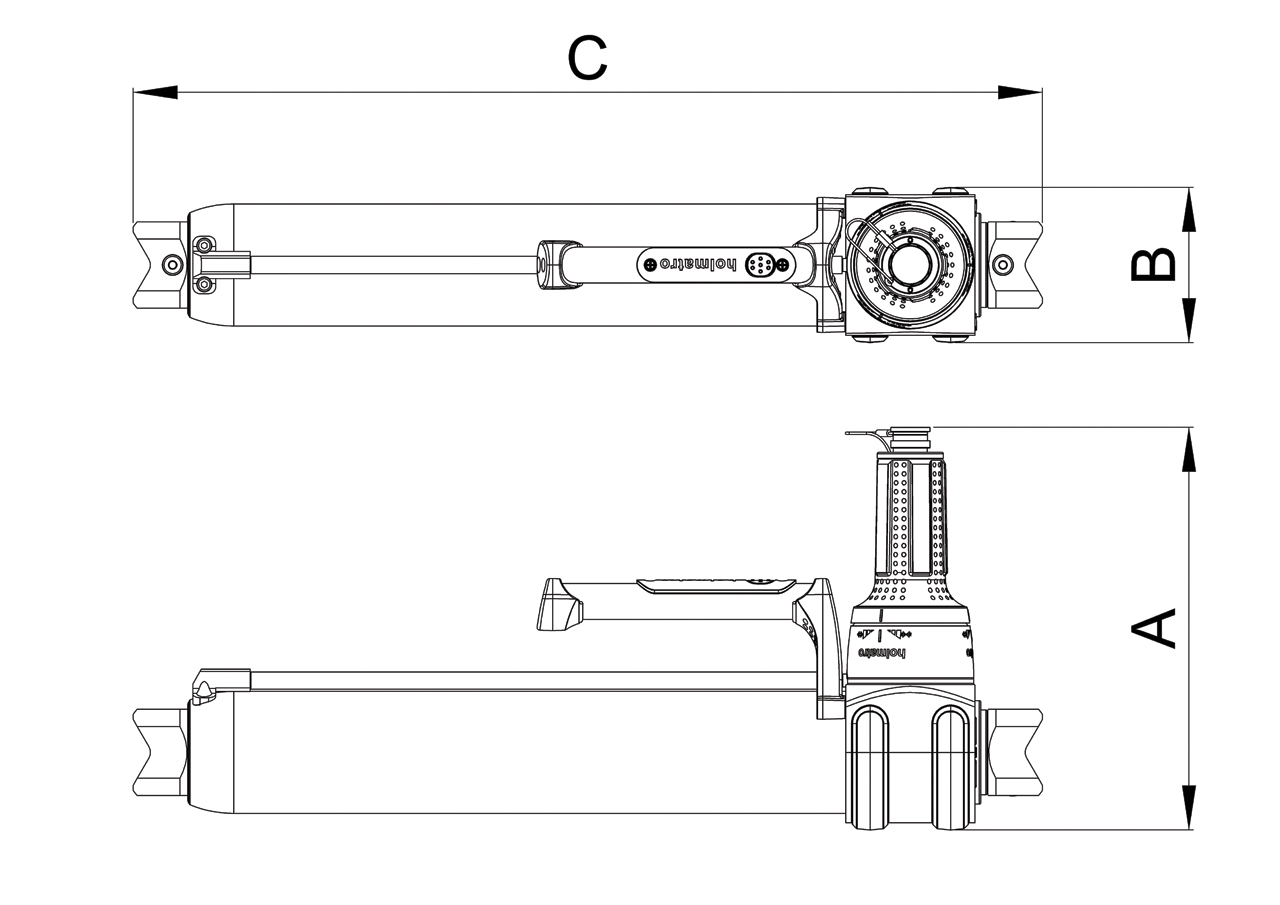

dimensions (AxBxC)
281 x 109 x 635 mm
dimensions (AxBxC)
11.1 x 4.3 x 25 in
weight (without hose)
16.9 kg
weight (without hose)
37.3 lb
weight, ready for use (EN13204:2025 & NFPA1960)
18.1 kg
weight, ready for use (EN13204:2025 & NFPA1960)
39.9 lb
Norms
EN 13204 classification
TR231/450-111/425-16.9
NFPA 1960 compliant
yes
EN 13204 compliant
yes
NFPA 1960, HSF
51931 lbf
NFPA 1960, HSF
231 / 23.6 (kN/t)
NFPA 1960, LSF
24954 lbf
NFPA 1960, LSF
111 / 11.3 (kN/t)
EN 13204 2025 Ed classification
TR-231/450-111/425
Features
Limited weight
- Lighter than ever, thanks to new materials, component integration and smart design. Easier to carry and handle, reducing physical strain.
Increased performance
- More spreading force in 2nd stage, where you need it the most, and more length to expand your extrication options

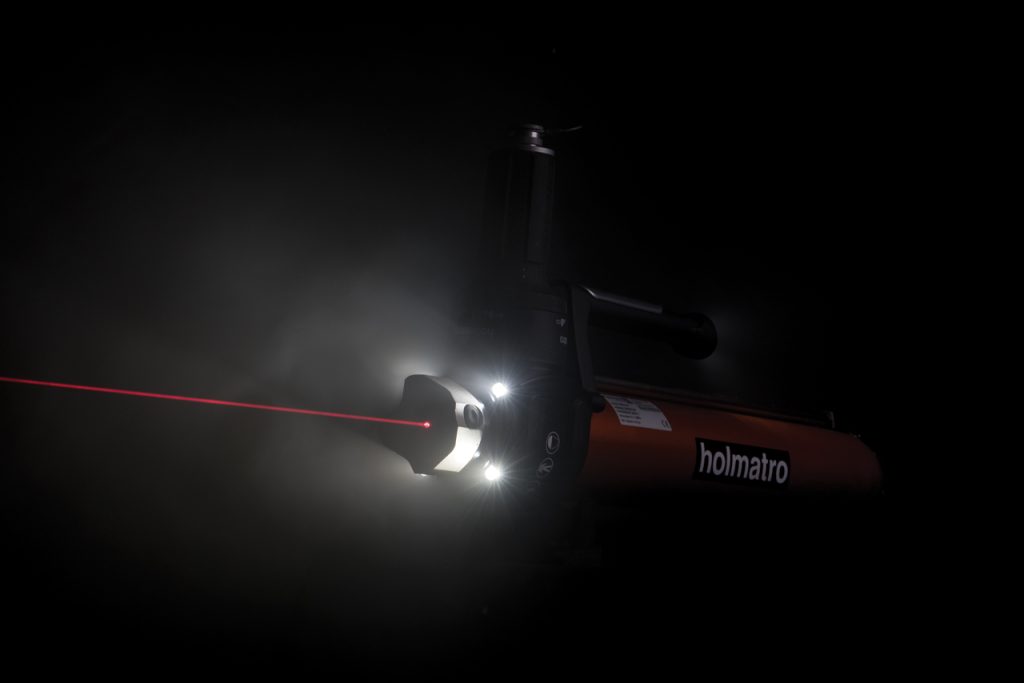

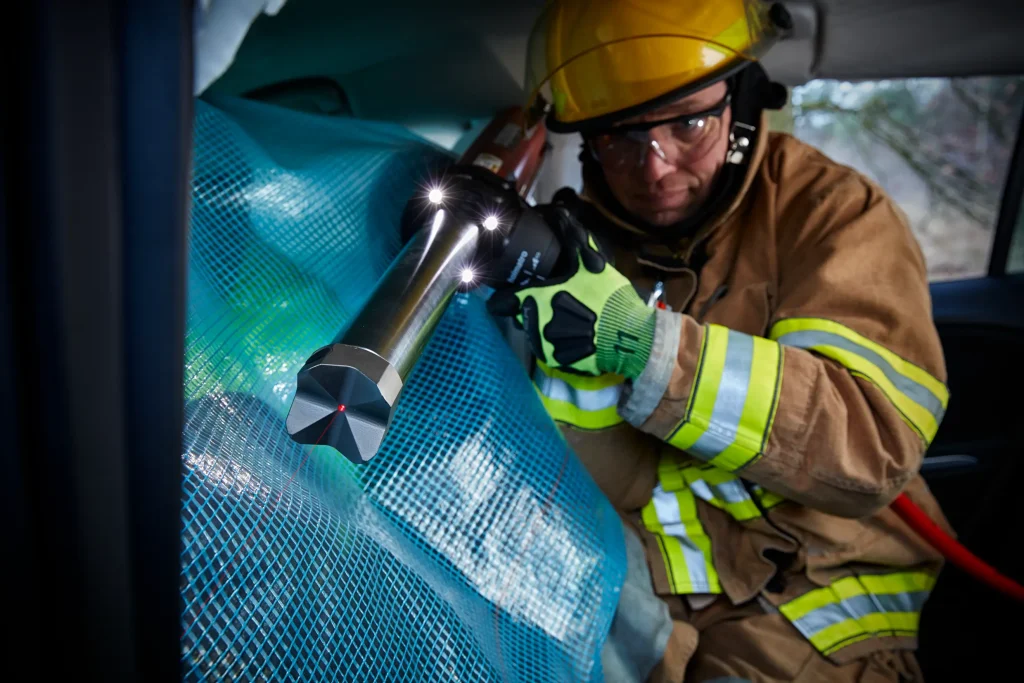

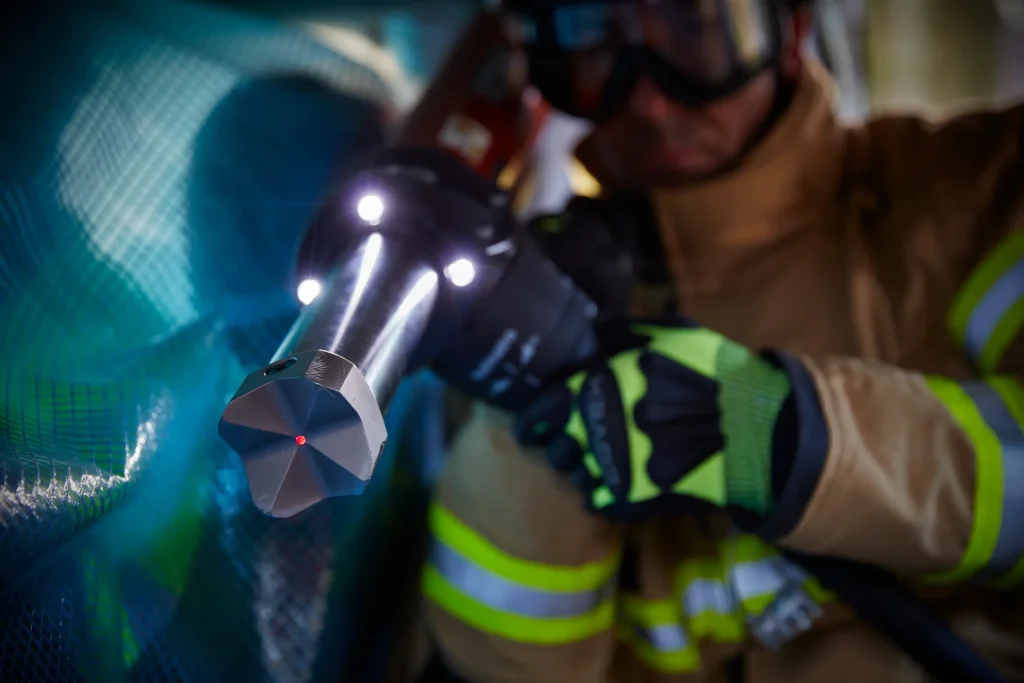

Integrated laser pointer in ram head
- Marks the exact spot where the ram will touch the object after extension
- Enables first-time-right positioning, which saves time and is safer for the patient

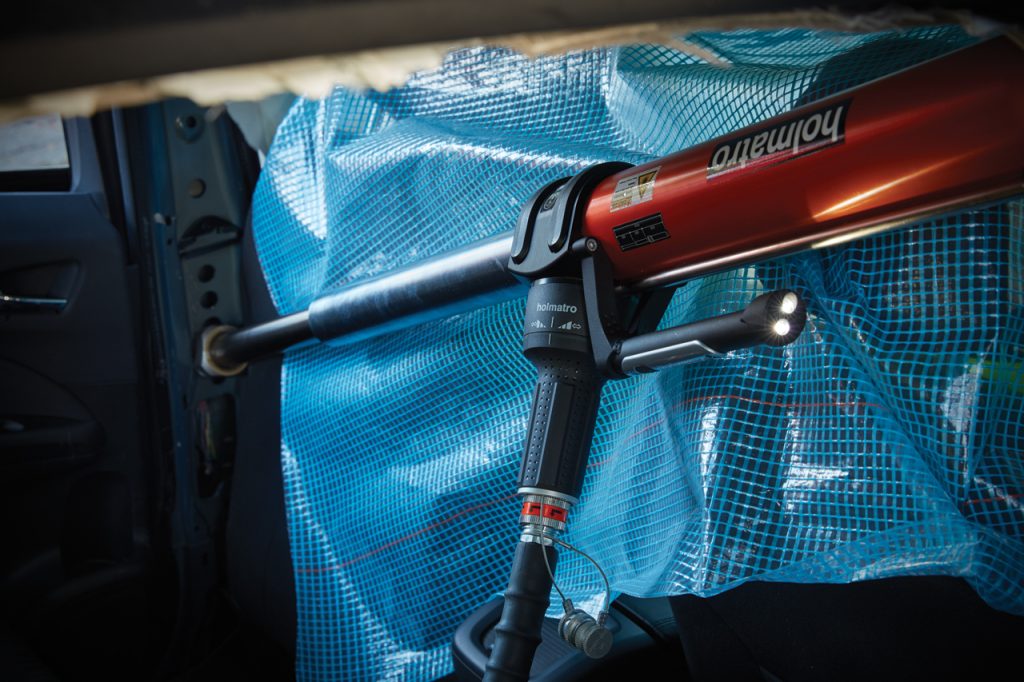

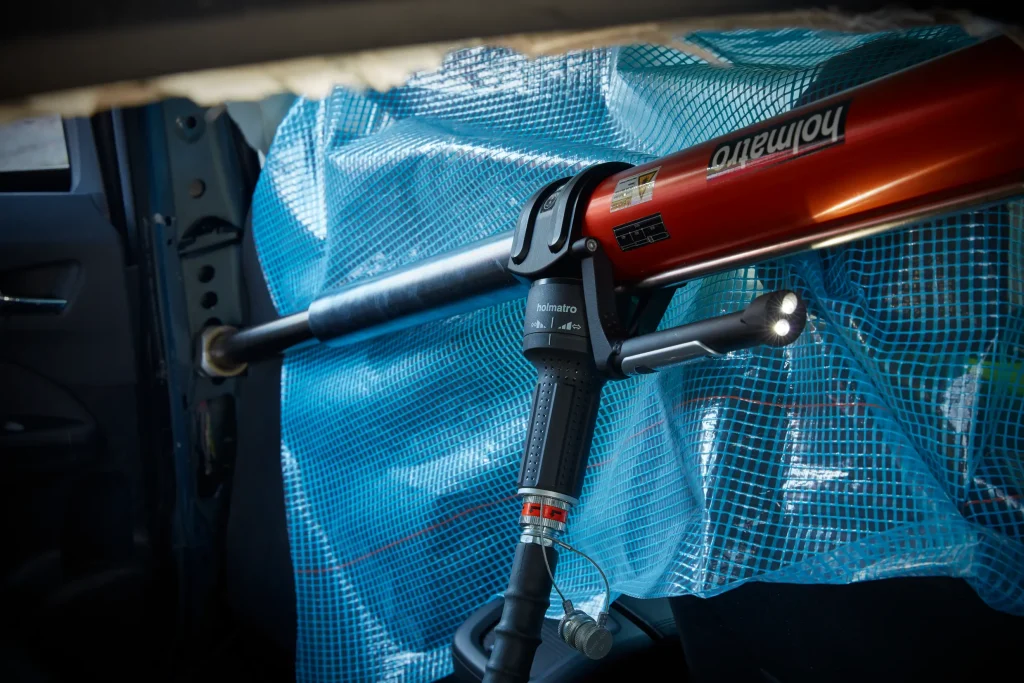

Integrated LED lighting
- Illumination of both the plunger and the base side of the ram (6 LED lights in total)
- You can start right away, both during the day and at night, without working in your own shadow

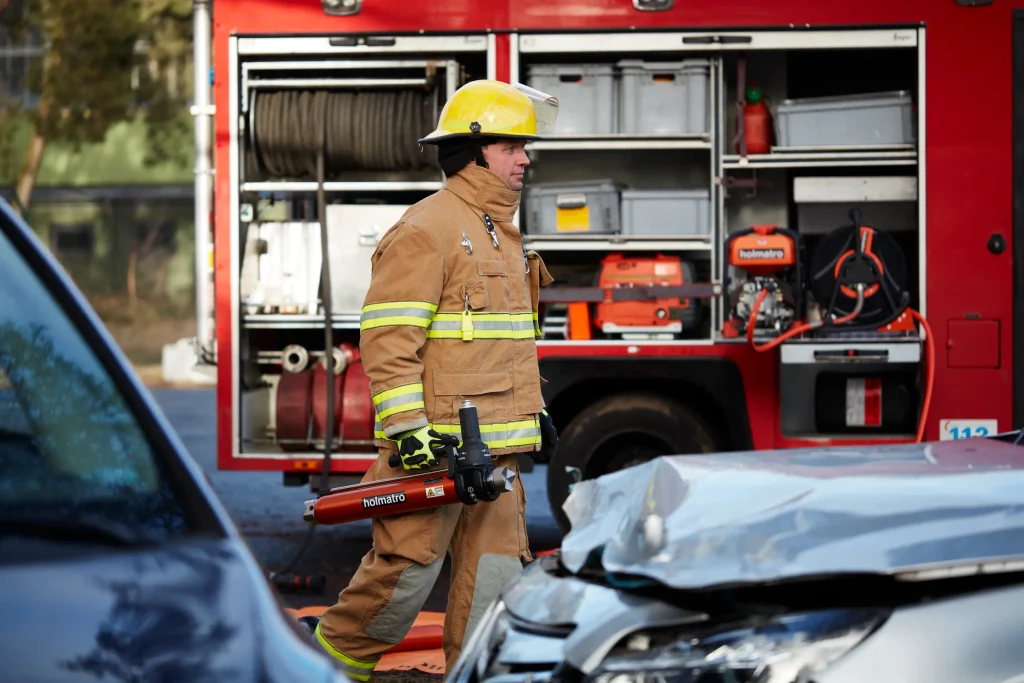

Ergonomic carrying handle
- New handle design for easy carrying: tool remains in balance
- Mounted parallel to tool to limit dimensions
Built-in Speed Valve
- When unloaded, the plunger extends quickly to the desired distance to speed up positioning of your ram

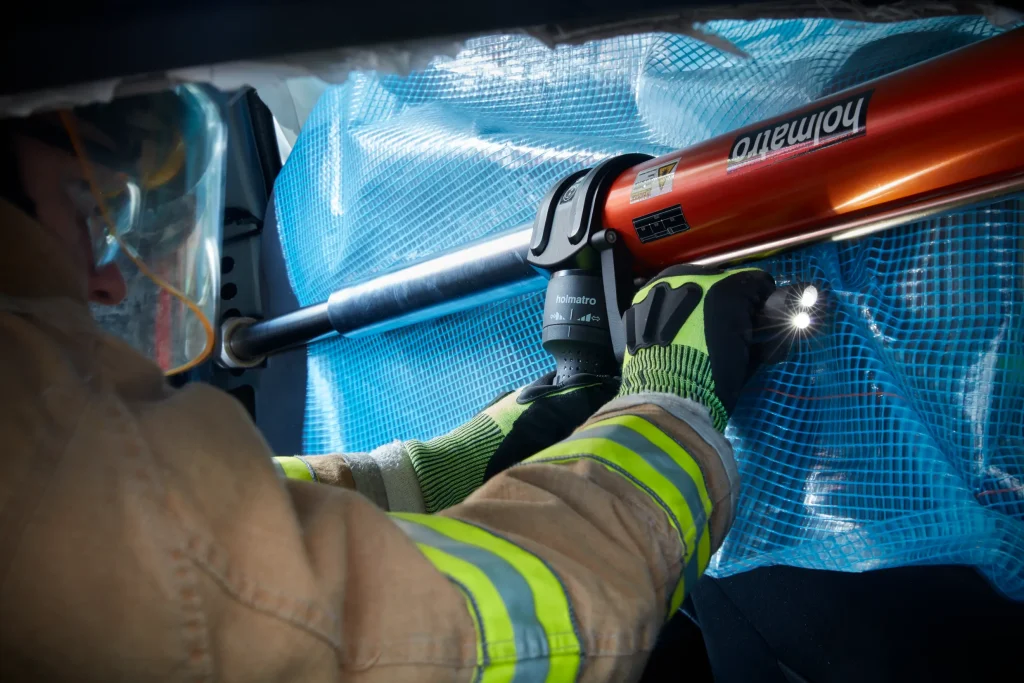

New control handle
- Improved ergonomic design, offering better grip for optimal tool control
